NSN 9520-00-818-1437 P3000, 00-818-1437, 008181437
Product Details | STRUCTURAL CHANNEL
9520-00-818-1437 A structural shape fabricated from a ferrous or nonferrous material and has a flange extending usually at right angles in the same direction from each edge of a web and/or resembling the letter U in cross-sectional form.2032590000095200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: P3000, 9520-00-818-1437, 00-818-1437, 9520008181437, 008181437
Metal Bars, Sheets, and Shapes | Structural Shapes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 01 JAN 1960 | 00-818-1437 | 37019 ( CHANNEL, STRUCTURAL ) |

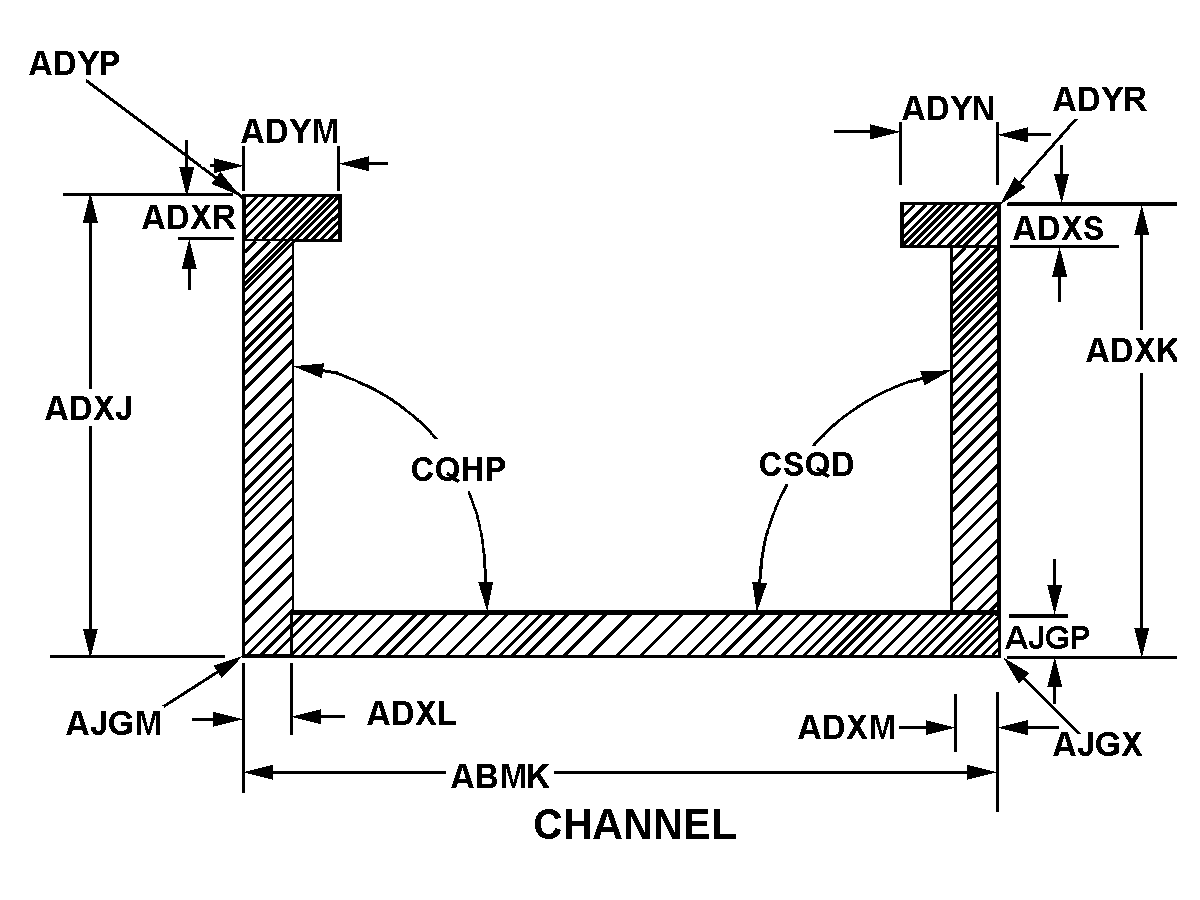

Drawings & Photos | NSN 9520-00-818-1437
Demand History | NSN 9520-00-818-1437
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9520-00-818-1437 | 2015-11-320 | 382 | DIBBS |
| 9520-00-818-1437 | 2014-04-98 | 414 | DIBBS |
Cross Reference | NSN 9520-00-818-1437
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P3000 | 96195 | UNISTRUT INTERNATIONAL CORPORATION DBA UNISTRUT DIVERSIFIED PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9520-00-818-1437
Related Products | NSN 9520-00-818-1437
Technical Data | NSN 9520-00-818-1437
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FABRICATION METHOD | COLD ROLLED |
| LENGTH | 10.000 FEET MINIMUM AND 20.000 FEET MAXIMUM |
| BASIC SHAPE STYLE | F22 CHANNEL |
| OVERALL WIDTH | 1.625 INCHES NOMINAL |
| LEFT SIDE FLANGE HEIGHT | 1.375 INCHES NOMINAL |
| RIGHT SIDE FLANGE HEIGHT | 1.375 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.105 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.105 INCHES NOMINAL |
| LEFT SIDE TOP FLANGE THICKNESS | 0.105 INCHES NOMINAL |
| RIGHT SIDE TOP FLANGE THICKNESS | 0.105 INCHES NOMINAL |
| LEFT SIDE TOP FLANGE WIDTH | 0.375 INCHES NOMINAL |
| RIGHT SIDE TOP FLANGE WIDTH | 0.375 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.105 INCHES NOMINAL |
| LEFT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| FIRST TIP STYLE | 4 UPPER RADIUS |
| SECOND TIP RELATIONSHIP TO FIRST TIP | IDENTICAL |
| WEIGHT PER UNIT MEASURE | 1.800 POUNDS PER LINEAR FOOT |
| SPECIAL FEATURES | INTURNED PYRAMID SHAPED CLAMPING RIDGES EACH SIDE |
Restrictions/Controls & Freight Information | NSN 9520-00-818-1437
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 104850 | CHANNELS I/S NOI |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9520-00-818-1437
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
