Product Details | STRUCTURAL CHANNEL
9540-01-251-1023 A structural shape fabricated from a ferrous or nonferrous material and has a flange extending usually at right angles in the same direction from each edge of a web and/or resembling the letter U in cross-sectional form.2032590000095200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: 10549073, 9540-01-251-1023, 01-251-1023, 9540012511023, 012511023
Metal Bars, Sheets, and Shapes | Structural Shapes, Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 12 MAR 1987 | 01-251-1023 | 37019 ( CHANNEL, STRUCTURAL ) |
Drawings & Photos | NSN 9540-01-251-1023
Cross Reference | NSN 9540-01-251-1023
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10549073 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9540-01-251-1023
Technical Data | NSN 9540-01-251-1023
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-200/9 |
| FABRICATION METHOD | ANY ACCEPTABLE |
| SURFACE TREATMENT | ENAMEL |
| HEAT TREATMENT | T-5 SOLUTION HEAT TREATED |
| LENGTH | 0.406 FEET NOMINAL |
| BASIC SHAPE STYLE | F1 CHANNEL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| LEFT SIDE FLANGE HEIGHT | 0.281 INCHES NOMINAL |
| RIGHT SIDE FLANGE HEIGHT | 0.281 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| LEFT INSIDE ANGLE | 45.0 DEGREES NOMINAL |
| RIGHT INSIDE ANGLE | 45.0 DEGREES NOMINAL |

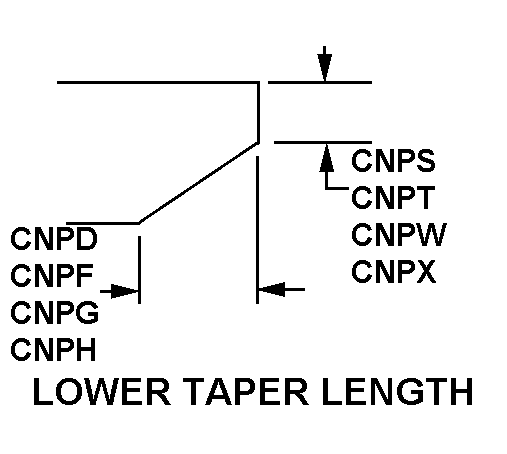

| FIRST TIP STYLE | 17 LOWER TAPER LENGTH |
| FIRST TIP TAPER LENGTH | 0.156 INCHES NOMINAL |
| FIRST TIP THICKNESS | 0.125 INCHES NOMINAL |
| SECOND TIP RELATIONSHIP TO FIRST TIP | IDENTICAL |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 10549073 |
