NSN 9905-00-752-4649 M43436/1-1, M4343611, HCF1680

Product Details | MARKER BAND

9905-00-752-4649 An item cut to a specific length suitable for wrapping around a cable, pipe, wire, wire rope and the like. It is secured by crimping, slot and tongue, or similar method of fastening. It is intended to provide identification. It may be blank, specifically color coded, or inscribed with information. Excludes TAG, MARKER.

Part Alternates: M43436/1-1, M4343611, HCF1680, KC9407, TC151465, TC15-1465, MIL-B-43436/1-1, MIL-B-43436/1-1 TY1, MILB4343611, MILB4343611TY1, T1, 2701, 5939707, 7524649, 801692, 99242R1, 9905-00-752-4649, 00-752-4649, 9905007524649 , 007524649

Miscellaneous | Signs, Advertising Displays, and Identification Plates

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
99	01 JAN 1962	00-752-4649	30536 ( BAND, MARKER )

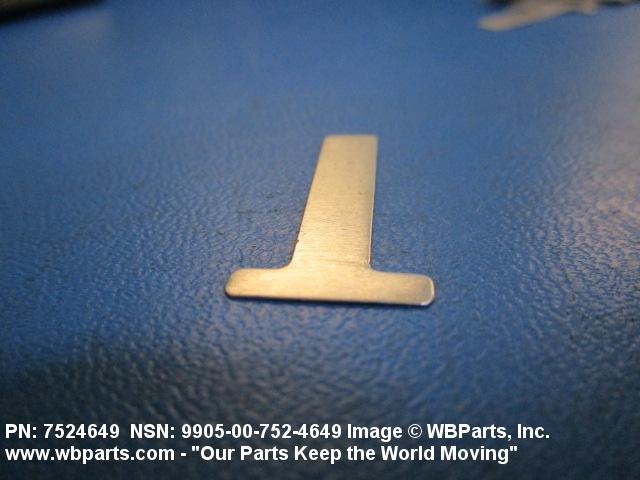

Drawings & Photos | NSN 9905-00-752-4649

Part Number	Request Date	QTY	Origin
2701	2025-11-324	100	us
M4343611	2025-01-13	5390	US
M4343611	2023-04-118	54	United States
9905-00-752-4649	2021-09-267	25	United States
9905-00-752-4649	2021-09-267	25	United States
9905-00-752-4649	2020-02-49	180	US
M4343611	2019-06-165	24	Brazil
9905-00-752-4649	2018-12-354	25	DIBBS-KIT
9905-00-752-4649	2018-12-353	4	DIBBS-KIT
M43436/1-1	2018-12-353	4
M43436/1-1	2018-12-353	25
9905-00-752-4649	2018-09-270	36	US
9905-00-752-4649	2018-02-36	300	Thailand
9905-00-752-4649	2018-02-35	300	Thailand
9905-00-752-4649	2017-01-16	100	US
M4343611	2017-01-09	100	United States
9905-00-752-4649	2012-07-213	700	US
M4343611	2012-06-159	2530	US
9905-00-752-4649	2010-08-224	6200	US
M4343611	2009-07-203	2268	US

Cross Reference | NSN 9905-00-752-4649

Part Number	Cage Code	Manufacturer
2701	85611	KEYES-DAVIS COMPANY, THE
5939707	24617	GENERAL MOTORS CORP
5939707	73331	GENERAL MOTORS CORP FISHER GUIDE DIV
7524649	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
801692	24617	GENERAL MOTORS CORP
801692	34623	AM GENERAL, LLC
99242R1	34623	AM GENERAL, LLC
HCF1680	40152	VME AMERICAS INC SUB OF VME GROUP N V
KC9407	56442	DIAMOND REO TRUCK CO
M43436/1-1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-B-43436/1-1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-B-43436/1-1 TY1	80244	GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE
T1	85611	KEYES-DAVIS COMPANY, THE
TC15-1465	03677	ANTHONY YORK CO

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 9905-00-752-4649

Compare

Related Products | NSN 9905-00-752-4649

9905-00-752-6740, 9905-00-752-8064, 9905-00-753-5282, 9905-00-753-6880, 9905-00-753-8792

Technical Data | NSN 9905-00-752-4649

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-250/1, ALLOY 1100, 0 FED SPEC SINGLE MATERIAL RESPONSE
COLOR	ALUMINUM, NATURAL OVERALL
STYLE DESIGNATOR	A7 WRAP-AROUND W/SINGLE LIP

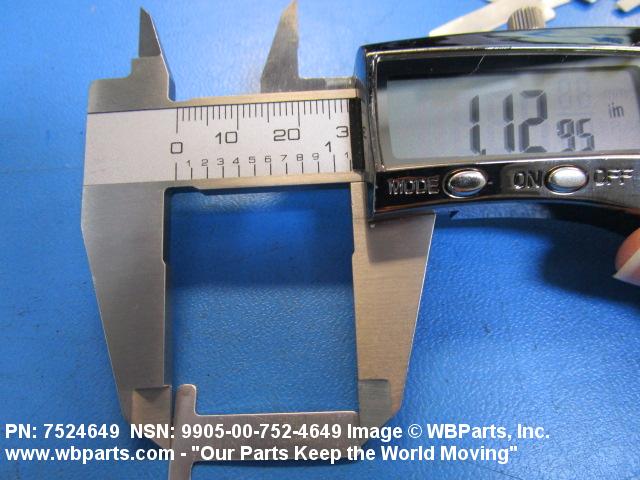

OVERALL LENGTH	1.125 INCHES NOMINAL

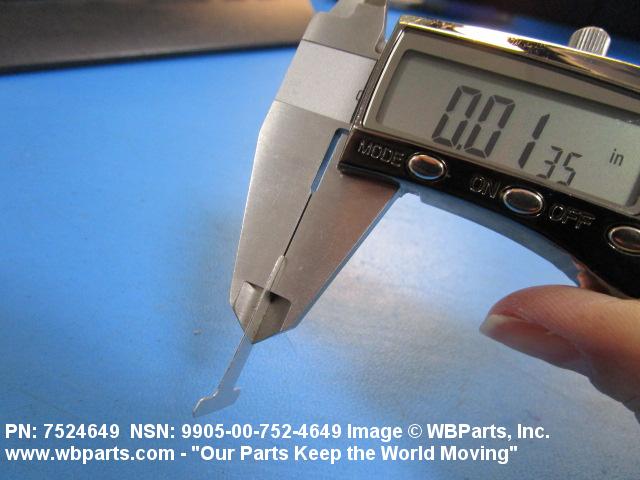

THICKNESS	0.013 INCHES NOMINAL
BODY LENGTH	0.125 INCHES NOMINAL
BODY WIDTH	0.625 INCHES NOMINAL
NONDEFINITIVE SPEC/STD DATA	1 TYPE
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-B-43436/1-1
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M43436/1-1

Restrictions/Controls & Freight Information | NSN 9905-00-752-4649

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013120	ALUMINUM ARTICLE NOI SUB 6
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 9905-00-752-4649

Category	Code	Description
Materiel Category and Inventory Manager	E	General Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	0	GSA MaterielItems cataloged by the Marine Corps and managed by the General Services Administration.
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Cognizance Codes	9Q	Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
