NSN 1005-00-716-1840 7161840, 00-716-1840, 007161840
Product Details | SMALL ARMS FIRING HAMMER
1005-00-716-1840 A metallic pivoted item, part of the firing mechanism of a firearm, designed to strike a firing pin or percussion cap and fire a gun.
Part Alternates: 7161840, 1005-00-716-1840, 00-716-1840, 1005007161840, 007161840
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 01 JAN 1963 | 00-716-1840 | 22373 ( HAMMER, FIRING, SMALL ARMS ) |
Drawings & Photos | NSN 1005-00-716-1840
Cross Reference | NSN 1005-00-716-1840
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7161840 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1005-00-716-1840
Related Products | NSN 1005-00-716-1840
Technical Data | NSN 1005-00-716-1840
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-624, COMP 8620-CANCELED |

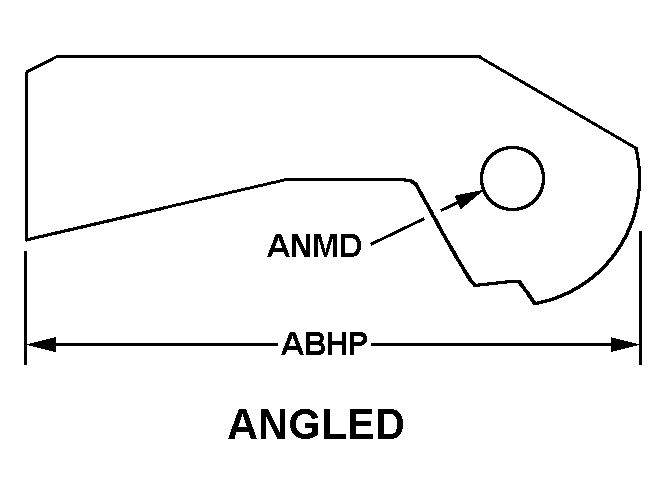

| STYLE DESIGNATOR | B3 ANGLED |
| OVERALL LENGTH | 1.816 INCHES MINIMUM AND 1.830 INCHES MAXIMUM |
| PIVOT HOLE DIAMETER | 0.161 INCHES MINIMUM AND 0.163 INCHES MAXIMUM |
| III WEAPON SIZE DESIGNATION | CAL. 0.30 |
| III WEAPON MODEL NUMBER | M2 |
| III FSC APPLICATION DATA | CARBINE,CAL..30 |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 7161840 |
Restrictions/Controls & Freight Information | NSN 1005-00-716-1840
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | C | Munitions List Item or Commerce Control List Item. Demilitarization required. Remove and/or demilitarize installed key point(s) as prescribed in the Defense Demilitarization Manual, or lethal parts, components and accessories. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069300 | FIREARMS/PARTS NOI IN BOXES |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 681 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | W | Any material not otherwise specified that may require special handling with special instructions identified in the DI T_9 trailer data. Primarily used with Channel Airlift 463-L pallets. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 4 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
