NSN 1640-00-274-3481 002743481
Product Details | WIRE ROPE
1640-00-274-3481 Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications.
Part Alternates: 002743481
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-274-3481 | 30295 ( ROPE, WIRE ) |
Drawings & Photos | NSN 1640-00-274-3481
Demand History | NSN 1640-00-274-3481
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| RRW410 | 2025-09-269 | 500 | us |
| 1640-00-274-3481 | 2010-09-247 | 57 | DIBBS |
| 1640-00-274-3481 | 2010-07-202 | 4 | DIBBS |
| 1640-00-274-3481 | 2010-05-145 | 2 | DIBBS |
| 1640-00-274-3481 | 2010-04-113 | 1 | DIBBS |
| 1640-00-274-3481 | 2008-01-08 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1640-00-274-3481
Technical Data | NSN 1640-00-274-3481
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING CORE STEEL CORROSION RESISTING STRAND |
| CORE CONSTRUCTION | INDEPENDENT WIRE ROPE |

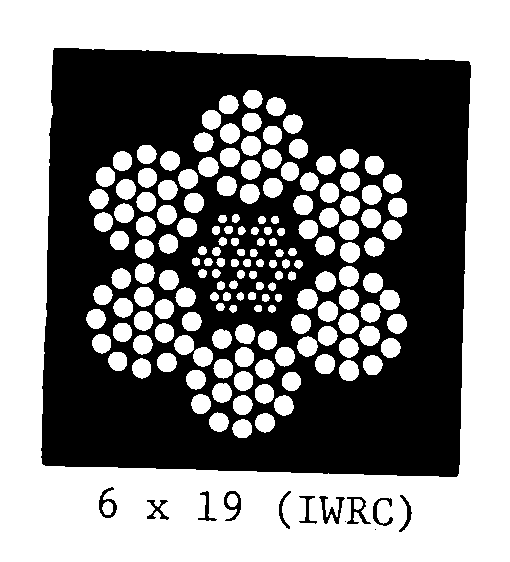

| STYLE DESIGNATOR | A57 6 X 19 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 1000.000 FEET NOMINAL |
| DIAMETER | 0.438 INCHES NOMINAL ROPE |
| BREAKING STRENGTH | 16300.000 POUNDS MINIMUM |
| III END ITEM IDENTIFICATION | GENRAL PURPOSE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RR-W-410 |
Restrictions/Controls & Freight Information | NSN 1640-00-274-3481
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
