NSN 1640-00-277-1123 002771123
Product Details | GROOVE PULLEY
1640-00-277-1123 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 002771123
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-277-1123 | 08109 ( PULLEY, GROOVE ) |

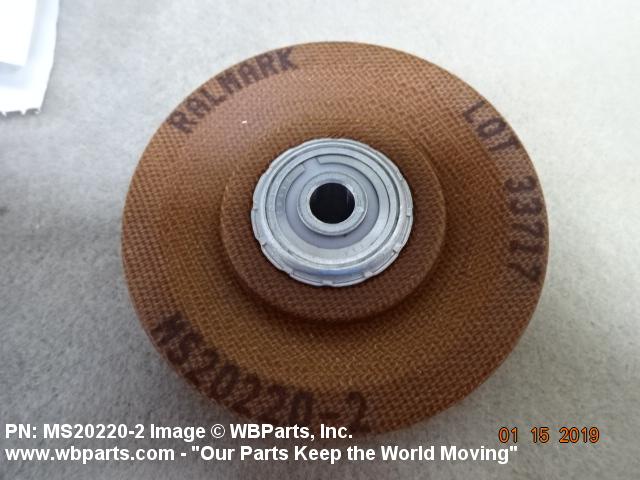

Drawings & Photos | NSN 1640-00-277-1123
Demand History | NSN 1640-00-277-1123
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS202202 | 2025-08-234 | 350 | US |
| MS202202 | 2025-01-02 | 4 | us |
| MS202202 | 2023-04-104 | 2 | South Africa |
| MS202202 | 2023-03-75 | 5 | US |
| MS202202 | 2022-11-332 | 5 | United States |
| MS202202 | 2022-11-325 | 4 | US |
| MS202202 | 2022-09-252 | 25 | United States |
| MS202202 | 2022-09-252 | 50 | United States |
| MS202202 | 2022-09-252 | 100 | United States |
| MS202202 | 2022-09-252 | 250 | United States |
| MS202202 | 2022-08-213 | 45 | United States |
| MS202202 | 2022-06-168 | 100 | United States |
| MS202202 | 2022-06-167 | 100 | United States |
| MS202202 | 2021-11-322 | 39 | United States |
| MS20220-2 | 2020-03-63 | 9 | US |
| MS20220-2 | 2020-02-57 | 9 | US |
| MS202202 | 2017-02-52 | 4 | us |
| MS202202 | 2015-07-195 | 10 | Ecuador |
| MS202202 | 2015-04-120 | 30 | Ecuador |
| MS202202 | 2014-05-128 | 2 | United States |
| MS202202 | 2014-05-128 | 2 | United States |
| MS202202 | 2014-03-78 | 6 | US |
| MS20220-2 | 2012-11-310 | 19 | |
| 1640-00-277-1123 | 2012-09-269 | 5 | Malaysia |
| AN2202 | 2012-09-269 | 5 | Malaysia |
| AN220-2 | 2012-04-115 | 7 | IN |
| 9453107112 | 2012-02-41 | 10 | US |
| MS202202 | 2011-12-349 | 100 | US |
| 1640-00-277-1123 | 2010-12-360 | 200 | US |
| 1640-00-277-1123 | 2010-12-336 | 4 | CA |
| 1640-00-277-1123 | 2010-08-218 | 2192 | DIBBS |
| 1640-00-277-1123 | 2010-07-211 | 1390 | DIBBS |
| 1640-00-277-1123 | 2010-07-182 | 802 | DIBBS |
| 1640-00-277-1123 | 2010-03-76 | 465 | DIBBS |
| MS202202 | 2009-12-362 | 10 | US |
| 1640-00-277-1123 | 2009-12-342 | 2809 | DIBBS |
| MS202202 | 2008-06-163 | 40 | US |
| MS202202 | 2007-06-164 | 2 | US |
| NAS37702 | 2006-07-208 | 2 | Austria |
| MS202202 | 2006-01-23 | 150 | PK |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1640-00-277-1123
Related Products | NSN 1640-00-277-1123
Technical Data | NSN 1640-00-277-1123
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A3 PLAIN |

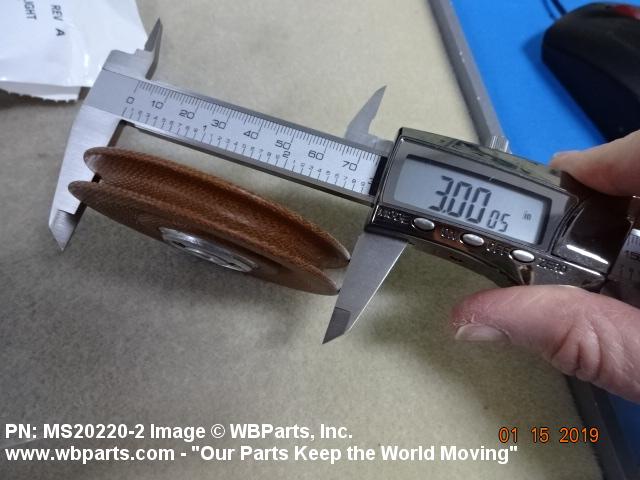

| OUTSIDE DIAMETER | 3.005 INCHES NOMINAL |

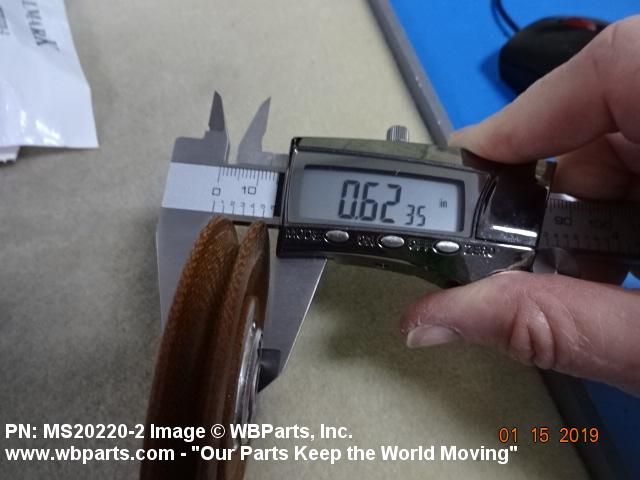

| OVERALL LENGTH | 0.625 INCHES NOMINAL |

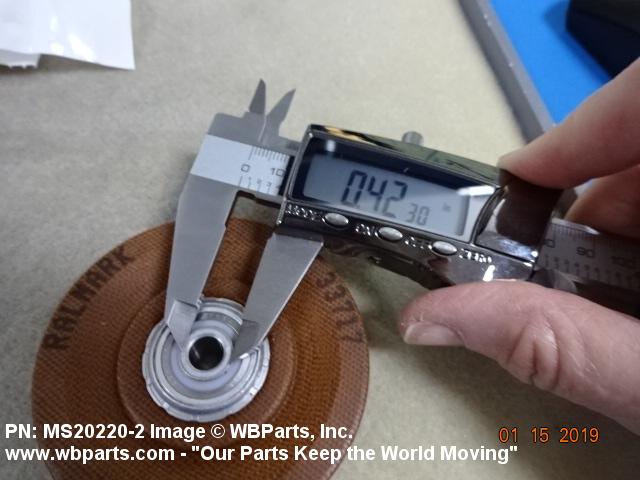

| FACE WIDTH | 0.422 INCHES NOMINAL |
| HUB END OUTSIDE DIAMETER AND LOCATION | 0.515 INCHES NOMINAL BOTH ENDS |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 0.101 INCHES NOMINAL BOTH ENDS |
| DESIGN FORM | PLAIN |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | NOT OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| MATERIAL AND LOCATION | PLASTIC, PHENOLIC OVERALL |
| GROOVE SHAPE | U |
| GROOVE QUANTITY | 1 |
| GROOVE DEPTH | 0.250 INCHES NOMINAL |

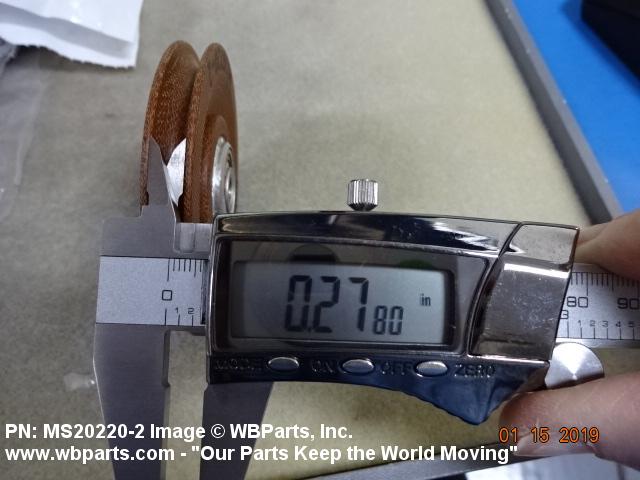

| GROOVE WIDTH | 0.275 INCHES NOMINAL |
| GROOVE RADIUS | 0.097 INCHES NOMINAL |
| BORE FEATURE | INCLUDED |
| BEARINGS | INCLUDED |
| BEARING TYPE | BALL |
| BEARING QUANTITY | 1 |
| BORE TYPE | STRAIGHT |

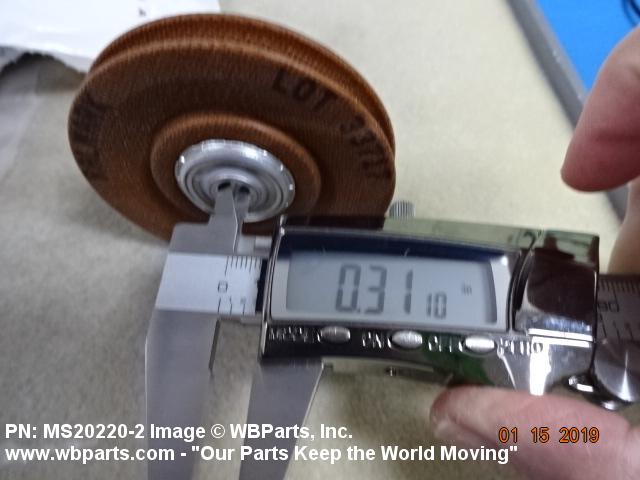

| BORE DIAMETER | 0.3145 INCHES NOMINAL |
| BORE LENGTH | 0.625 INCHES NOMINAL |
| COUNTERBORE FEATURE | NOT INCLUDED |
| KEYING FACILITY | NOT INCLUDED |
| SPLIT HUB FEATURE | NOT INCLUDED |
| SPECIAL FEATURES | IF REQUISITION IS NOT FOR FMS, OVERSEAS SHIPMENTS, NAVAL VESSELS, PRIORITY CODES 1,2,OR 3, OR INDIVIDUAL REQUISITIONS OVER 25000 DOLLARS, THEN DIRECT VENDOR DELIVERY NSN 3020-01-391-0799 IS AVAILABLE AT 15.7% DISCOUNT.;WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | AIRCRAFT, EAGLE F-15 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20220-2 |
Restrictions/Controls & Freight Information | NSN 1640-00-277-1123
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
