NSN 1640-00-277-1130 MS245666B, MS24566-6B, AN2106A
Product Details | GROOVE PULLEY
1640-00-277-1130 An aircraft control cable system item consisting of a pulley with one or more grooved faces or rims of the same diameter.
Part Alternates: MS245666B, MS24566-6B, AN2106A, AN210-6A, AN2106B, AN210-6B, MIL-DTL-7034/4, MILDTL70344, 1640-00-277-1130, 00-277-1130, 1640002771130, 002771130
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-277-1130 | 66957 ( PULLEY, GROOVE, AVIATION ) |

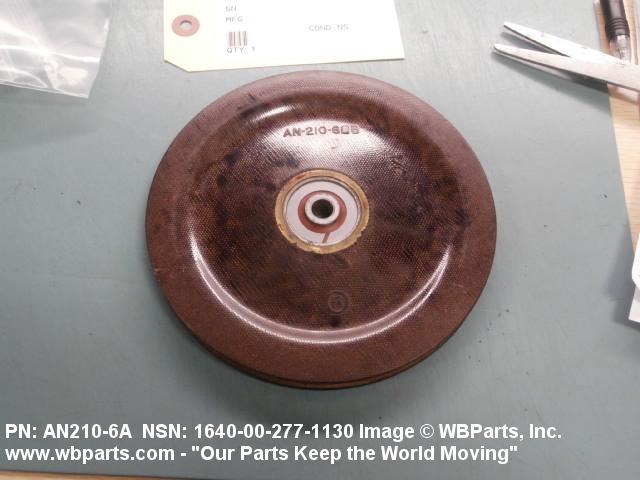

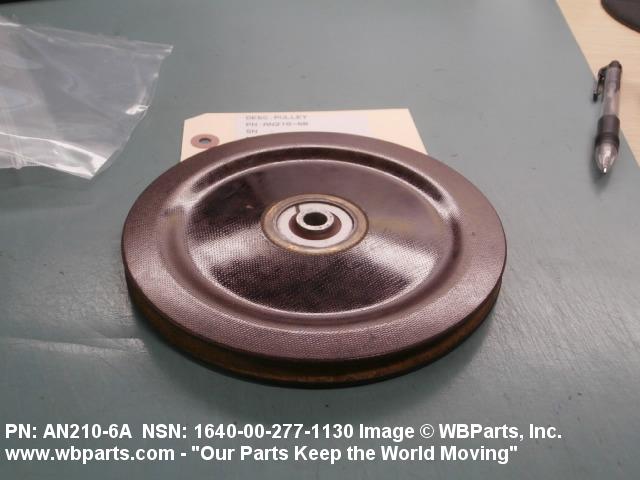

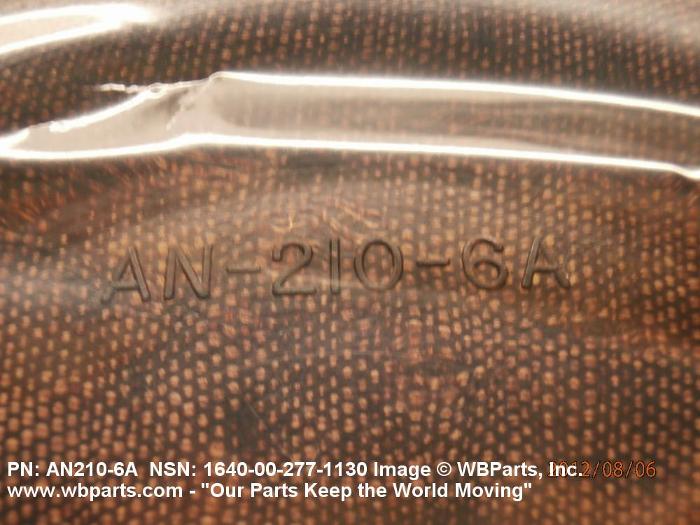

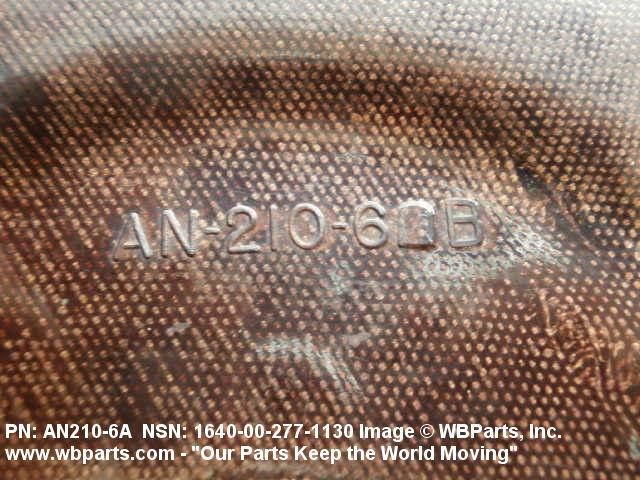

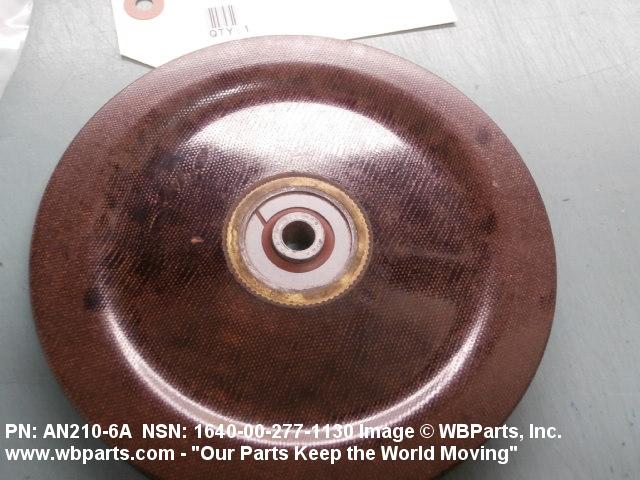

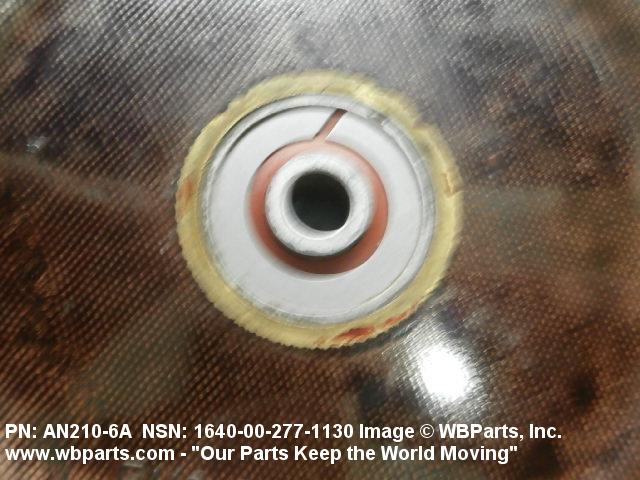

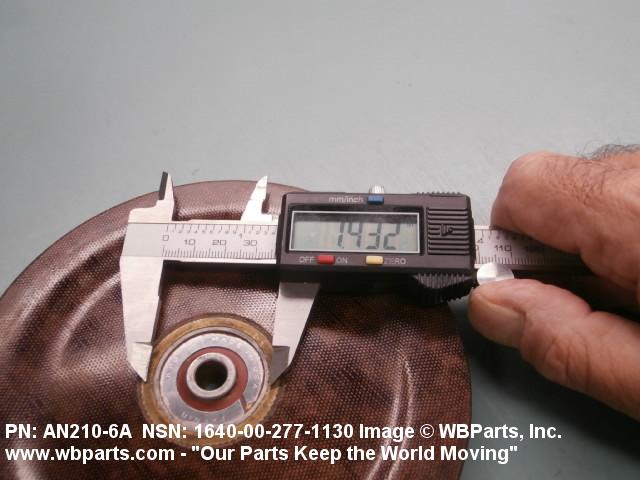

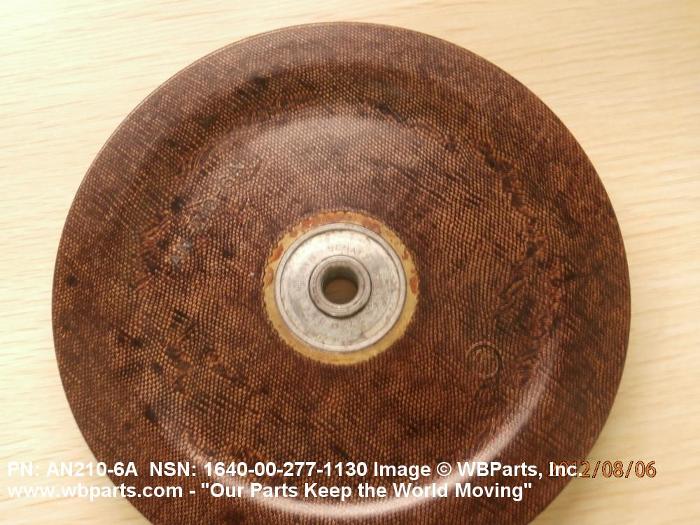

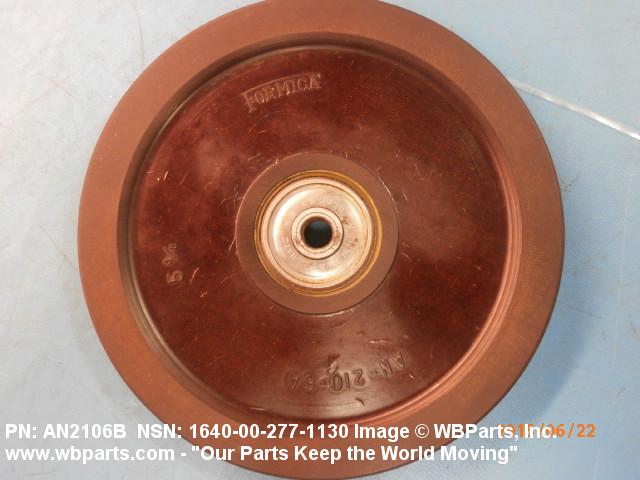

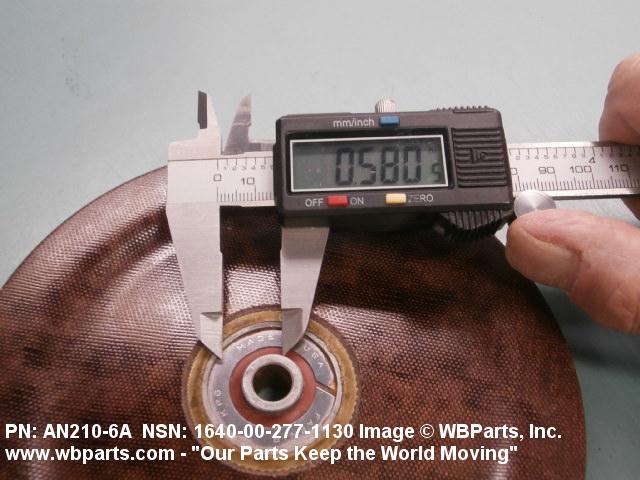

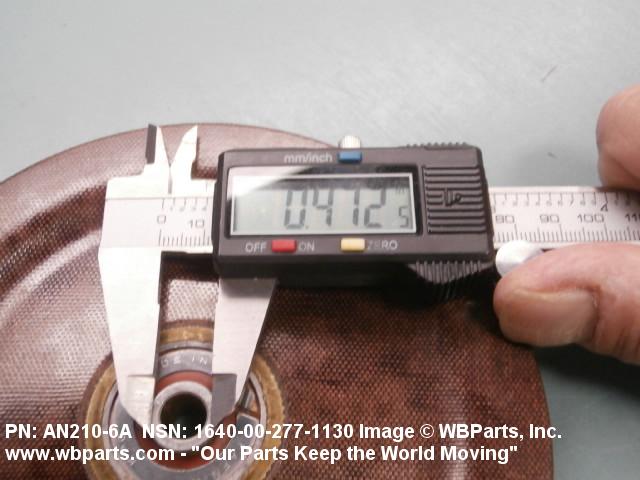

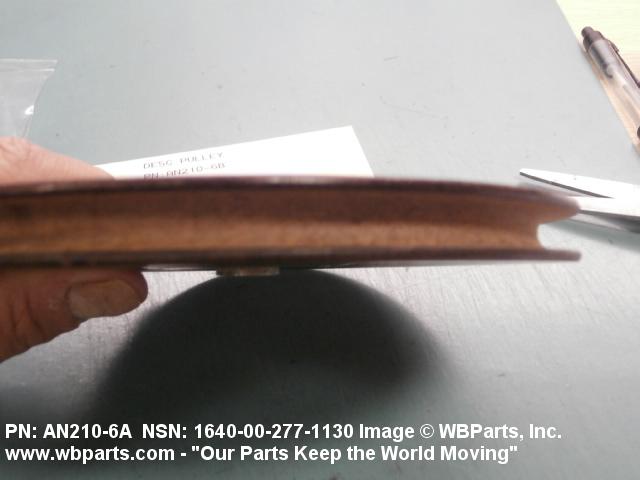

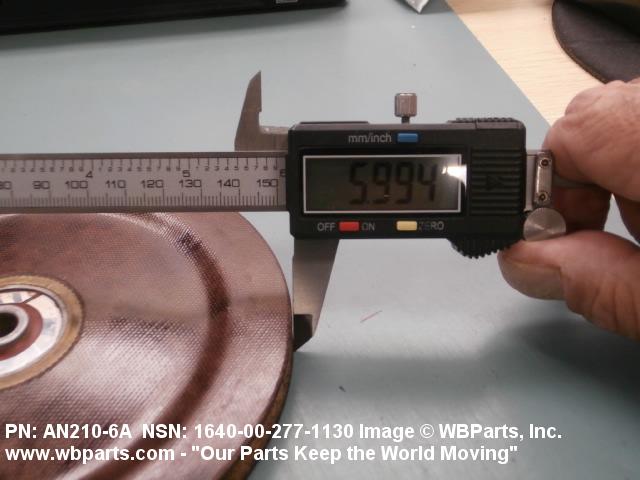

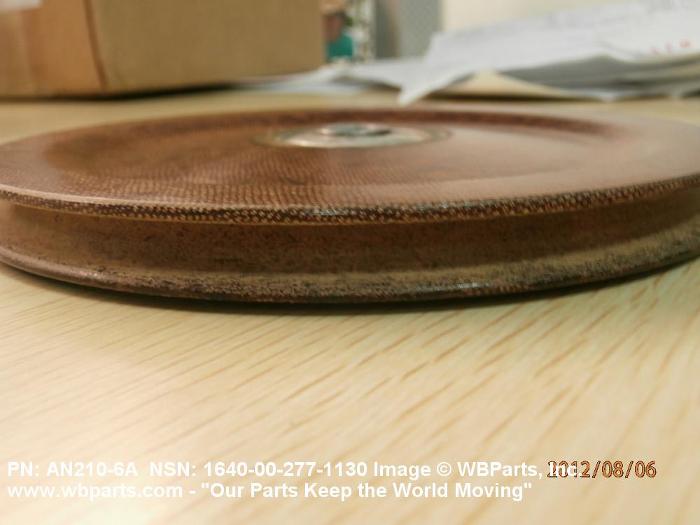

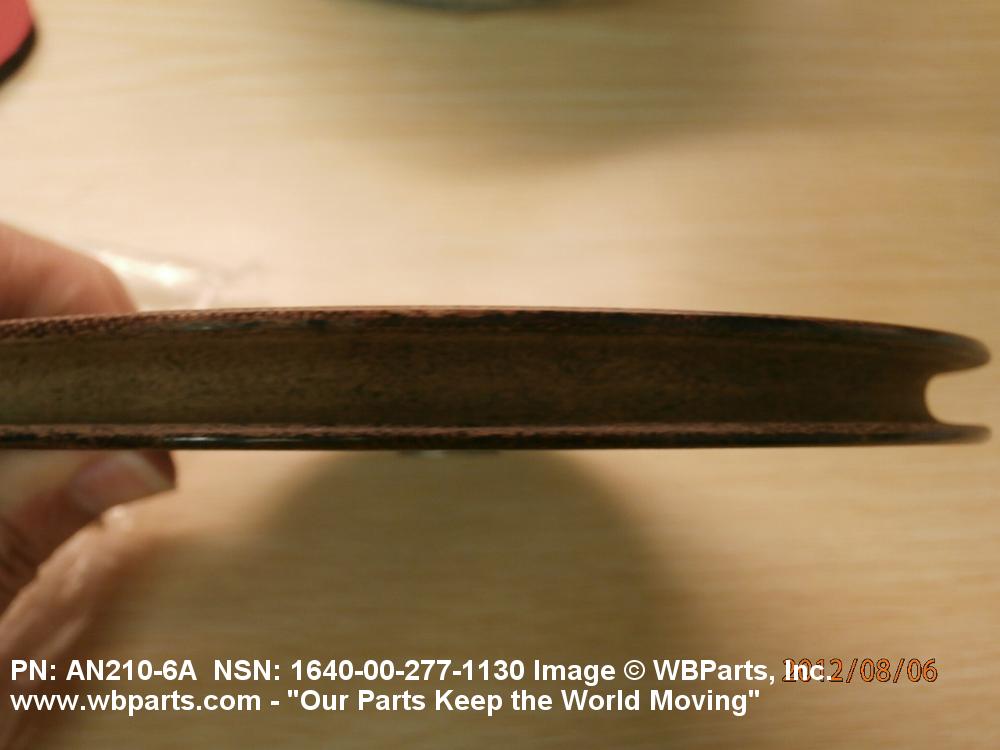

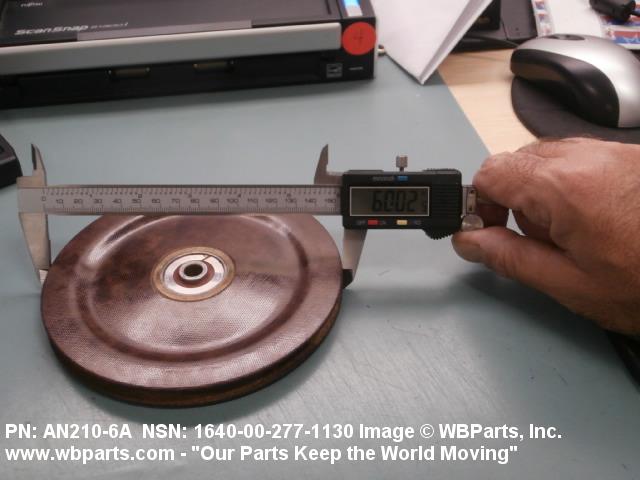

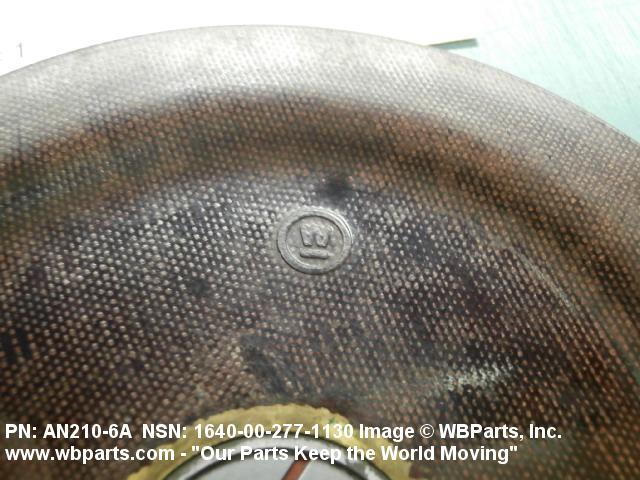

Drawings & Photos | NSN 1640-00-277-1130
Demand History | NSN 1640-00-277-1130
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1640-00-277-1130 | 2019-04-93 | 5 | DIBBS |
| 1640-00-277-1130 | 2019-04-93 | 5 | DIBBS |
| 1640-00-277-1130 | 2015-10-295 | 1 | DIBBS |
| 1640-00-277-1130 | 2015-10-280 | 1 | DIBBS |
| AN2106A | 2015-06-169 | 4 | United States |
| AN2106B | 2015-06-169 | 4 | United States |
| AN2106A | 2015-06-168 | 4 | United States |
| AN2106A | 2014-02-59 | 4 | us |
| MS24566-6B | 2013-08-229 | 10 | Canada |
| AN2106A | 2012-08-214 | 6 | United States |
| 1640-00-277-1130 | 2011-03-82 | 6 | CA |
Cross Reference | NSN 1640-00-277-1130
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN210-6A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN210-6B | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MIL-DTL-7034/4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24566-6B | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MS24566-6B | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
