NSN 1640-00-830-5323 008305323
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
1640-00-830-5323 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: 008305323
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-830-5323 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 1640-00-830-5323
Demand History | NSN 1640-00-830-5323
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1640-00-830-5323 | 2018-11-334 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1640-00-830-5323
Technical Data | NSN 1640-00-830-5323
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL TERMINAL ATTACHMENT FIRST END STEEL WIRE ROPE |
| SURFACE TREATMENT | CADMIUM ALL ATTACHMENTS ZINC WIRE ROPE |
| STYLE DESIGNATOR | A57 6 X 19 |
| OVERALL LENGTH | 215.635 FEET NOMINAL |
| DIAMETER | 0.563 INCHES NOMINAL ROPE |
| END TYPE | LOOP SECOND END |
| LOOP RETENTION METHOD | CLAMP |

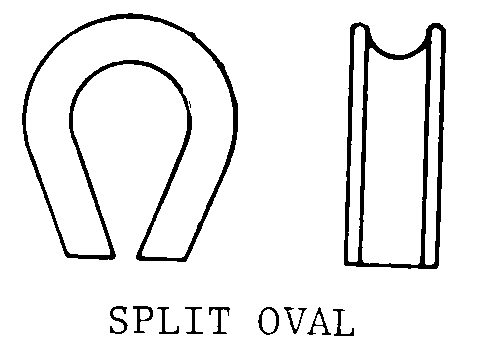

| THIMBLE STYLE | E4 SPLIT OVAL SECOND END |
| THIMBLE QUANTITY | 1 BOTH ENDS |
| LOOP INSIDE LENGTH | 2.750 INCHES NOMINAL SECOND END |
| LOOP INSIDE WIDTH | 1.500 INCHES NOMINAL SECOND END |
| MANUFACTURERS CODE | 3HRL4 |
| DESIGN CONTROL REFERENCE | 4007E298 |
Restrictions/Controls & Freight Information | NSN 1640-00-830-5323
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
