NSN 4010-01-225-9712 012259712
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-01-225-9712 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: 012259712
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01-225-9712 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |

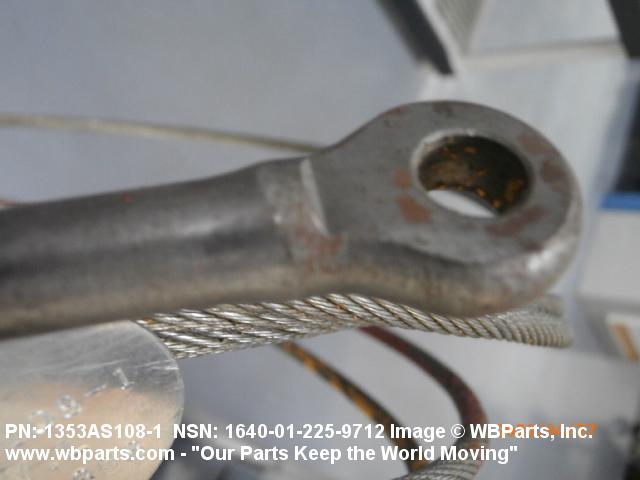

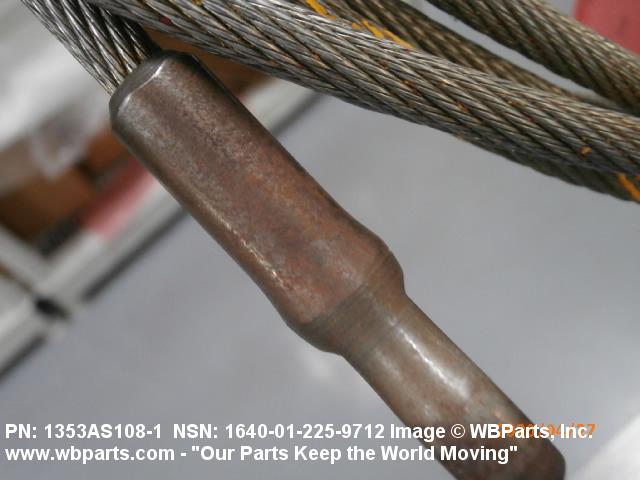

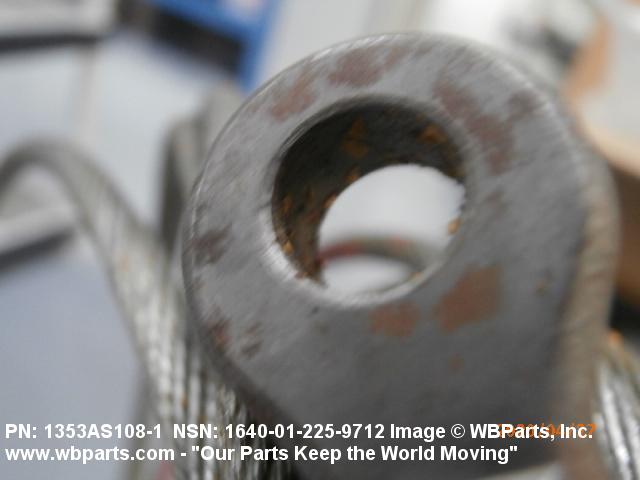

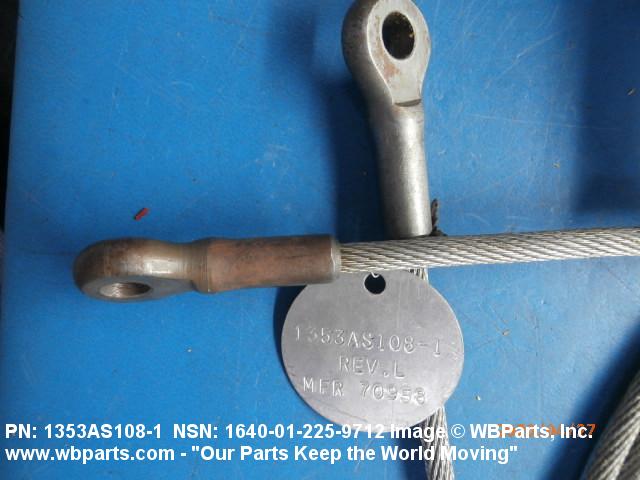

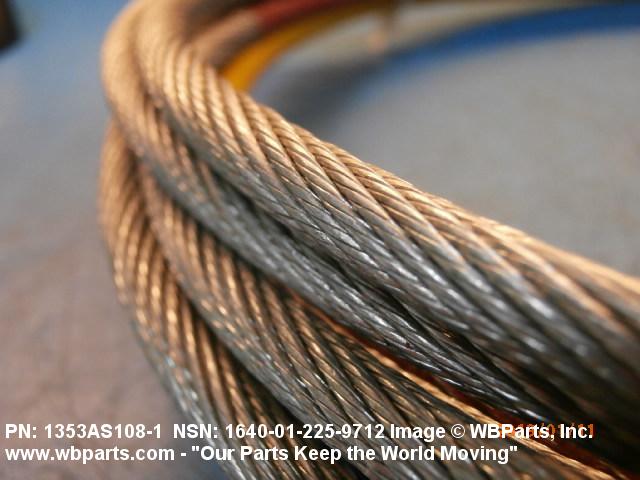

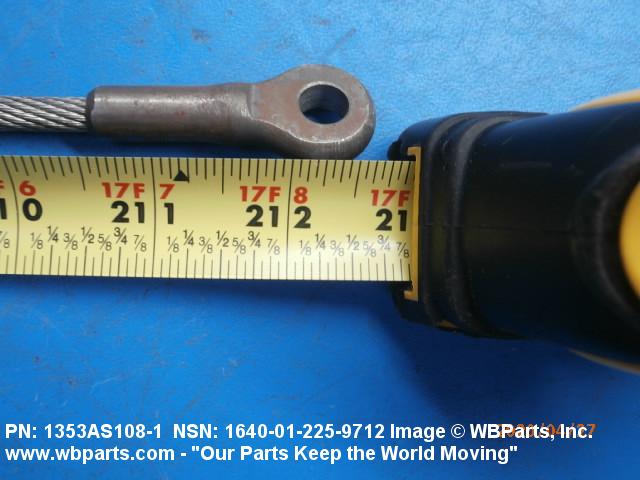

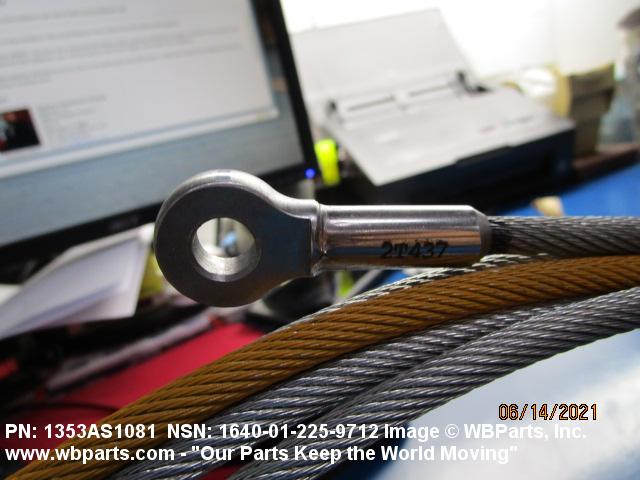

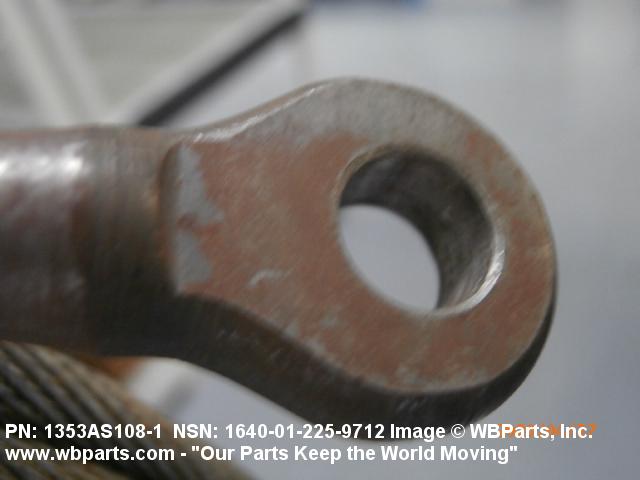

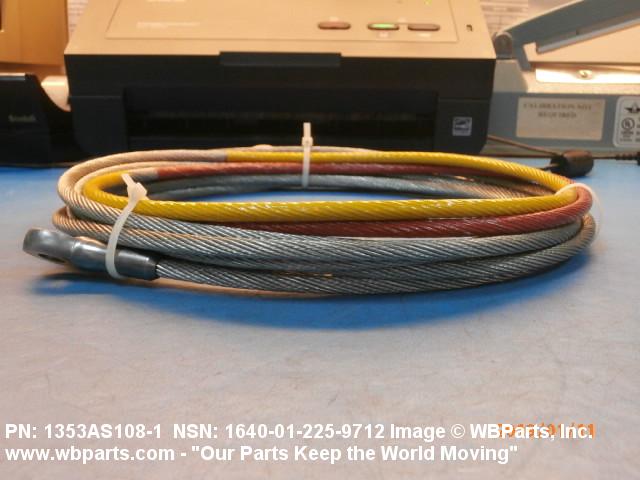

Drawings & Photos | NSN 1640-01-225-9712
Demand History | NSN 4010-01-225-9712
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1353AS1081 | 2022-09-245 | 3 | Malaysia |
| 1353AS1081 | 2022-06-165 | 1 | United States |
| 1353AS1081 | 2022-06-153 | 1 | Malaysia |
| 1353AS1081 | 2020-05-132 | 1 | Malaysia |
| 1353AS1081 | 2020-03-72 | 2 | Malaysia |
| 1353AS1081 | 2018-12-361 | 1 | Malaysia |
| 1640-01-225-9712 | 2007-12-362 | 259 | DIBBS |
| 1640-01-225-9712 | 2007-10-299 | 161 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4010-01-225-9712
Technical Data | NSN 4010-01-225-9712
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| CORE CONSTRUCTION | INDEPENDENT WIRE ROPE |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 17.812 FEET MINIMUM AND 18.020 FEET MAXIMUM |
| DIAMETER | 0.250 INCHES NOMINAL BEAD |
| END TYPE | TERMINAL ATTACHMENT BOTH ENDS |
| ATTACHMENT STYLE | D183 SWAGING TERMINAL BOTH ENDS |
| MANUFACTURERS CODE | 30003 |
| MFR SOURCE CONTROLLING REFERENCE | 1353AS108-1 |
Restrictions/Controls & Freight Information | NSN 4010-01-225-9712
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
