NSN 1640-01-251-6430 012516430
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
1640-01-251-6430 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: 012516430
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01-251-6430 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 1640-01-251-6430
Demand History | NSN 1640-01-251-6430
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1640-01-251-6430 | 2007-12-352 | 15 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1640-01-251-6430
Technical Data | NSN 1640-01-251-6430
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 TERMINAL ATTACHMENT FIRST END PLASTIC POLYAMIDE STRAND COVERING STEEL COMP 302 OR STEEL COMP 304 WIRE ROPE |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/4 FED SPEC SINGLE MATERIAL RESPONSE TERMINAL ATTACHMENT FIRST END MIL-W-83420,COMP B,TY 2 MIL SPEC SINGLE MATERIAL RESPONSE WIRE ROPE |
| SURFACE TREATMENT | ANODIZE TERMINAL ATTACHMENT FIRST END |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 1 MIL SPEC SINGLE TREATMENT RESPONSE TERMINAL ATTACHMENT FIRST END |
| CORE CONSTRUCTION | INDEPENDENT WIRE ROPE |
| STYLE DESIGNATOR | A120 7 X 7 |
| LAY METHOD | RIGHT REGULAR OUTER LAYER |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 3.896 FEET MINIMUM AND 3.938 FEET MAXIMUM |
| DIAMETER | 0.062 INCHES NOMINAL ROPE |
| BREAKING STRENGTH | 288.0 POUNDS MINIMUM |
| END TYPE | TERMINAL ATTACHMENT FIRST END LOOP SECOND END |

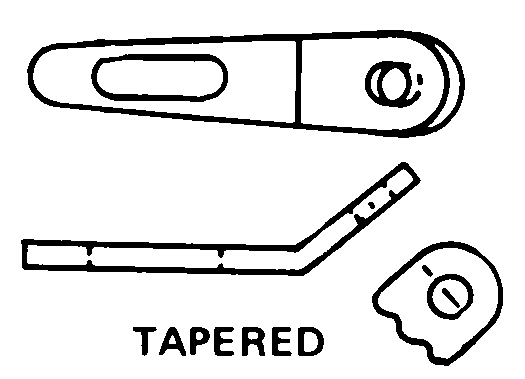

| ATTACHMENT STYLE | D313 TAPERED TERMINAL ATTACHMENT FIRST END |
| LOOP RETENTION METHOD | SWAGE |
| FURNISHED ITEMS AND QUANTITY | 1 SLEEVE |
Restrictions/Controls & Freight Information | NSN 1640-01-251-6430
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
