NSN 1650-00-640-8485 MS287001, MS28700-1, MILA5498
Product Details | HYDRAULIC ACCUMULATOR
1650-00-640-8485 An accumulator in which liquids are stored under pressure for momentary energy in a hydraulic system. Excludes ACCUMULATOR, HYDRAULIC, SQUIB ACTUATED.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components20900039Miscellaneous Ship and Marine Equipment25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components25900034Miscellaneous Vehicular Components30400042Miscellaneous Power Transmission Equipment44700016Nuclear Reactors49200058Aircraft Maintenance and Repair Shop Specialized Equipment
Part Alternates: MS287001, MS28700-1, MILA5498, MIL-A-5498, 1650-00-640-8485, 00-640-8485, 1650006408485, 006408485
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-640-8485 | 20977 ( ACCUMULATOR, HYDRAULIC ) |

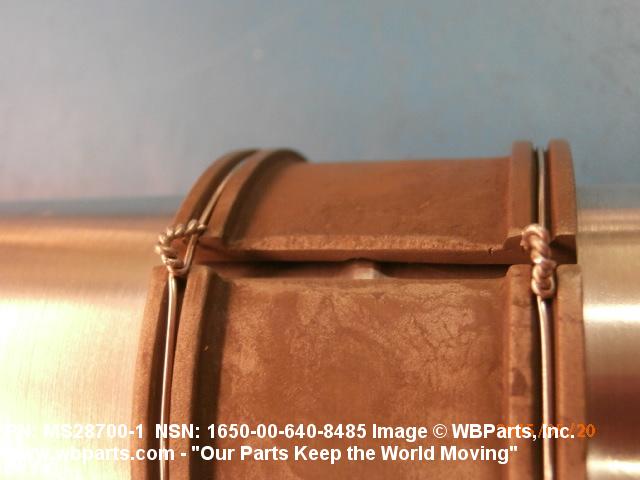

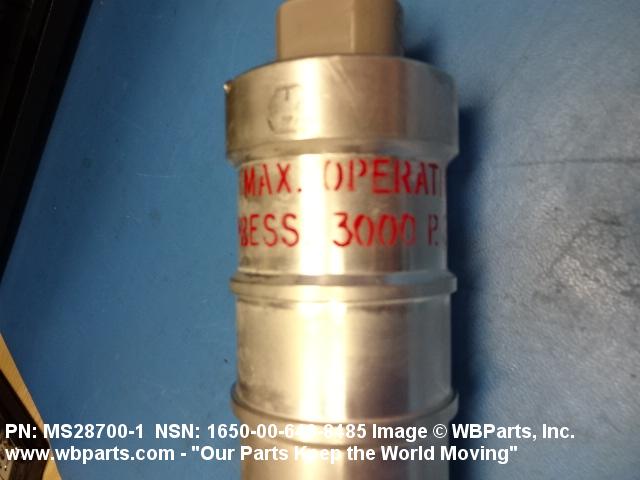

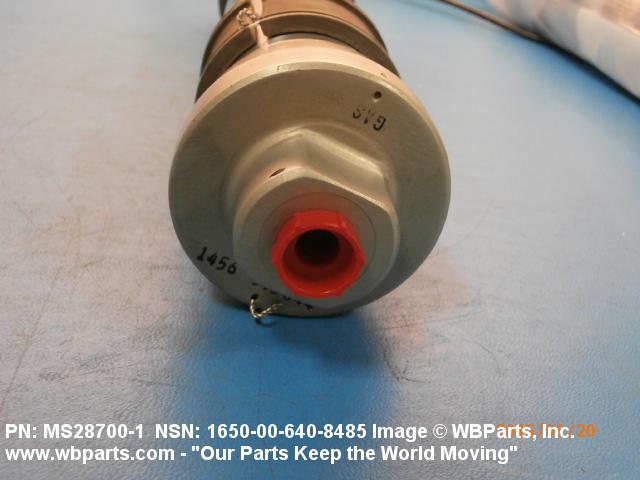

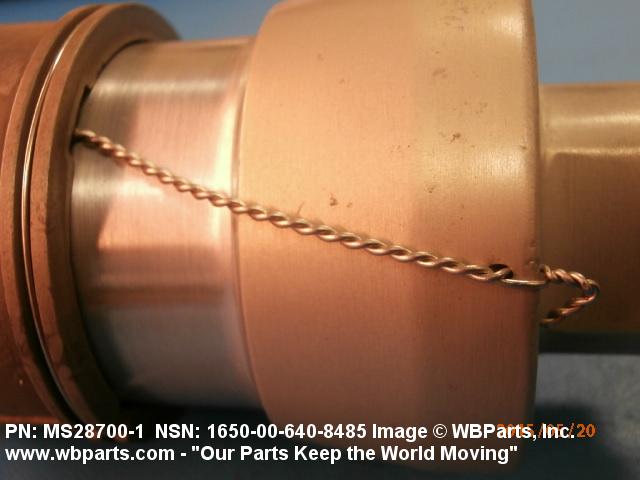

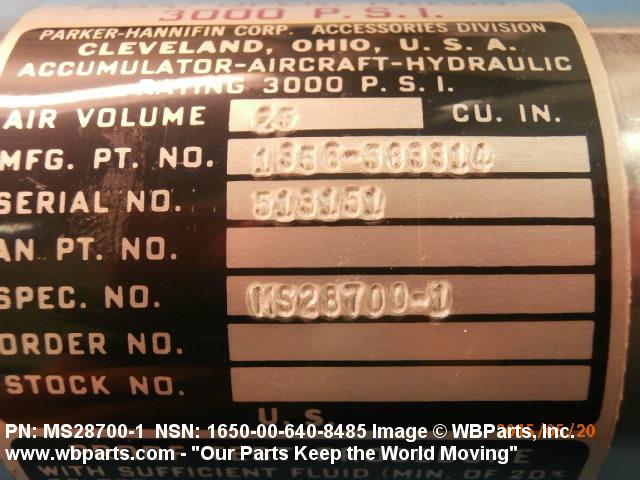

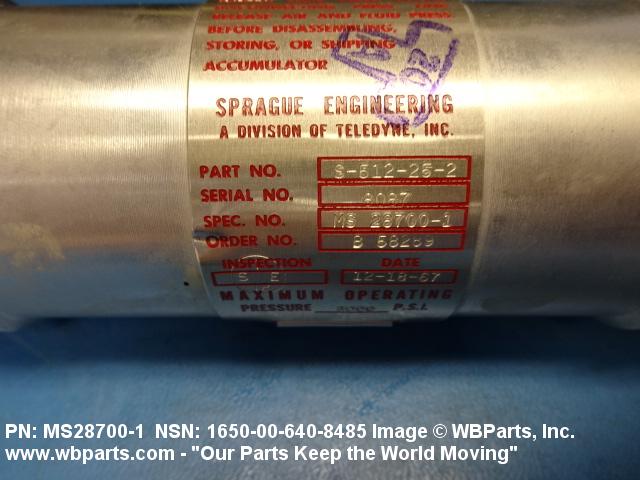

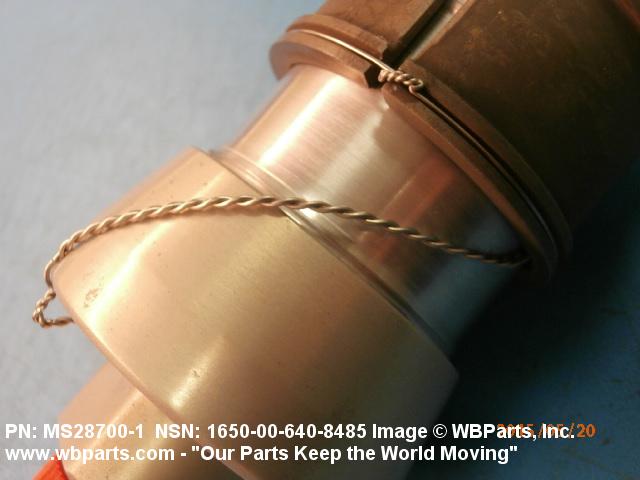

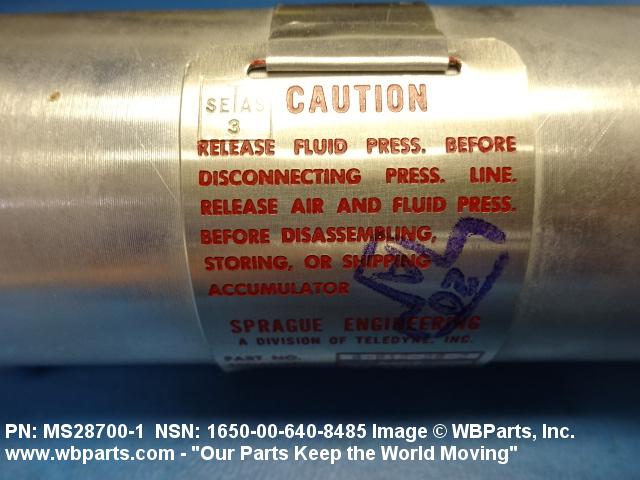

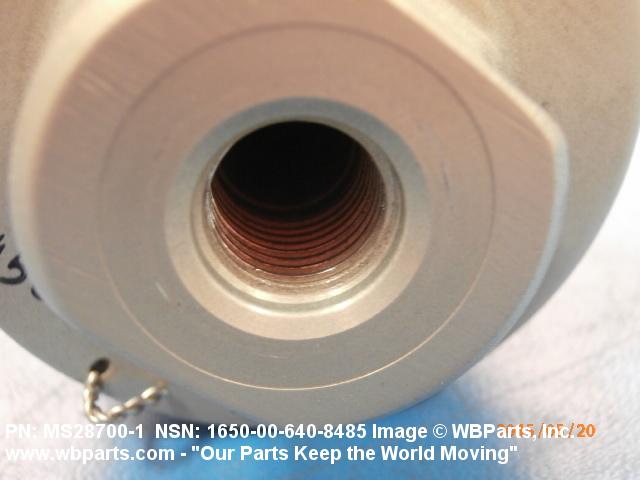

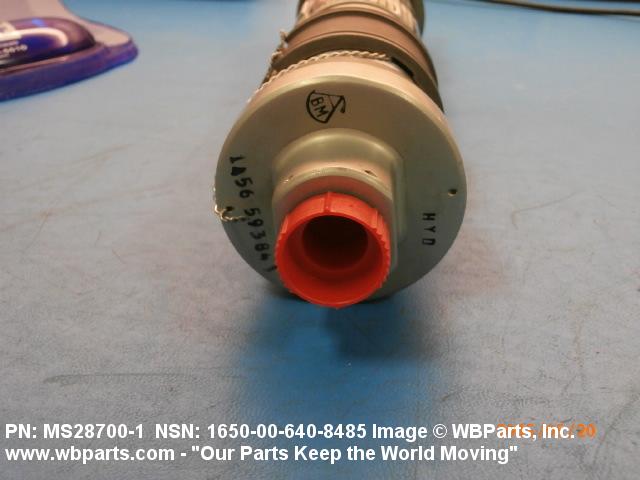

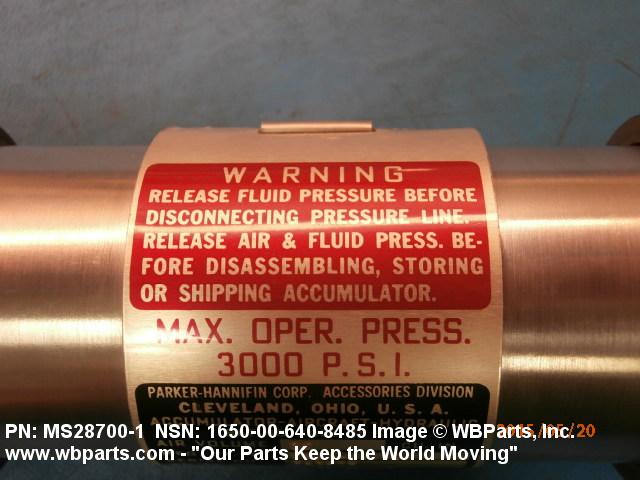

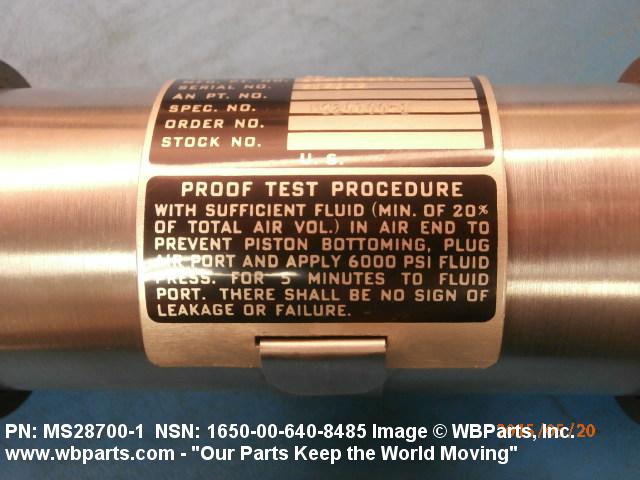

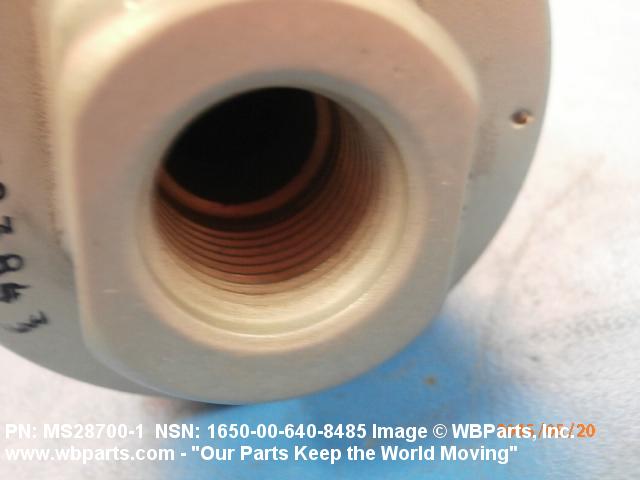

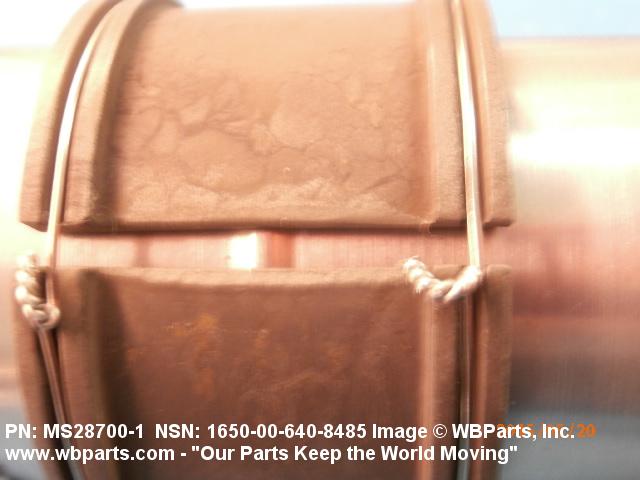

Drawings & Photos | NSN 1650-00-640-8485
Demand History | NSN 1650-00-640-8485
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1650-00-640-8485 | 2020-09-274 | 4 | US |
| MS28700-1 | 2018-09-261 | 2 | United Arab Emirates |
| MS287001 | 2017-09-248 | 2 | US |
| MS287001 | 2017-03-83 | 1 | United States |
| 1650-00-640-8485 | 2015-04-118 | 2 | United States |
| 1650-00-640-8485 | 2013-10-281 | 1 | US |
| MS287001 | 2011-09-269 | 20 | ES |
| MS287001 | 2011-08-217 | 1 | PL |
| MS287001 | 2011-07-187 | 1 | PL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1650-00-640-8485
Technical Data | NSN 1650-00-640-8485
| Characteristic | Specifications |
|---|---|
| SHAPE | CYLINDRICAL |

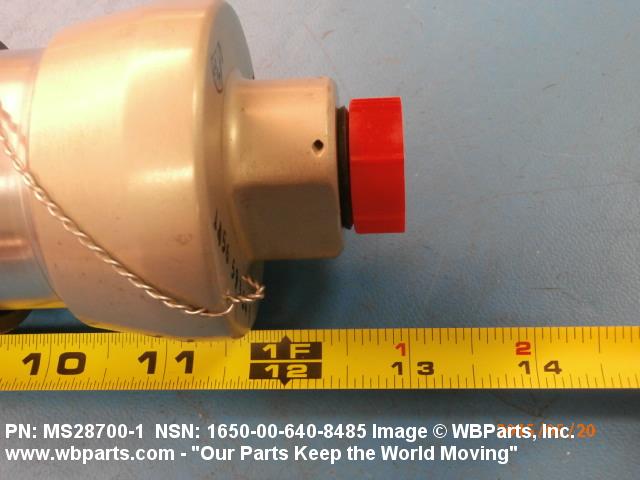

| OVERALL LENGTH | 12.500 INCHES NOMINAL |

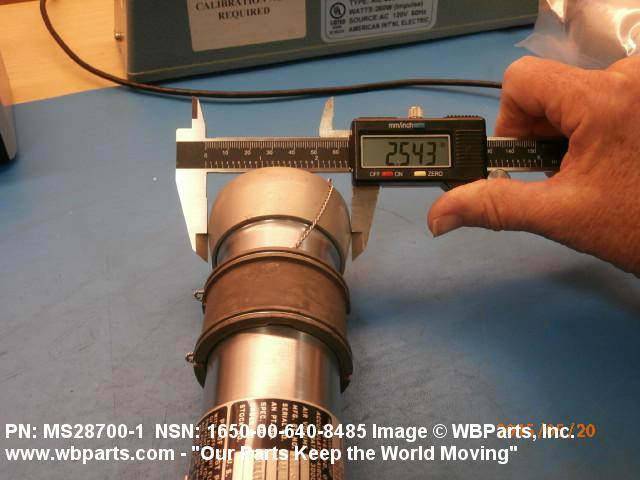

| OVERALL DIAMETER | 2.810 INCHES NOMINAL |

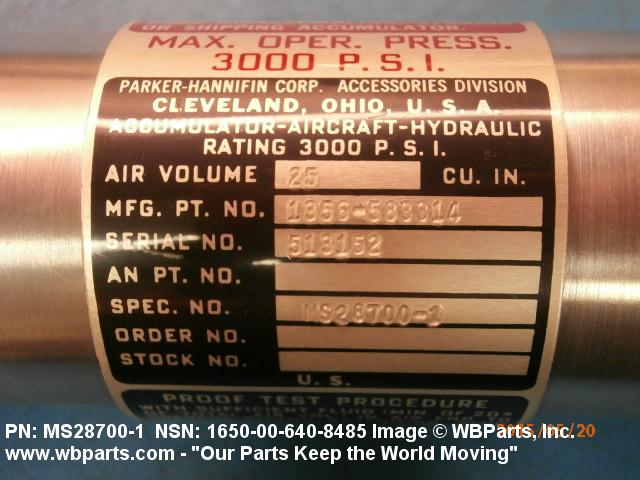

| MAXIMUM OPERATING PRESSURE | 3000.000 POUNDS PER SQUARE INCH |
| SEPARATOR TYPE | PISTON |
| MATERIAL | ANY ACCEPTABLE |

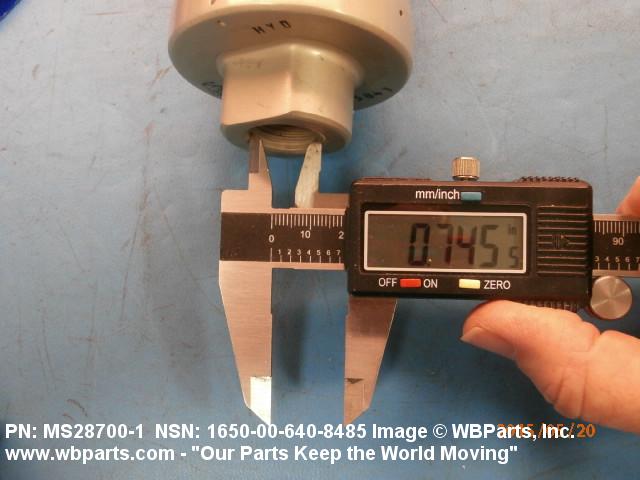

| PORT SCREW THREAD DIAMETER | 0.750 INCHES NOMINAL |
| PORT SCREW THREAD QUANTITY PER INCH | 16.000 |
| PORT SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD CLASS | 3 |
| BLEEDER OPENING | NOT INCLUDED |
| III FSC APPLICATION DATA | ACCUMULATOR,HYDRAULIC,AIRCRAFT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-A-5498 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS28700-1 |
Restrictions/Controls & Freight Information | NSN 1650-00-640-8485
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
