NSN 1650-00-720-1946 1110051, 11-10051, 221063

Product Details | FLUID FILTER ELEMENT

1650-00-720-1946 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments

Part Alternates: 1110051, 11-10051, 221063, 2210-6-3, 1650-00-720-1946, 00-720-1946, 1650007201946, 007201946

Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
16	01 JAN 1963	00-720-1946	32624 ( FILTER ELEMENT, FLUID )

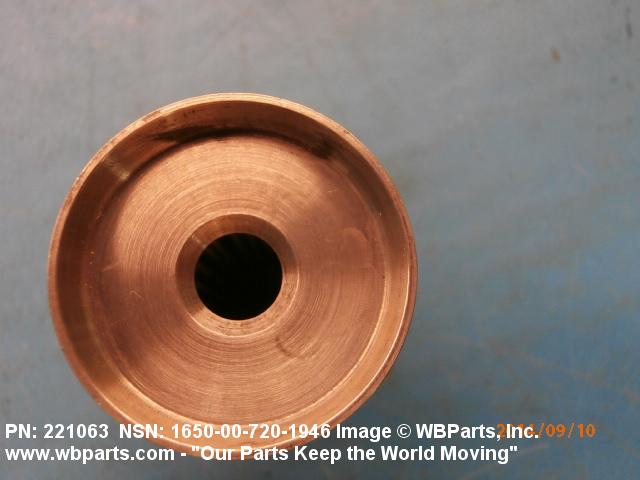

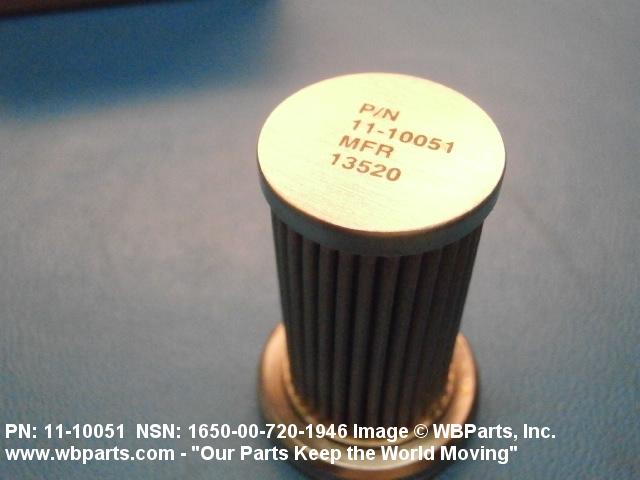

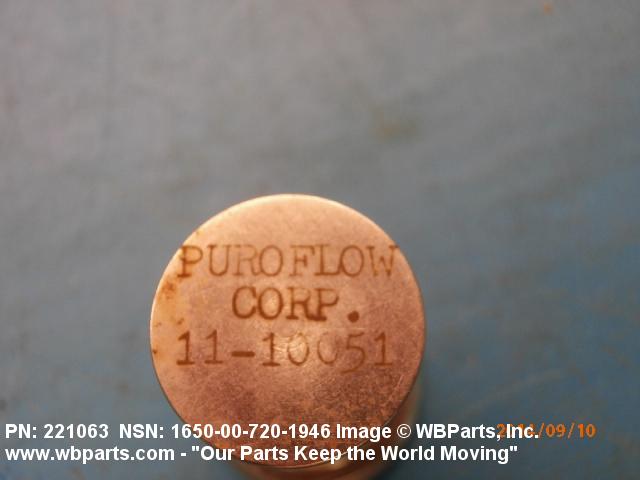

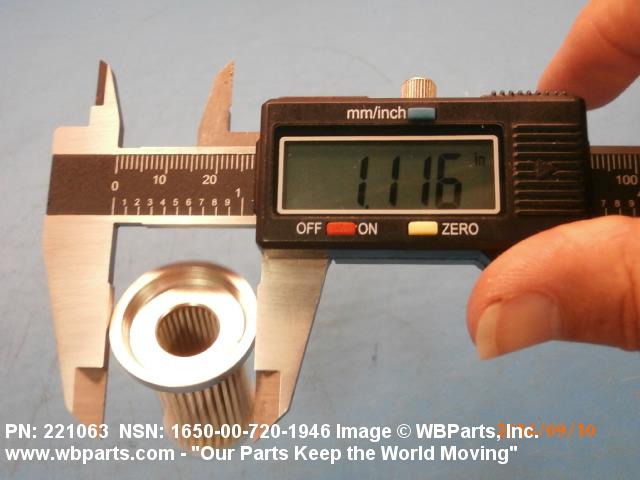

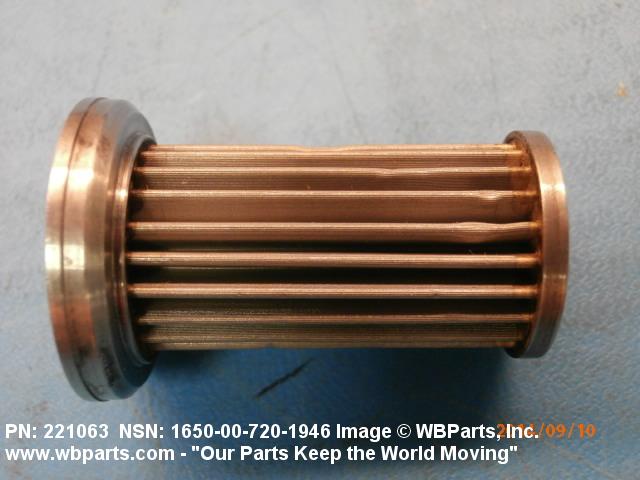

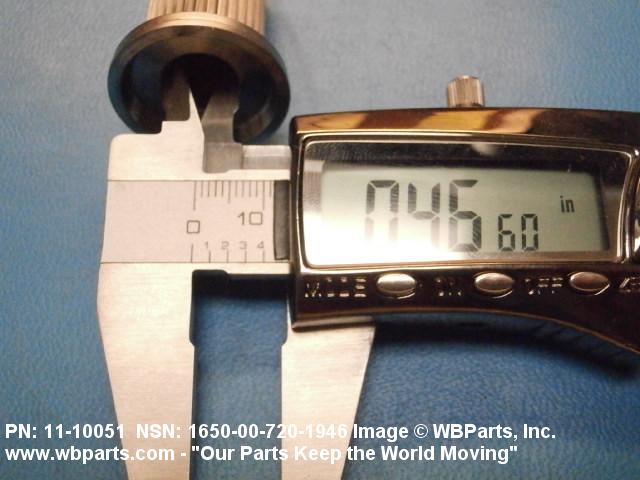

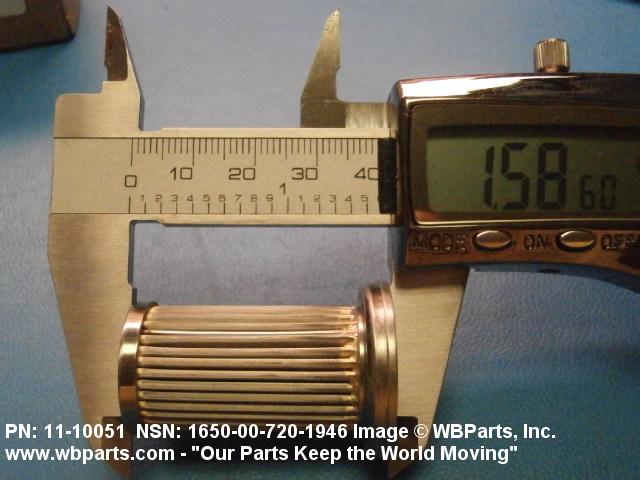

Drawings & Photos | NSN 1650-00-720-1946

Part Number	Request Date	QTY	Origin
11-10051	2024-04-105	232	DIBBS
1650-00-720-1946	2024-01-31	22	United States
11-10051	2022-02-59	227	DIBBS
11-10051	2022-02-48	227	DIBBS
11-10051	2021-10-280	92	DIBBS
11-10051	2021-07-202	2	DIBBS
11-10051	2021-07-189	61	DIBBS
1650-00-720-1946	2021-01-25	4	United States
1650-00-720-1946	2021-01-21	1	DIBBS-RFPs
1650-00-720-1946	2016-05-137	1	DIBBS-RFPs
1650-00-720-1946	2014-08-231	5	Singapore
1650-00-720-1946	2014-07-198	12	Singapore
1650-00-720-1946	2011-05-145	69	DIBBS
1650-00-720-1946	2011-02-53	172	DIBBS
1650-00-720-1946	2010-08-225	97	DIBBS
1650-00-720-1946	2010-05-124	90	DIBBS
1650-00-720-1946	2010-02-36	55	DIBBS
1650-00-720-1946	2010-01-26	105	DIBBS
1650-00-720-1946	2010-01-14	145	DIBBS
1650-00-720-1946	2008-07-190	303	DIBBS
1650-00-720-1946	2008-04-119	55	DIBBS
1650-00-720-1946	2008-03-79	114	DIBBS
1650-00-720-1946	2007-09-267	79	DIBBS
1650-00-720-1946	2007-04-96	47	DIBBS
1650-00-720-1946	2006-07-193	53	DIBBS
1650-00-720-1946	2006-05-136	103	DIBBS

Cross Reference | NSN 1650-00-720-1946

Part Number	Cage Code	Manufacturer
11-10051	14818	DONALDSON COMPANY INC.

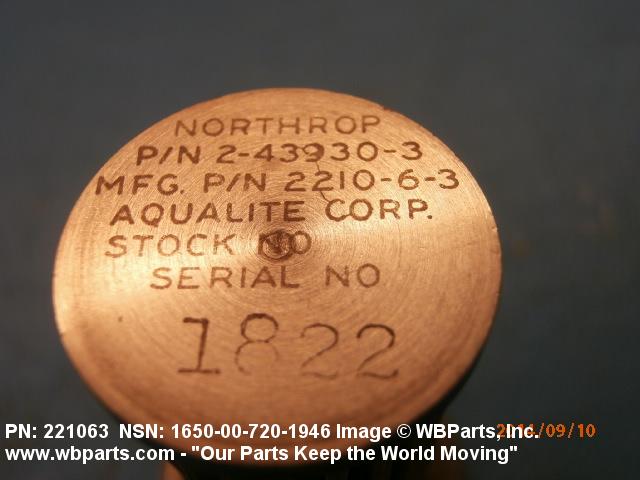

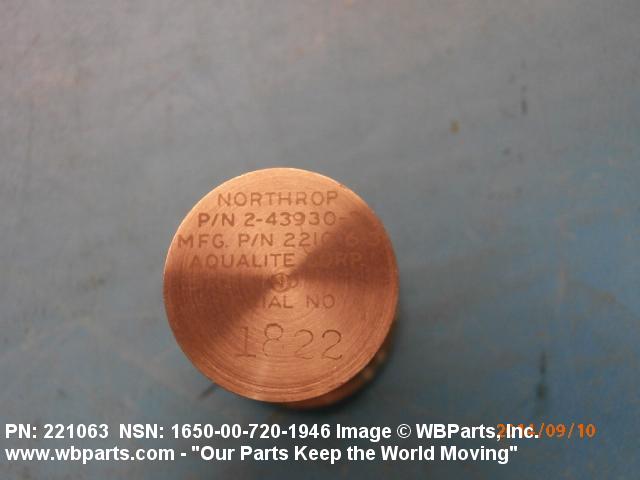

2210-6-3	99215	KAISER FLUID TECHNOLOGIES INC.
2210-6-3	99473	HAWKER PACIFIC AEROSPACE LANDING GEAR AND COMPONENTS MFG AND

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 1650-00-720-1946

Compare

Related Products | NSN 1650-00-720-1946

1650-00-720-2614, 1650-00-720-2968, 1650-00-720-2983, 1650-00-720-2984, 1650-00-720-2985

Technical Data | NSN 1650-00-720-1946

Characteristic	Specifications

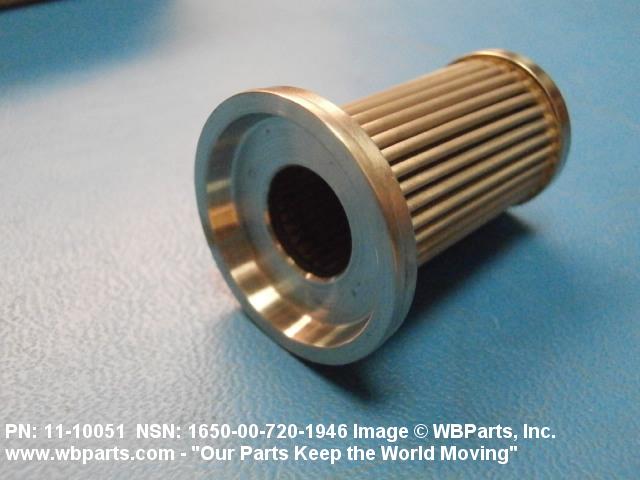

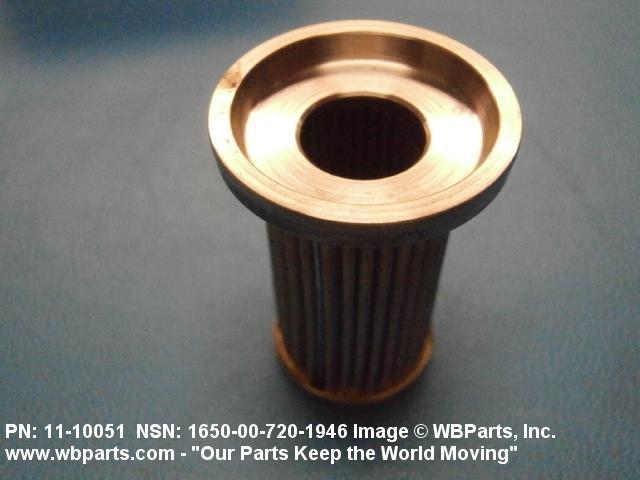

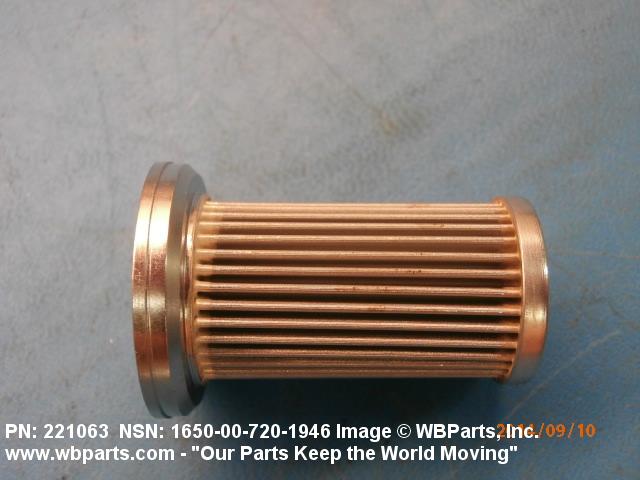

STYLE DESIGNATOR	A19 CYLINDRICAL W/CLOSED ENDS

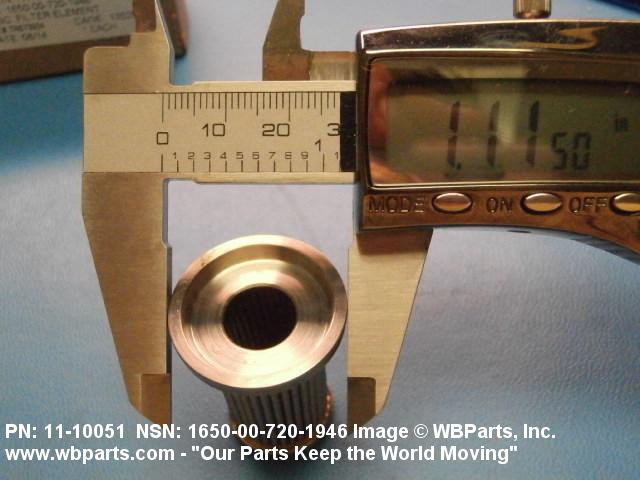

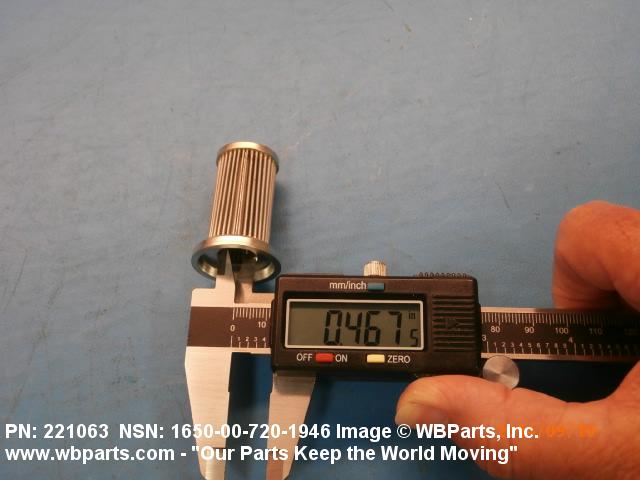

BODY DIAMETER	1.118 INCHES NOMINAL

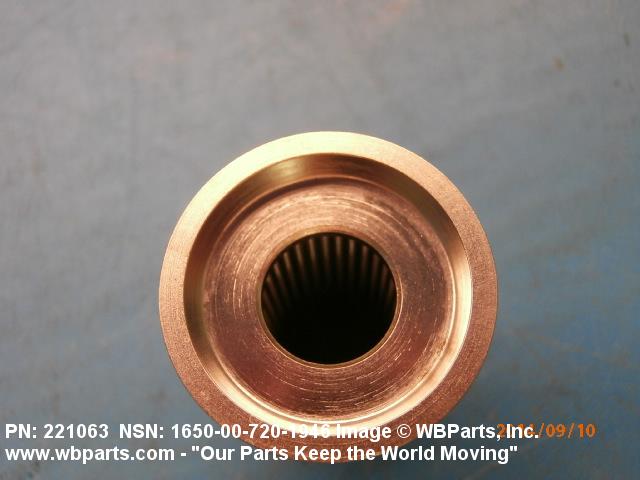

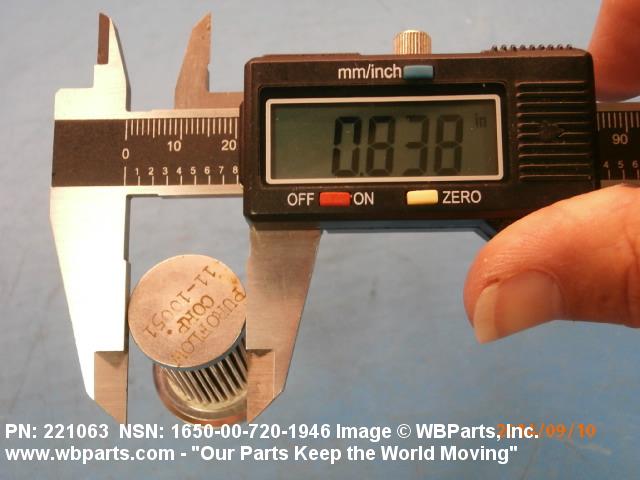

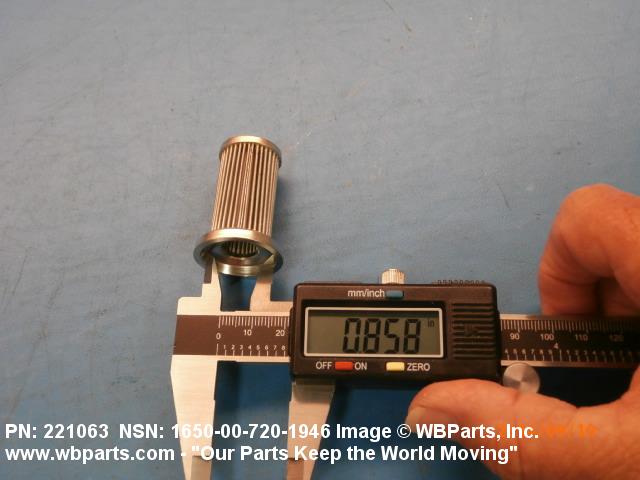

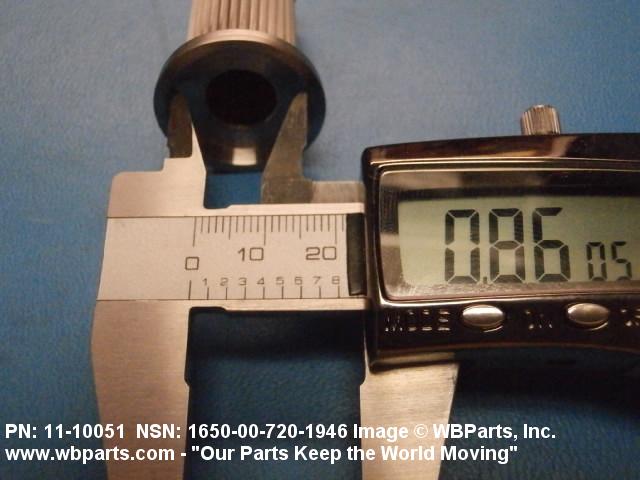

BODY INSIDE DIAMETER	0.844 INCHES NOMINAL

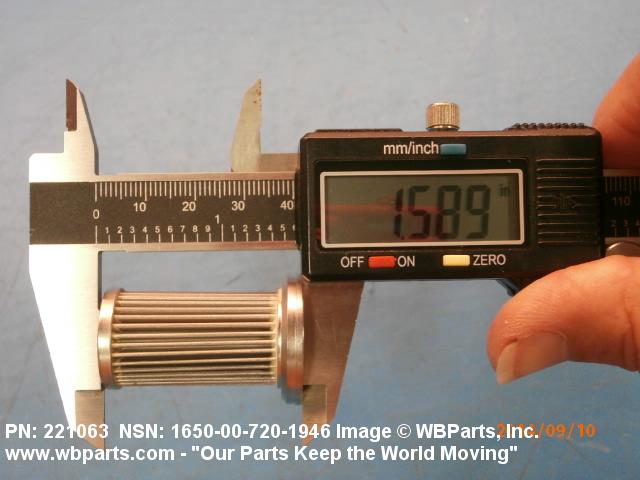

BODY OVERALL LENGTH	1.603 INCHES NOMINAL
MATERIAL	STEEL CORROSION RESISTING FILTERING MEDIUM
FILTERING MEDIA DESIGN	CORRUGATED SINGLE FILTERING MEDIA RESPONSE
DESIGN TYPE	REUSABLE
FILTRATION RATING IN MICRONS	10.0 NOMINAL
FLOW DIRECTION	OUTSIDE IN
MEDIA FOR WHICH DESIGNED	ANY ACCEPTABLE
TEMP RATING	-65.0 DEG FAHRENHEIT MINIMUM AND 700.0 DEG FAHRENHEIT MAXIMUM
DROP PRESSURE	1.0 POUNDS PER SQUARE INCH
DIFFERENTIAL PRESSURE	NOT RATED
III FSC APPLICATION DATA	HYDRAULIC SYSTEM,ACFT
MANUFACTURERS CODE	14818

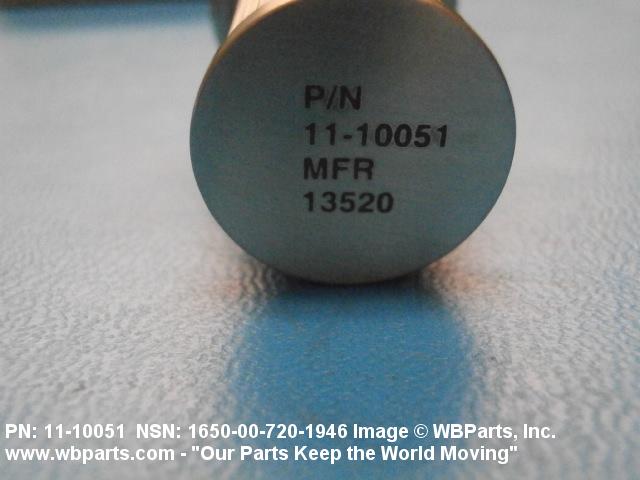

DESIGN CONTROL REFERENCE	11-10051

Restrictions/Controls & Freight Information | NSN 1650-00-720-1946

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	069100	FILTERS:CARTRIDGES/ELEMENTS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	671	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 1650-00-720-1946

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
