NSN 1650-00-900-3285 009003285
Product Details | WIPER RING
1650-00-900-3285 A circular, single or multipiece, rigid, metallic or nonmetallic item having a centrally located hole with a sharp edge on the inside periphery. It is supplied in various cross-sectional shapes and is designed to be installed in a cylinder, shock strut, or similar device to remove excess oil, dirt, ice, and/or foreign material from a piston, ram, or sliding rod. Excludes PACKING, PREFORMED; RING, PISTON; and SEAL RING, METAL.
Part Alternates: 009003285
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-900-3285 | 20256 ( RING, WIPER ) |

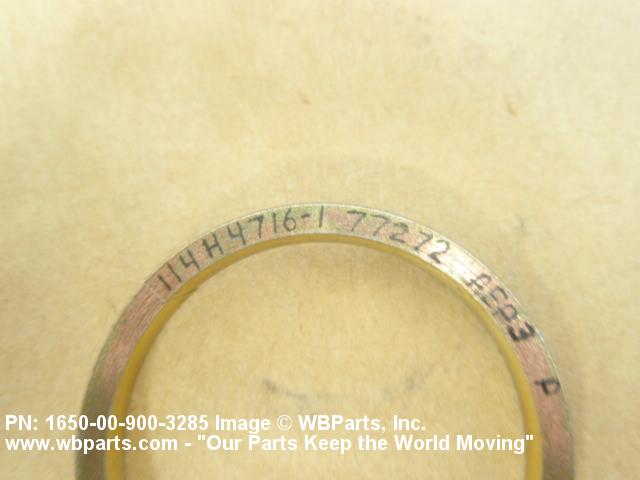

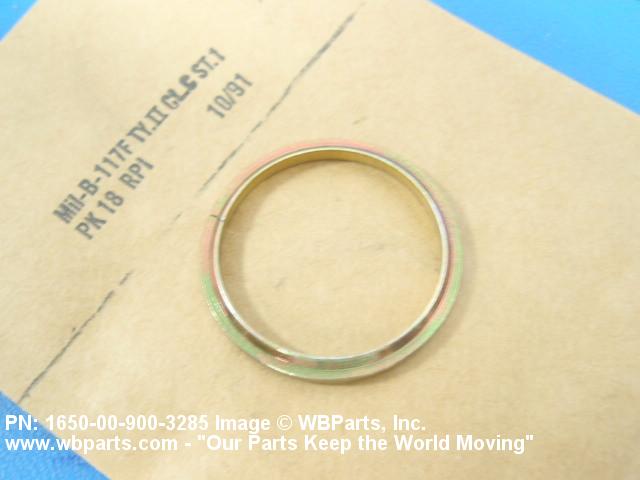

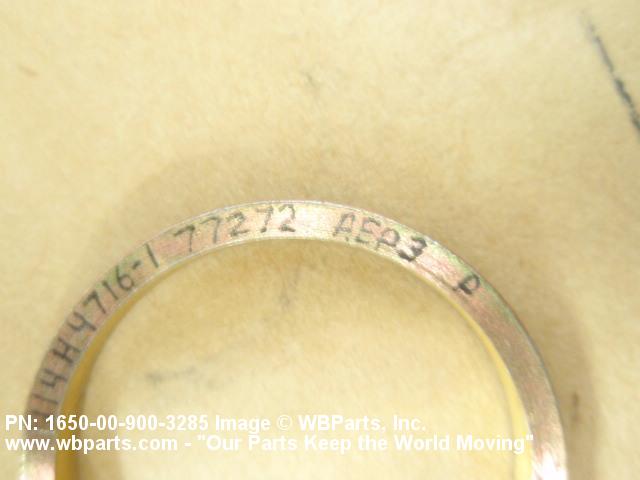

Drawings & Photos | NSN 1650-00-900-3285
Demand History | NSN 1650-00-900-3285
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1650-00-900-3285 | 2022-03-74 | 30 | United States |
| 1650-00-900-3285 | 2021-09-266 | 3 | United States |
| 1650-00-900-3285 | 2021-08-217 | 20 | United States |
| 114H47161 | 2020-09-252 | 20 | United States |
| 1650-00-900-3285 | 2020-09-252 | 25 | United States |
| 1650-00-900-3285 | 2010-07-189 | 11 | United States |
| 114H47161 | 2010-05-139 | 11 | United States |
| 114H47161 | 2010-05-127 | 11 | us |
| 114H47161 | 2009-02-43 | 3 | US |
| 114H47161 | 2009-02-41 | 3 | US |
| 114H47161 | 2006-11-324 | 10 | IT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1650-00-900-3285
Technical Data | NSN 1650-00-900-3285
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-465 ALLOY 630 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 CLASS 2 TYPE 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | B6 OUTSIDE GROOVED, STRAIGHT FACE |
| JOINT STYLE | 2 DIAGONAL JOINT |
| RING STYLE | 7 CONCENTRIC |
| INSIDE DIAMETER | 1.243 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.464 INCHES MINIMUM AND 1.469 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.110 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| OUTER EDGE THICKNESS | 0.084 INCHES MINIMUM AND 0.094 INCHES MAXIMUM |
| III FSC APPLICATION DATA | CYLINDER ASSEMBLY,ACTUATING RAMP |
| MANUFACTURERS CODE | 77272 |
| DESIGN CONTROL REFERENCE | 114H4716-1 |
Restrictions/Controls & Freight Information | NSN 1650-00-900-3285
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
