Product Details | WIPER RING
5330-01-114-9253 A circular, single or multipiece, rigid, metallic or nonmetallic item having a centrally located hole with a sharp edge on the inside periphery. It is supplied in various cross-sectional shapes and is designed to be installed in a cylinder, shock strut, or similar device to remove excess oil, dirt, ice, and/or foreign material from a piston, ram, or sliding rod. Excludes PACKING, PREFORMED; RING, PISTON; and SEAL RING, METAL.
Part Alternates: 011149253
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
48 | 01-114-9253 | 20256 ( RING, WIPER ) |

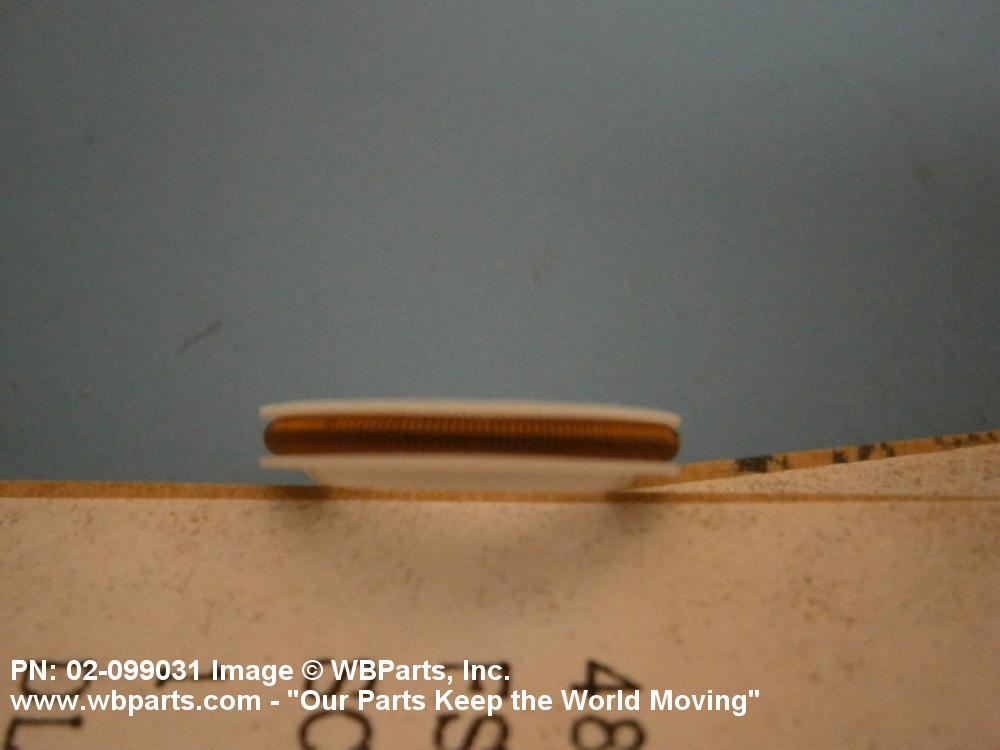

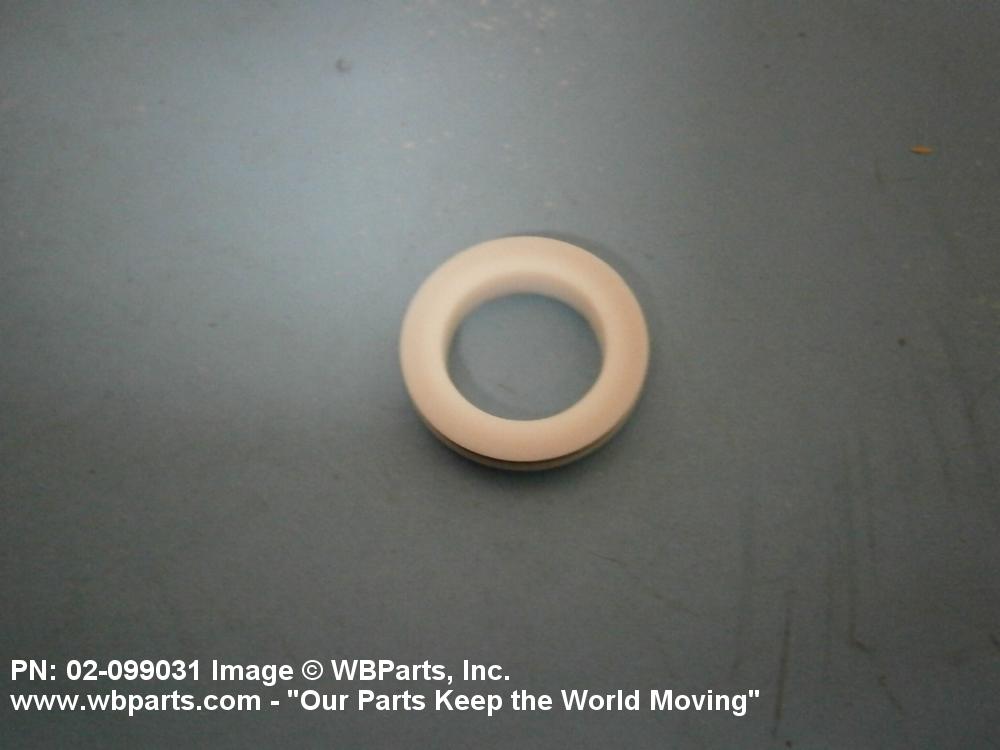

Drawings & Photos | NSN 4820-01-114-9253
Demand History | NSN 5330-01-114-9253
Request a Quote
Comments | What our customers are saying...
NSNs for Compare ( up to 4 ): Add 5330-01-114-9253
Related Products | NSN 5330-01-114-9253
4820-01-114-9269, 4820-01-114-9352, 4820-01-114-9382, 4820-01-114-9443, 4820-01-114-9445
Technical Data | NSN 5330-01-114-9253
Characteristic | Specifications |
---|---|
MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE OVERALL |

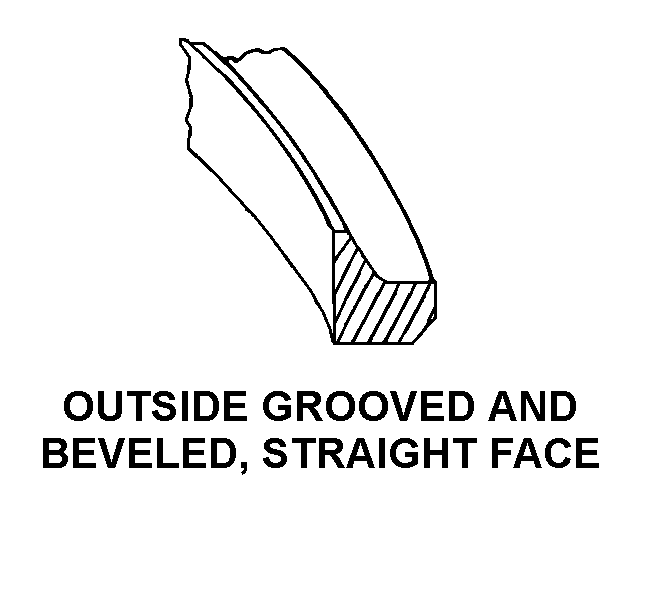

CROSS-SECTIONAL SHAPE STYLE | B8 OUTSIDE GROOVED AND BEVELED, STRAIGHT FACE |

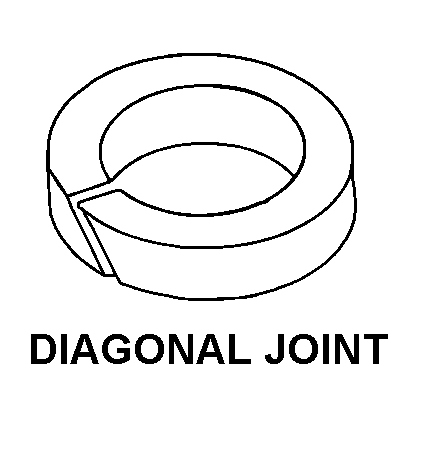

JOINT STYLE | 2 DIAGONAL JOINT |
RING STYLE | 7 CONCENTRIC |
INSIDE DIAMETER | 0.438 INCHES NOMINAL |
OUTSIDE DIAMETER | 0.670 INCHES NOMINAL |
MATERIAL THICKNESS | 0.122 INCHES NOMINAL |
OUTER EDGE THICKNESS | 0.090 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-01-114-9253
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Category | Code | Description |
---|---|---|
No Freight Information |
