NSN 1650-01-022-4262 AC7693F203N2H, AC-7693F-203N2H, ACB941F15

Product Details | FLUID FILTER ELEMENT

1650-01-022-4262 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments

Part Alternates: AC7693F203N2H, AC-7693F-203N2H, ACB941F15, 7585098, 10605937, 10-60593-7, 1650-01-022-4262, 01-022-4262, 1650010224262, 010224262

Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
16	29 MAY 1976	01-022-4262	32624 ( FILTER ELEMENT, FLUID )

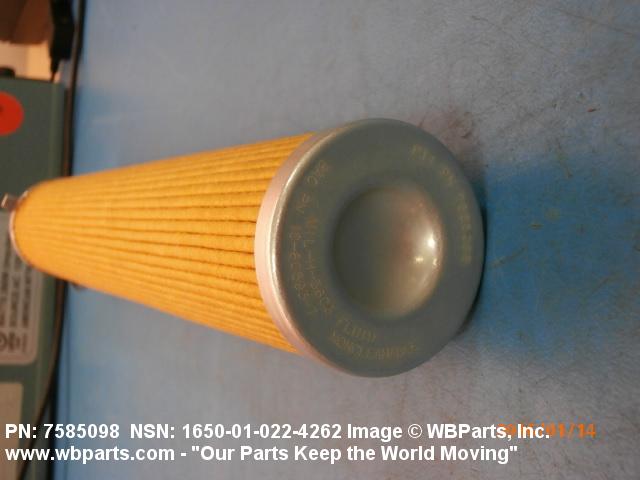

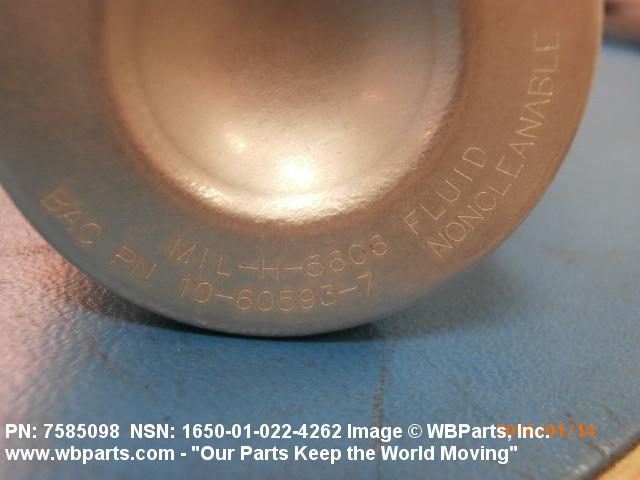

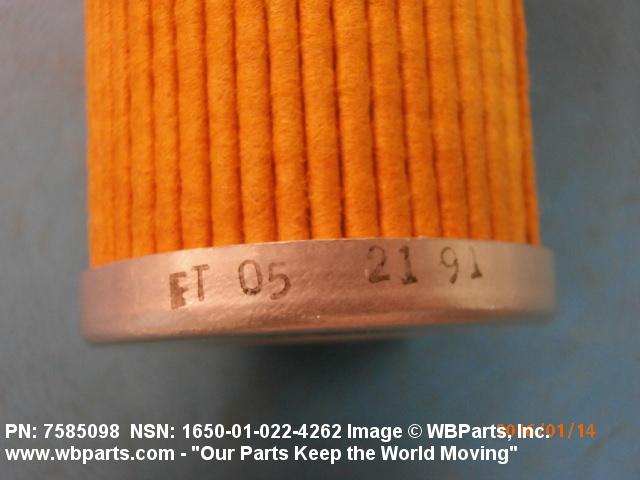

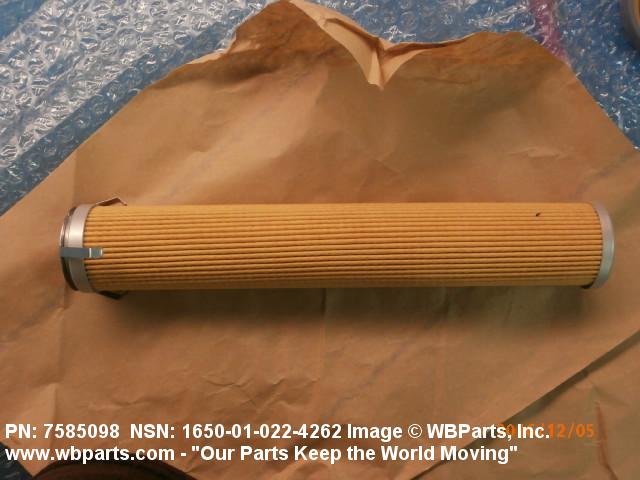

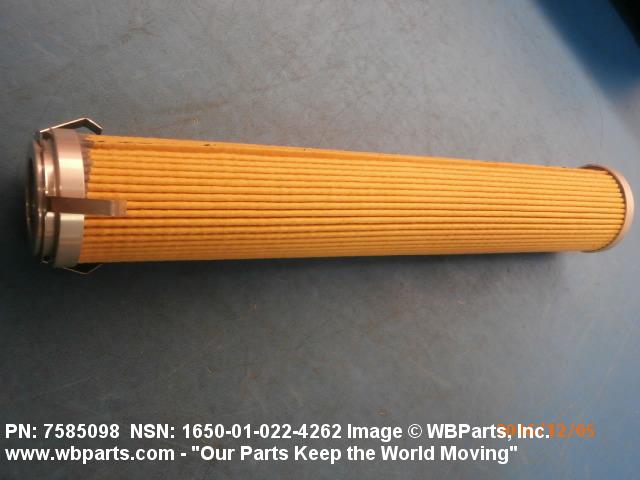

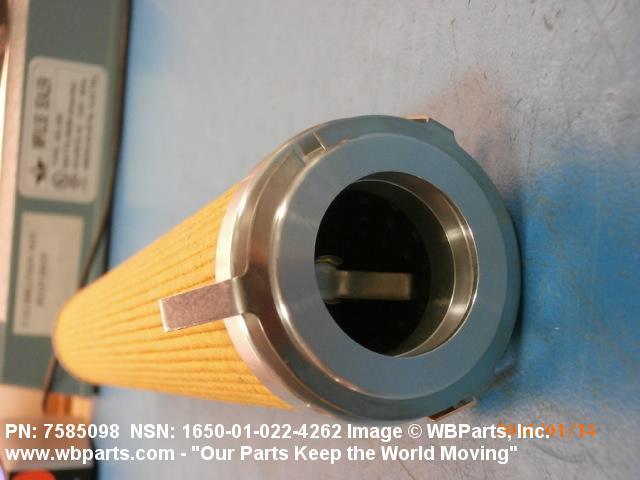

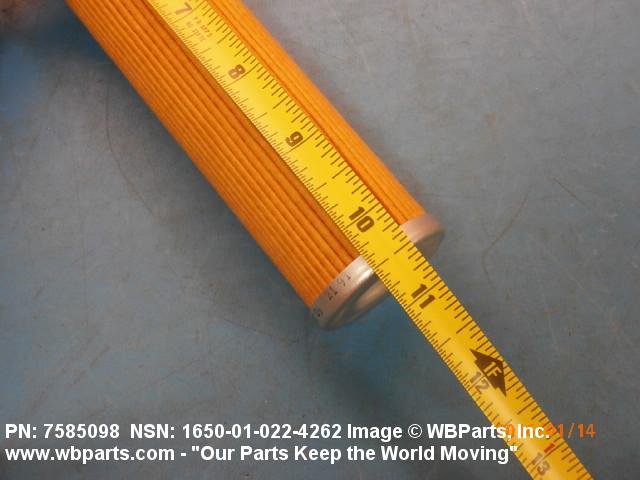

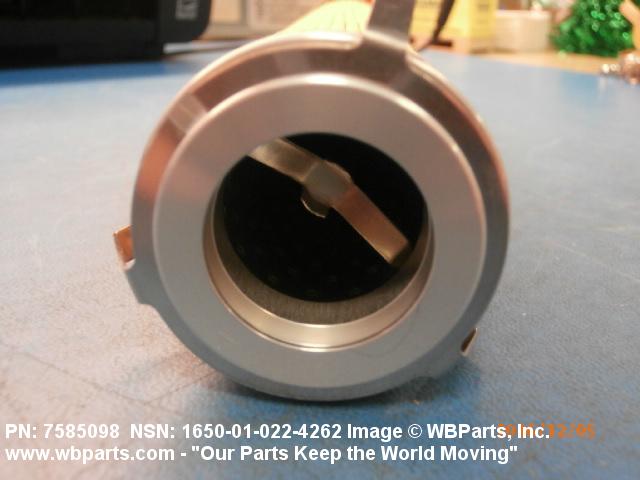

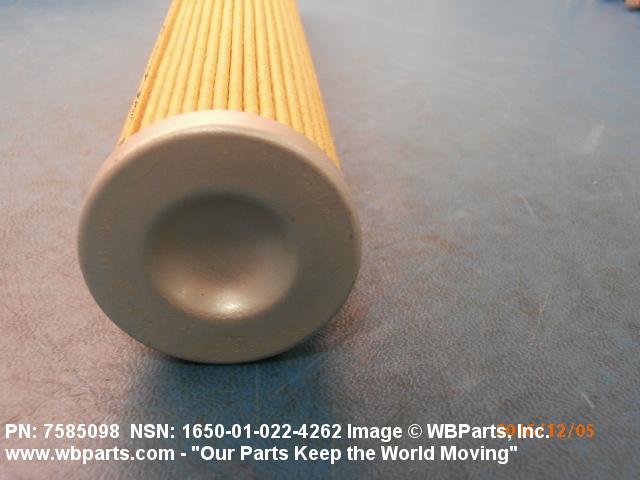

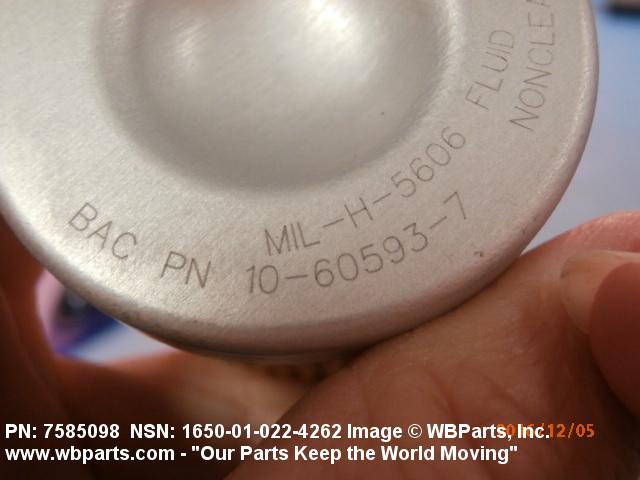

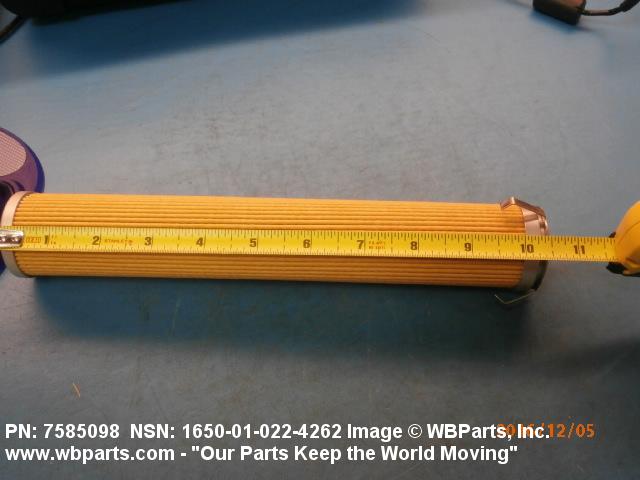

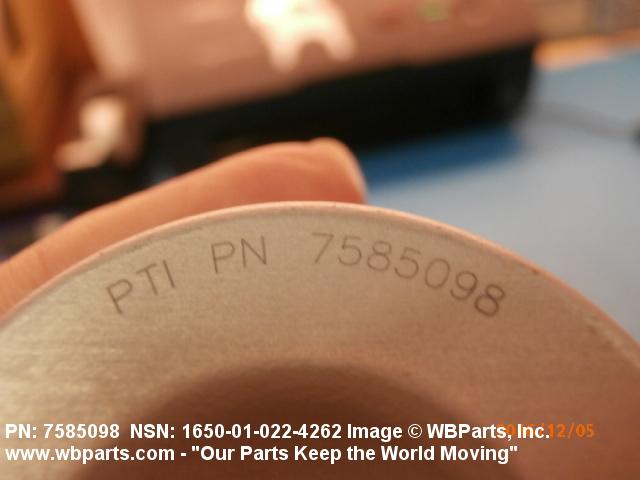

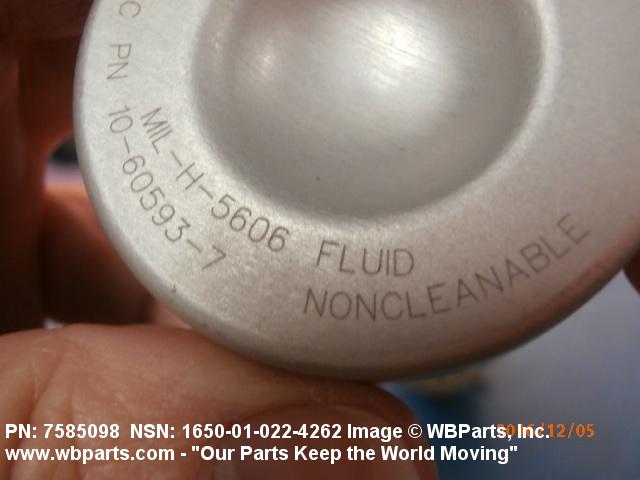

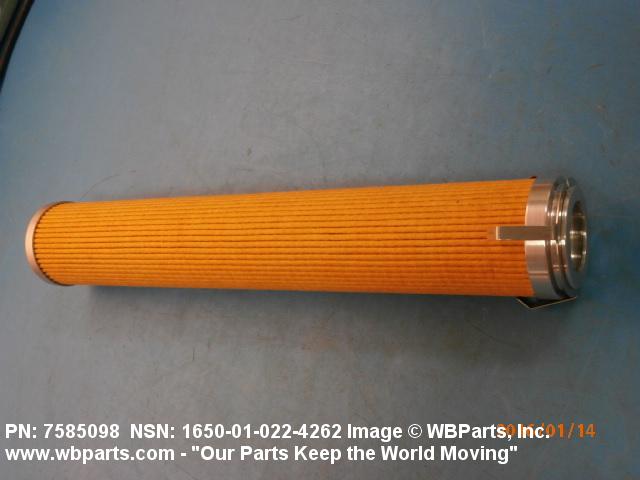

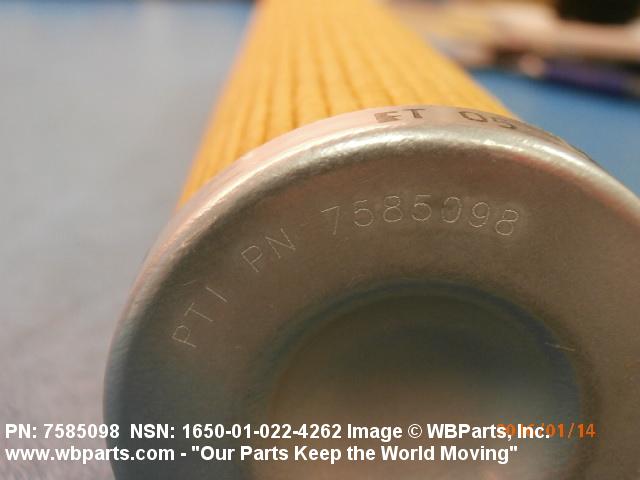

Drawings & Photos | NSN 1650-01-022-4262

Part Number	Request Date	QTY	Origin
1650-01-022-4262	2024-06-164	8	United States
1650-01-022-4262	2023-05-142	8	United States
1650-01-022-4262	2020-02-50	4	United States
1650-01-022-4262	2019-09-269	4	United States
10605937	2019-01-28	4	United States
1650-01-022-4262	2017-04-109	1	DIBBS-RFPs
1650-01-022-4262	2017-02-53	46	DIBBS
10605937	2016-11-326	1	United States
1650-01-022-4262	2016-11-326	4	United States
1650-01-022-4262	2016-07-189	46	DIBBS
1650-01-022-4262	2016-01-28	51	DIBBS
1650-01-022-4262	2016-01-06	1	United States
1650-01-022-4262	2015-12-358	76	DIBBS
10605937	2015-12-350	1	United States
1650-01-022-4262	2015-12-348	76	DIBBS
1650-01-022-4262	2015-09-259	78	DIBBS
1650-01-022-4262	2015-09-250	78	DIBBS
1650-01-022-4262	2015-06-175	65	DIBBS
1650-01-022-4262	2013-05-133	211	DIBBS
1650-01-022-4262	2013-05-125	211	DIBBS
1650-01-022-4262	2011-06-154	204	DIBBS
1650-01-022-4262	2011-04-101	204	DIBBS
1650-01-022-4262	2010-10-292	83	DIBBS
1650-01-022-4262	2010-09-267	83	DIBBS
1650-01-022-4262	2008-11-325	46	DIBBS
1650-01-022-4262	2008-10-289	113	DIBBS

Cross Reference | NSN 1650-01-022-4262

Part Number	Cage Code	Manufacturer
10-60593-7	81205	THE BOEING COMPANY DBA BOEING
7585098	05228	PTI TECHNOLOGIES INC.
AC-7693F-203N2H	18350	PALL AEROPOWER CORPORATION
ACB941F15	18350	PALL AEROPOWER CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 1650-01-022-4262

Compare

Related Products | NSN 1650-01-022-4262

1650-01-022-4922, 1650-01-022-6271, 1650-01-022-7664, 1650-01-022-8577, 1650-01-022-8644

Technical Data | NSN 1650-01-022-4262

Characteristic	Specifications
STYLE DESIGNATOR	A6 CYLINDRICAL W/OUT CONTAINER

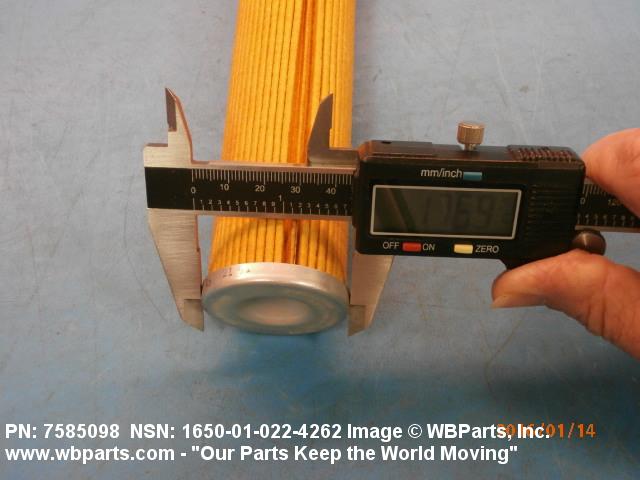

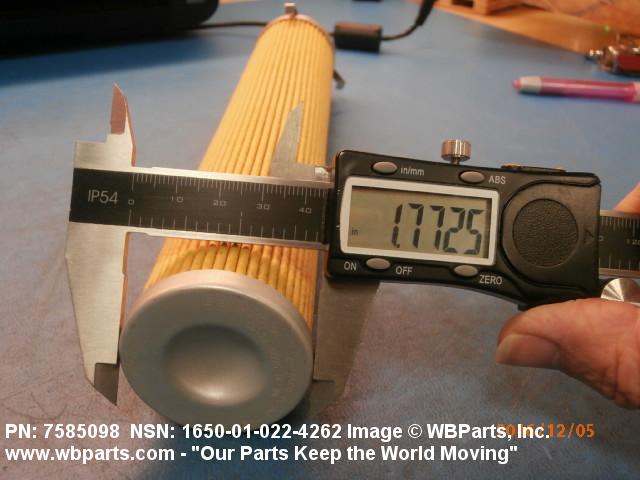

BODY DIAMETER	1.760 INCHES MINIMUM AND 1.781 INCHES MAXIMUM

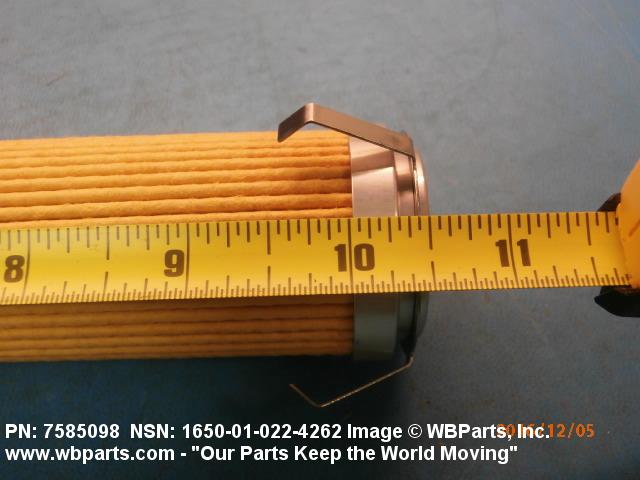

BODY OVERALL LENGTH	10.520 INCHES MINIMUM AND 10.604 INCHES MAXIMUM

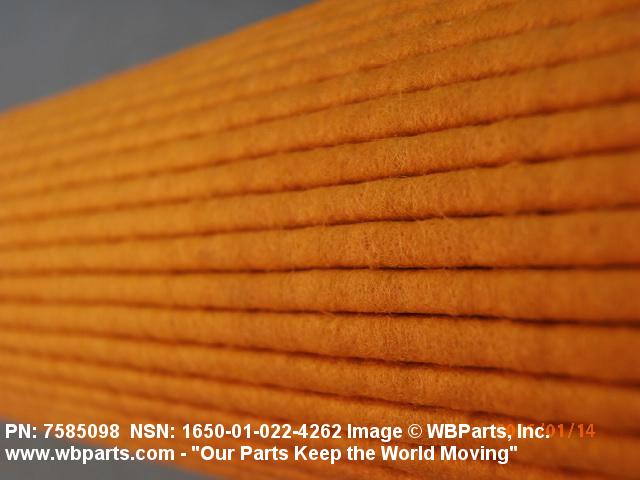

MATERIAL	CELLULOSE FILTERING MEDIUM
FILTERING MEDIA DESIGN	CORRUGATED SINGLE FILTERING MEDIA RESPONSE
DESIGN TYPE	NONREUSABLE
FILTRATION RATING IN MICRONS	15.0 ABSOLUTE
FLOW DIRECTION	PARALLEL
MEDIA FOR WHICH DESIGNED	FUEL/OIL, HYDROCARBON
TEMP RATING	-65.0 DEG FAHRENHEIT MINIMUM AND 160.0 DEG FAHRENHEIT MAXIMUM
DROP PRESSURE	22.0 POUNDS PER SQUARE INCH
DIFFERENTIAL PRESSURE	500.0 POUNDS PER SQUARE INCH
FILTERING SYSTEM FOR WHICH DESIGNED	FULL FLOW
III END ITEM IDENTIFICATION	AWACS AIRCRAFT
III FSC APPLICATION DATA	AIRCRAFT HYDRAULIC SYSTEM
MANUFACTURERS CODE	05228
DESIGN CONTROL REFERENCE	7585098

Restrictions/Controls & Freight Information | NSN 1650-01-022-4262

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	Q	Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	069100	FILTERS:CARTRIDGES/ELEMENTS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	671	unknown
Originating Activity Code	SX	Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043
Air Dimension Code	Z	Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 1650-01-022-4262

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
