Product Details | AIRCRAFT AIR CONDITIONING-HEATING DUCT ASSEMBLY
1660-01-066-3202 A hollow body used to transport air to various parts of the aircraft for the purpose of heating, cooling, pressurizing, de-icing, and the like. It may include flange(s), bracket(s), and the like for mounting purposes. Excludes pipes used in aircraft exhaust systems and pipes used in non-aircraft applications. Excludes PIPE, EXHAUST and PIPE, AIR CONDITIONING-HEATING.
Part Alternates: 010663202
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 01-066-3202 | 32351 ( DUCT ASSEMBLY, AIR CONDITIONING-HEATING, AIRCRAFT ) |

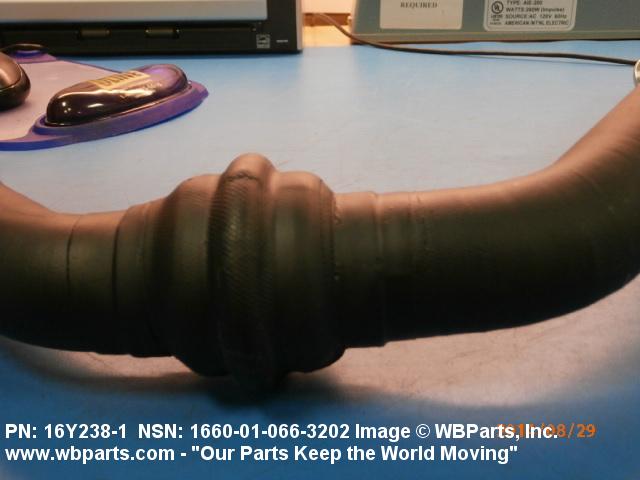

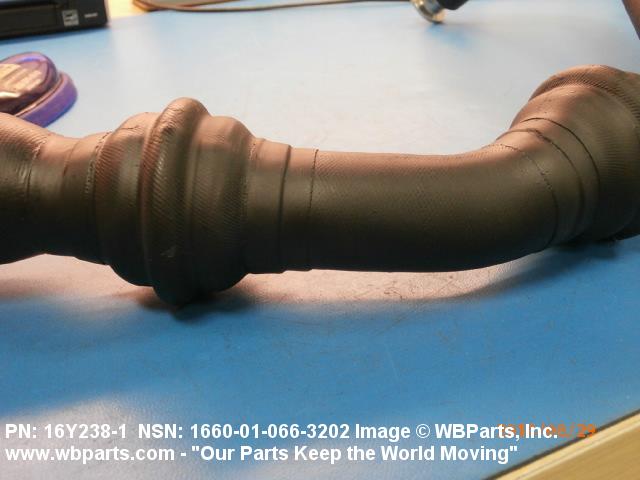

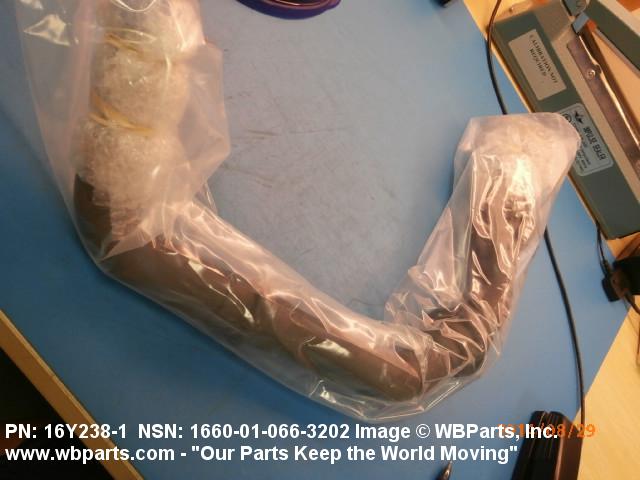

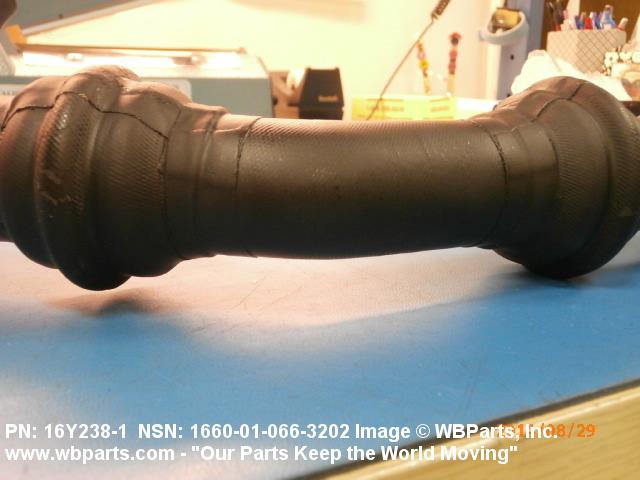

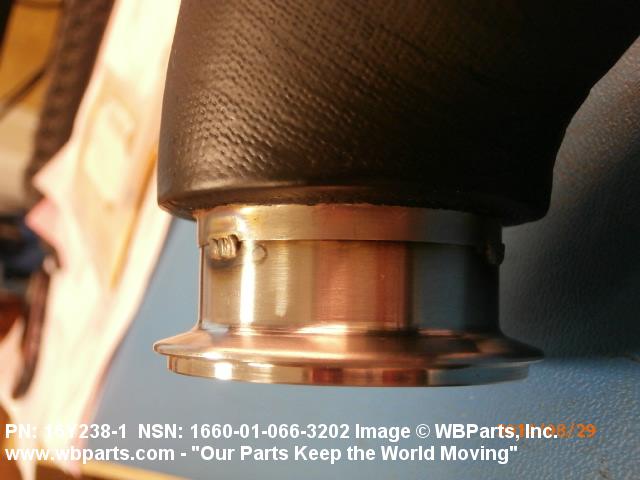

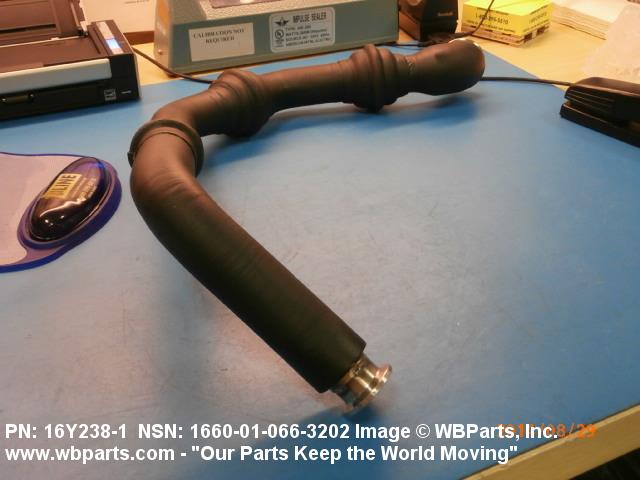

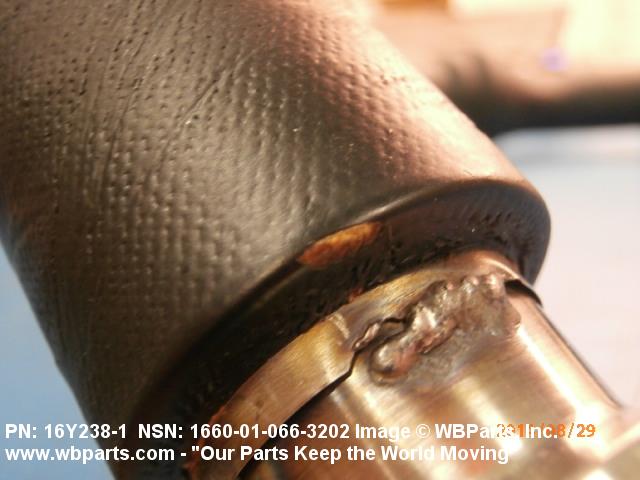

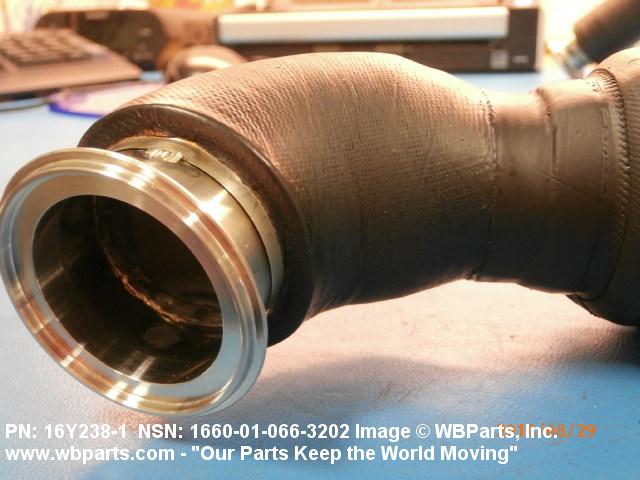

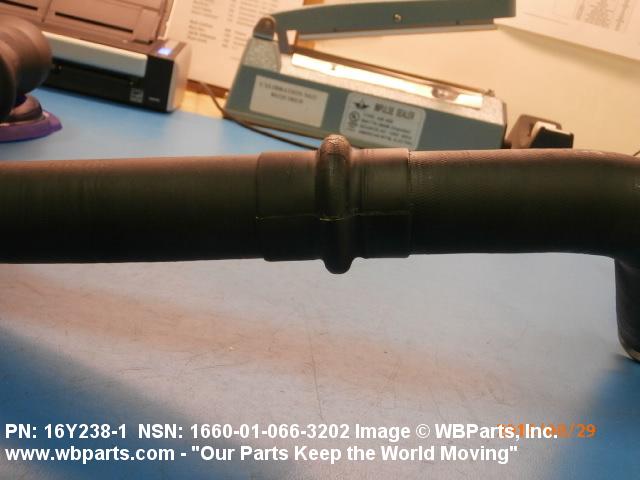

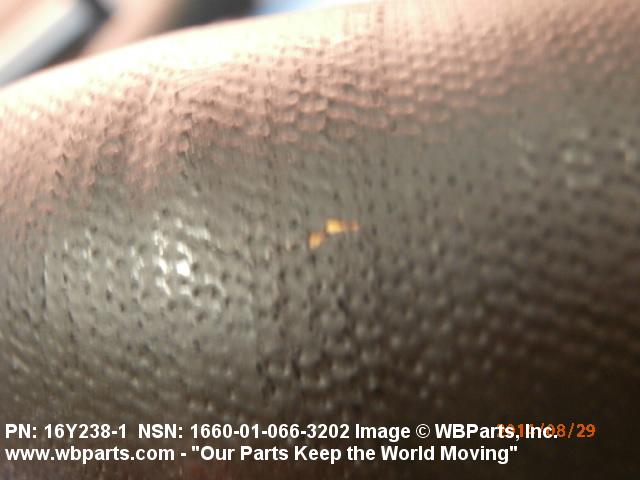

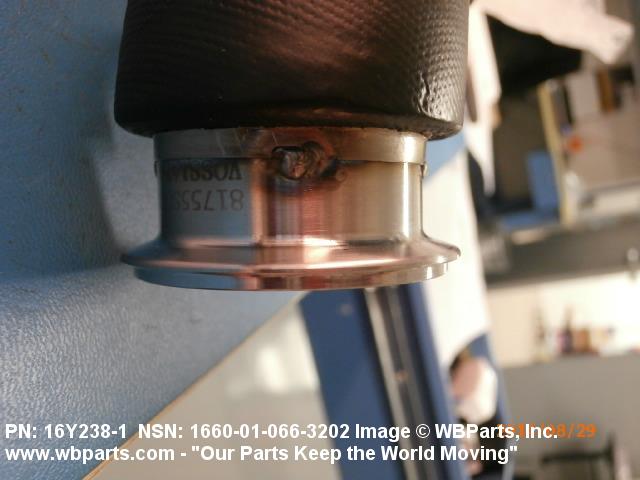

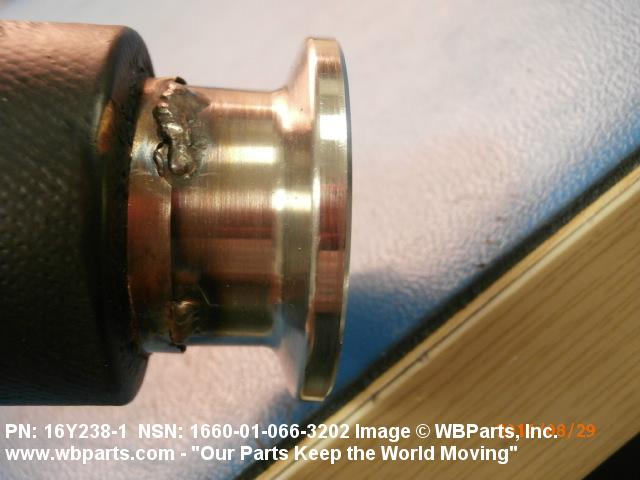

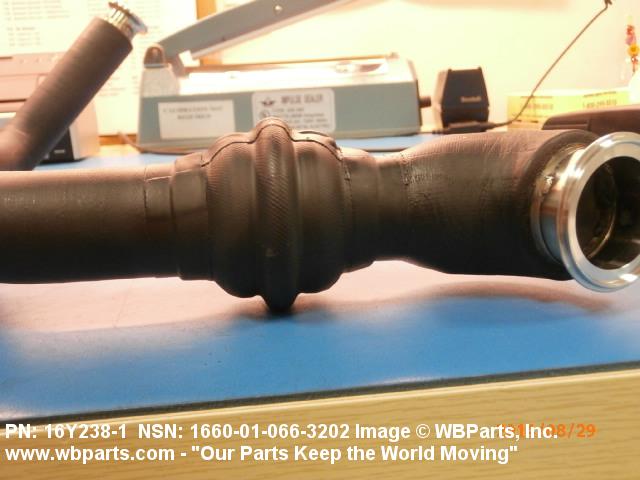

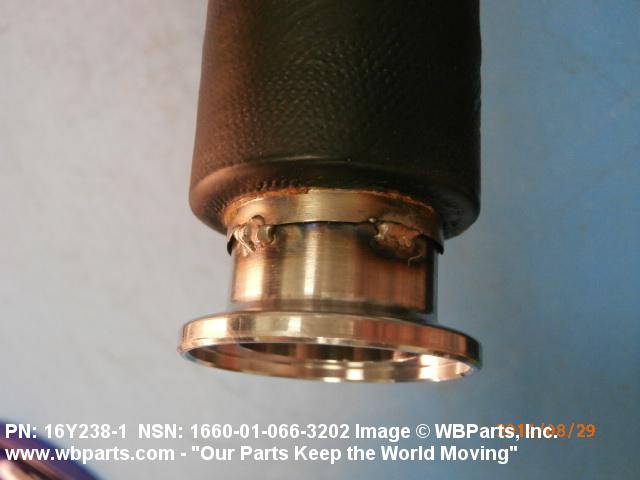

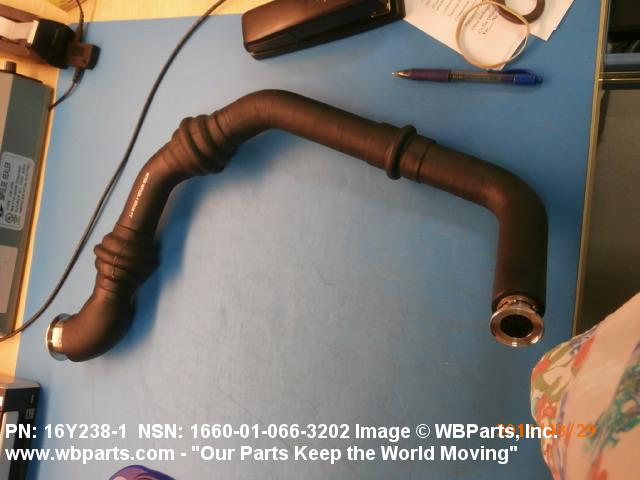

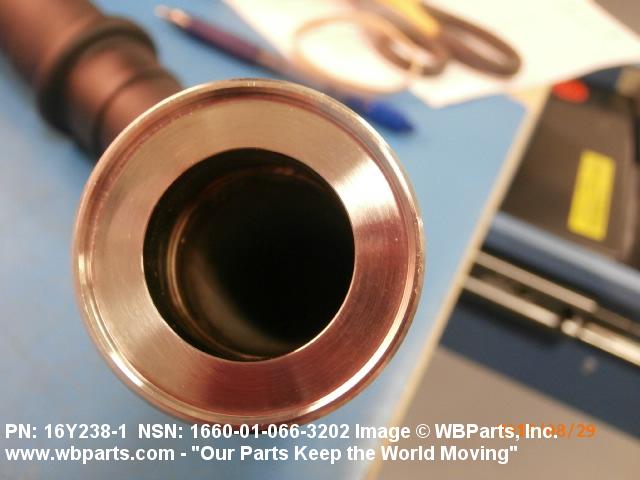

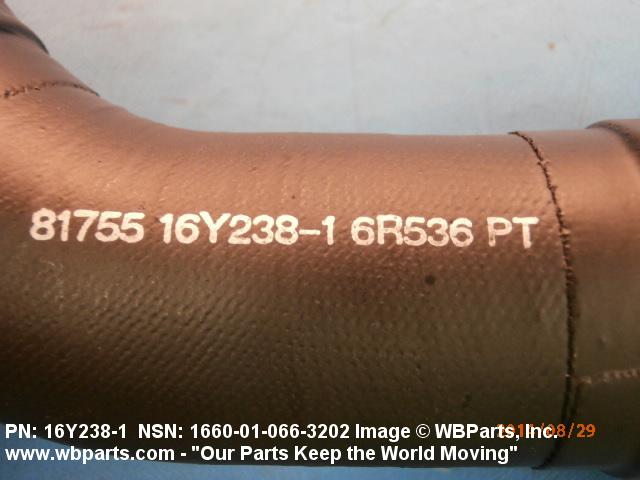

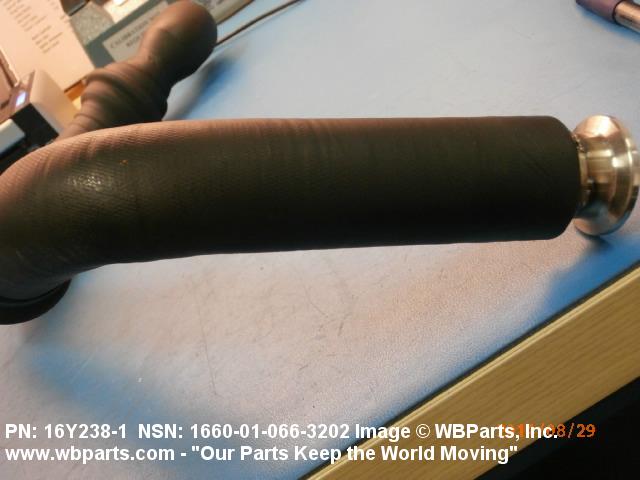

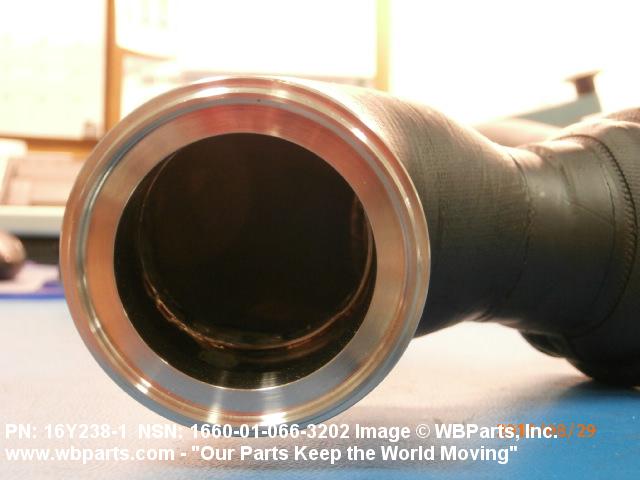

Drawings & Photos | NSN 1560-01-066-3202
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 1660-01-066-3202
1560-01-066-3203, 1560-01-066-3204, 1560-01-066-3206, 1560-01-066-3682, 1560-01-066-4107
Technical Data | NSN 1660-01-066-3202
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | DUCT,BLEED AIR-INLET,CONTROL VALVE;C/O-JOINT,COMPENSATOR,FLANG E,ADAPTER,INSULATION,TAPE,HARDWAR E,-27 ADHESIVE FMS-0015-1,-9 ELBOW 1 O.D. X .020 X 7,-11 ELBOW 1 O.D. X .020 X 7,-13 ELBOW 1 1/2 O.D. X .028 X 5,-15 TRANSITION .025 X 2 X 6,-19 -21 -23 -25 SHELLS;MATERIAL-OF -9 AND -11 ELBOWS 6061 ALUM ALLOY TUBING PER MIL-T-8808-TYPE 2,OF -13 ELBOW-6061 ALUM ALLOY TUBING PER FMS-3016,OF -15 TRANSACTION MIL-S-6721 TYPE 321,OF SHELLS-FMS-1024 STYLE 181;NHA 16Y020-5;EFF ON 0001 ON |
| III END ITEM IDENTIFICATION | F-16A/B USAF AIRCRAFT |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 16Y238-1 |
Restrictions/Controls & Freight Information | NSN 1660-01-066-3202
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
