NSN 1680-00-700-3147 S614061610, S6140-61610, S614061610041
Product Details | BELL CRANK
1680-00-700-3147 An item in the form of two arms at an angle, having its fulcrum at the apex of the angle, and used to provide a means of changing the direction or varying the intensity of a pushing or pulling force. See also ARM (as modified); and LEVER (as modified).20411900057Specialized Test and Handling Equipment, Nuclear Ordnance11950030Miscellaneous Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: S614061610, S6140-61610, S614061610041, S6140-61610-041, 1680-00-700-3147, 00-700-3147, 1680007003147, 007003147
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-700-3147 | 22321 ( BELL CRANK ) |
Drawings & Photos | NSN 1680-00-700-3147
Demand History | NSN 1680-00-700-3147
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1680-00-700-3147 | 2006-05-132 | 2 | DIBBS |
| 1680-00-700-3147 | 2006-05-132 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1680-00-700-3147
Technical Data | NSN 1680-00-700-3147
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZE AND PAINT |

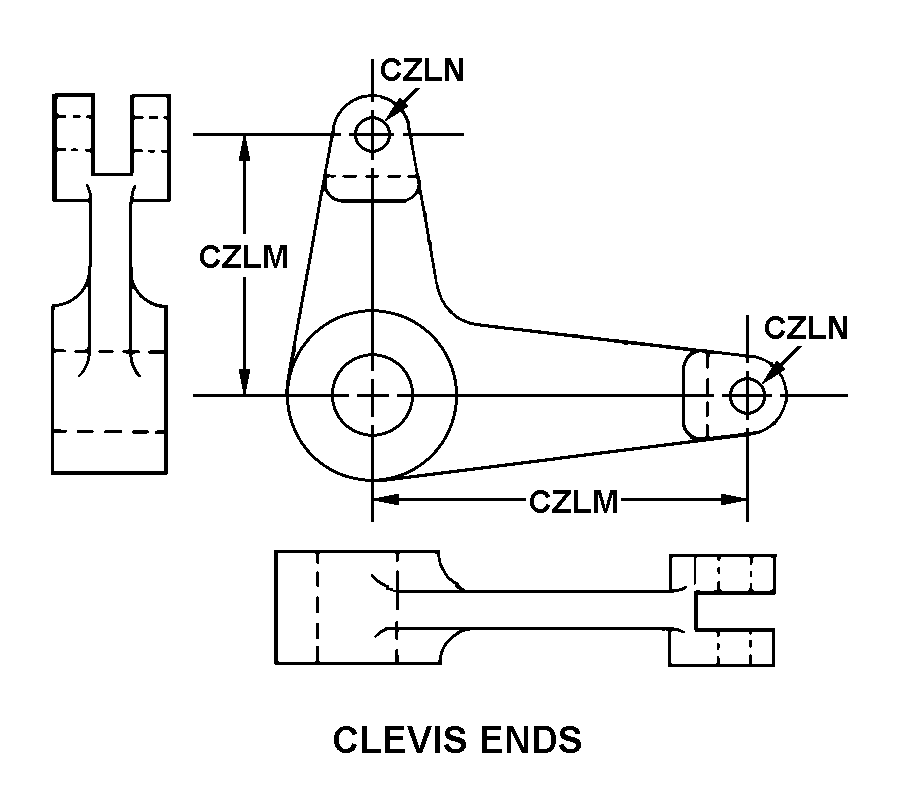

| STYLE DESIGNATOR | A12 CLEVIS ENDS |
| CENTER TO CENTER DISTANCE BETWEEN FULCRUM AND ARM END HOLE/SLOT/BALL | 2.812 INCHES NOMINAL 1ST END 4.125 INCHES NOMINAL 2ND END |
| END HOLE/BALL DIAMETER | 0.249 INCHES MINIMUM AND 0.250 INCHES MAXIMUM 1ST END 0.249 INCHES MINIMUM AND 0.250 INCHES MAXIMUM 2ND END |
| BORE LENGTH | 0.812 INCHES MINIMUM AND 0.817 INCHES MAXIMUM |
| BORE DIAMETER | 1.250 INCHES NOMINAL |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | S6140-61610-041 |
