Product Details | AIRCRAFT MOUNTED WINCH
1680-00-733-3491 A powered unit with minimal handling designed to locate cargo and extricate downed personnel. It is located within a particular place of the main cargo area or in the cabin fuselage of a rescue aircraft. Excludes WINCH, DRUM, POWER OPERATED and WINCH, DRUM, VEHICLE MOUNTING.
Part Alternates: 1184R125, 6957551, 695755-1, 1680-00-733-3491, 00-733-3491, 1680007333491, 007333491
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-733-3491 | 19139 ( WINCH, AIRCRAFT MOUNTED ) |

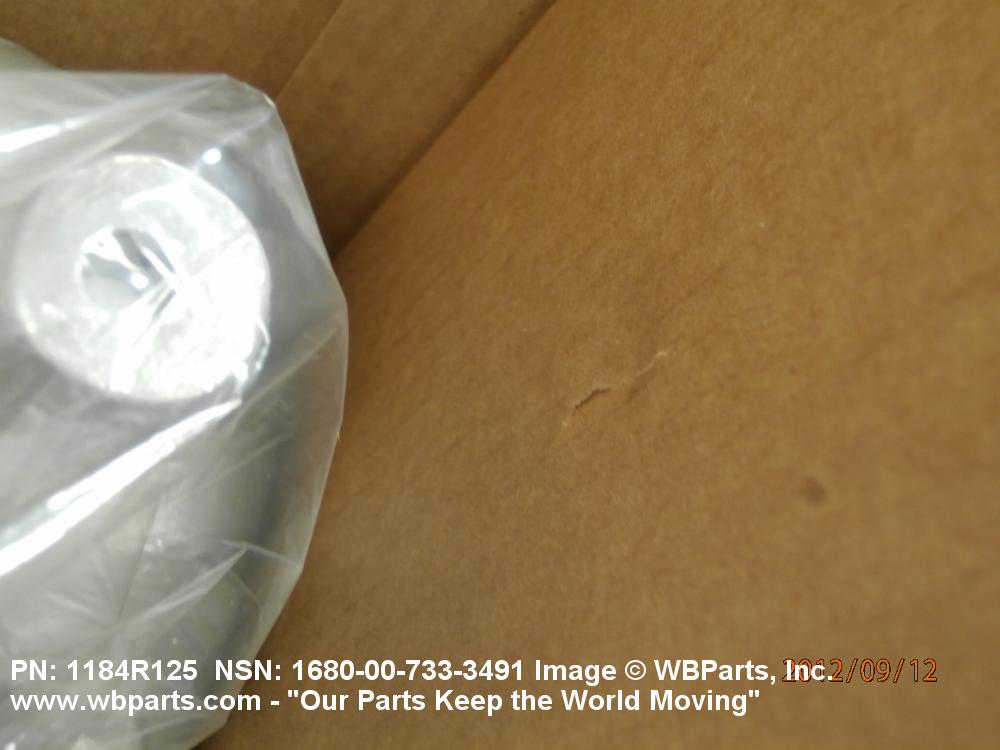

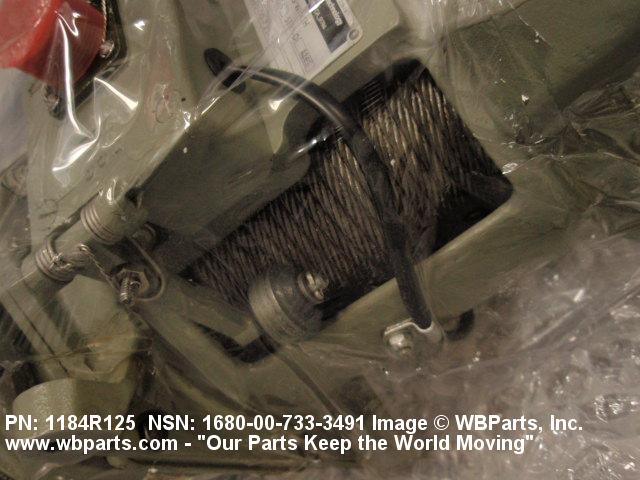

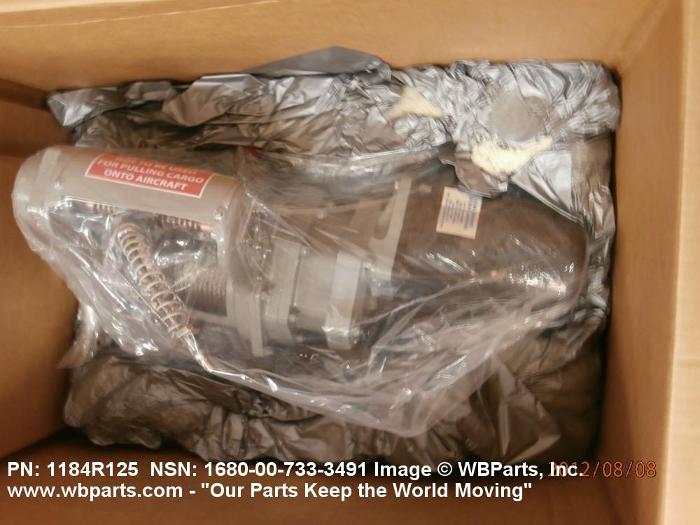

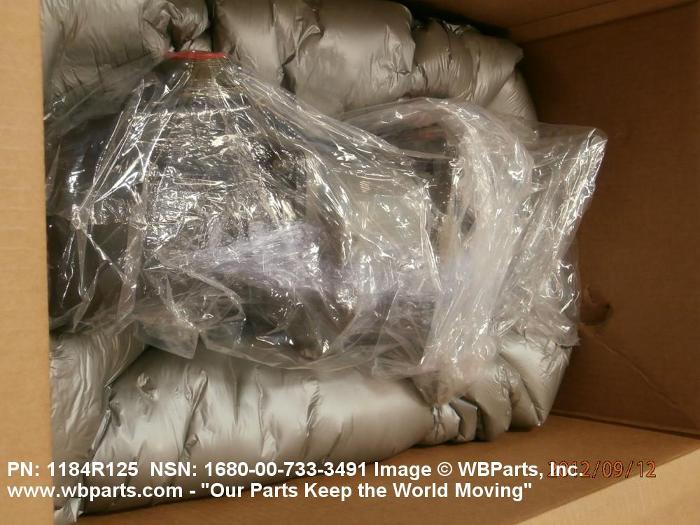

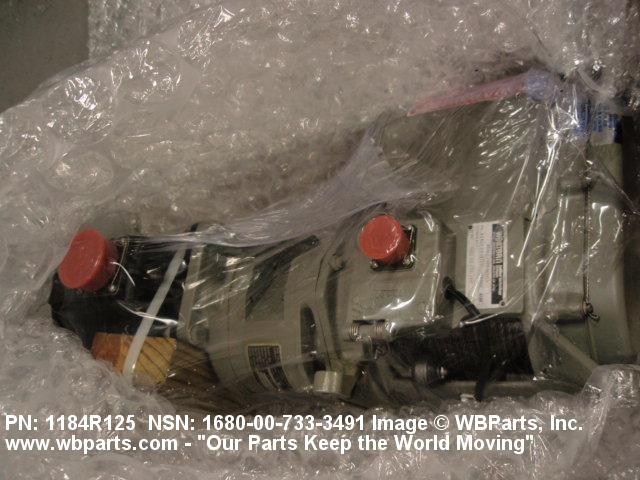

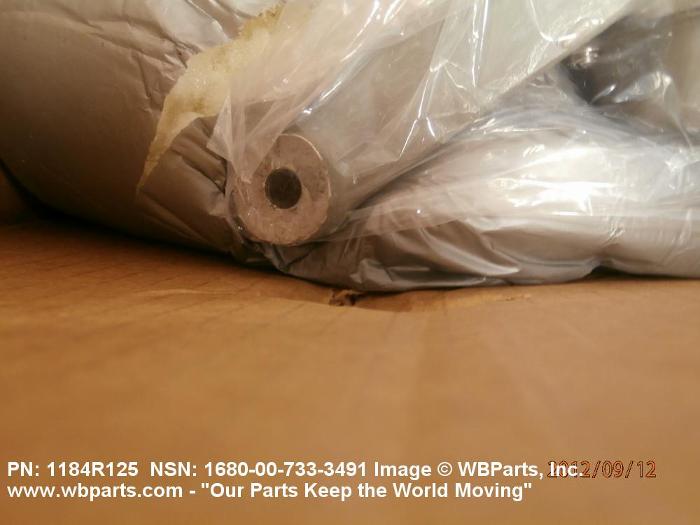

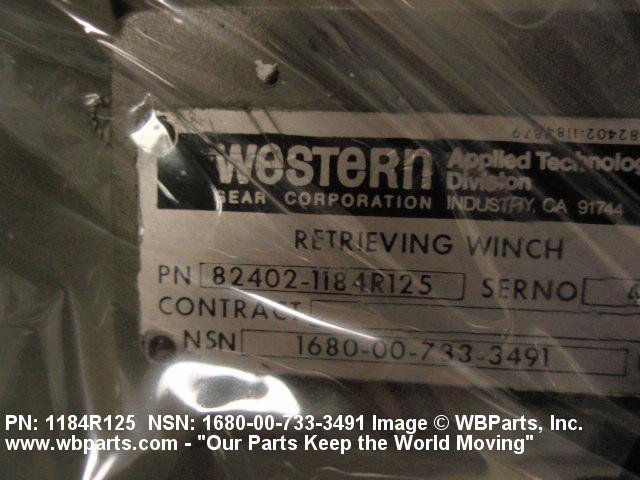

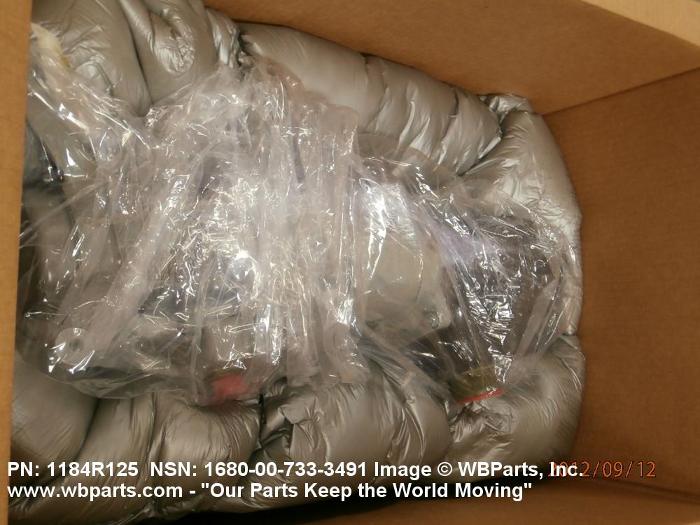

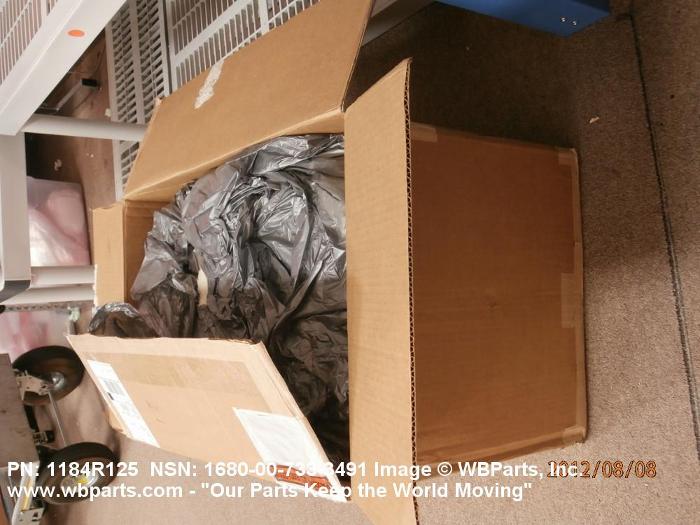

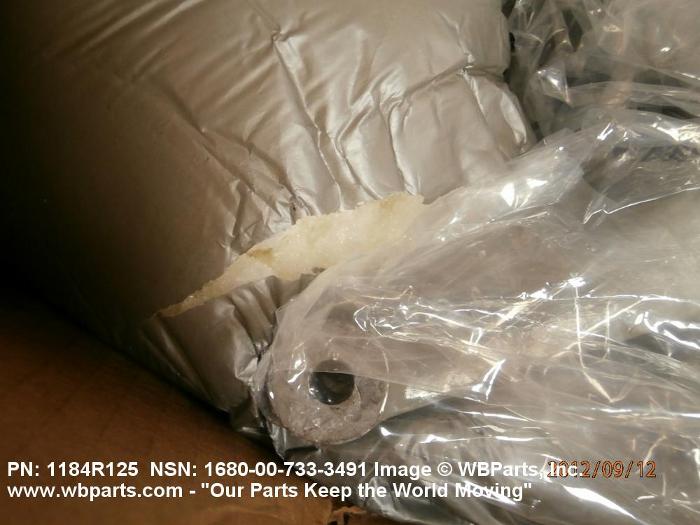

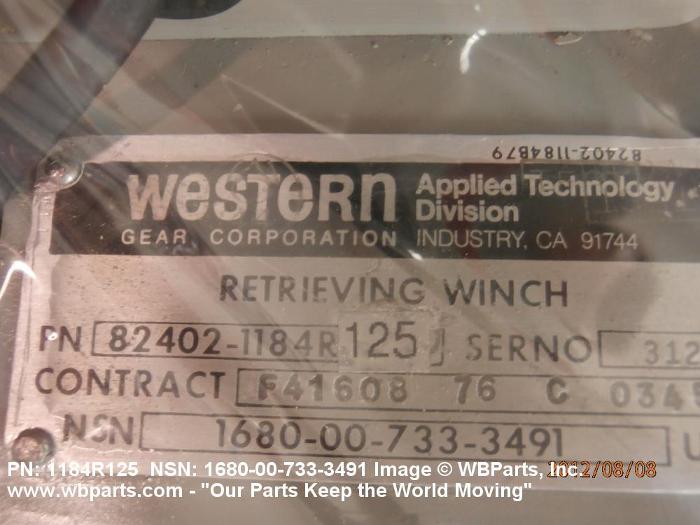

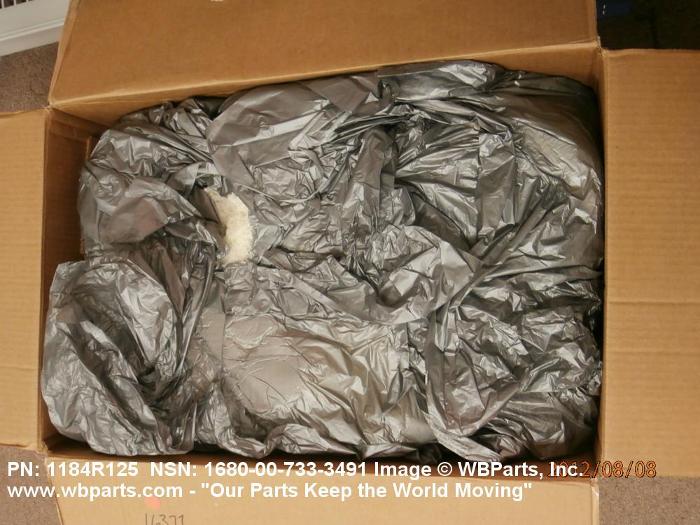

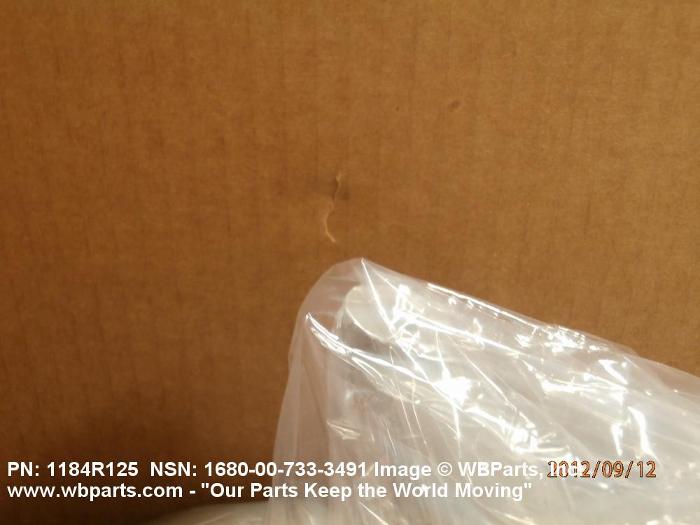

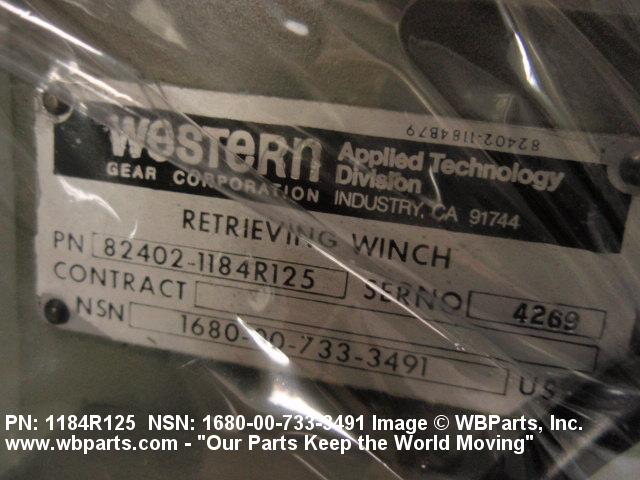

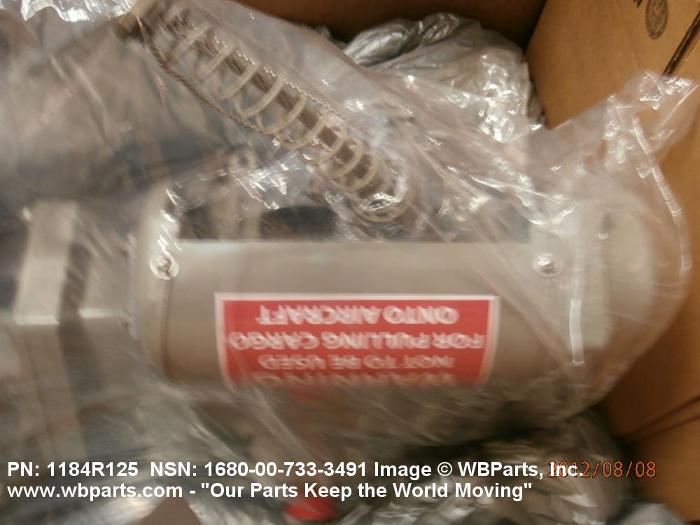

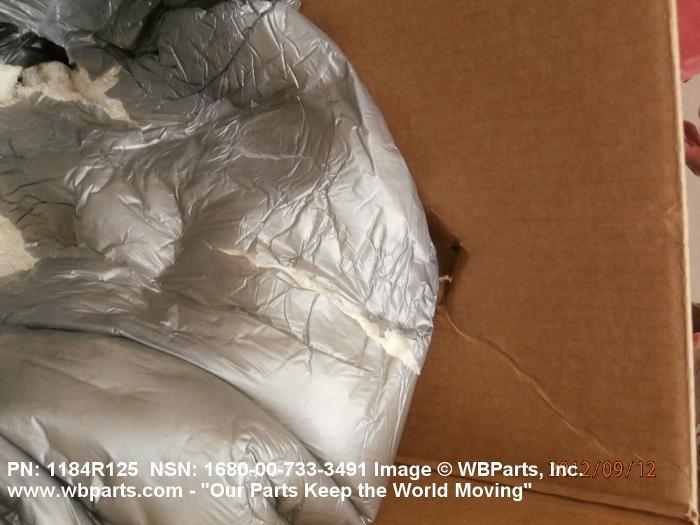

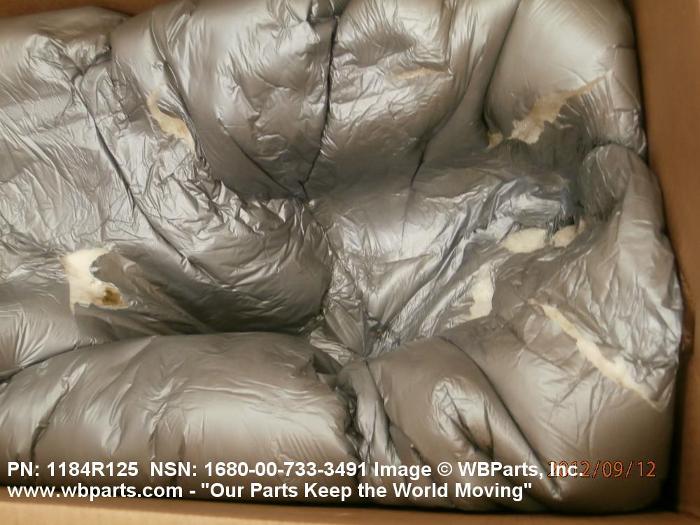

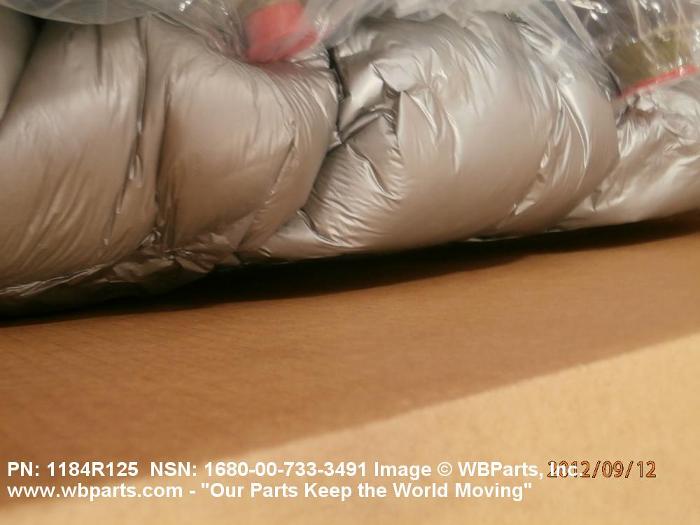

Drawings & Photos | NSN 1680-00-733-3491
Demand History | NSN 1680-00-733-3491
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1680-00-733-3491 | 2023-10-30 | 4 | United Arab Emirates |
| 1680-00-733-3491 | 2023-10-30 | 4 | SD |
| 1184R125 | 2022-08-25 | 6 | PK |
| 1184R125 | 2018-06-06 | 2 | US |
| 1680-00-733-3491 | 2018-03-29 | 1 | Thailand |
| 1680-00-733-3491 | 2018-03-28 | 4 | TH |
| 1184R125 | 2018-02-14 | 10 | AE |
| 1184R125 | 2018-02-12 | 1 | United Arab Emirates |
| 1680-00-733-3491 | 2017-09-01 | 1 | United States |
| 1680-00-733-3491 | 2015-05-21 | 1 | United States |
| 1184R125 | 2014-11-21 | 1 | Germany |
| 1680-00-733-3491 | 2014-06-30 | 1 | Malaysia |
| 1184R125 | 2012-07-24 | 2 | Canada |
| 1680-00-733-3491 | 2012-02-27 | 1 | us |
| 1680-00-733-3491 | 2011-12-28 | 2 | SG |
| 1680-00-733-3491 | 2010-12-22 | 1 | United States |
| 1680-00-733-3491 | 2010-12-22 | 1 | United States |
| 1184R125 | 2008-06-10 | 1 | BE |
| 1184R125 | 2008-04-29 | 300 | Brazil |
| 1184R125 | 2006-09-15 | 2 | United States |
| 1184R125 | 2006-08-15 | 2 | United States |
| 1184R125 | 2006-07-18 | 2 | United States |
| 1184R125 | 2006-06-26 | 2 | Singapore |
| 1184R125 | 2006-06-22 | 2 | US |
| 1184R125 | 2006-04-05 | 2 | US |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 1680-00-733-3491
Related Products | NSN 1680-00-733-3491
1680-00-733-3493, 1680-00-733-3899, 1680-00-733-5768, 1680-00-733-5807, 1680-00-733-5814
Technical Data | NSN 1680-00-733-3491
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | POWER |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| CURRENT TYPE | DC |
| INCLOSURE TYPE | PARTIALLY INCLOSED |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT |
| DRUM SURFACE DESIGN | GROOVED |
| BRAKING METHOD | ELECTRIC |
| MANUFACTURERS CODE | 00462 |
| DESIGN CONTROL REFERENCE | 1184R125 |
Restrictions/Controls & Freight Information | NSN 1680-00-733-3491
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI SUB1 |
| Less than car load rating | ||
| Less than truck load rating | D | 200.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1680-00-733-3491
Air Force
Navy
Coast Guard| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RK | SX:AEROSPACE SUPPORT ACCESSORIES |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | LC | CARGO/TRANSPORTAIRCRAFT(C130) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Source of Supply | ZQC | Commanding Officer Department of Homeland Security USCG Aviation Logistics Center 1664 Weeksville Road Elizabeth City, NC 27909 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | R | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
