Product Details | AIRCRAFT MOUNTED WINCH
1680-01-129-8118 A powered unit with minimal handling designed to locate cargo and extricate downed personnel. It is located within a particular place of the main cargo area or in the cabin fuselage of a rescue aircraft. Excludes WINCH, DRUM, POWER OPERATED and WINCH, DRUM, VEHICLE MOUNTING.
Part Alternates: BL1030060, BL10300-60, S6152623815, S6152-62381-5, 1680-01-129-8118, 01-129-8118, 1680011298118, 011298118
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 12 APR 1982 | 01-129-8118 | 19139 ( WINCH, AIRCRAFT MOUNTED ) |

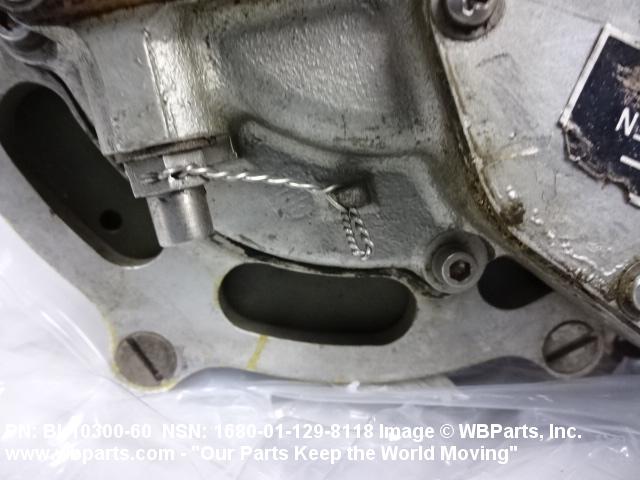

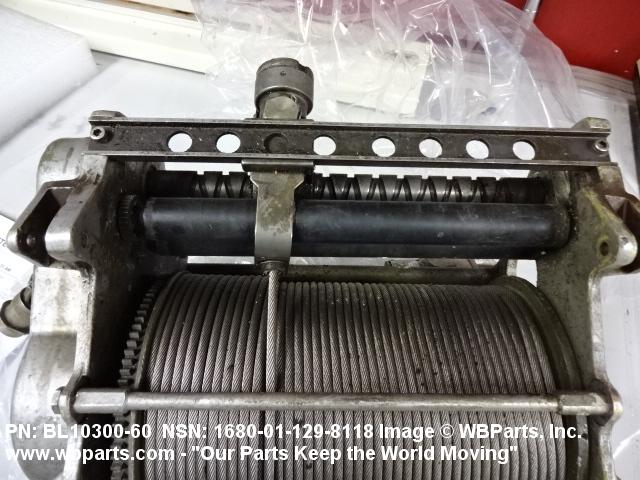

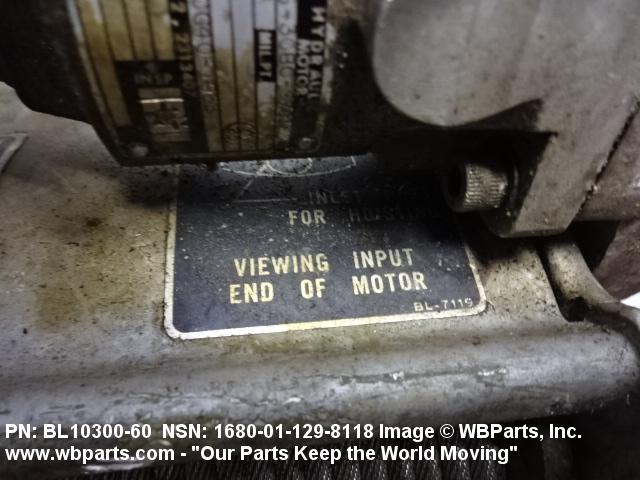

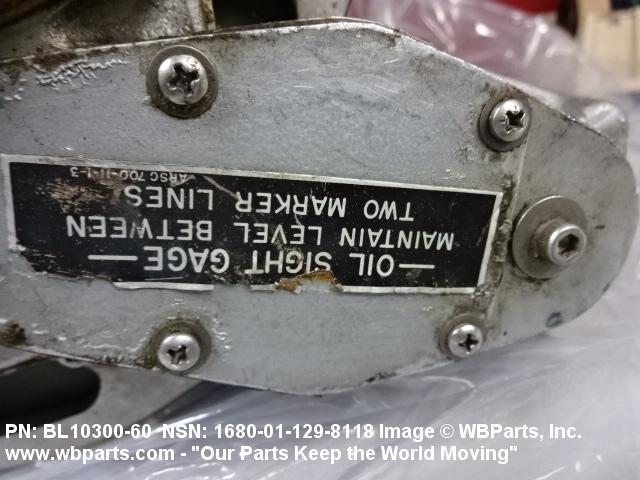

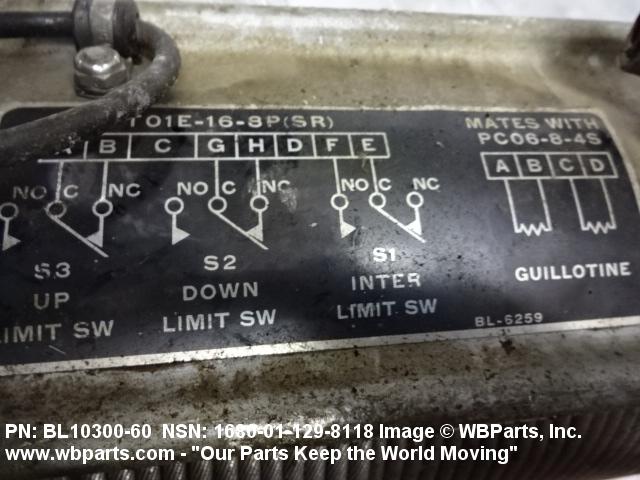

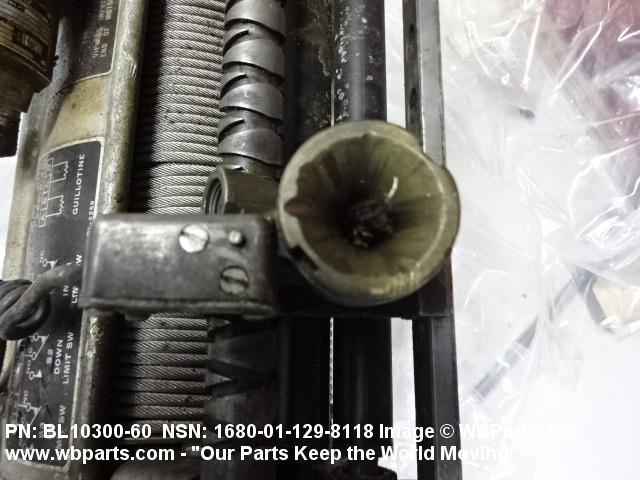

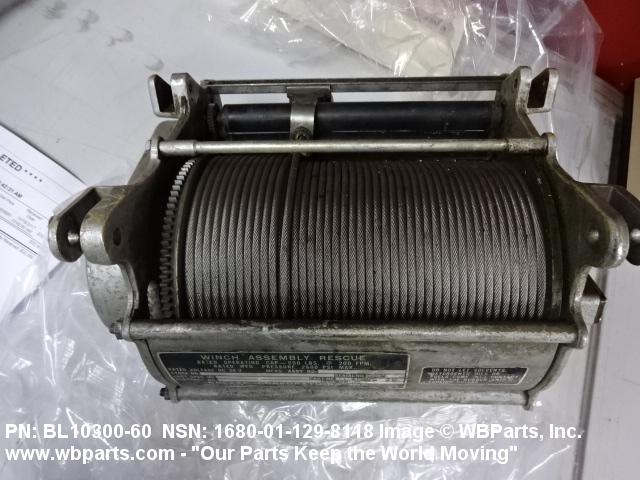

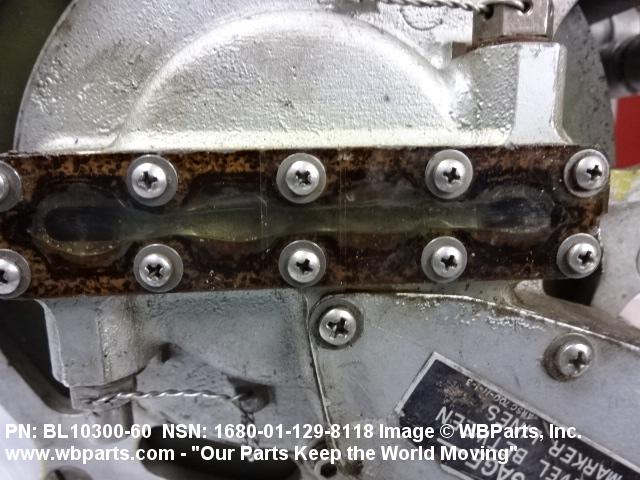

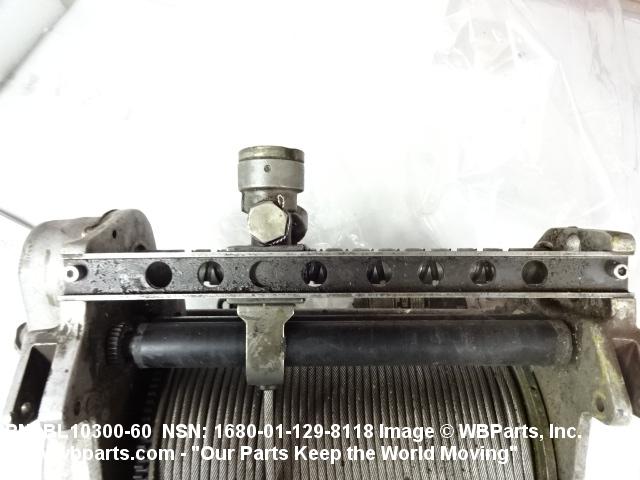

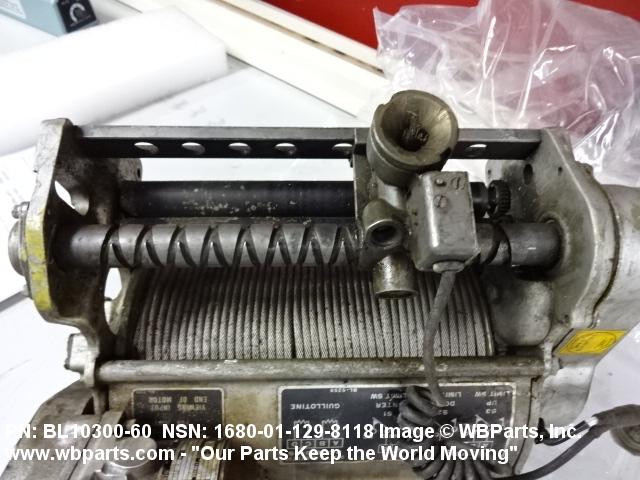

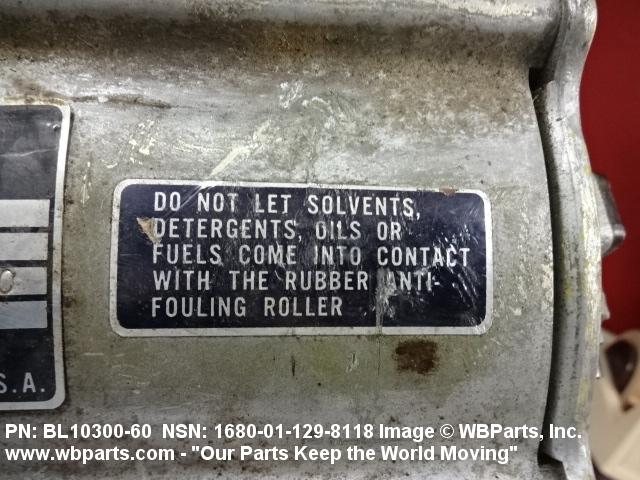

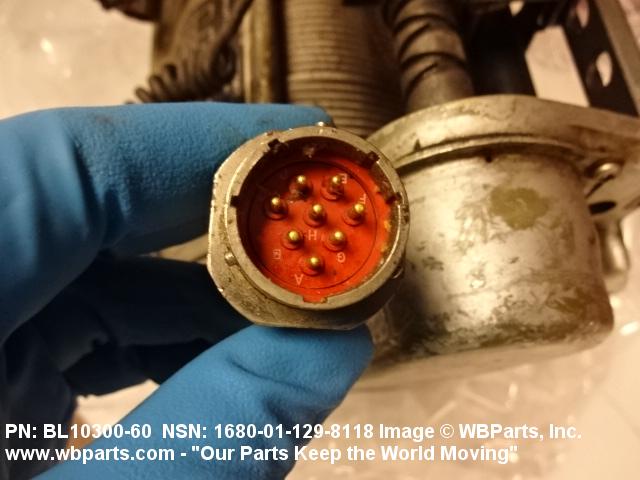

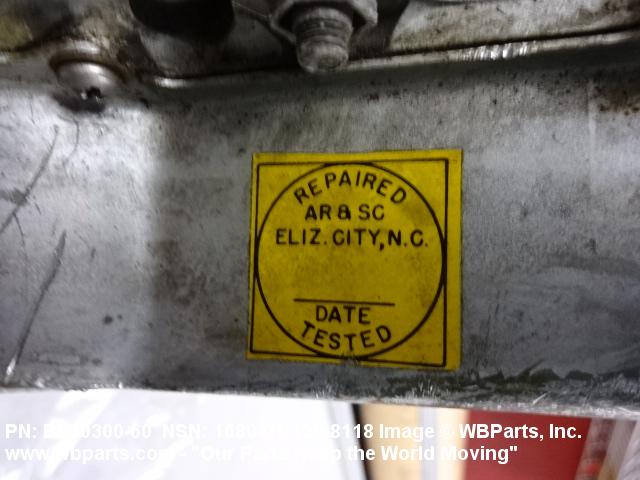

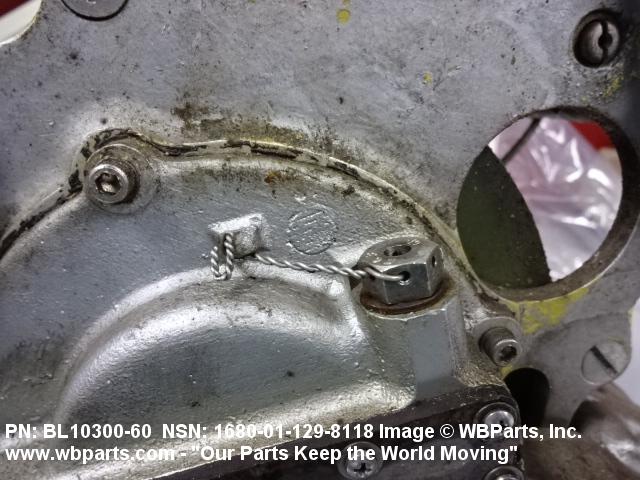

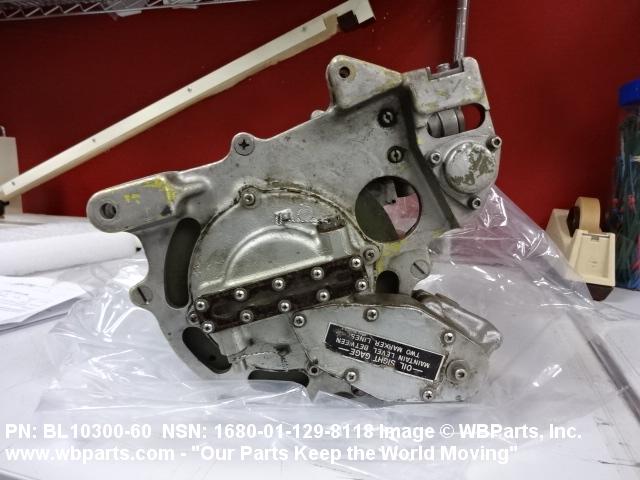

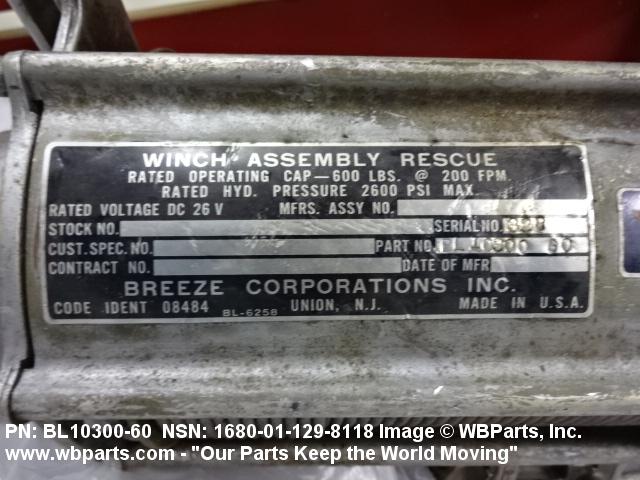

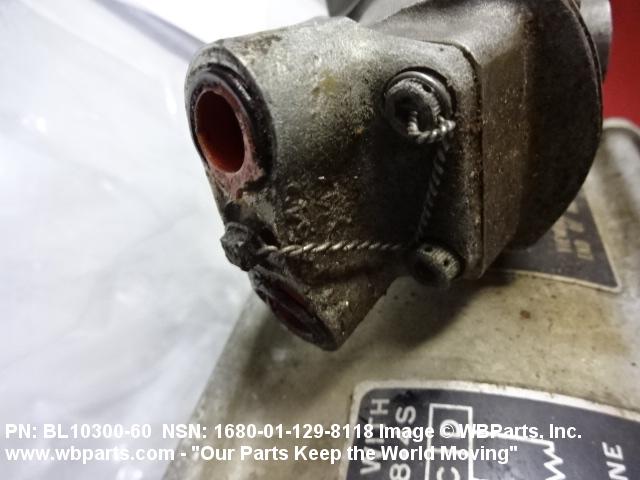

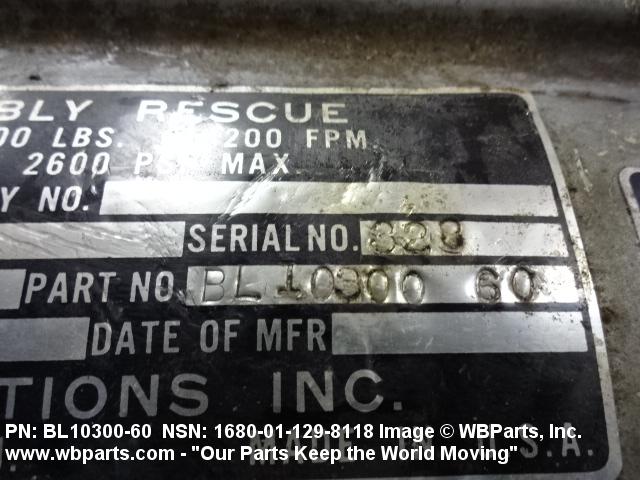

Drawings & Photos | NSN 1680-01-129-8118
Demand History | NSN 1680-01-129-8118
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1680-01-129-8118 | 2023-10-13 | 1 | CA |
| 1680-01-129-8118 | 2022-02-08 | 0 | NECO |
| 1680-01-129-8118 | 2021-12-02 | 0 | NECO |
| 1680-01-129-8118 | 2019-01-12 | 19 | NECO |
| BL10300-60 | 2018-02-16 | 17 | |
| 1680-01-129-8118 | 2018-02-14 | 17 | NECO |
| BL10300-60 | 2017-11-15 | 6 | |
| 1680-01-129-8118 | 2017-11-14 | 6 | NECO |
| 1680-01-129-8118 | 2017-10-24 | 18 | NECO |
| 1680-01-129-8118 | 2017-08-02 | 1 | Malaysia |
| 1680-01-129-8118 | 2017-06-06 | 13 | NECO |
| BL10300-60 | 2017-02-17 | 5 | |
| 1680-01-129-8118 | 2017-02-16 | 5 | NECO |
| BL10300-60 | 2015-04-02 | 10 | |
| 1680-01-129-8118 | 2015-04-01 | 10 | NECO |
| BL1030060 | 2013-04-09 | 3 | Malaysia |
| BL1030060 | 2012-07-29 | 1 | Malaysia |
| BL1030060 | 2011-10-11 | 5 | Malaysia |
| BL1030060 | 2010-03-19 | 1 | Malaysia |
| BL1030060 | 2009-10-26 | 2 | Malaysia |
| 1680-01-129-8118 | 2008-06-28 | 1 | PE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 1680-01-129-8118
Related Products | NSN 1680-01-129-8118
1680-01-129-8227, 1680-01-129-8232, 1680-01-129-8233, 1680-01-129-8234, 1680-01-129-8235
Technical Data | NSN 1680-01-129-8118
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | POWER |

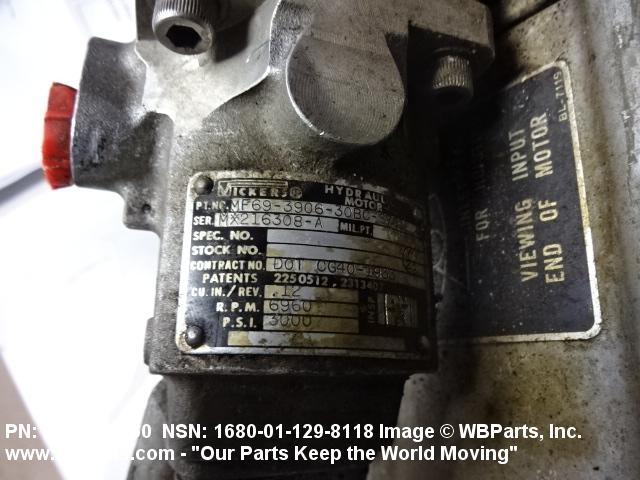

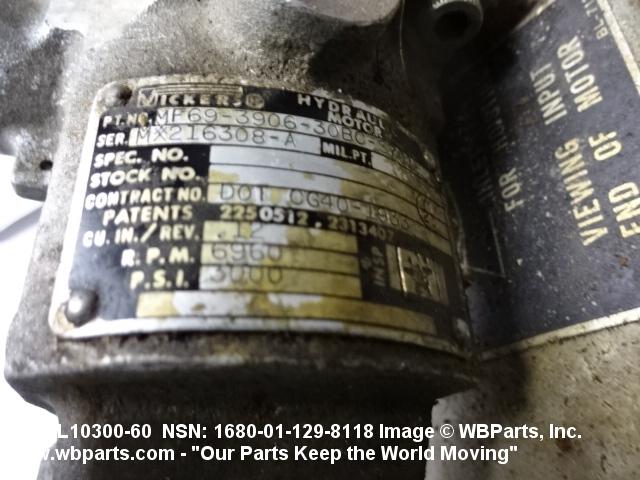

| PRIME MOVER TYPE | HYDRAULIC MOTOR |
| PRIME MOVER QUANTITY | 1 |
| POWER DRIVE OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH GAGE |
| DRUM SURFACE DESIGN | GROOVED |
| BRAKING METHOD | ELECTRIC |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY THE SOURCE CONTROL DWG NO. |
| MANUFACTURERS CODE | 78286 |
| MFR SOURCE CONTROLLING REFERENCE | S6152-62381-5 |
| MANUFACTURERS CODE | 08484 |
| DESIGN CONTROL REFERENCE | BL10300-60 |
Restrictions/Controls & Freight Information | NSN 1680-01-129-8118
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116440 | CAPSTANS/WINCHES/WINDLASSES |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1680-01-129-8118
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | LU | HELICOPTERS(CH-53E) |
| Issue Repair, or Requisition | BS | Submit/refer requisitions to NAVICP PHIL. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
