1680-00-831-2262 An item in the form of two arms at an angle, having its fulcrum at the apex of the angle, and used to provide a means of changing the direction or varying the intensity of a pushing or pulling force. See also ARM (as modified); and LEVER (as modified).20411900057Specialized Test and Handling Equipment, Nuclear Ordnance11950030Miscellaneous Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 114C12301, 114C1230-1, 1680-00-831-2262, 00-831-2262, 1680008312262, 008312262
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1962 | 00-831-2262 | 22321 ( BELL CRANK ) |
Drawings & Photos | NSN 1680-00-831-2262
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 1680-00-831-2262
1680-00-831-2701, 1680-00-831-2702, 1680-00-831-3300, 1680-00-831-3736, 1680-00-831-3740
Technical Data | NSN 1680-00-831-2262
| Characteristic | Specifications |
|---|---|
| MATERIAL | MAGNESIUM ALLOY |

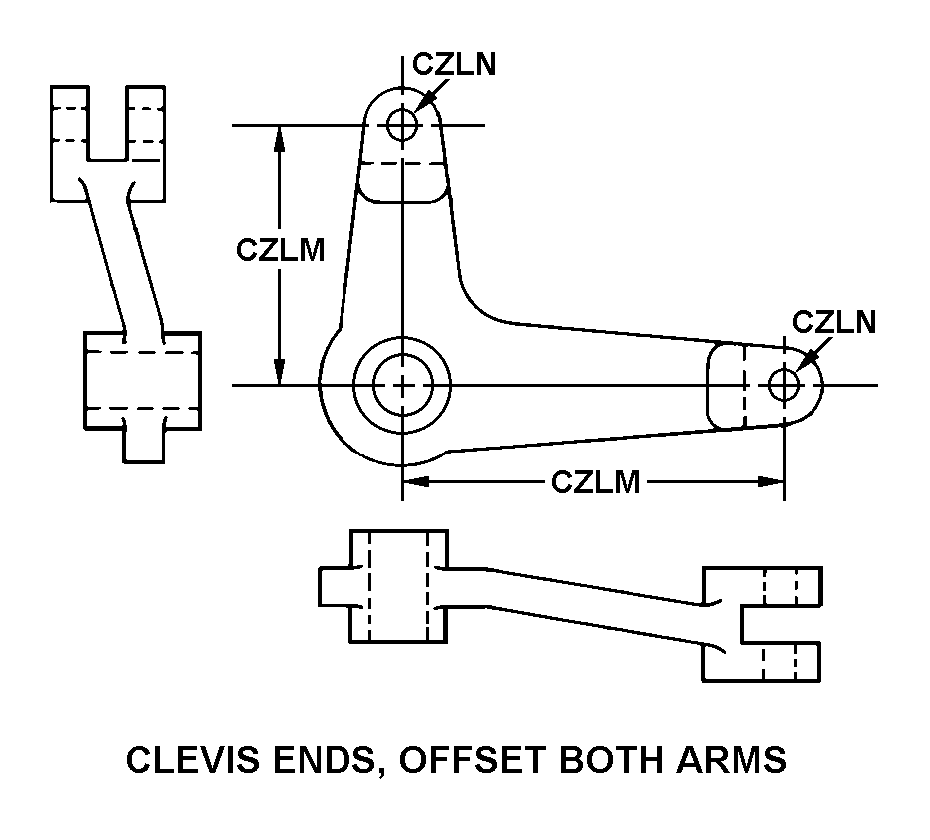

| STYLE DESIGNATOR | A13 CLEVIS ENDS, OFFSET BOTH ARMS |
| CENTER TO CENTER DISTANCE BETWEEN FULCRUM AND ARM END HOLE/SLOT/BALL | 3.960 INCHES NOMINAL 1ST END 4.350 INCHES NOMINAL 2ND END |
| END HOLE/BALL DIAMETER | 0.377 INCHES NOMINAL 1ST END |
| BORE LENGTH | 1.960 INCHES NOMINAL |
| BORE DIAMETER | 1.580 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 1.749 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.235 INCHES NOMINAL |
| MANUFACTURERS CODE | 77272 |
| DESIGN CONTROL REFERENCE | 114C1230-1 |
