NSN 1730-01-261-2518 012612518
Product Details | WIPER RING
1730-01-261-2518 A circular, single or multipiece, rigid, metallic or nonmetallic item having a centrally located hole with a sharp edge on the inside periphery. It is supplied in various cross-sectional shapes and is designed to be installed in a cylinder, shock strut, or similar device to remove excess oil, dirt, ice, and/or foreign material from a piston, ram, or sliding rod. Excludes PACKING, PREFORMED; RING, PISTON; and SEAL RING, METAL.
Part Alternates: 012612518
2540 | Aircraft Ground Servicing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01-261-2518 | 20256 ( RING, WIPER ) |
Drawings & Photos | NSN 1730-01-261-2518
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1730-01-261-2518
Technical Data | NSN 1730-01-261-2518
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |

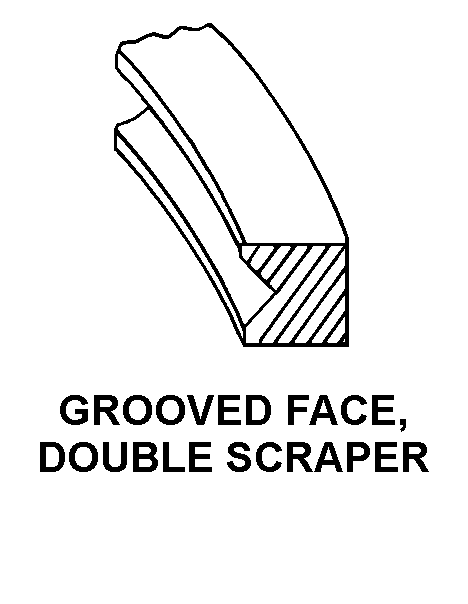

| CROSS-SECTIONAL SHAPE STYLE | B7 GROOVED FACE, DOUBLE SCRAPER |

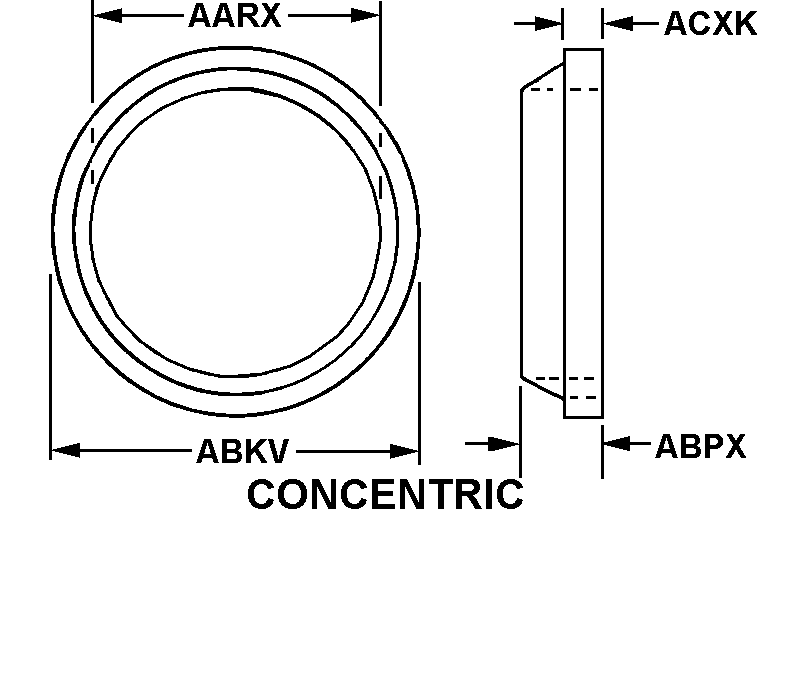

| RING STYLE | 7 CONCENTRIC |
| INSIDE DIAMETER | 2.499 INCHES MINIMUM AND 2.500 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 2.995 INCHES MINIMUM AND 2.998 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.281 INCHES MINIMUM AND 0.286 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 1730-01-261-2518
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
