NSN 2040-01-487-8669 1247386971, 124-7386971, 124-7386971 PC 38
Product Details | DOOR HANDLE
2040-01-487-8669 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.20316800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: 1247386971, 124-7386971, 124-7386971 PC 38, 1247386971PC38, 2040-01-487-8669, 01-487-8669, 2040014878669, 014878669
Ship and Marine Equipment | Marine Hardware and Hull Items
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | 21 AUG 2001 | 01-487-8669 | 18073 ( HANDLE, DOOR ) |
Drawings & Photos | NSN 2040-01-487-8669
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2040-01-487-8669
Technical Data | NSN 2040-01-487-8669
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A 473, TYPE 316 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

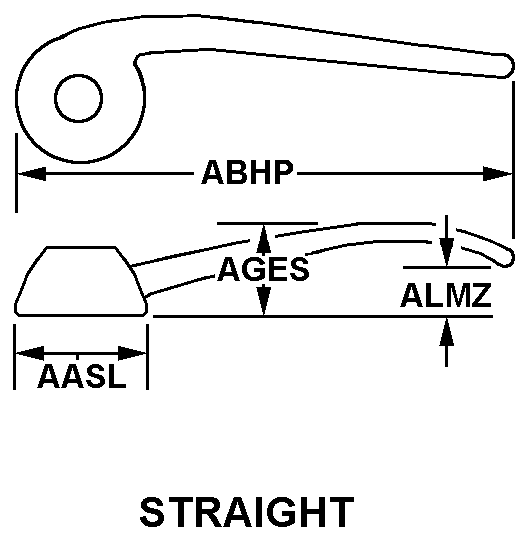

| STYLE DESIGNATOR | C24 STRAIGHT |
| HEAD DIAMETER | 1.750 INCHES NOMINAL |
| OVERALL LENGTH | 8.125 INCHES NOMINAL |
| HANDLE HEIGHT | 1.812 INCHES NOMINAL |
| HANDLE CLEARANCE | 1.0625 INCHES NOMINAL |
| MOUNTING METHOD | SLOT |
| MOUNTING FACILITY QUANTITY | 1 |
| MOUNTING FACILITY LENGTH | 1.129 INCHES MINIMUM AND 1.131 INCHES MAXIMUM |
| MOUNTING FACILITY WIDTH | 0.906 INCHES MINIMUM AND 0.909 INCHES MAXIMUM |
| SPECIAL FEATURES | 1.188 IN. BEND OFF CENTER ON THE HORIZONTAL AXIS |
| III END ITEM IDENTIFICATION | AIRCRAFT CARRIER CVN 76 BALLISTIC DOORS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | HANDLE, DOG |
Restrictions/Controls & Freight Information | NSN 2040-01-487-8669
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095142 | HARDWARE HANDLES,IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | N | Ship's parts. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2040-01-487-8669
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
