Product Details | WHEEL HYDRAULIC BRAKE CYLINDER ASSEMBLY
2530-00-495-8790 A device consisting of a CYLINDER, HYDRAULIC BRAKE, WHEEL with a piston(s) and other component parts which is mounted to the back plate of a wheel. It uses the flow and pressure of a fluid to create the linear motion required to operate the brake shoes of a hydraulic brake system.20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: GP2261, 637787, 8332693, 2530-00-495-8790, 00-495-8790, 2530004958790, 004958790
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-495-8790 | 10862 ( CYLINDER ASSEMBLY, HYDRAULIC BRAKE, WHEEL ) |
Drawings & Photos | NSN 2530-00-495-8790
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-495-8790
Technical Data | NSN 2530-00-495-8790
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | DOUBLE ACTING SINGLE CYLINDER |
| OVERALL WIDTH | 2.016 INCHES NOMINAL |
| OVERALL HEIGHT | 1.453 INCHES NOMINAL |
| EXTENDED LENGTH | ANY ACCEPTABLE |
| COMPRESSED LENGTH | 2.969 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 0.875 INCHES NOMINAL |

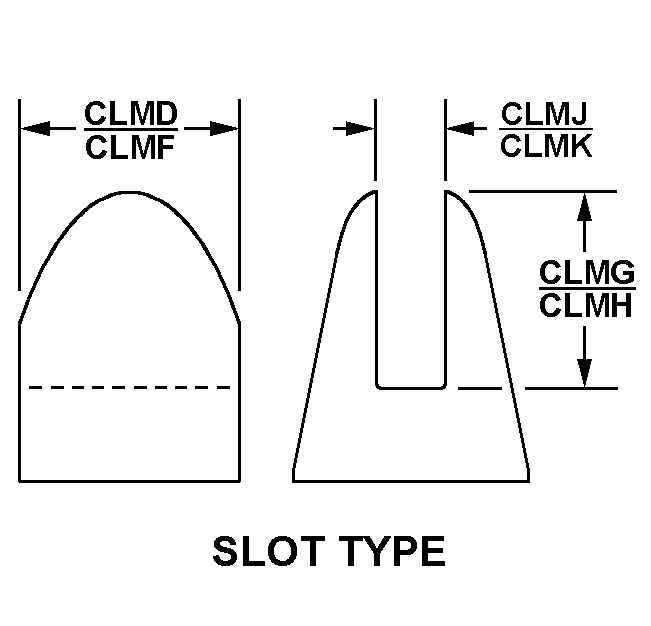

| FIRST PISTON ROD END STYLE | 5 SLOT TYPE |
| FIRST END FORK WIDTH | ANY ACCEPTABLE |
| FIRST END FORK DEPTH | 0.281 INCHES NOMINAL |
| FIRST END FORK SPAN WIDTH | 0.160 INCHES MINIMUM 0.165 INCHES MAXIMUM |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| PISTON ROD END SIMILARITY | IDENTICAL |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | FLANGE CENTER SECTION |
| MOUNTING PROVISION | THREADED MOUNTING HOLES |
| MOUNTING PROVISION ARRANGEMENT STYLE | 1 TWO HOLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING PROVISIONS | 1.250 INCHES NOMINAL |
| MOUNTING FACILITY THREAD SERIES DESIGNATOR | UNC |
| MOUNTING FACILITY THREAD DIAMETER | 0.250 INCHES NOMINAL |
| MOUNTING FACILITY THREAD QUANTITY PER INCH | 20 |
| MOUNTING FACILITY THREAD CLASS | 2B |
| MOUNTING FACILITY THREAD DIRECTION | RIGHT-HAND |
| MOUNTING FACILITY THREAD LENGTH | 0.344 INCHES NOMINAL |
| PORT LOCATION AND QUANTITY | 1 CENTER SECTION |
| PORT STYLE | 7 INVERTED FLARE |
| PORT THREAD SERIES DESIGNATOR | UNF |
| PORT THREAD DIAMETER | 0.375 INCHES NOMINAL |
| PORT THREAD QUANTITY PER INCH | 24 |
| PORT THREAD CLASS | 2B |
| SEAT ANGLE IN DEG | 45.0 |
| TEMP RATING | NOT RATED |
| MOUNTING POSITION | ANY ACCEPTABLE |
| BLEEDING FEATURE QUANTITY | 1 |
| FEATURES PROVIDED | RUBBER BOOT |
| MANUFACTURERS CODE | 23040 |
| DESIGN CONTROL REFERENCE | GP2261 |
