Product Details | WIPER RING
2590-00-999-2400 A circular, single or multipiece, rigid, metallic or nonmetallic item having a centrally located hole with a sharp edge on the inside periphery. It is supplied in various cross-sectional shapes and is designed to be installed in a cylinder, shock strut, or similar device to remove excess oil, dirt, ice, and/or foreign material from a piston, ram, or sliding rod. Excludes PACKING, PREFORMED; RING, PISTON; and SEAL RING, METAL.
Part Alternates: 009992400
Vehicular Equipment Components | Miscellaneous Vehicular Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 00-999-2400 | 20256 ( RING, WIPER ) |
Drawings & Photos | NSN 2590-00-999-2400
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 2590-00-999-2400
2590-00-999-3213, 2590-00-999-3747, 2590-00-999-3832, 2590-00-999-5331, 2590-00-999-5434
Technical Data | NSN 2590-00-999-2400
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |

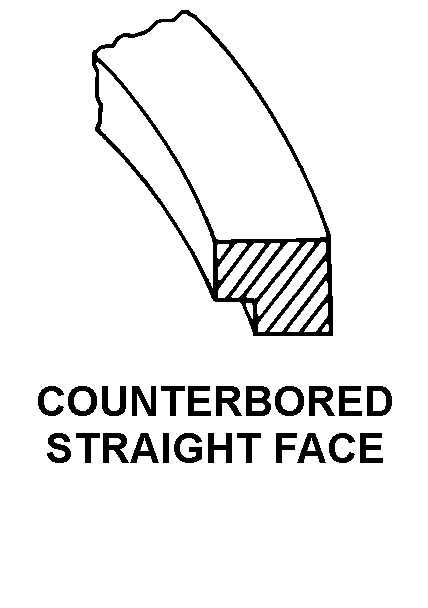

| CROSS-SECTIONAL SHAPE STYLE | B3 COUNTERBORED STRAIGHT FACE |
| RING STYLE | 7 CONCENTRIC |
| INSIDE DIAMETER | 1.160 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.382 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.210 INCHES NOMINAL |
| OUTER EDGE THICKNESS | 0.150 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | INTERNATIONAL HARVESTER CO,ENGINE,MODEL D-360 |
Restrictions/Controls & Freight Information | NSN 2590-00-999-2400
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
