NSN 2805-00-275-3033 11E, 00-275-3033, 002753033
Product Details | PRIMING CUP
2805-00-275-3033 An item consisting of a plug or needle type valve having a cup mounted on top, specifically designed for the introduction of a priming fluid to, or the relief of pressure from, the cylinders of such machinery as internal combustion engines or pumps.20228050063Gasoline Reciprocating Engines, Except Aircraft; and Components28150029Diesel Engines and Components
Part Alternates: 11E, 2805-00-275-3033, 00-275-3033, 2805002753033, 002753033
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-275-3033 | 10233 ( CUP, PRIMING ) |
Drawings & Photos | NSN 2805-00-275-3033
Cross Reference | NSN 2805-00-275-3033
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11E | 30327 | IMPERIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-275-3033
Technical Data | NSN 2805-00-275-3033
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |

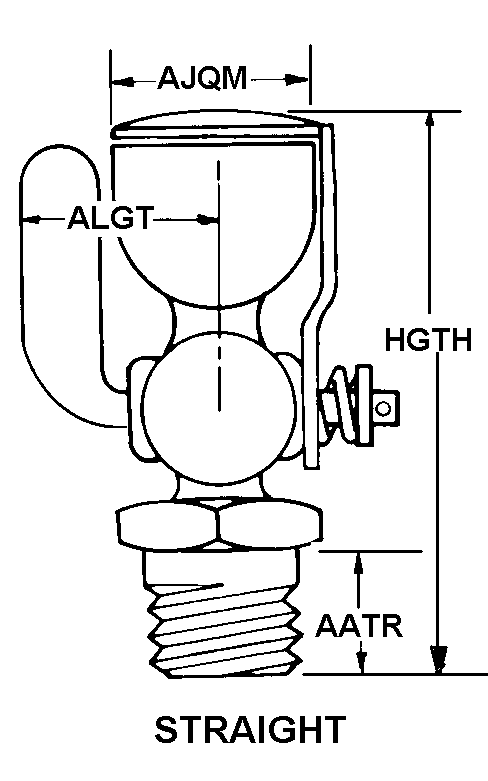

| STYLE DESIGNATOR | F2 STRAIGHT |
| SHANK LENGTH | ANY ACCEPTABLE |
| BOWL DIAMETER | ANY ACCEPTABLE |
| ASSEMBLY CLEARANCE RADIUS | ANY ACCEPTABLE |
| HEIGHT | ANY ACCEPTABLE |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| WIDTH ACROSS FLATS | ANY ACCEPTABLE |
| MANUFACTURERS CODE | 30327 |
| DESIGN CONTROL REFERENCE | 11E |
Restrictions/Controls & Freight Information | NSN 2805-00-275-3033
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 2805-00-275-3033
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
