Product Details | PISTON CONNECTING ROD
2805-00-752-1957 A device used for connecting a piston to a crankshaft or to a master connecting rod of an internal combustion engine, steam reciprocating engine, reciprocating air compressor, or the like. The rod may be connected directly to the piston, or it may transmit the motion through a crosshead.20725300060Vehicular Brake, Steering, Axle, Wheel, and Track Components28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps
Part Alternates: 1283A3, 7521957, 913356, 2805-00-752-1957, 00-752-1957, 2805007521957, 007521957
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1960 | 00-752-1957 | 60266 ( CONNECTING ROD, PISTON ) |
Drawings & Photos | NSN 2805-00-752-1957
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 2805-00-752-1957
Related Products | NSN 2805-00-752-1957
2805-00-752-1964, 2805-00-752-1966, 2805-00-752-5958, 2805-00-752-5960, 2805-00-752-7608
Technical Data | NSN 2805-00-752-1957
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FABRICATION METHOD | FORGED |
| STRENGTH RATING | 96000.0 POUNDS PER SQUARE INCH MINIMUM TENSILE |
| METALLIC HARDNESS RATING | 229.0 MINIMUM BRINELL TUNGSTEN CARBIDE AND 269.0 MAXIMUM BRINELL TUNGSTEN CARBIDE |
| CENTER TO CENTER EFFECTIVE LENGTH | 7.248 INCHES MINIMUM AND 7.252 INCHES MAXIMUM |
| BODY WIDTH AT PISTON CONNECTING END | 1.015 INCHES NOMINAL |
| BODY WIDTH AT SHAFT CONNECTING END | 1.205 INCHES NOMINAL |
| BODY THICKNESS AT PISTON CONNECTING END | 0.770 INCHES NOMINAL |
| BODY THICKNESS AT SHAFT CONNECTING END | 0.805 INCHES NOMINAL |
| END WIDTH | 3.875 INCHES NOMINAL |
| END THICKNESS | 1.403 INCHES MINIMUM AND 1.409 INCHES MAXIMUM |
| EDGE RADIUS | 2.876 INCHES NOMINAL |
| END HOLE INSIDE DIAMETER | 2.333 INCHES NOMINAL |
| PISTON CONNECTING END BEARING | INCLUDED |
| BEARING REPLACEABILITY | REPLACEABLE |
| PISTON CONNECTING END LUBRICATION DRILL FEATURE | INCLUDED |
| PISTON CONNECTING END LUBRICATION METHOD | SPLASH |
| SHAFT CONNECTING END HOLE INSIDE DIAMETER | 2.325 INCHES NOMINAL |
| SHAFT CONNECTING END EDGE RADIUS | 1.630 INCHES NOMINAL |
| SHAFT CONNECTING END WIDTH | 3.835 INCHES NOMINAL |
| SHAFT CONNECTING END THICKNESS | 1.612 INCHES MINIMUM AND 1.614 INCHES MAXIMUM |
| SHAFT CONNECTING END BEARING | NOT INCLUDED |
| SHAFT CONNECTING END LUBRICATION DRILL FEATURE | INCLUDED |
| SHAFT CONNECTING END LUBRICATION METHOD | FULL FORCED-FEED |

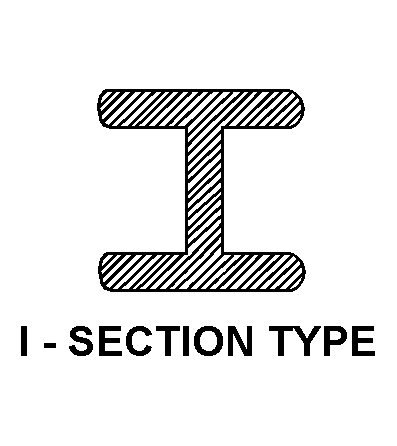

| CROSS-SECTIONAL SHAPE STYLE | G1 I-SECTION TYPE |
