NSN 2815-00-528-6064 7285, 00-528-6064, 005286064
Product Details | VALVE SPRING RETAINER LOCK
2815-00-528-6064 A metal item designed for the purpose of securing an engine or compressor valve and positioning the valve spring or valve spring retainer. Excludes cotter pins, straight pins, keys and washers.20428050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components43100028Compressors and Vacuum Pumps
Part Alternates: 7285, 2815-00-528-6064, 00-528-6064, 2815005286064, 005286064
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-528-6064 | 15883 ( LOCK, VALVE SPRING RETAINER ) |
Drawings & Photos | NSN 2815-00-528-6064
Cross Reference | NSN 2815-00-528-6064
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7285 | 81601 | NORFOLK NAVAL SHIPYARD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2815-00-528-6064
Technical Data | NSN 2815-00-528-6064
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | CASEHARDENED |

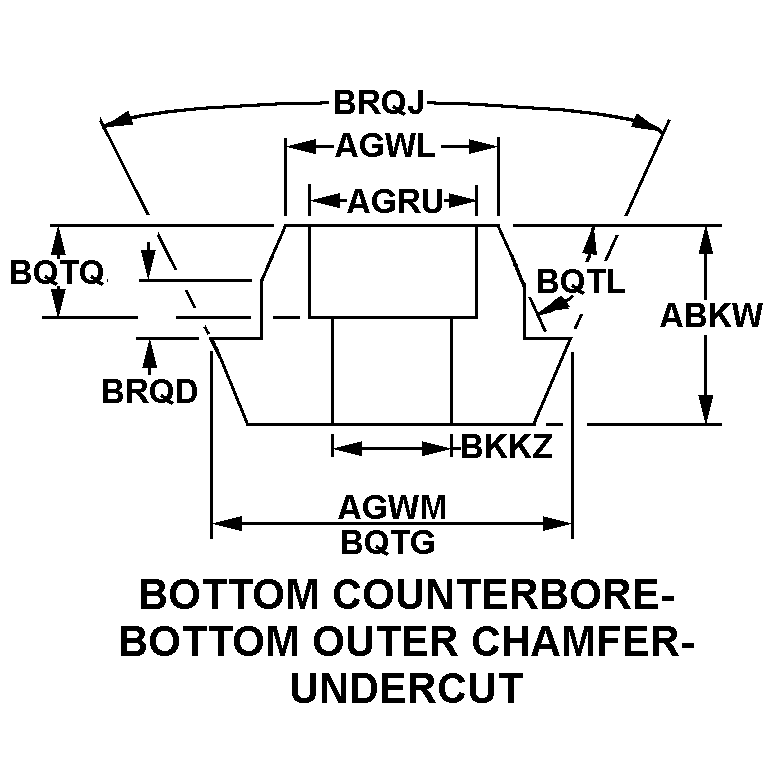

| STYLE DESIGNATOR | L23 BOTTOM COUNTERBORE-BOTTOM OUTER CHAMFER-UNDERCUT |
| OVERALL HEIGHT | 0.438 INCHES NOMINAL |
| LARGEST INSIDE DIAMETER | 0.374 INCHES MINIMUM AND 0.376 INCHES MAXIMUM |
| SMALLEST OUTSIDE DIAMETER | 0.562 INCHES NOMINAL |
| LARGEST OUTSIDE DIAMETER | 0.660 INCHES NOMINAL |
| MINIMUM INSIDE DIAMETER | 0.309 INCHES |
| SMALLEST OUTSIDE DIAMETER CHAMFER ANGLE IN DEG | 45.0 |
| TOP COUNTERBORE DEPTH | 0.250 INCHES NOMINAL |
| HEIGHT TO SHOULDER | 0.250 INCHES NOMINAL |
| OUTSIDE INCLUDED ANGLE IN DEG | 30.0 |
| THREAD PROVISION | UNTHREADED |
Restrictions/Controls & Freight Information | NSN 2815-00-528-6064
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2815-00-528-6064
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
