NSN 2815-01-022-4257 676948C1, 01-022-4257, 010224257
Product Details | INTERNAL COMBUSTION ENGINE PISTON
2815-01-022-4257 00020328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: 676948C1, 2815-01-022-4257, 01-022-4257, 2815010224257, 010224257
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 29 MAY 1976 | 01-022-4257 | 16509 ( PISTON, INTERNAL COMBUSTION ENGINE ) |
Drawings & Photos | NSN 2815-01-022-4257
Demand History | NSN 2815-01-022-4257
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2815-01-022-4257 | 2013-09-262 | 8 | US |
| 676948C1 | 2010-01-05 | 1 | Poland |
| 676948C1 | 2009-12-356 | 1 | Poland |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2815-01-022-4257
Related Products | NSN 2815-01-022-4257
Technical Data | NSN 2815-01-022-4257
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| DIAMETER | 5.305 INCHES NOMINAL |
| OVERALL HEIGHT | 5.534 INCHES NOMINAL |
| SURFACE FINISH | FINISHED |
| FINISHED SIZE DESIGNATION | STANDARD |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| WEIGHT | 92.0 OUNCES |

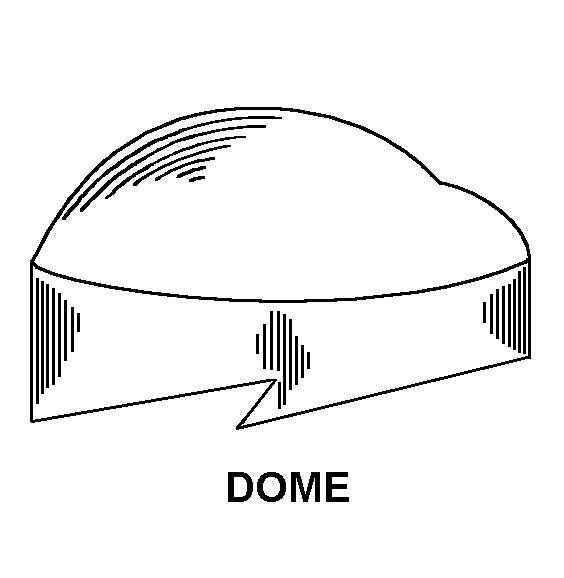

| HEAD STYLE | B6 DOME |
| SKIRT TYPE | SOLID |
| SKIRT BOTTOM CUTAWAY FEATURE | INCLUDED |
| CUT DEPTH | 1.080 INCHES NOMINAL |
| RING GROOVE QUANTITY | 3 |
| RING GROOVE POSITION | NUMBER 1,NUMBER 2,AND NUMBER 3 |
| RING GROOVE WIDTH | 0.1100 INCHES NOMINAL AND 0.0850 INCHES NOMINAL AND 0.2480 INCHES NOMINAL |
| RING GROOVE DIAMETER | 5.034 INCHES NOMINAL |
| OIL PASSAGE TYPE | HOLE |
| CARBON GROOVE | NOT INCLUDED |
| OIL GROOVE | NOT INCLUDED |
| DISTANCE FROM PIN HOLE CENTER TO EXTREME TOP | 3.945 INCHES NOMINAL |
| PIN HOLE BUSHING | NOT INCLUDED |
| PINHOLE DIAMETER | 2.0000 INCHES NOMINAL |
| DISTANCE BETWEEN PIN BOSSES | 1.500 INCHES NOMINAL |
| RETAINING RING GROOVE | INCLUDED |
| PIN | INCLUDED |
| PIN TYPE FOR WHICH DESIGNED | FLOATING |
| RING | INCLUDED |
| SPECIAL FEATURES | INCLUDES 1 COMPRESSION RING,1 WIPER RING,1 OIL RING,1 EXPANDER,1 CYLINDER SLEEVE AND 3 O-RING |
