Product Details | ROTARY ELECTRO-MECHANICAL ACTUATOR
2915-01-064-0627 A self-contained power transmitting device designed to convert electrical energy into controlled mechanical force, in the form of torque (rotational mechanical movement). Comprised of an electric motor(s), gear box(es), limit switch(es), and such accessories as required for the specific moving and positioning of other components. Excludes hydraulic and pneumatic cylinders and screwjacks.21212700040Aircraft Gunnery Fire Control Components14200025Guided Missile Components14400025Launchers, Guided Missile1675000016800049Miscellaneous Aircraft Accessories and Components18200024Space Vehicle Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers30100036Torque Converters and Speed Changers4130000048100015Valves, Powered49200058Aircraft Maintenance and Repair Shop Specialized Equipment
Part Alternates: M0D3360, MA11A1061B, 40575, 2915-01-064-0627, 01-064-0627, 2915010640627, 010640627
Engine Accessories | Engine Fuel System Components, Aircraft and Missile Prime Movers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 16 AUG 1978 | 01-064-0627 | 11006 ( ACTUATOR, ELECTRO-MECHANICAL, ROTARY ) |

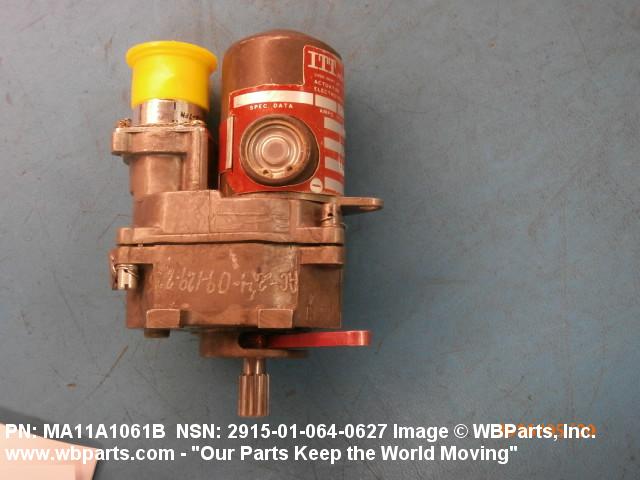

Drawings & Photos | NSN 2915-01-064-0627
Demand History | NSN 2915-01-064-0627
Cross Reference | NSN 2915-01-064-0627
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 40575 | 06987 | FL AEROSPACE CORP JANITROL AERO DIV/GENERAL DESIGN |
| 40575 | 86090 | EATON INDUSTRIAL CORPORATION DBA AIRFRAME |
| M0D3360 | 06987 | FL AEROSPACE CORP JANITROL AERO DIV/GENERAL DESIGN |
| MA11A1061B | 73760 | ITT CORPORATION DBA ITT AEROSPACE CONTROLS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 2915-01-064-0627
2915-01-064-1770, 2915-01-064-1771, 2915-01-064-1772, 2915-01-064-2557, 2915-01-064-3015
Technical Data | NSN 2915-01-064-0627
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | DC |
| VOLTAGE IN VOLTS | 26.0 |
| CURRENT RATING IN AMPS | 2.0 |
| MANUFACTURERS CODE | 86090 |
| DESIGN CONTROL REFERENCE | 40575 |
Restrictions/Controls & Freight Information | NSN 2915-01-064-0627
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061558 | DEVICES SOUND EFFECT |
| Less than car load rating | ||
| Less than truck load rating | K | 92.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | 48 | Federal Aviation Administration Oklahoma City, OK 73125 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2915-01-064-0627
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
