Product Details | ENGINE GENERATOR REGULATOR
2920-00-640-7722 A regulator designed to automatically maintain the current and/or voltage output of an engine generator within specified limits, regardless of variation of load or input voltages. May include cutout relay. Does not include items in which regulation is accomplished by transformer action. See also REGULATOR, CURRENT and REGULATOR, VOLTAGE.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: D5725, 6578455, 7000061, 2920-00-640-7722, 00-640-7722, 2920006407722, 006407722
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-640-7722 | 17169 ( REGULATOR, ENGINE GENERATOR ) |

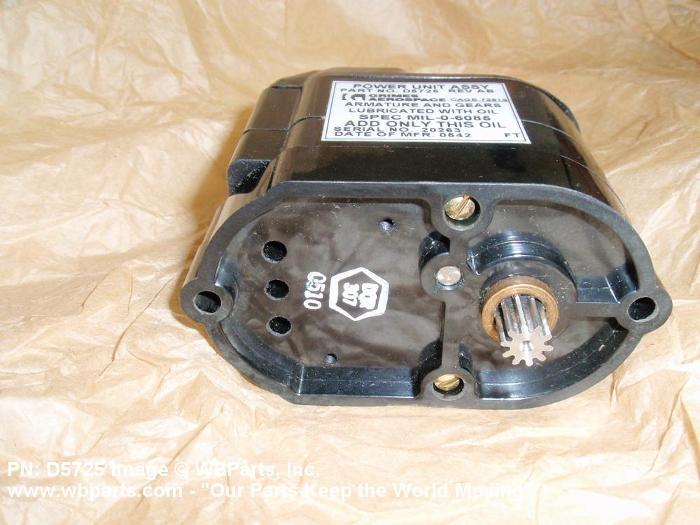

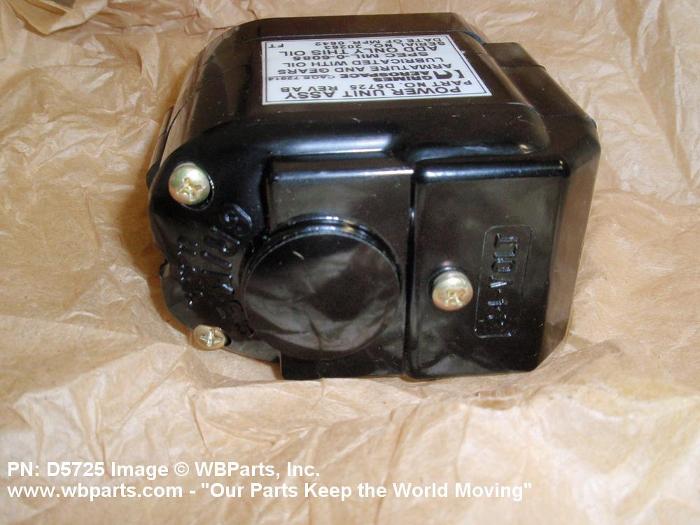

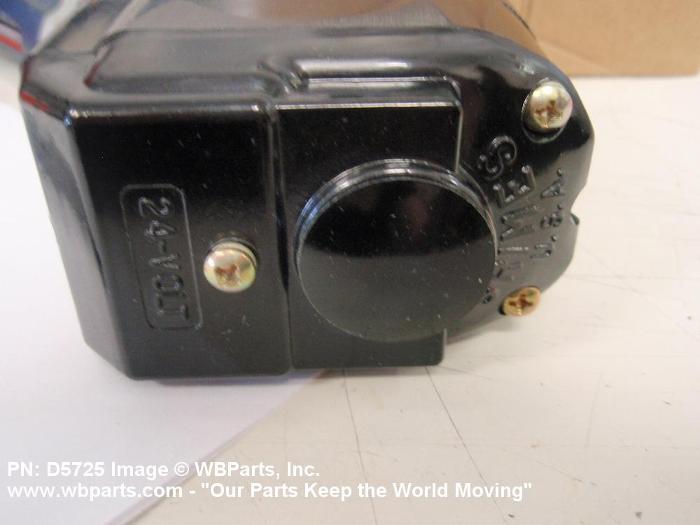

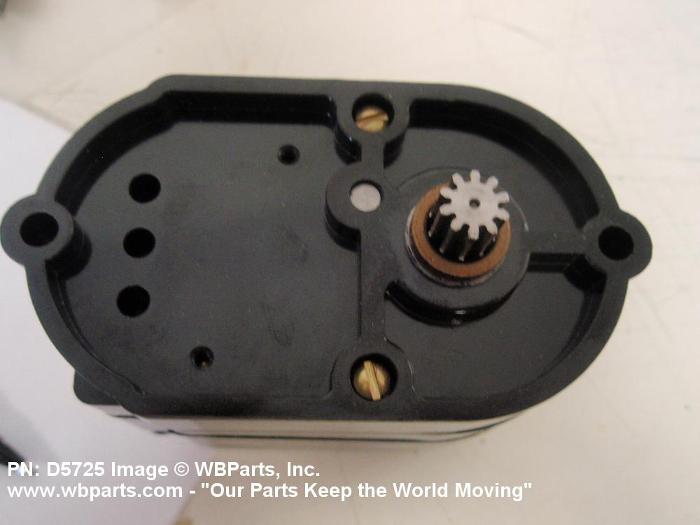

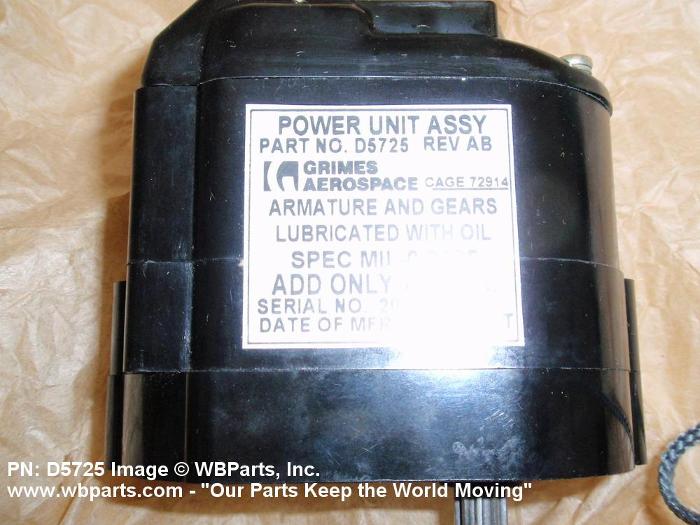

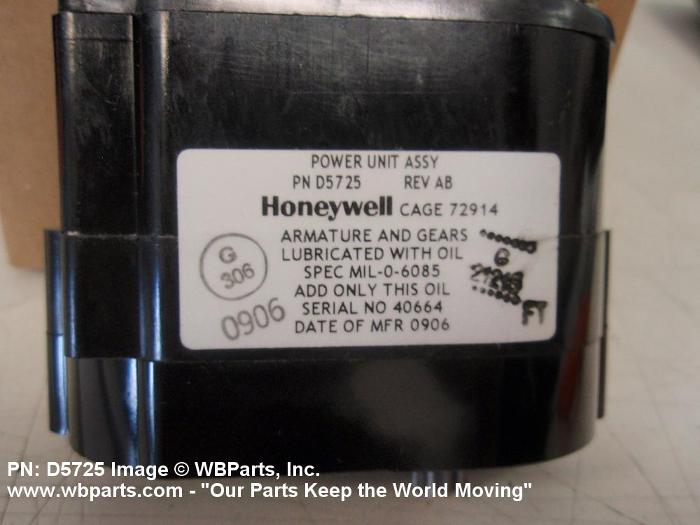

Drawings & Photos | NSN 2920-00-640-7722
Demand History | NSN 2920-00-640-7722
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 2920-00-640-7722
2920-00-640-7723, 2920-00-640-7727, 2920-00-640-7731, 2920-00-640-7735, 2920-00-640-7740
Technical Data | NSN 2920-00-640-7722
| Characteristic | Specifications |
|---|---|
| SYSTEM VOLTAGE RATING | 24.0 |
| SYSTEM GROUND POLARITY | NEGATIVE |
| VOLTAGE REGULATOR UNIT TYPE | WIRE WOUND COIL |
| VOLTAGE REGULATOR UNIT QUANTITY | 1 |
| OUTPUT VOLTAGE RATING IN VOLTS | 28.6 MINIMUM 28.3 MAXIMUM |
| CURRENT REGULATOR UNIT TYPE | WIRE WOUND COIL |
| CURRENT REGULATOR UNIT QUANTITY | 1 |
| OUTPUT CURRENT RATING IN AMPS | 50.0 MINIMUM 53.0 MAXIMUM |
| CIRCUIT CONTROL DEVICE TYPE | CIRCUIT BREAKER |
| CUT-IN VOLTAGE RATING | 25.7 MINIMUM 26.7 MAXIMUM |
| CUTOUT VOLTAGE RATING | 25.5 NOMINAL |
| CUTOUT CURRENT RATING IN AMPS | 15.0 MINIMUM 22.0 MAXIMUM |
| REVERSE CURRENT OVERLOAD CIRCUIT BREAKER | INCLUDED |
| FIELD RELAY UNIT | NOT INCLUDED |
| ENVIRONMENTAL PROTECTION | SUBMERSIBLE |
| RADIO INTERFERENCE SHIELDING | NOT PROVIDED |
| TERMINAL TYPE | SCREW |
| TERMINAL QUANTITY | 3 |
| TERMINAL ENCASEMENT | NOT ENCASED |

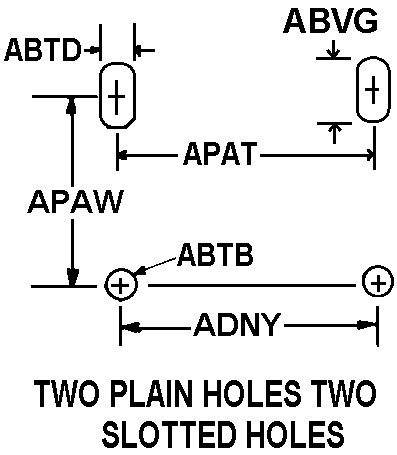

| MOUNTING STYLE | 5 TWO PLAIN HOLES TWO SLOTTED HOLES |
| MOUNTING HOLE DIAMETER | 0.344 INCHES NOMINAL |
| MOUNTING SLOT WIDTH | 0.344 INCHES NOMINAL |
| MOUNTING SLOT LENGTH | 0.469 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG LENGTH | 6.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN SLOTTED HOLES ALONG LENGTH | 6.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN SLOTTED HOLES AND PLAIN HOLES ALONG WIDTH | 5.187 INCHES NOMINAL |
| SHOCK MOUNT | NOT PROVIDED |
| MANUFACTURERS CODE | 46522 |
| DESIGN CONTROL REFERENCE | D5725 |
