Product Details | ENGINE GENERATOR REGULATOR
2920-00-871-6977 A regulator designed to automatically maintain the current and/or voltage output of an engine generator within specified limits, regardless of variation of load or input voltages. May include cutout relay. Does not include items in which regulation is accomplished by transformer action. See also REGULATOR, CURRENT and REGULATOR, VOLTAGE.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: R0013330RB, 3330RB, 110713, 2920-00-871-6977, 00-871-6977, 2920008716977, 008716977
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 NOV 1967 | 00-871-6977 | 17169 ( REGULATOR, ENGINE GENERATOR ) |

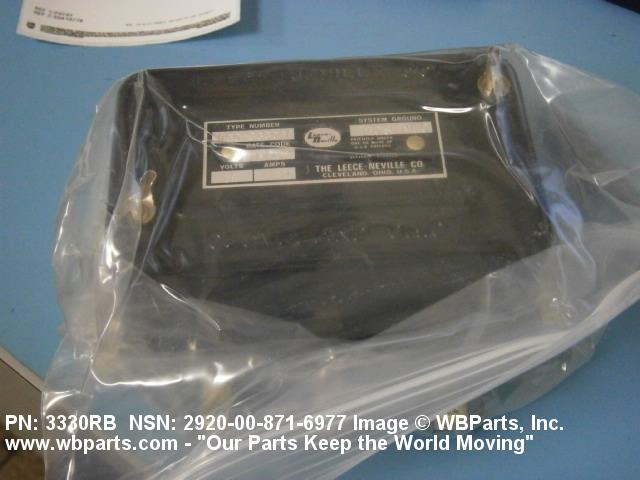

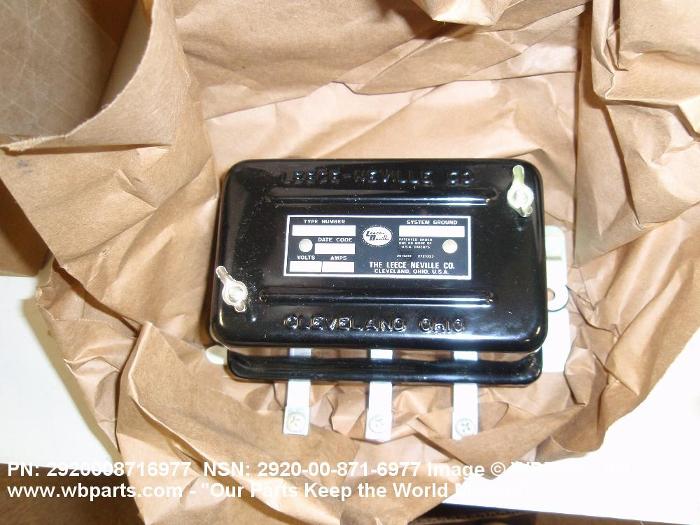

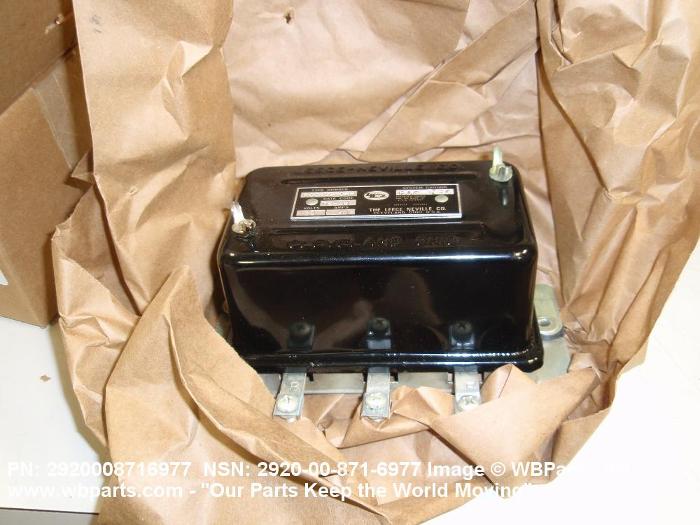

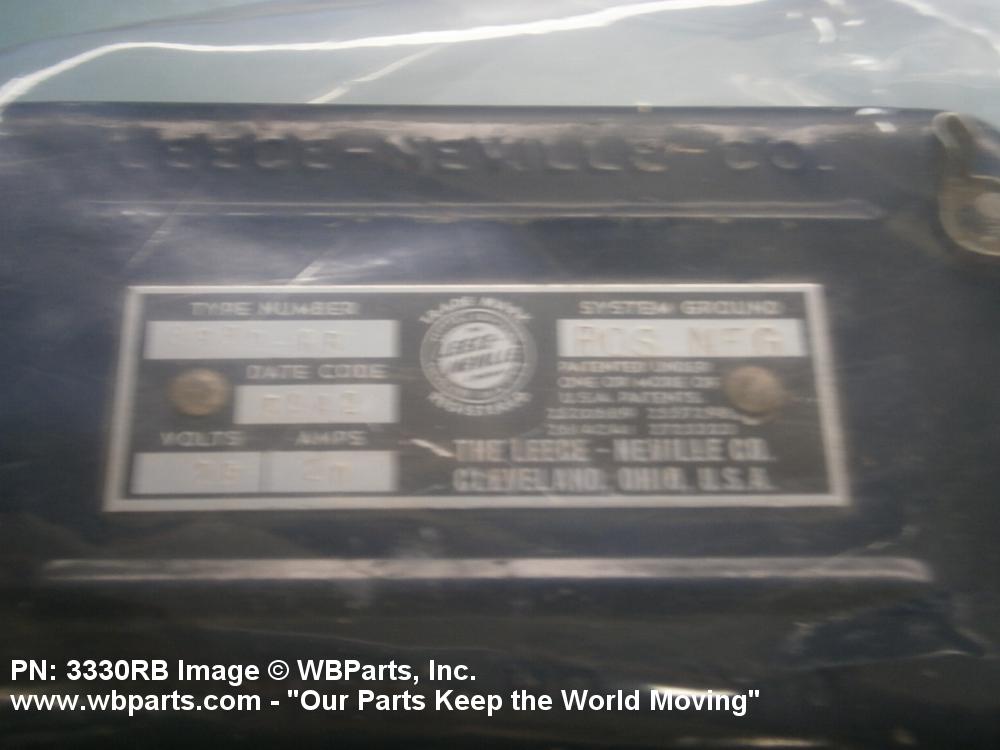

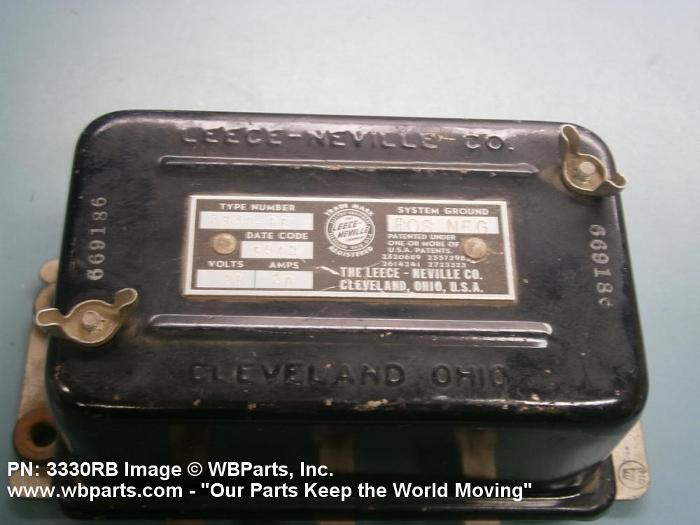

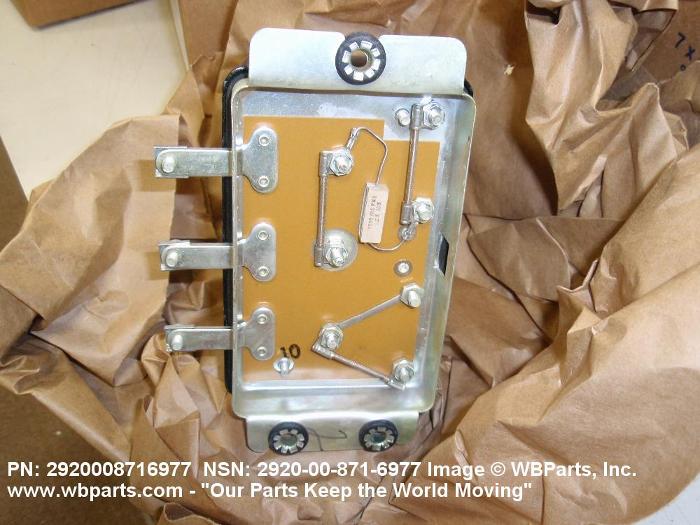

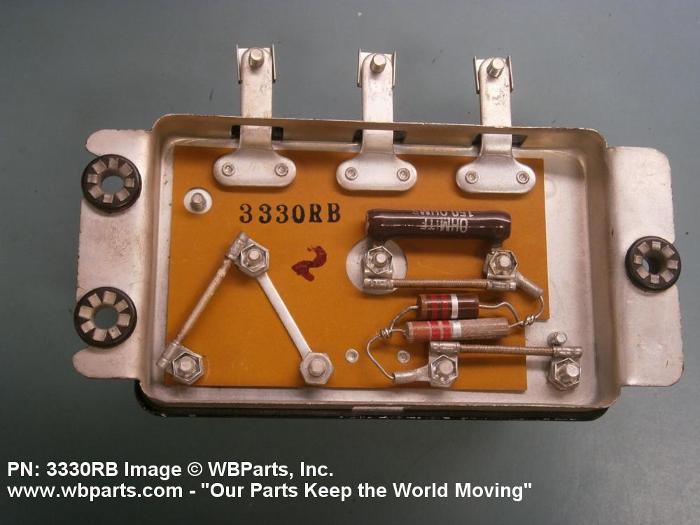

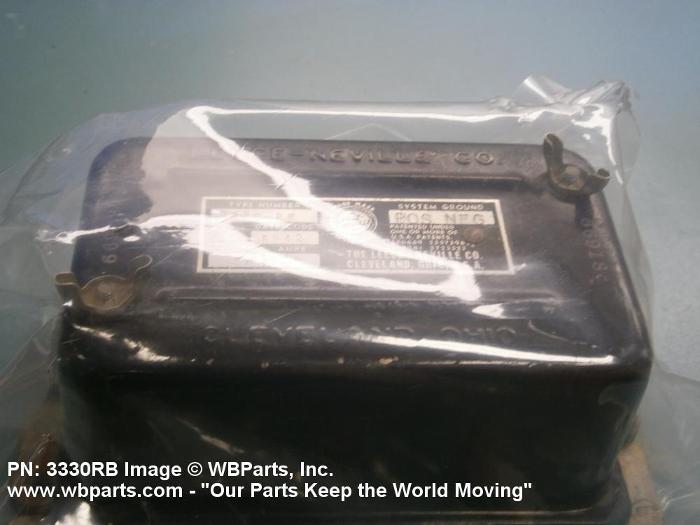

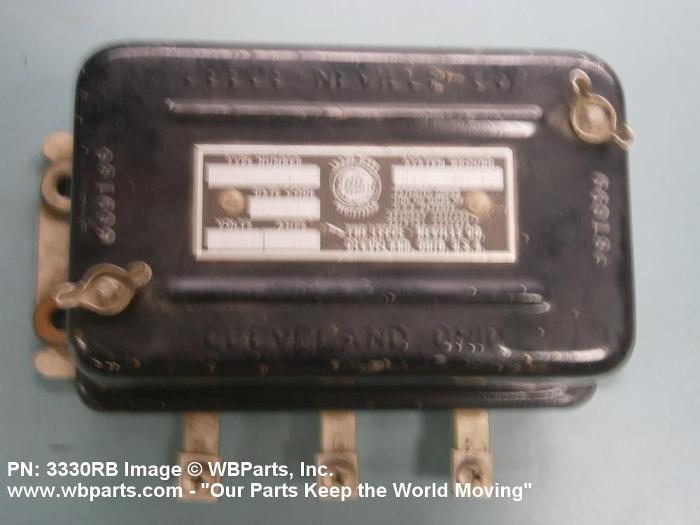

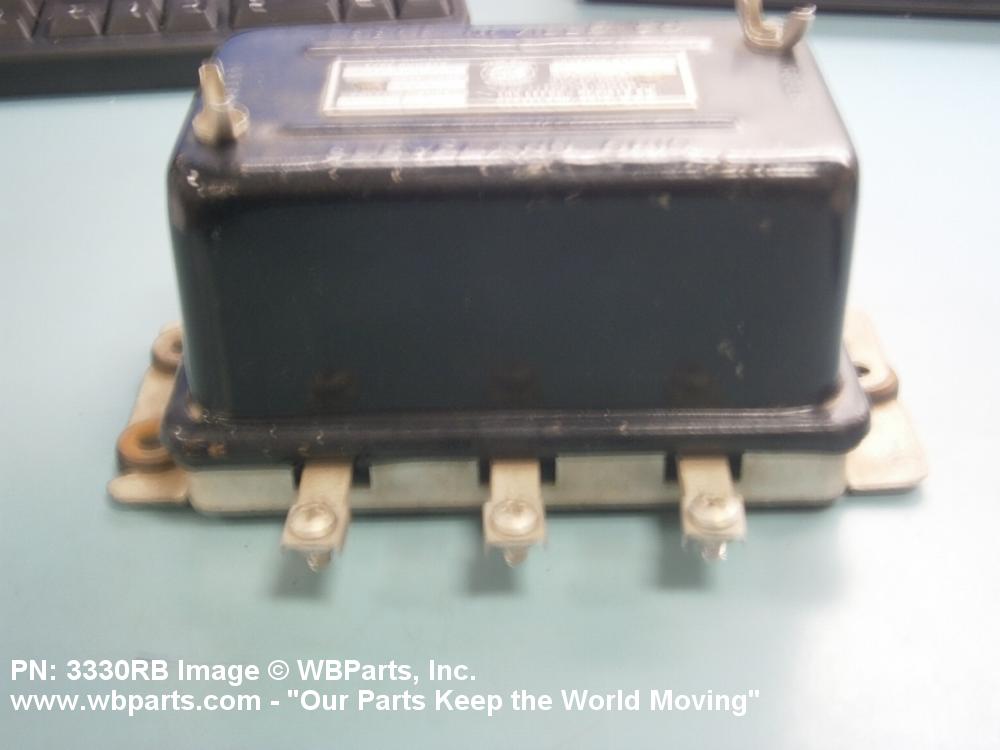

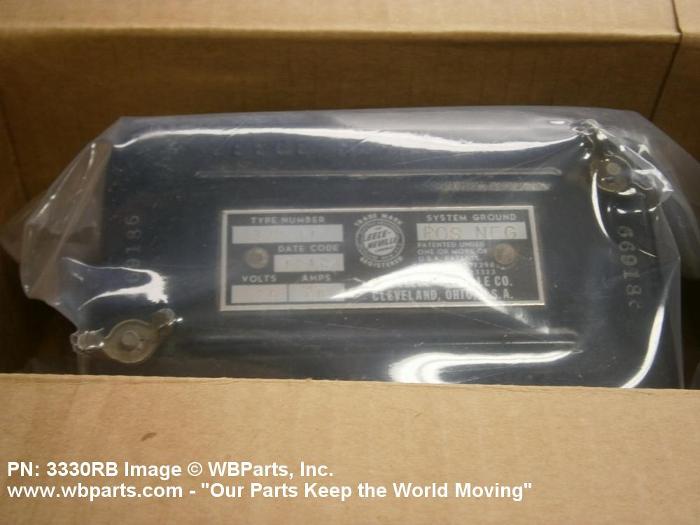

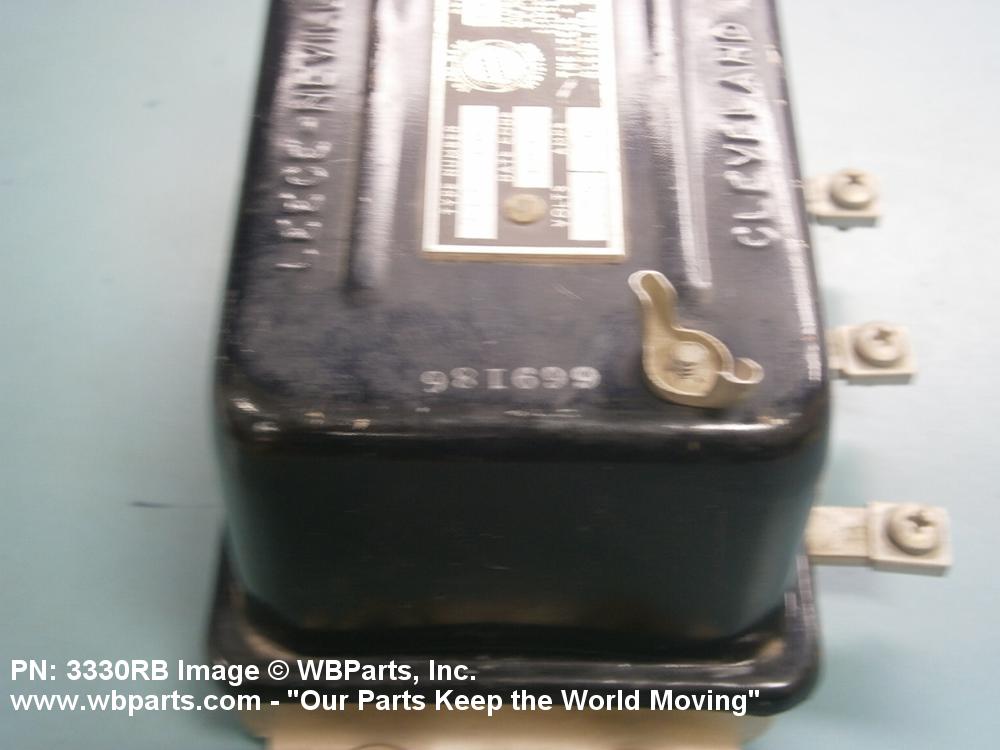

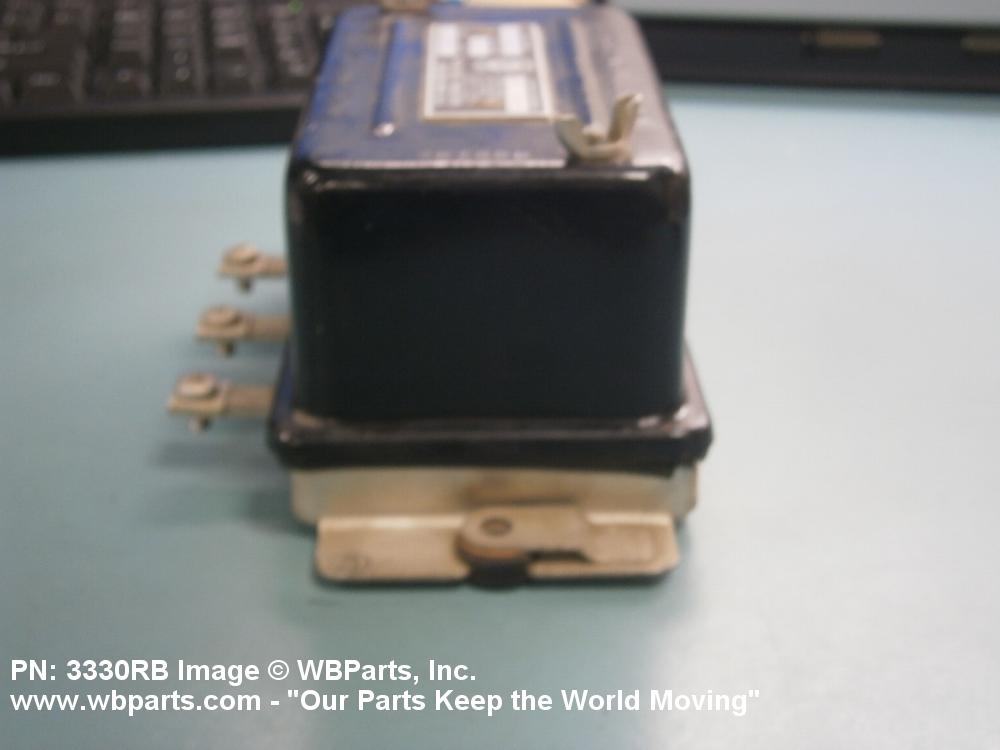

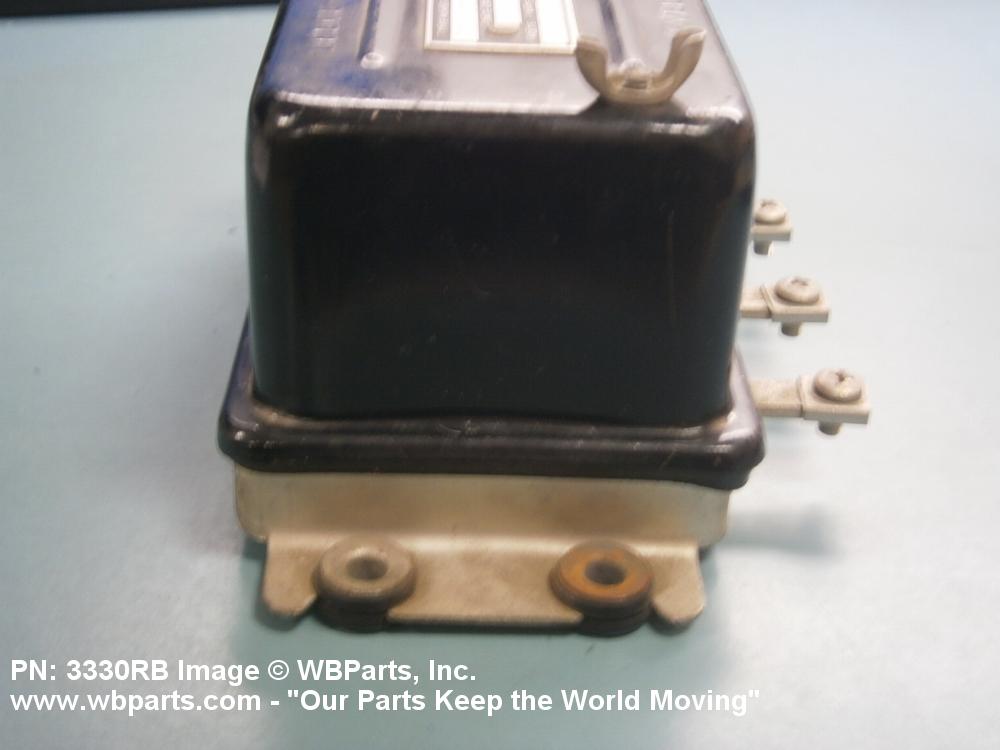

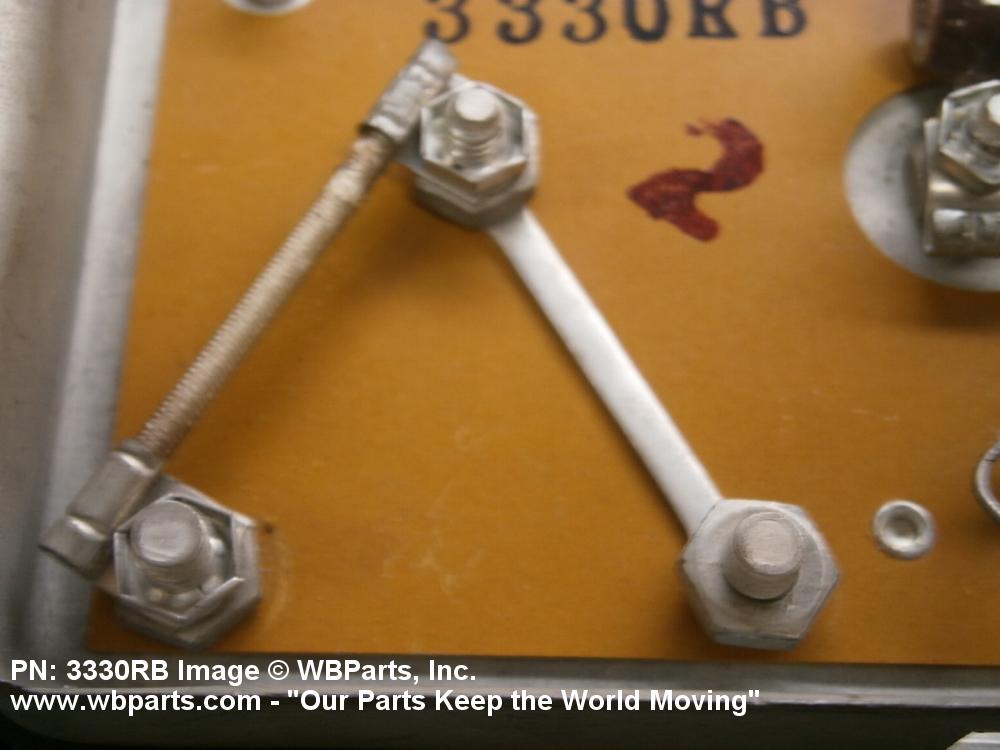

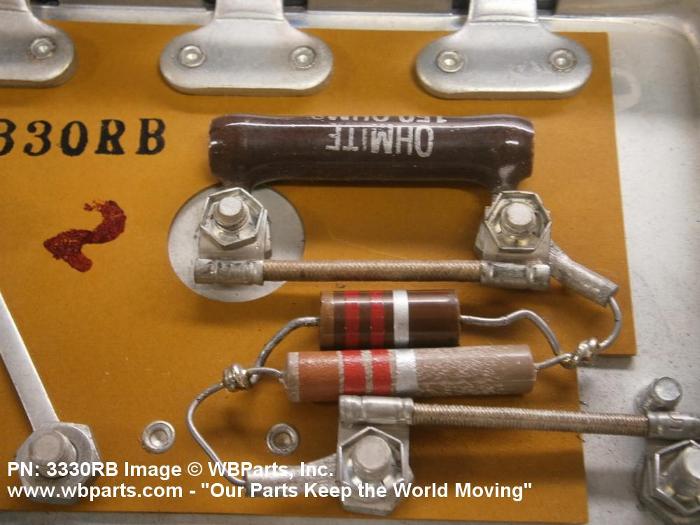

Drawings & Photos | NSN 2920-00-871-6977
Demand History | NSN 2920-00-871-6977
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2920-00-871-6977 | 2020-09-29 | 1 | US |
| 2920-00-871-6977 | 2018-09-19 | 1 | US |
| 2920-00-871-6977 | 2018-02-01 | 1 | US |
| 2920-00-871-6977 | 2017-01-24 | 1 | US |
| R0013330RB | 2016-03-13 | 1 | US |
| 2920-00-871-6977 | 2013-12-31 | 1 | US |
| 2920-00-871-6977 | 2013-11-06 | 1 | United States |
| 3330RB | 2013-10-14 | 1 | United States |
| 3330RB | 2013-10-11 | 1 | us |
| 2920-00-871-6977 | 2013-05-22 | 1 | United States |
| 2920-00-871-6977 | 2013-05-09 | 1 | US |
| R0013330RB | 2012-03-05 | 1 | United States |
| R0013330RB | 2012-01-16 | 2 | US |
| 2920-00-871-6977 | 2012-01-13 | 1 | US |
| 2920-00-871-6977 | 2012-01-13 | 1 | United States |
| 2920-00-871-6977 | 2011-08-15 | 1 | US |
| 2920-00-871-6977 | 2011-05-19 | 1 | US |
| 2920-00-871-6977 | 2008-11-04 | 1 | United States |
| 2920-00-871-6977 | 2008-10-23 | 1 | United States |
| R0013330RB | 2007-09-27 | 1 | US |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 2920-00-871-6977
2920-00-871-6978, 2920-00-871-6979, 2920-00-871-6981, 2920-00-871-6982, 2920-00-871-6984
Technical Data | NSN 2920-00-871-6977
| Characteristic | Specifications |
|---|---|
| SYSTEM VOLTAGE RATING | 28.0 |
| SYSTEM GROUND POLARITY | NEGATIVE POSITIVE |
| OUTPUT CURRENT RATING IN AMPS | 20.0 NOMINAL |
| RADIO INTERFERENCE SHIELDING | NOT PROVIDED |
| TERMINAL TYPE | SCREW |
| TERMINAL QUANTITY | 3 |
| TERMINAL ENCASEMENT | NOT ENCASED |

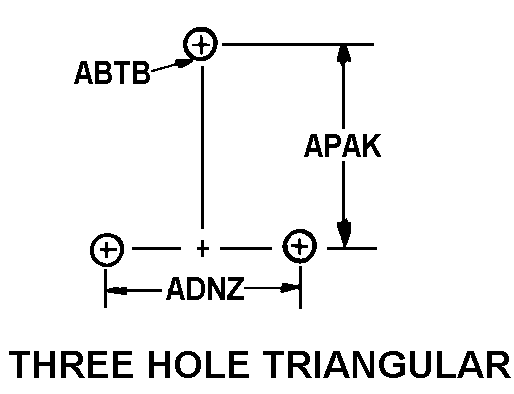

| MOUNTING STYLE | 2 THREE HOLE TRIANGULAR |
| MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG WIDTH | 1.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOLES ALONG WIDTH AND HOLE ALONG LENGTH | 6.188 INCHES NOMINAL |
| SHOCK MOUNT | PROVIDED |
Restrictions/Controls & Freight Information | NSN 2920-00-871-6977
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062900 | RECTIFIERS NOI/BATTERY ELIMINATORS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-00-871-6977
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
