NSN 2940-01-377-2877 CU3825970, E8HZ6731A, E8HZ6731-A

Product Details | FLUID FILTER ELEMENT

2940-01-377-2877 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments

Part Alternates: CU3825970, E8HZ6731A, E8HZ6731-A, FFLF3000, FF-LF3000 , LF0300000, LF3000, Y 109 174 07 , Y10917407, 1500871 , 15266844, 2940MT0206778 , 3318853, 3825970, 9414100881 , 2940-01-377-2877, 01-377-2877, 2940013772877, 013772877, 800038992

Engine Accessories | Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
29	12 JUL 1993	01-377-2877	32624 ( FILTER ELEMENT, FLUID )

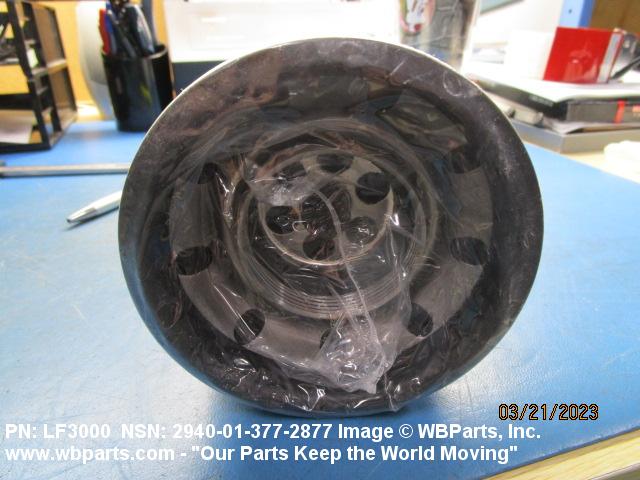

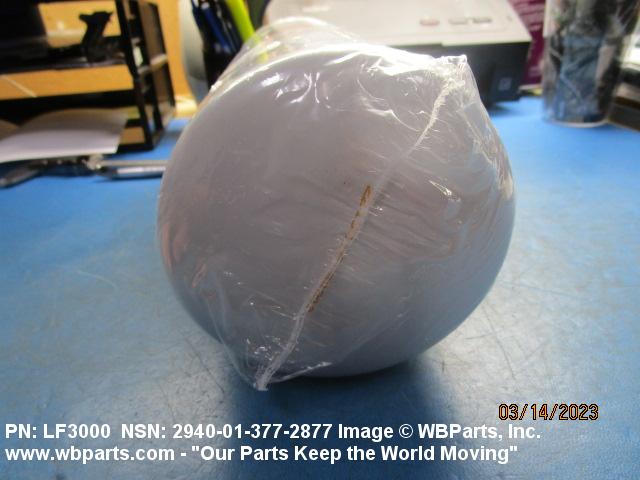

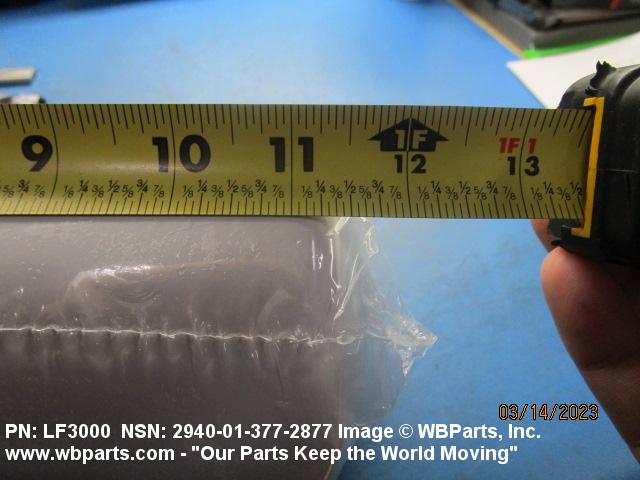

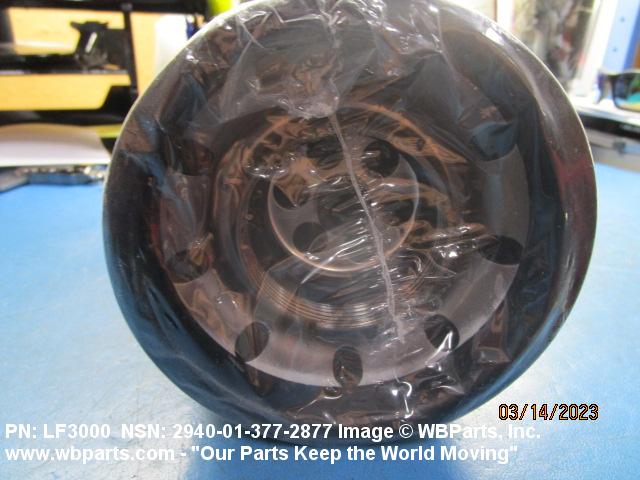

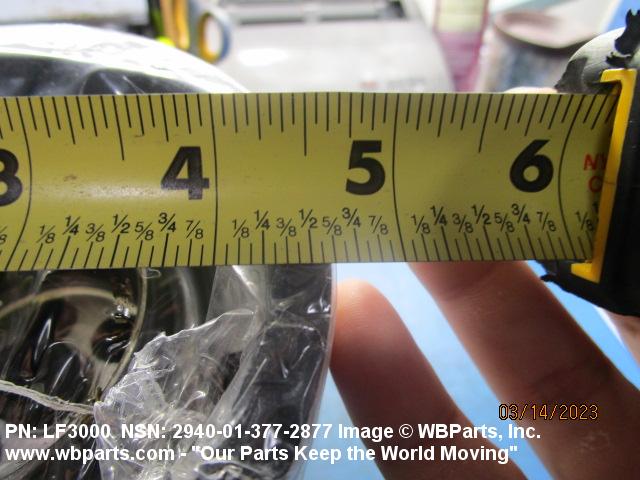

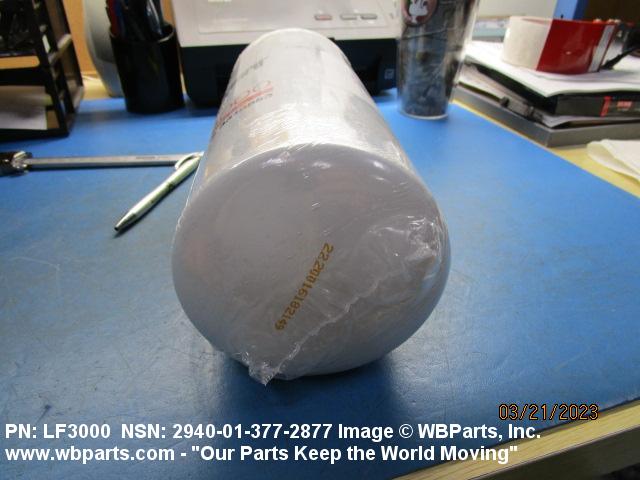

Drawings & Photos | NSN 2940-01-377-2877

Part Number	Request Date	QTY	Origin
LF0300000	2025-08-216	473	DIBBS
LF3000	2025-08-216	473	DIBBS
LF0300000	2025-07-205	473	DIBBS
LF3000	2025-07-205	473	DIBBS
LF0300000	2025-07-204	662	DIBBS
LF3000	2025-07-204	662	DIBBS
3318853	2025-04-114	437	DIBBS
LF0300000	2025-04-114	437	DIBBS
3318853	2024-11-312	276	DIBBS
LF0300000	2024-11-312	276	DIBBS
3318853	2024-03-85	449	DIBBS
LF0300000	2024-03-85	449	DIBBS
3318853	2024-03-74	449	DIBBS
LF0300000	2024-03-74	449	DIBBS
2940-01-377-2877	2023-03-67	15	United States
3318853	2021-01-28	439	DIBBS
E8HZ6731-A	2021-01-28	439	DIBBS
LF0300000	2021-01-28	439	DIBBS
3318853	2019-12-350	919	DIBBS
E8HZ6731-A	2019-12-350	919	DIBBS
LF0300000	2019-12-350	919	DIBBS
3318853	2019-12-338	919	DIBBS
E8HZ6731-A	2019-12-338	919	DIBBS
LF0300000	2019-12-338	919	DIBBS
3318853	2019-11-329	419	DIBBS
E8HZ6731-A	2019-11-329	419	DIBBS
LF0300000	2019-11-329	419	DIBBS
3318853	2019-11-317	419	DIBBS
E8HZ6731-A	2019-11-317	419	DIBBS
LF0300000	2019-11-317	419	DIBBS
2940-01-377-2877	2018-08-227	1	United States
9414100881	2018-08-219	2	UK
2940-01-377-2877	2018-02-32	349	DIBBS
2940-01-377-2877	2017-11-334	346	DIBBS
2940-01-377-2877	2017-10-295	383	DIBBS
2940-01-377-2877	2017-03-89	289	DIBBS
2940-01-377-2877	2017-02-33	499	DIBBS
2940-01-377-2877	2016-04-116	1066	DIBBS
2940-01-377-2877	2014-12-343	748	DIBBS
3318853	2012-07-207	10
2940-01-377-2877	2012-04-111	559	DIBBS
2940-01-377-2877	2012-03-89	418	DIBBS
2940-01-377-2877	2012-01-27	194	DIBBS
2940-01-377-2877	2011-08-215	957	DIBBS
2940-01-377-2877	2011-05-125	1421	DIBBS
2940-01-377-2877	2011-04-111	293	DIBBS
2940-01-377-2877	2011-02-59	504	DIBBS
2940-01-377-2877	2011-01-15	4	PK
LF3000	2010-08-239	10	Nigeria
2940-01-377-2877	2009-11-313	50	DIBBS
2940-01-377-2877	2009-07-210	589	US
2940-01-377-2877	2008-02-46	30	South Korea
2940-01-377-2877	2007-09-248	239	DIBBS
2940-01-377-2877	2007-04-109	4065	DIBBS
2940-01-377-2877	2007-03-86	4065	DIBBS
2940-01-377-2877	2007-02-54	496	DIBBS
LF3000	2006-09-254	3	Malaysia

Cross Reference | NSN 2940-01-377-2877

Part Number	Cage Code	Manufacturer
1500871	U0747	PACCAR PARTS U.K. LIMITED
15266844	K4285	TEREX EQUIPMENT LTD
3318853	15434	CUMMINS INC.
3318853	A9271	GORIZIANE GROUP SPA
3318853	K6F97	ALL COMPONENTS ENGINEERING LTD
3825970	15434	CUMMINS INC.
800038992	A011G	CARGOTEC FINLAND OY KALMARINDUSTRIES
800038992	U6F37	KALMAR LIMITED
9414100881	K4365	MANITOWOC CRANE GROUP UK LIMITED
CU3825970	K7334	SEDDON ATKINSON VEHICLES LTD
E8HZ6731-A	23040	FORD MOTOR CO FORD PARTS AND SERVICE DIV
E8HZ6731-A	57526	FORD MOTOR CO
FF-LF3000	U0747	PACCAR PARTS U.K. LIMITED
LF0300000	33457	CUMMINS FILTRATION INC. DBA FLEETGUARD
LF3000	33457	CUMMINS FILTRATION INC. DBA FLEETGUARD
LF3000	K5422	DALE POWER SOLUTIONS LIMITED
LF3000	U1138	FLEETGUARD
Y 109 174 07	U0747	PACCAR PARTS U.K. LIMITED

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 2940-01-377-2877

Compare

Related Products | NSN 2940-01-377-2877

2940-01-377-4025, 2940-01-377-4026, 2940-01-377-4176, 2940-01-377-4177, 2940-01-377-4276

Technical Data | NSN 2940-01-377-2877

Characteristic	Specifications
STYLE DESIGNATOR	A14 CYLINDRICAL W/INTEGRAL OUTER CASING
BODY DIAMETER	4.656 INCHES NOMINAL
BODY OVERALL LENGTH	11.797 INCHES NOMINAL
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD SIZE	2.250 INCHES
MATERIAL	PAPER FILTERING MEDIUM
FILTERING MEDIA DESIGN	PLEATED SINGLE FILTERING MEDIA RESPONSE
DESIGN TYPE	NONREUSABLE
MEDIA FOR WHICH DESIGNED	FUEL/OIL, HYDROCARBON
FILTERING SYSTEM FOR WHICH DESIGNED	FULL FLOW
III END ITEM IDENTIFICATION	CRANE,CUMMINS ENGINE CO INC,MODEL 6C

Restrictions/Controls & Freight Information | NSN 2940-01-377-2877

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	069100	FILTERS:CARTRIDGES/ELEMENTS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	593	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 2940-01-377-2877

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SU	SU:AF SICA RESIDUAL MMAC-OO-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
