NSN 3010-01-436-9552 581-6405749 AHDA FN 10, 581-6405749 FIND 10, 581640574910
Product Details | NONVEHICULAR POSITIVE CLUTCH HALF
3010-01-436-9552 That portion of a CLUTCH, POSITIVE which transmits or receives motion or power by engagement with the mating member.
Part Alternates: 581-6405749 AHDA FN 10, 581-6405749 FIND 10, 581640574910, 581-6405749-10, 5816405749AHDAFN10, 5816405749FIND10, 6111402-10, 6405749, 3010-01-436-9552, 01-436-9552, 3010014369552, 014369552, 611140210
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 02 OCT 1996 | 01-436-9552 | 52085 ( CLUTCH HALF, POSITIVE, NONVEHICULAR ) |

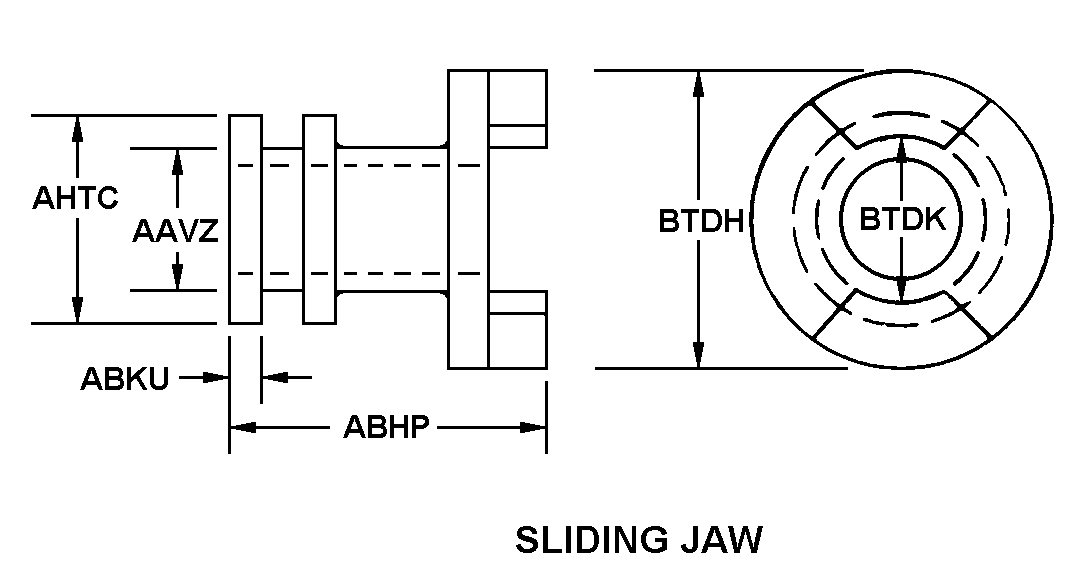

Drawings & Photos | NSN 3010-01-436-9552
Cross Reference | NSN 3010-01-436-9552
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 581-6405749 AHDA FN 10 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 581-6405749 AHDA FN 10 | 96169 | ELECTRIC BOAT CORPORATION |
| 581-6405749 FIND 10 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 581-6405749 FIND 10 | 96169 | ELECTRIC BOAT CORPORATION |
| 581-6405749-10 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 581-6405749-10 | 96169 | ELECTRIC BOAT CORPORATION |
| 6111402-10 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 6111402-10 | 96169 | ELECTRIC BOAT CORPORATION |
| 6405749 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 6405749 | 96169 | ELECTRIC BOAT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-01-436-9552
Related Products | NSN 3010-01-436-9552
Technical Data | NSN 3010-01-436-9552
| Characteristic | Specifications |
|---|---|
| END ITEM IDENTIFICATION | ANCHOR HANDLING INBOARD DRIVE ASSEMBLY |
| STYLE DESIGNATOR | A3 SLIDING JAW |
| GROOVE DIAMETER | 6.000 INCHES NOMINAL |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| FLANGE THICKNESS | 1.300 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 7.500 INCHES NOMINAL |
| JAW CIRCLE OUTSIDE DIAMETER | 7.500 INCHES NOMINAL |
| JAW CIRCLE INSIDE DIAMETER | 4.500 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT SPLINE |
| SPLINE QUANTITY | 10 |
| BORE DIAMETER | 3.868 INCHES NOMINAL |
| SPLINE MAJOR DIAMETER | 4.500 INCHES NOMINAL |
| SPECIAL FEATURES | WEAPONS SYSTEM SEAWOLF CLASS SSN |
Restrictions/Controls & Freight Information | NSN 3010-01-436-9552
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 132330 | TRANSMISSIONS/CLUTCHES/PARTS,NOI |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-01-436-9552
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
