NSN 3020-00-250-8068 SP17674, TP17674, 00-250-8068
Product Details | HELICAL GEAR
3020-00-250-8068 A gear, cylindrical in form, with teeth on the outer surface at an angle to the axis of the gear. See also GEAR, ANTIBACKLASH, HELICAL
Part Alternates: SP17674, TP17674, 3020-00-250-8068, 00-250-8068, 3020002508068, 002508068
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-250-8068 | 05464 ( GEAR, HELICAL ) |
Drawings & Photos | NSN 3020-00-250-8068
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-250-8068
Related Products | NSN 3020-00-250-8068
Technical Data | NSN 3020-00-250-8068
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 50.0 ROCKWELL C MINIMUM AND 52.0 ROCKWELL C MAXIMUM OVERALL |
| TEETH QUANTITY | 42 |
| TEETH TYPE | SINGLE HELIX |
| TOOTH FORM | STUB |
| TOOTH DIRECTION | RIGHT |
| PRESSURE ANGLE | 20.0000 DEGREES |
| HELIX ANGLE | 22.6250 DEGREES |

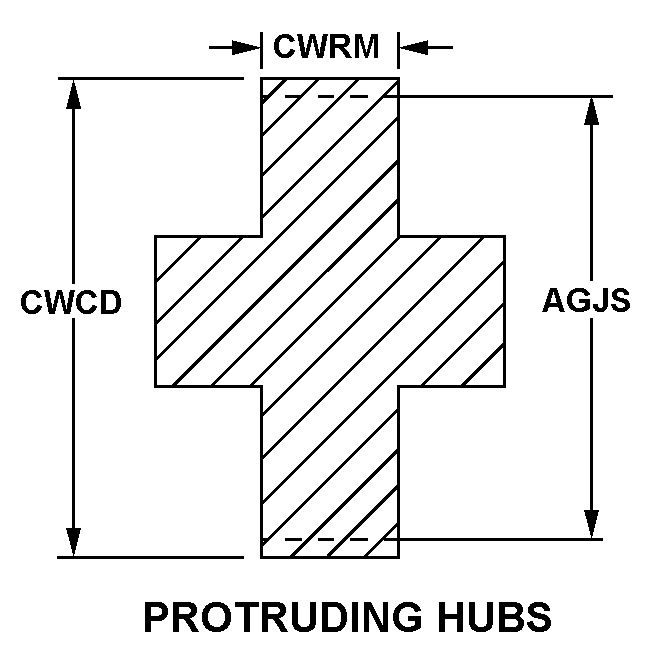

| STYLE DESIGNATOR | 4 PROTRUDING HUBS |
| PITCH DIAMETER | 6.5000 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 1.499 INCHES |
| NOMINAL OUTSIDE DIAMETER | 6.7210 INCHES |
| FACE NOMINAL WIDTH | 0.750 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.429 INCHES FIRST END 0.320 INCHES SECOND END |

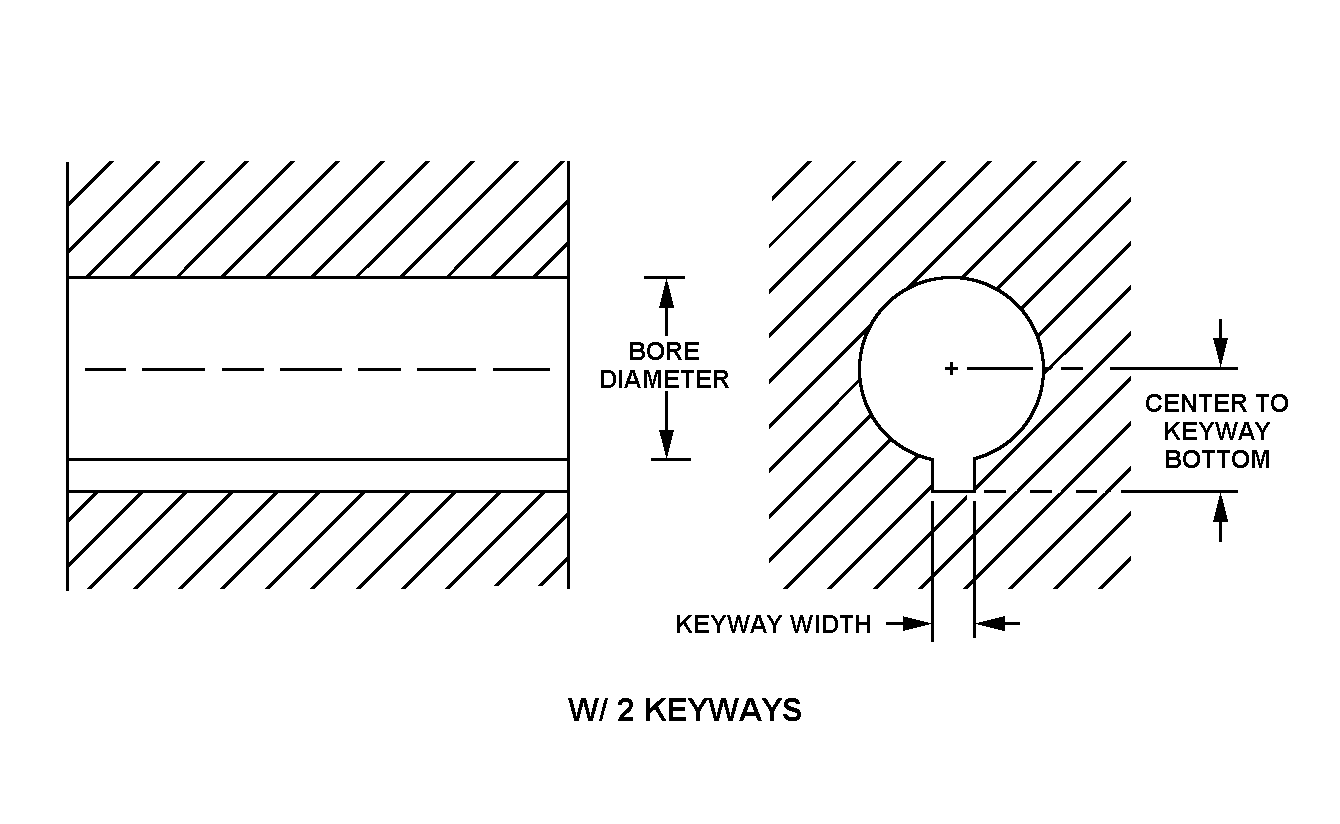

| BORE STYLE | 10B W/2 KEYWAYS BOTH ENDS |
| BORE NOMINAL DIAMETER | 1.391 INCHES BOTH ENDS |
| KEYWAY NOMINAL WIDTH | 0.251 INCHES BOTH ENDS |
| NOMINAL DISTANCE FROM BORE CENTER TO KEYWAY BOTTOM | 0.823 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 1 PLAIN BOTH ENDS |
| HUB NOMINAL DIAMETER | 2.031 INCHES FIRST END 2.031 INCHES SECOND END |

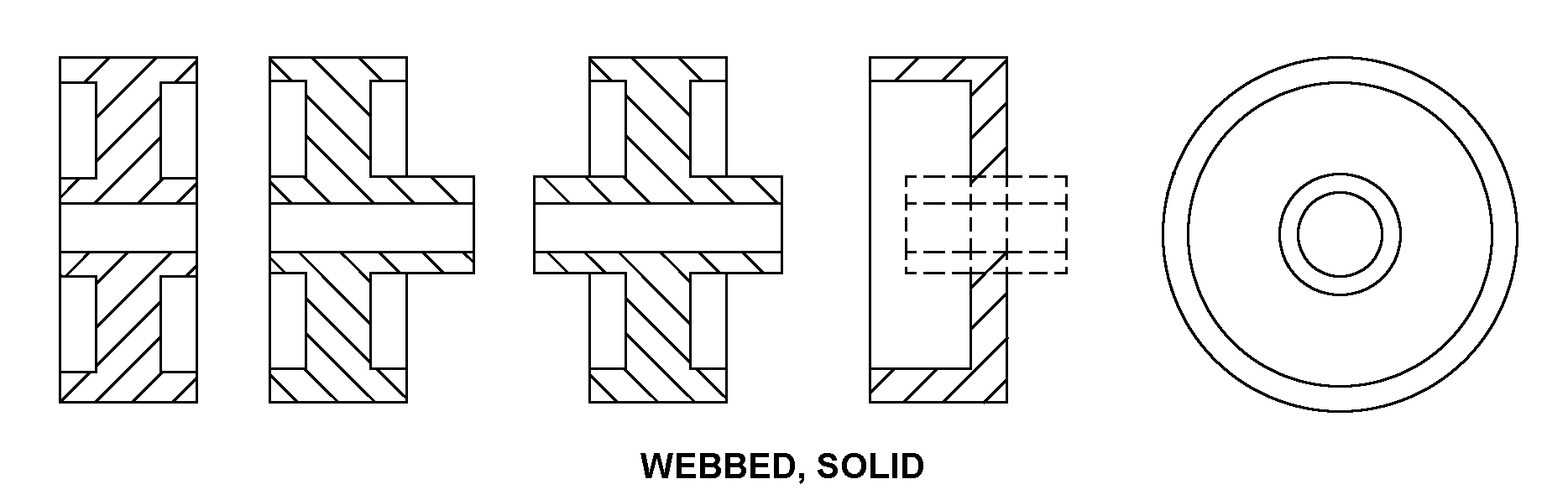

| BODY STYLE | 3A WEBBED, SOLID |
| SPECIAL FEATURES | FIRST HUB END OD CHAMFERED 0.094 IN. BY 45 DEG |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | TP17674 |
Restrictions/Controls & Freight Information | NSN 3020-00-250-8068
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | S | 60 |
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-250-8068
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
