NSN 3020-00-757-4658 13988501, 139885-01, 00-757-4658
Product Details | HELICAL GEAR
3020-00-757-4658 A gear, cylindrical in form, with teeth on the outer surface at an angle to the axis of the gear. See also GEAR, ANTIBACKLASH, HELICAL
Part Alternates: 13988501, 139885-01, 3020-00-757-4658, 00-757-4658, 3020007574658, 007574658
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1960 | 00-757-4658 | 05464 ( GEAR, HELICAL ) |

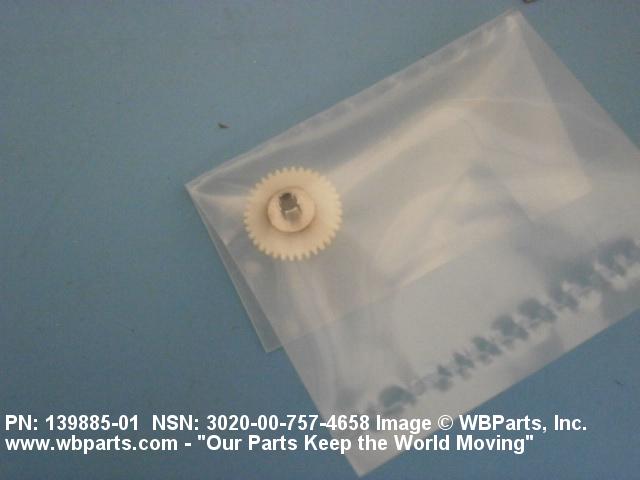

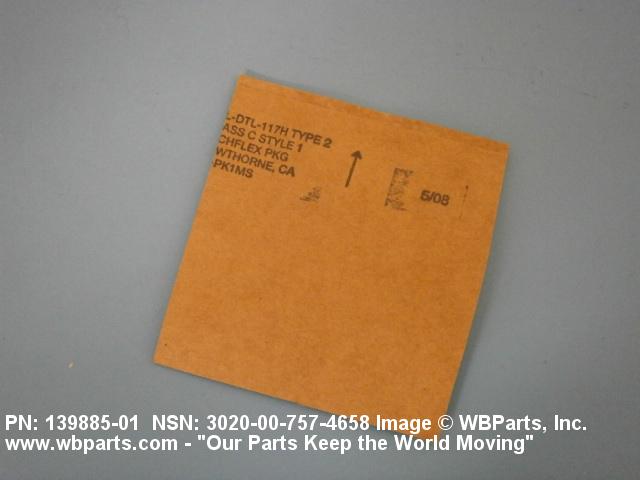

Drawings & Photos | NSN 3020-00-757-4658
Demand History | NSN 3020-00-757-4658
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-757-4658 | 2017-09-268 | 5 | DIBBS |
| 3020-00-757-4658 | 2014-02-35 | 9 | DIBBS |
| 3020-00-757-4658 | 2013-10-281 | 9 | DIBBS |
| 3020-00-757-4658 | 2013-06-165 | 10 | DIBBS |
| 3020-00-757-4658 | 2012-07-213 | 9 | DIBBS |
| 3020-00-757-4658 | 2011-11-319 | 9 | United States |
| 3020-00-757-4658 | 2011-09-266 | 9 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-757-4658
Related Products | NSN 3020-00-757-4658
Technical Data | NSN 3020-00-757-4658
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC ACETAL BODY STEEL COMP 303 HUB |
| MATERIAL DOCUMENT AND CLASSIFICATION | L-P-392,TYPE 1,CLASS 1 FED SPEC SINGLE MATERIAL RESPONSE BODY MIL-S-7720,COND A MIL SPEC SINGLE MATERIAL RESPONSE HUB |
| SURFACE TREATMENT | PASSIVATE HUB |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE HUB |
| TEETH QUANTITY | 36 |
| TEETH TYPE | SINGLE HELIX |
| TOOTH FORM | STUB |
| TOOTH DIRECTION | RIGHT |
| PRESSURE ANGLE | 20.0000 DEGREES |
| HELIX ANGLE | 3.0000 DEGREES |
| PRECISION CLASSIFICATION | QUALITY NUMBER 10 |
| STYLE DESIGNATOR | 4 PROTRUDING HUBS |
| PITCH DIAMETER | 0.5007 INCHES NOMINAL |
| NOMINAL OUTSIDE DIAMETER | 0.528 INCHES |
| FACE NOMINAL WIDTH | 0.047 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.148 INCHES FIRST END 0.080 INCHES SECOND END |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.091 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 2 SPLIT FIRST END 1 PLAIN SECOND END |
| HUB NOMINAL DIAMETER | 0.124 INCHES FIRST END 0.150 INCHES SECOND END |
| CLAMPING SURFACE NOMINAL LENGTH | 0.110 INCHES FIRST END |
| BODY STYLE | 1 PLAIN, SOLID |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | HELICOPTER, SUPERCOBRA ADVANCE ATTACK AH-1W |
| MANUFACTURERS CODE | 09LX4 |
| DESIGN CONTROL REFERENCE | 139885-01 |
Restrictions/Controls & Freight Information | NSN 3020-00-757-4658
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-757-4658
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
