Product Details | BEVEL GEAR
3020-00-757-4743 A gear in the form of a frustum of a cone, with straight, skewed, or curved teeth, cut on the external face. See also GEAR, ANTIBACKLASH, BEVEL.
Part Alternates: 23510671, 2351067-1, 3020-00-757-4743, 00-757-4743, 3020007574743, 007574743
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1960 | 00-757-4743 | 05463 ( GEAR, BEVEL ) |
Drawings & Photos | NSN 3020-00-757-4743
Cross Reference | NSN 3020-00-757-4743
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2351067-1 | 50024 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE FM/ALCO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-757-4743
Related Products | NSN 3020-00-757-4743
Technical Data | NSN 3020-00-757-4743
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| TEETH QUANTITY | 33 |
| TEETH TYPE | SPIRAL |
| PITCH ANGLE | 30.0000 DEGREES |

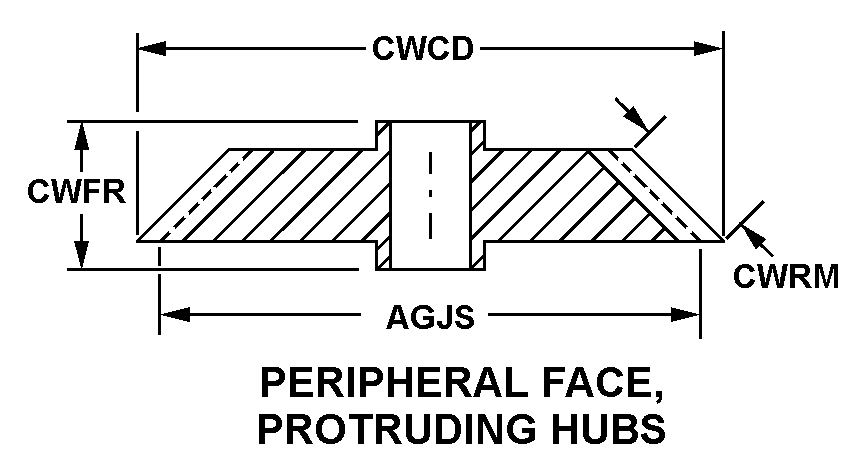

| STYLE DESIGNATOR | 40 PERIPHERAL FACE, PROTRUDING HUBS |
| NOMINAL OVERALL LENGTH | 1.125 INCHES |
| NOMINAL OUTSIDE DIAMETER | 4.135 INCHES |
| FACE NOMINAL WIDTH | 0.562 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.325 INCHES FIRST END 0.250 INCHES SECOND END |
| BORE STYLE | 10A W/KEYWAY BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.625 INCHES BOTH ENDS |
| KEYWAY NOMINAL WIDTH | 0.188 INCHES BOTH ENDS |
| NOMINAL DISTANCE FROM BORE CENTER TO KEYWAY BOTTOM | 0.402 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 1 PLAIN BOTH ENDS |
| HUB NOMINAL DIAMETER | 1.250 INCHES BOTH ENDS |
| BODY STYLE | 1 PLAIN, SOLID |
| MANUFACTURERS CODE | 50024 |
| DESIGN CONTROL REFERENCE | 2351067-1 |
