Product Details | BEVEL GEAR
3020-00-787-4267 A gear in the form of a frustum of a cone, with straight, skewed, or curved teeth, cut on the external face. See also GEAR, ANTIBACKLASH, BEVEL.
Part Alternates: 204040401007, 204-040-401-007, 2040404017, 204-040-401-7, 3020-00-787-4267, 00-787-4267, 3020007874267, 007874267
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-787-4267 | 05463 ( GEAR, BEVEL ) |

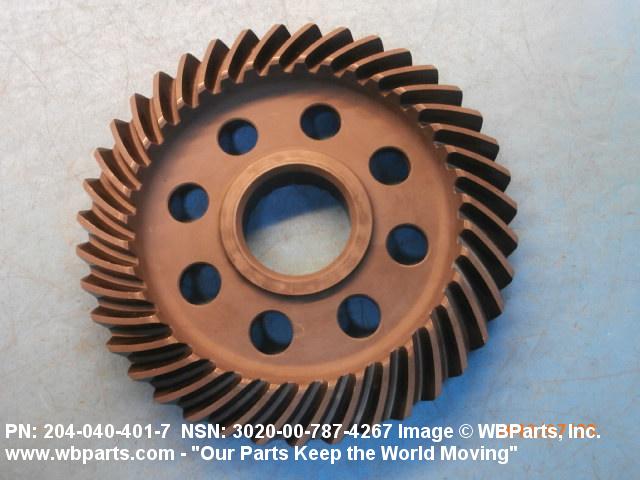

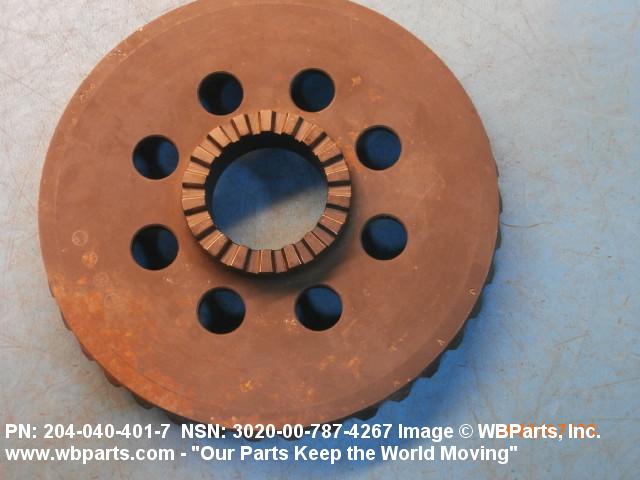

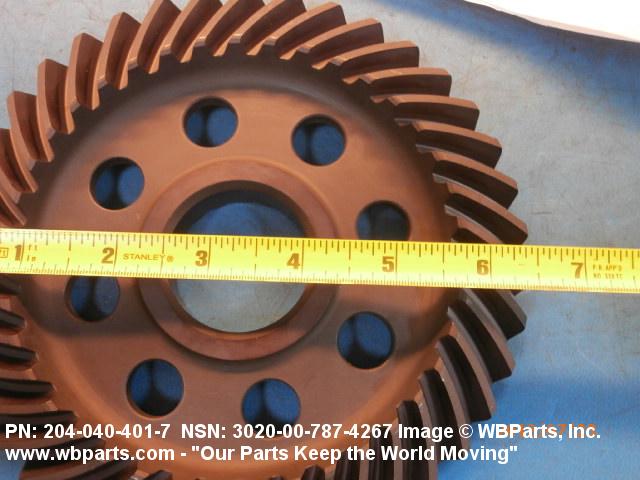

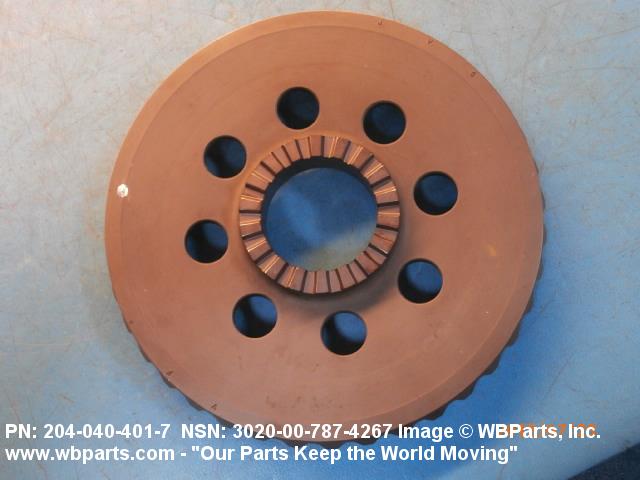

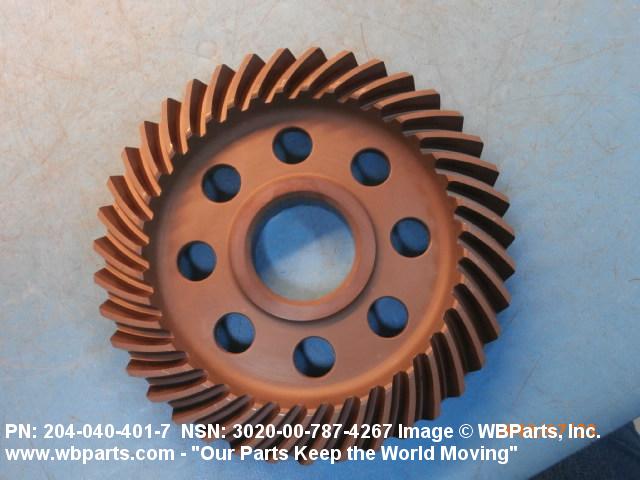

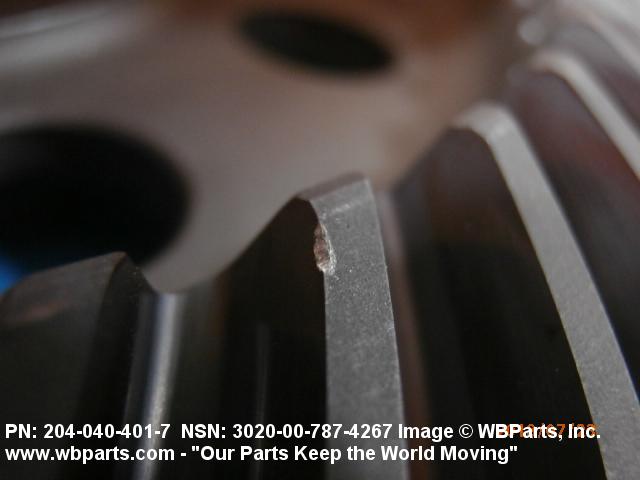

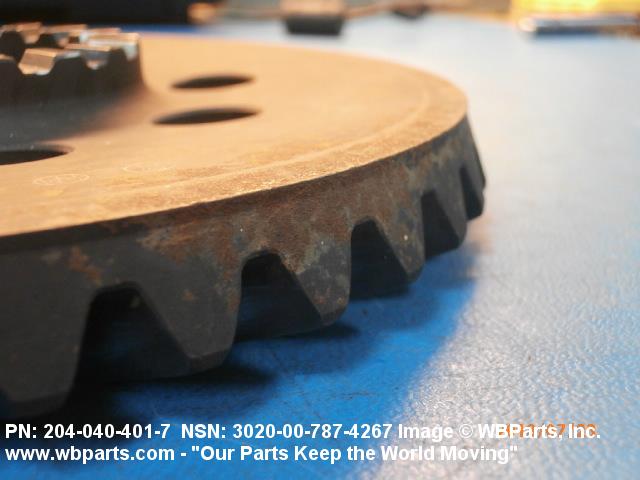

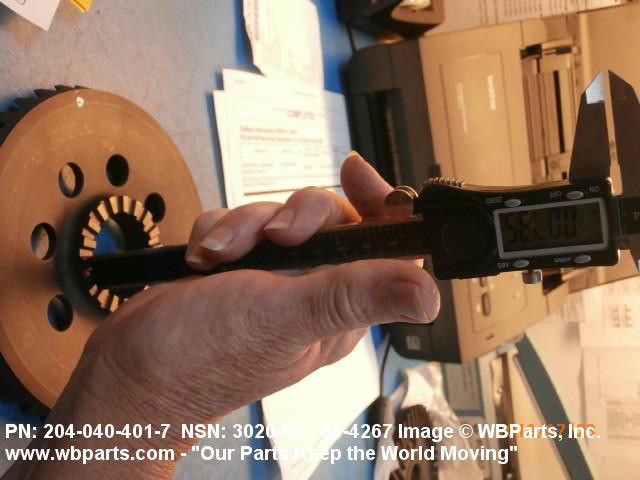

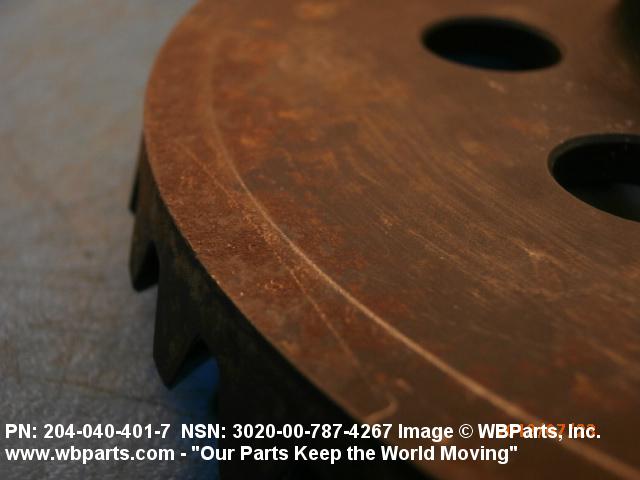

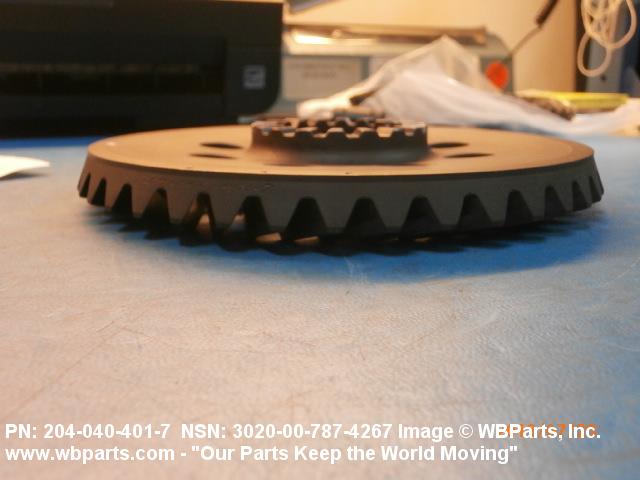

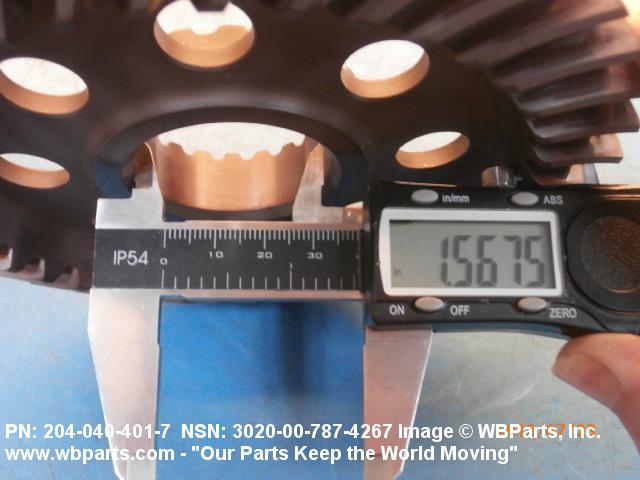

Drawings & Photos | NSN 3020-00-787-4267

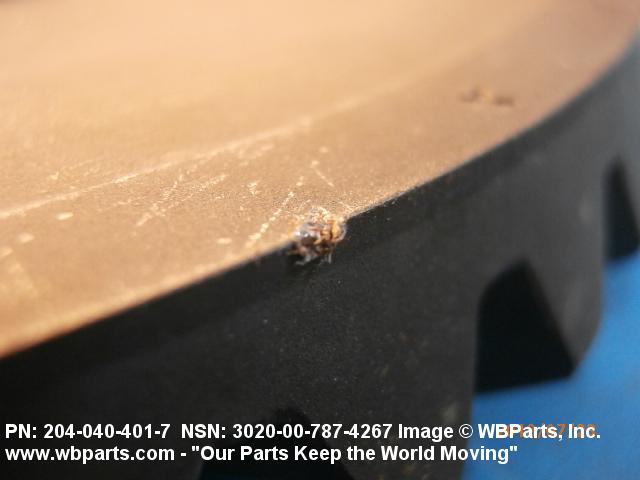

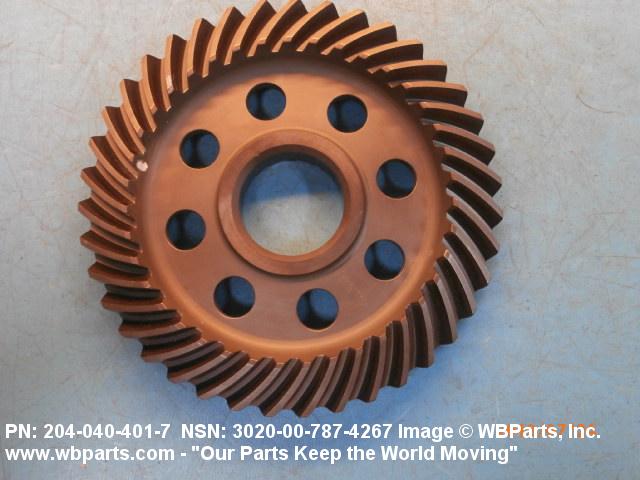

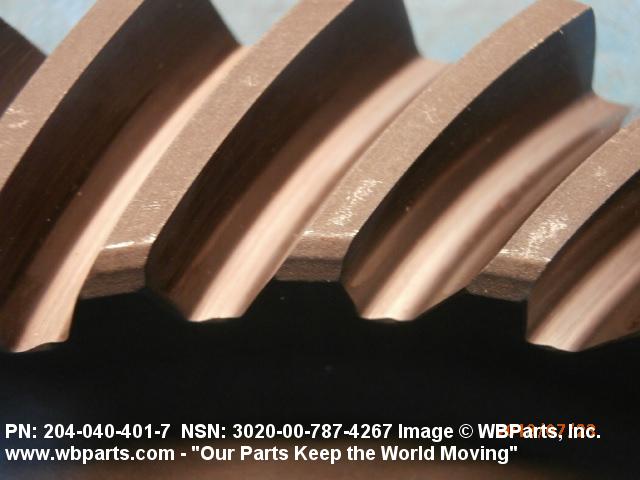

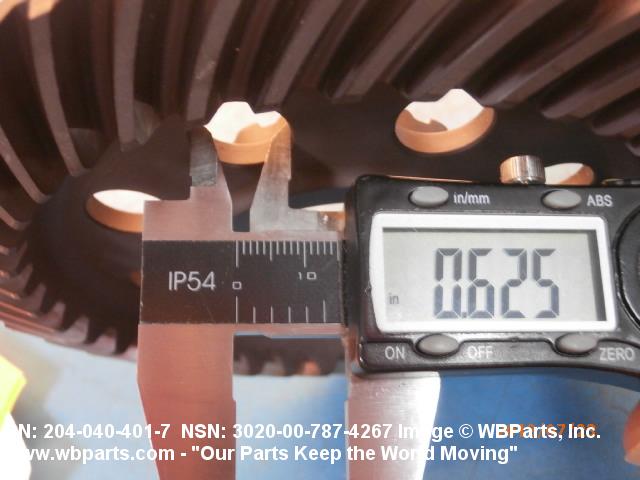

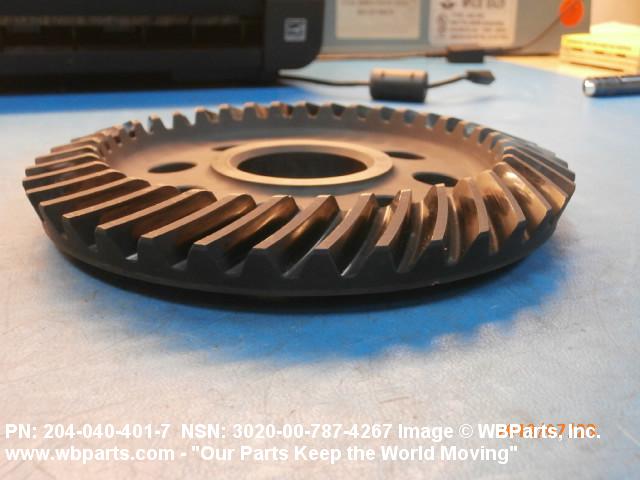

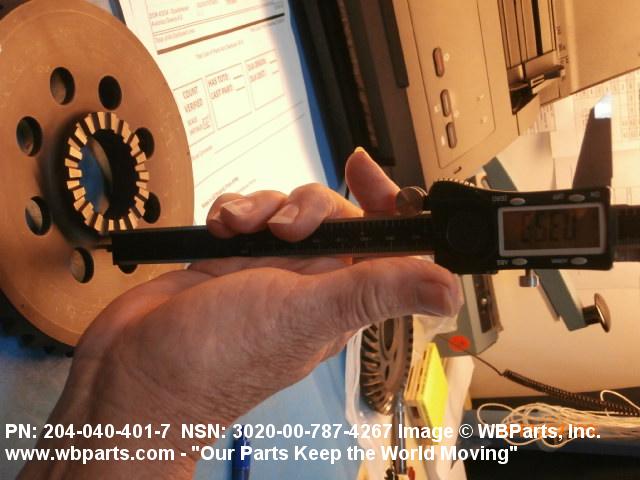

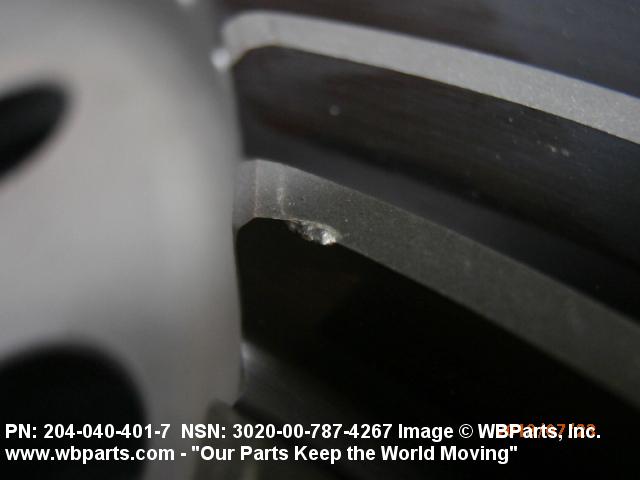

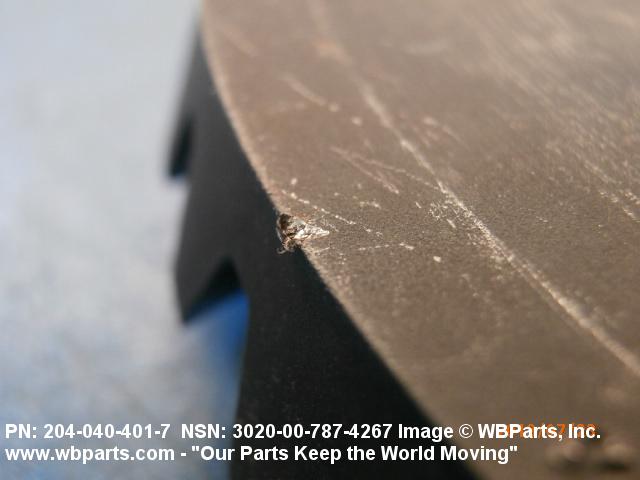

Demand History | NSN 3020-00-787-4267
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-787-4267 | 2024-01-18 | 10 | OM |
| 204-040-401-007 | 2021-12-357 | 3 | DIBBS |
| 204-040-401-7 | 2021-12-357 | 3 | DIBBS |
| 204-040-401-007 | 2021-11-326 | 3 | DIBBS |
| 204-040-401-7 | 2021-11-326 | 3 | DIBBS |
| 3020-00-787-4267 | 2020-03-85 | 1 | US |
| 3020-00-787-4267 | 2019-06-176 | 1 | AU |
| 3020-00-787-4267 | 2019-06-176 | 1 | AU |
| 3020-00-787-4267 | 2018-03-78 | 2 | Greece |
| 3020-00-787-4267 | 2013-04-106 | 11 | DIBBS |
| 204040401007 | 2011-12-355 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-787-4267
Related Products | NSN 3020-00-787-4267
Technical Data | NSN 3020-00-787-4267
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | OXIDE OVERALL |
| TEETH TYPE | SPIRAL |
| TOOTH DIRECTION | RIGHT |
| PRESSURE ANGLE | 20.0000 DEGREES |

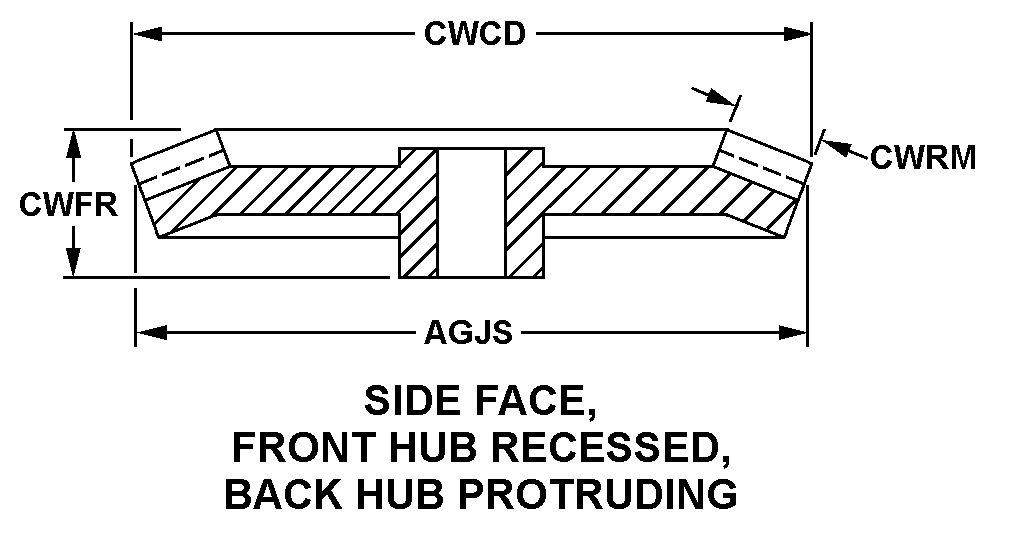

| STYLE DESIGNATOR | 28 SIDE FACE, FRONT HUB RECESSED, BACK HUB PROTRUDING |
