NSN 3020-00-916-4437 N1802, N18-02, 33017-5011
Product Details | BEVEL GEAR
3020-00-916-4437 A gear in the form of a frustum of a cone, with straight, skewed, or curved teeth, cut on the external face. See also GEAR, ANTIBACKLASH, BEVEL.
Part Alternates: N1802, N18-02, 33017-5011, 37071, 838851, 037071, 118058R1, 1930992, 2299421, 26037, 3020-00-916-4437, 00-916-4437, 3020009164437, 009164437, 330175011
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 20 JUL 1966 | 00-916-4437 | 05463 ( GEAR, BEVEL ) |

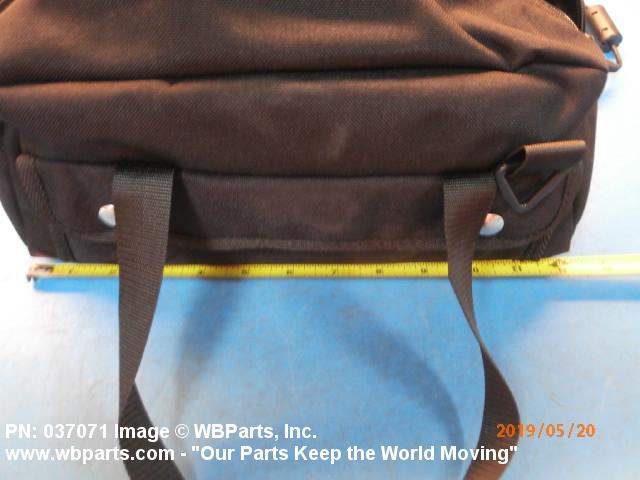

Drawings & Photos | NSN 3020-00-916-4437
Demand History | NSN 3020-00-916-4437
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 037071 | 2023-04-96 | 2 | United States |
| 037071 | 2019-04-108 | 6 | United States |
Cross Reference | NSN 3020-00-916-4437
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 037071 | 81118 | EATON CORPORATION DBA FLUID POWER PLANT |
| 118058R1 | 29510 | KOMATSU AMERICAN INTL CO |
| 118058R1 | 89346 | NAVISTAR INTL CORP TRUCK BR |
| 118058R1 | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| 1930992 | 12204 | DAIMLER CHRYSLER |
| 2299421 | 97907 | TEREX CORP |
| 26037 | 81495 | KOEHRING CRANES INC DBA TEREX CRANES DIV WAVERLY |
| 33017-5011 | 62265 | VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO |
| 37071 | 81118 | EATON CORPORATION DBA FLUID POWER PLANT |
| 37071 | 81142 | EATON CORP AXLE DIV |
| 838851 | 65282 | WHITE MOTOR CORP |
| N18-02 | 95201 | NAPCO INTERNATIONAL LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-916-4437
Related Products | NSN 3020-00-916-4437
Technical Data | NSN 3020-00-916-4437
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| TEETH QUANTITY | 10 |
| TEETH TYPE | STRAIGHT |
| PRESSURE ANGLE | 14.5000 DEGREES |
| PITCH ANGLE | 40.0000 DEGREES |
| STYLE DESIGNATOR | 38 PERIPHERAL FACE, HUBLESS |
| NOMINAL OVERALL LENGTH | 1.387 INCHES |
| NOMINAL OUTSIDE DIAMETER | 3.3900 INCHES |
| FACE NOMINAL WIDTH | 1.125 INCHES |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 1.005 INCHES BOTH ENDS |
| BODY STYLE | 1 PLAIN, SOLID |
Restrictions/Controls & Freight Information | NSN 3020-00-916-4437
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121870 | GEAR/SPEED INCREASING/REDUCING MACH |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | AJ | U.S. Army Soldier's Biological and Chemical Command Natick, MA 01760 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-916-4437
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
