NSN 3020-00-347-6996 1682115P1, 00-347-6996, 003476996
Product Details | INTERNAL GEAR
3020-00-347-6996 A gear with teeth formed on the inner surface of a cylinder or cone.
Part Alternates: 1682115P1, 3020-00-347-6996, 00-347-6996, 3020003476996, 003476996
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 24 JAN 1974 | 00-347-6996 | 05465 ( GEAR, INTERNAL ) |
Drawings & Photos | NSN 3020-00-347-6996
Demand History | NSN 3020-00-347-6996
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-347-6996 | 2020-01-30 | 19 | DIBBS |
| 3020-00-347-6996 | 2019-08-241 | 2 | DIBBS |
| 3020-00-347-6996 | 2017-11-320 | 2 | DIBBS |
| 3020-00-347-6996 | 2017-10-299 | 2 | DIBBS |
| 3020-00-347-6996 | 2017-03-61 | 2 | DIBBS |
| 3020-00-347-6996 | 2016-01-03 | 3 | DIBBS |
| 3020-00-347-6996 | 2013-11-319 | 2 | DIBBS |
| 3020-00-347-6996 | 2013-10-303 | 2 | DIBBS |
| 3020-00-347-6996 | 2012-01-12 | 3 | DIBBS |
| 3020-00-347-6996 | 2010-09-246 | 2 | DIBBS |
| 3020-00-347-6996 | 2010-02-49 | 4 | DIBBS |
| 3020-00-347-6996 | 2008-11-317 | 4 | DIBBS |
| 3020-00-347-6996 | 2007-10-285 | 2 | DIBBS |
| 3020-00-347-6996 | 2007-06-156 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-347-6996
Related Products | NSN 3020-00-347-6996
Technical Data | NSN 3020-00-347-6996
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 416 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI 416 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | CAGE 30003,OD-7690 MFR REF SINGLE TREATMENT RESPONSE OVERALL |

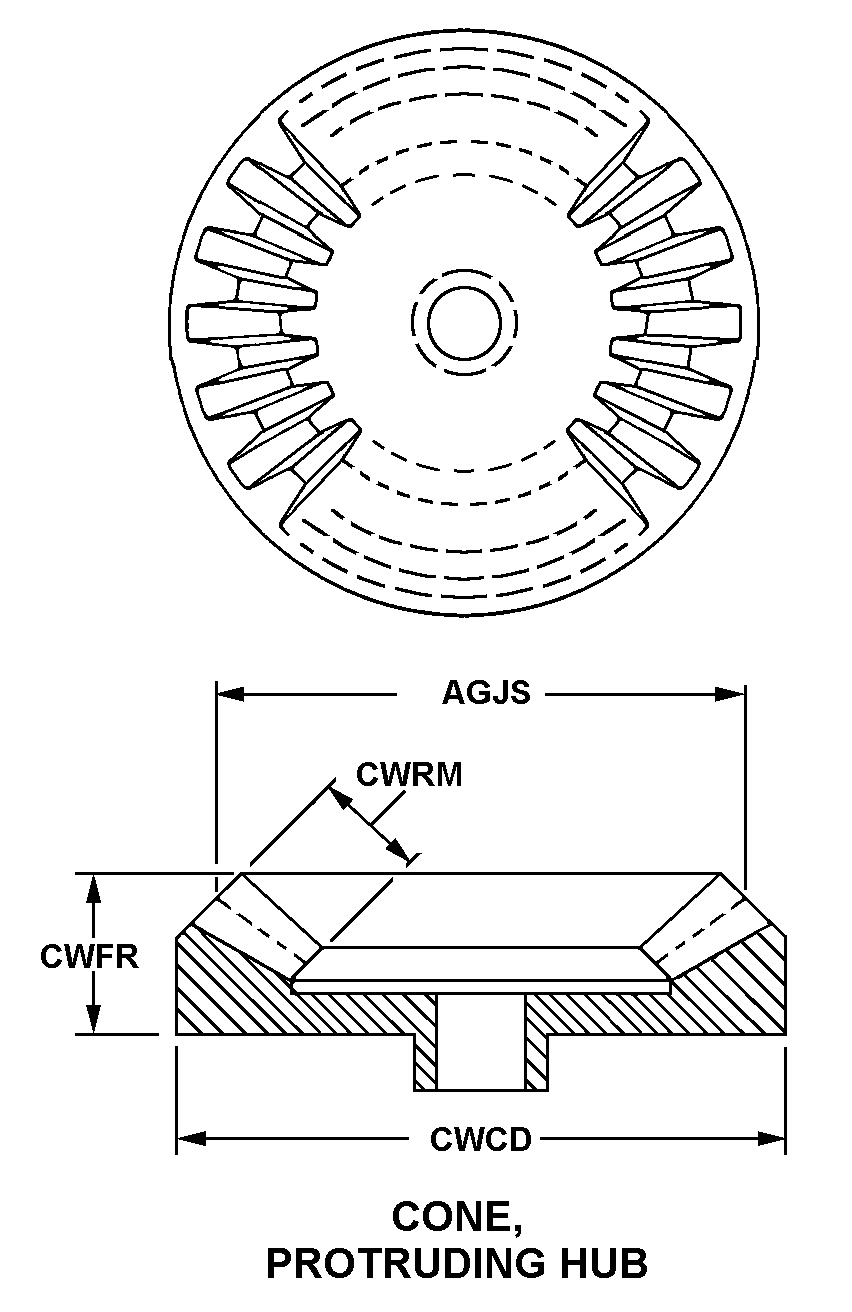

| STYLE DESIGNATOR | 49 CONE, PROTRUDING HUB |
| NOMINAL OVERALL LENGTH | 0.6280 INCHES |
| NOMINAL OUTSIDE DIAMETER | 1.1880 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.3800 INCHES FIRST END |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.2406 INCHES BOTH ENDS |
| MANUFACTURERS CODE | 37255 |
| DESIGN CONTROL REFERENCE | 1682115P1 |
Restrictions/Controls & Freight Information | NSN 3020-00-347-6996
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-347-6996
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
