NSN 3020-00-606-2067 668A759P22, 00-606-2067, 006062067
Product Details | HELICAL GEAR
3020-00-606-2067 A gear, cylindrical in form, with teeth on the outer surface at an angle to the axis of the gear. See also GEAR, ANTIBACKLASH, HELICAL
Part Alternates: 668A759P22, 3020-00-606-2067, 00-606-2067, 3020006062067, 006062067
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-606-2067 | 05464 ( GEAR, HELICAL ) |

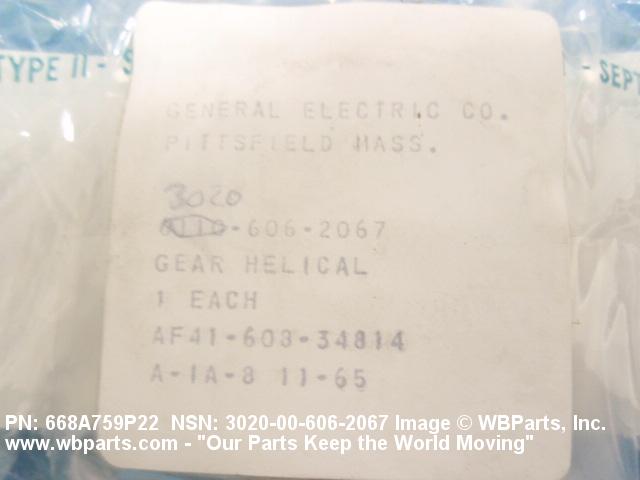

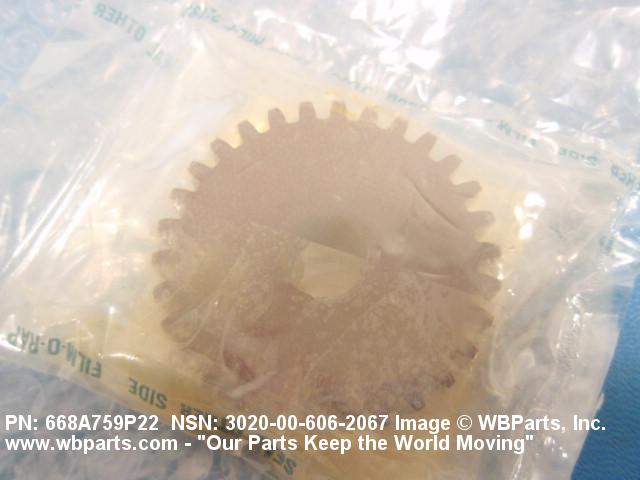

Drawings & Photos | NSN 3020-00-606-2067
Demand History | NSN 3020-00-606-2067
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 668A759P22 | 2010-02-33 | 2 | United States |
| 3020-00-606-2067 | 2007-11-334 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-606-2067
Technical Data | NSN 3020-00-606-2067
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC PHENOLIC OVERALL |
| TEETH QUANTITY | 30 |
| TEETH TYPE | SINGLE HELIX |
| TOOTH FORM | STANDARD |
| TOOTH DIRECTION | LEFT |
| PRESSURE ANGLE | 14.5000 DEGREES |
| HELIX ANGLE | 4.0833 DEGREES |
| STYLE DESIGNATOR | 1 HUBLESS |
| NOMINAL OUTSIDE DIAMETER | 2.0000 INCHES |
| BODY STYLE | 1 PLAIN, SOLID |
Restrictions/Controls & Freight Information | NSN 3020-00-606-2067
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-606-2067
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
