Product Details | INTERNAL GEAR
3020-00-916-2113 A gear with teeth formed on the inner surface of a cylinder or cone.
Part Alternates: 10902002, 3020-00-916-2113, 00-916-2113, 2520009162113, 3020009162113, 009162113
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 03 NOV 1965 | 00-916-2113 | 05465 ( GEAR, INTERNAL ) |
Drawings & Photos | NSN 3020-00-916-2113
Demand History | NSN 3020-00-916-2113
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-916-2113 | 2020-11-335 | 10 | DIBBS |
| 3020-00-916-2113 | 2020-11-335 | 15 | DIBBS |
| 3020-00-916-2113 | 2018-07-206 | 11 | DIBBS |
| 3020-00-916-2113 | 2015-01-08 | 9 | DIBBS |
| 3020-00-916-2113 | 2014-12-362 | 9 | DIBBS |
| 3020-00-916-2113 | 2014-11-306 | 5 | DIBBS |
| 3020-00-916-2113 | 2014-02-44 | 3 | DIBBS |
| 3020-00-916-2113 | 2014-01-29 | 3 | DIBBS |
| 3020-00-916-2113 | 2010-08-240 | 2 | DIBBS |
| 3020-00-916-2113 | 2010-01-29 | 1 | DIBBS |
| 3020-00-916-2113 | 2009-03-73 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-916-2113
Related Products | NSN 3020-00-916-2113
Technical Data | NSN 3020-00-916-2113
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8640 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-13048 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| TEETH QUANTITY | 25 |
| TEETH TYPE | SPUR |
| PRESSURE ANGLE | 20.0000 DEGREES |
| PITCH ANGLE | 90.0000 DEGREES |

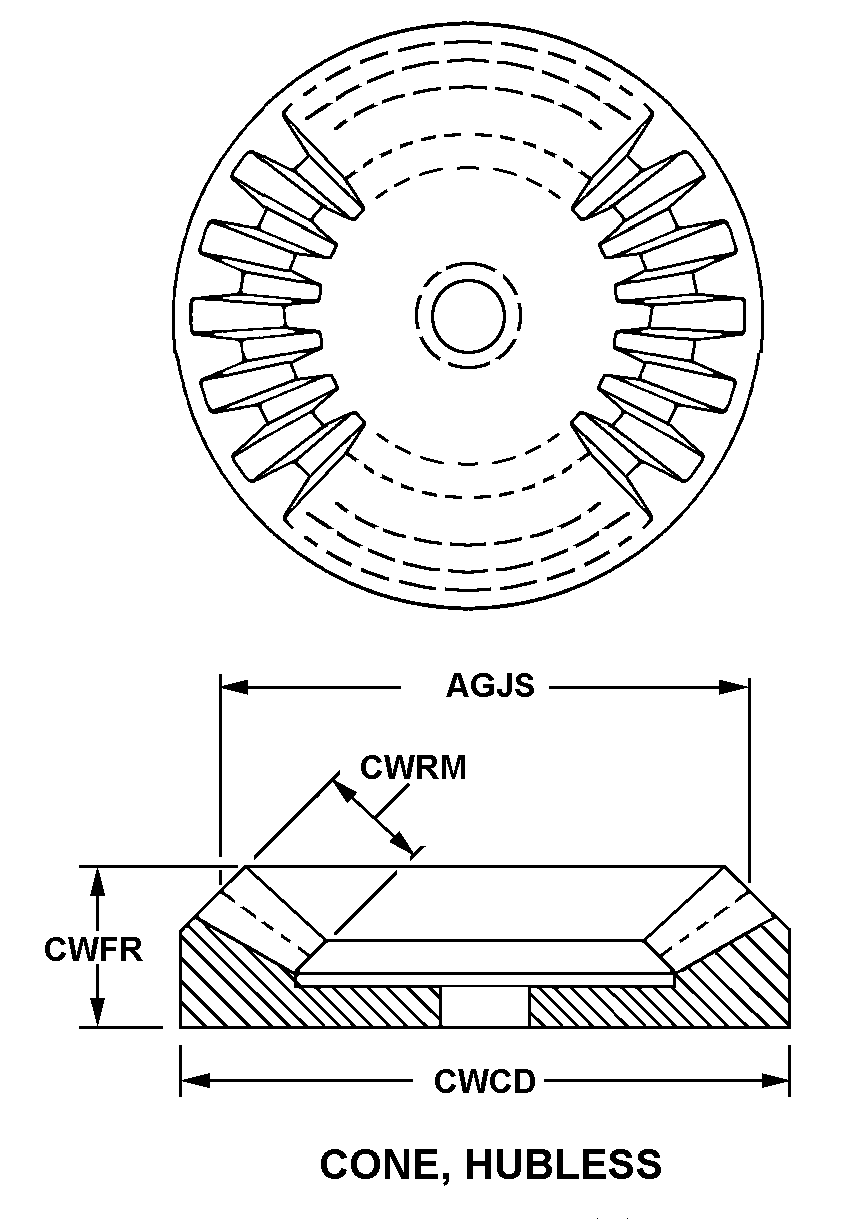

| STYLE DESIGNATOR | 48 CONE, HUBLESS |
| PITCH DIAMETER | 3.1250 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 1.000 INCHES |
| NOMINAL OUTSIDE DIAMETER | 4.750 INCHES |
| FACE NOMINAL WIDTH | 0.875 INCHES |
| BORE STYLE | 17 THREAD SERIES DESIGNATOR FULLY THREADED BOTH ENDS |
| THREAD SERIES DESIGNATOR | UNF BOTH ENDS |
| NOMINAL THREAD SIZE | 1.000 INCHES BOTH ENDS |
| THREAD CLASS | 2B BOTH ENDS |
| THREAD DIRECTION | RIGHT-HAND BOTH ENDS |
| BODY STYLE | 1 PLAIN, SOLID |
| ATTACHMENT METHOD | MOUNTING HOLE |
| MOUNTING HOLE TYPE AND QUANTITY | 4 THREADED AXIALLY THROUGH FLANGE |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNF AXIALLY THROUGH FLANGE |
| MOUNTING HOLE NOMINAL THREAD SIZE | 0.438 INCHES AXIALLY THROUGH FLANGE |
| SPECIAL FEATURES | SECOND END 4.750IN.DIA,0.500IN.W FLANGE WITH RECESSED FACE 2.750IN.DIA,0.125IN.DEEP |
