Product Details | SPUR GEAR

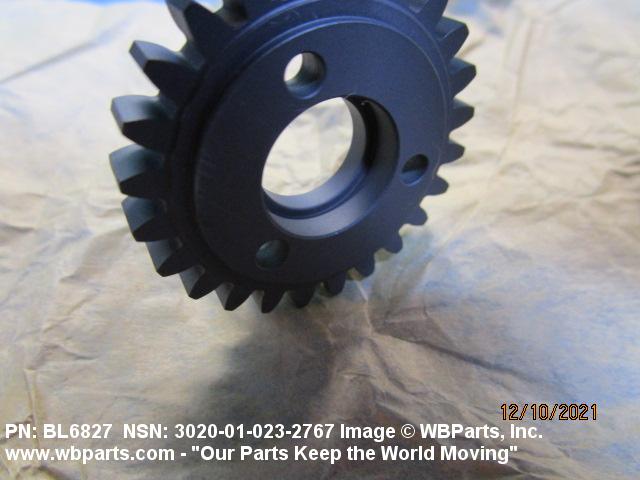

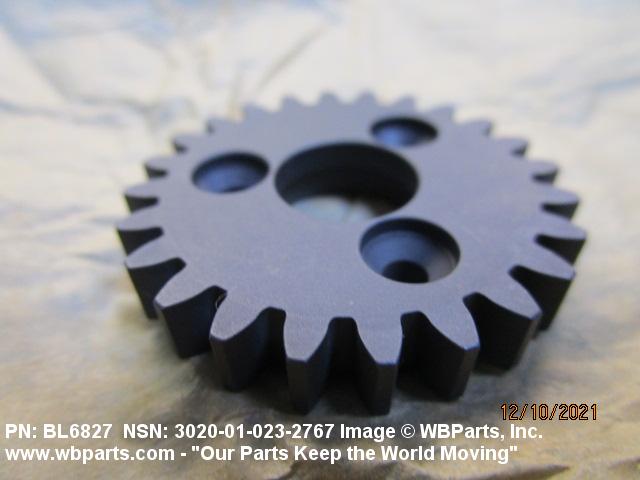

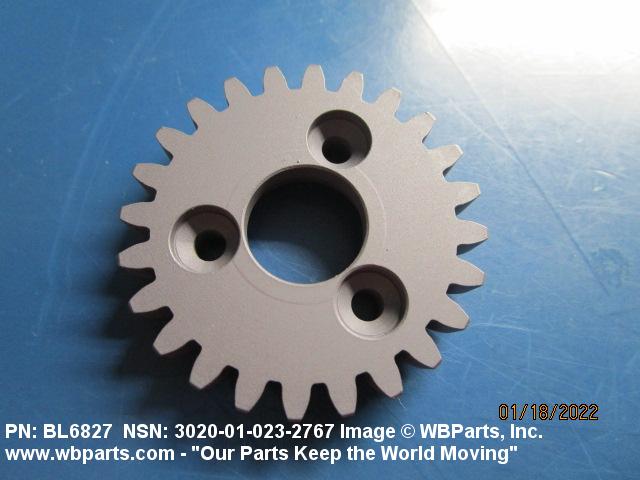

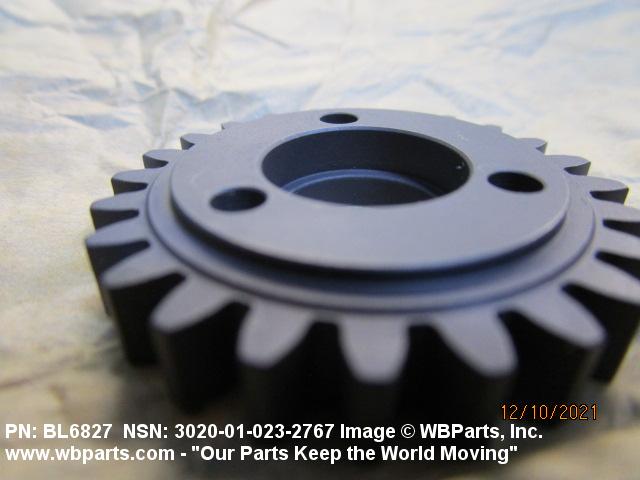

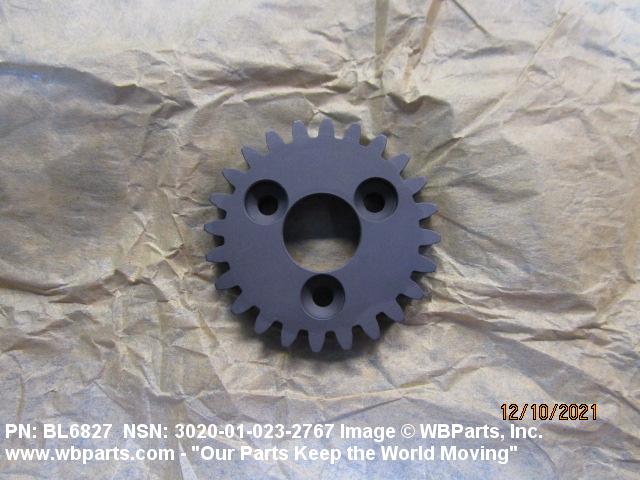

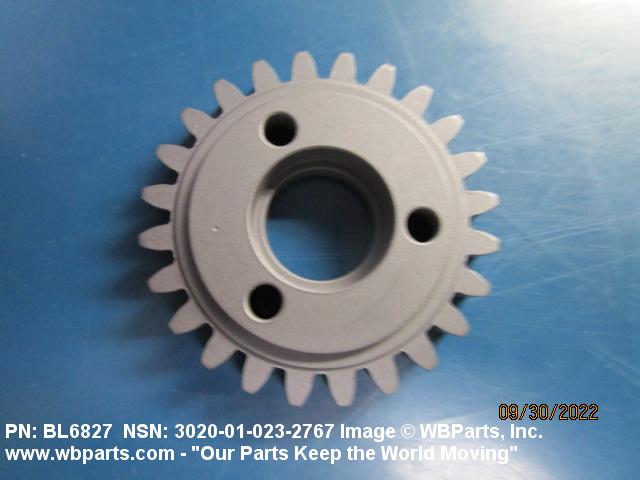

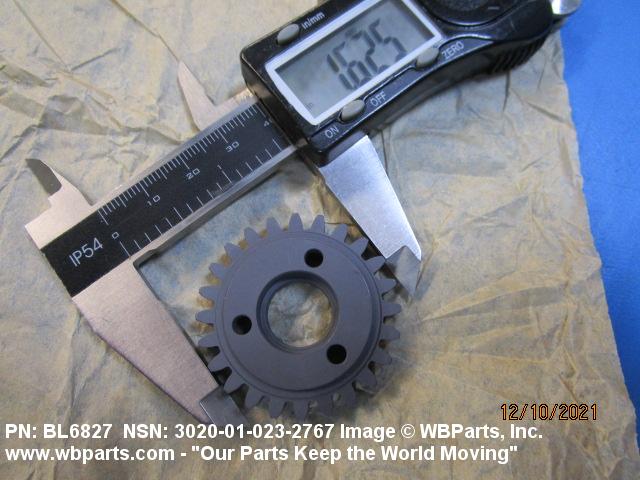

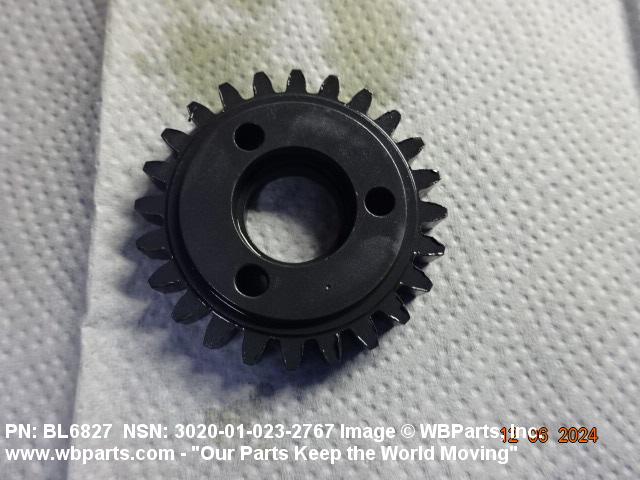

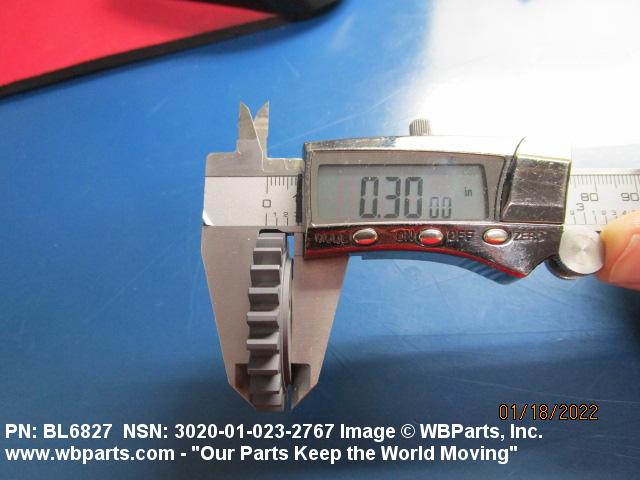

3020-01-023-2767 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: BL6827, 3020-01-023-2767, 01-023-2767, 3020010232767, 010232767
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 13 JUN 1976 | 01-023-2767 | 05466 ( GEAR, SPUR ) |

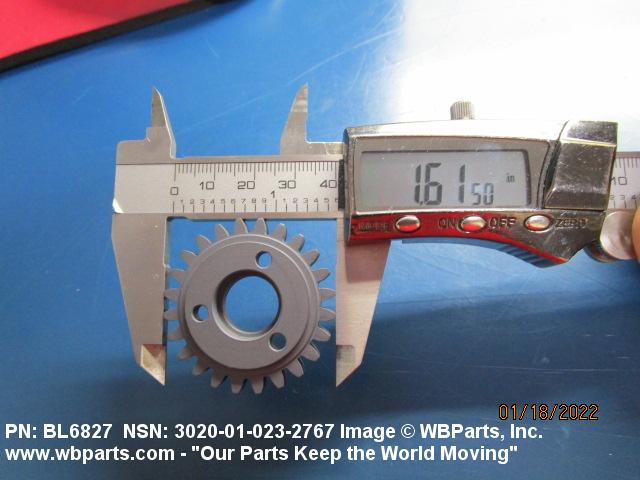

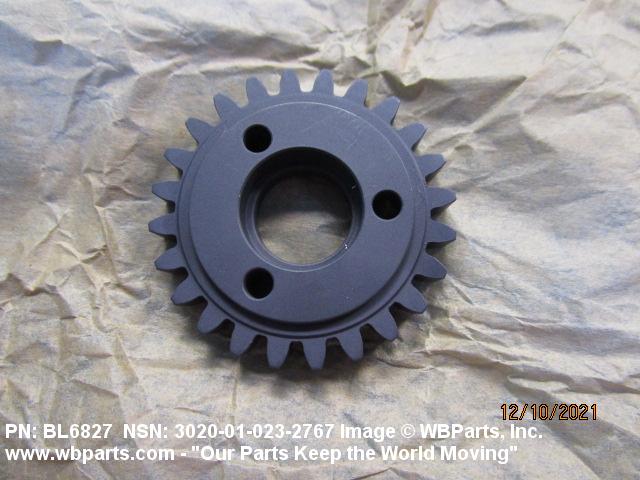

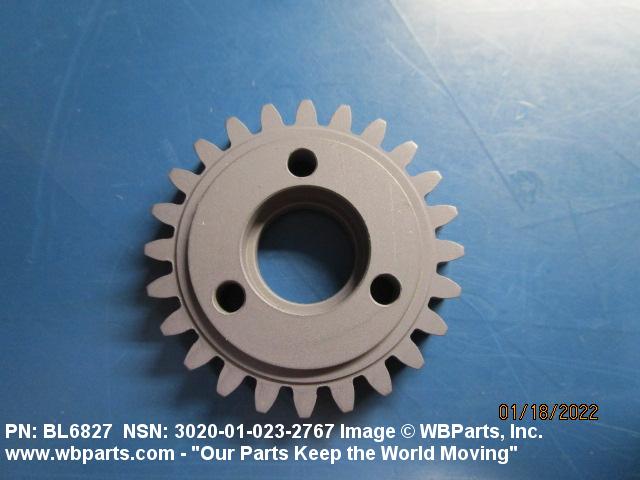

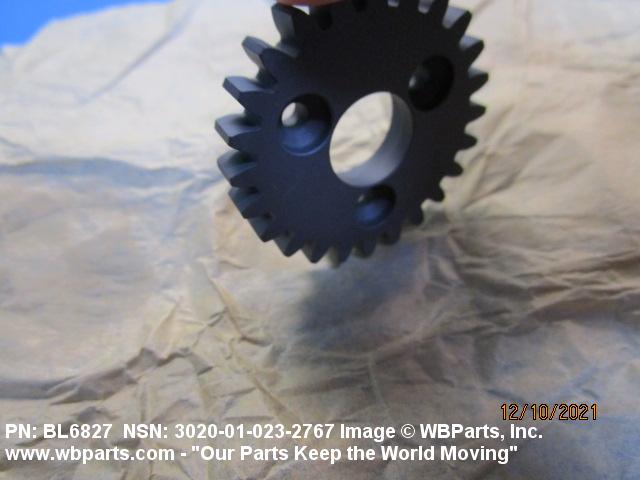

Drawings & Photos | NSN 3020-01-023-2767
Demand History | NSN 3020-01-023-2767
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-023-2767 | 2024-11-325 | 3 | Germany |
| 3020-01-023-2767 | 2023-09-257 | 3 | Germany |
| 3020-01-023-2767 | 2023-09-249 | 1 | Germany |
| 3020-01-023-2767 | 2023-07-195 | 1 | us |
| 3020-01-023-2767 | 2022-11-332 | 1 | Germany |
| 3020-01-023-2767 | 2022-11-318 | 1 | Germany |
| 3020-01-023-2767 | 2022-10-301 | 1 | Germany |
| 3020-01-023-2767 | 2022-09-266 | 1 | Germany |
| 3020-01-023-2767 | 2021-12-350 | 2 | Germany |
| 3020-01-023-2767 | 2021-11-328 | 1 | Germany |
| 3020-01-023-2767 | 2021-08-225 | 2 | Germany |
| 3020-01-023-2767 | 2021-03-76 | 1 | Germany |
| 3020-01-023-2767 | 2018-05-149 | 5 | DIBBS |
| 3020-01-023-2767 | 2018-05-137 | 5 | DIBBS |
| 3020-01-023-2767 | 2016-04-109 | 4 | DIBBS |
| 3020-01-023-2767 | 2011-06-155 | 1 | DIBBS |
| 3020-01-023-2767 | 2011-03-63 | 1 | DIBBS |
| 3020-01-023-2767 | 2010-10-294 | 1 | DIBBS |
| 3020-01-023-2767 | 2007-06-158 | 10 | DIBBS |
Cross Reference | NSN 3020-01-023-2767
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BL6827 | 08484 | BREEZE-EASTERN CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-023-2767
Related Products | NSN 3020-01-023-2767
Technical Data | NSN 3020-01-023-2767
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL UNS J03504 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5643 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C NOMINAL OVERALL |
| TEETH QUANTITY | 24 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 20.0000 DEGREES |
| STYLE DESIGNATOR | 2 PROTRUDING HUB |
| PITCH DIAMETER | 1.5000 INCHES NOMINAL |

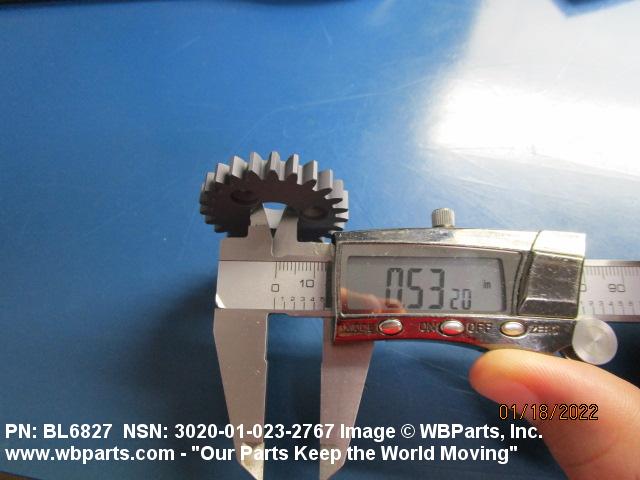

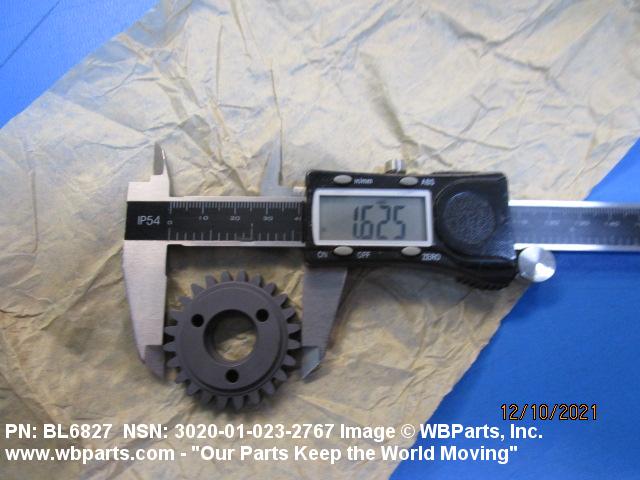

| NOMINAL OUTSIDE DIAMETER | 1.625 INCHES |

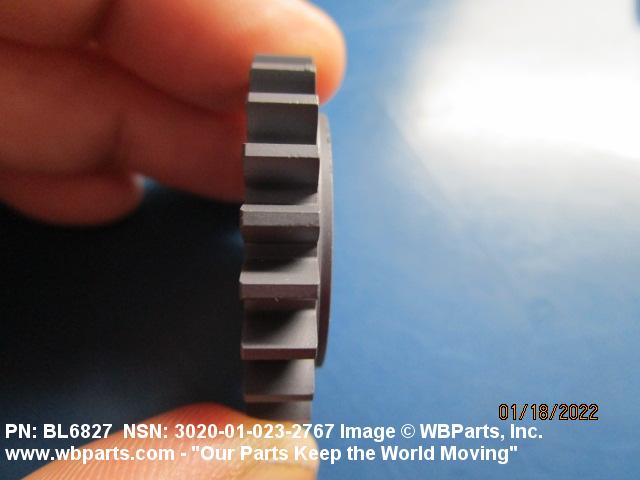

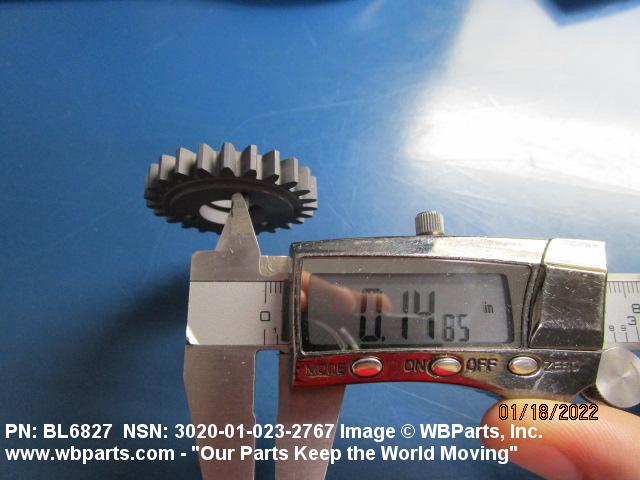

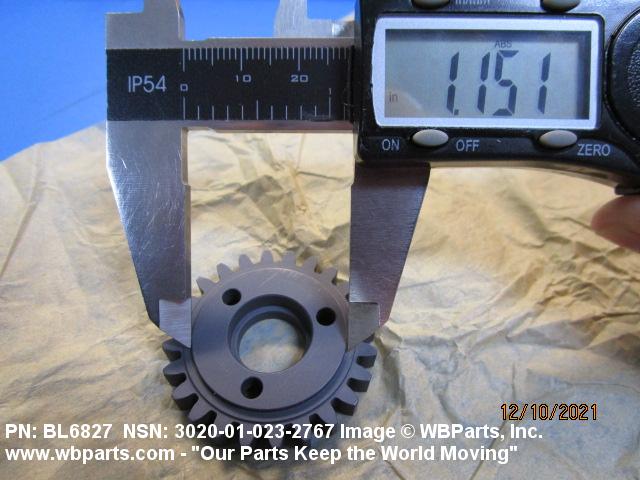

| FACE NOMINAL WIDTH | 0.235 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.062 INCHES FIRST END |
| BORE STYLE | 14 W/COUNTERBORE BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.531 INCHES BOTH ENDS |
| COUNTERBORE NOMINAL DEPTH | 0.170 INCHES FIRST END |
| COUNTERBORE NOMINAL DIAMETER | 0.625 INCHES FIRST END |
| HUB STYLE DESIGNATOR | 4A 1 STEP FIRST END |
| END NOMINAL LENGTH | 0.047 INCHES FIRST END |
| END NOMINAL DIAMETER | 1.155 INCHES FIRST END |
| FIRST STEP NOMINAL LENGTH | 0.015 INCHES FIRST END |
| FIRST STEP NOMINAL DIAMETER | 1.281 INCHES FIRST END |
| BODY STYLE | 1 PLAIN, SOLID |
| ATTACHMENT METHOD | MOUNTING HOLE |
| MOUNTING HOLE TYPE AND QUANTITY | 3 COUNTERSUNK AXIALLY THROUGH BODY, FIRST END |
| MOUNTING HOLE NOMINAL DIAMETER | 0.147 INCHES AXIALLY THROUGH BODY, FIRST END |
