NSN 3020-01-149-5915 S-524, 3020PL0874743 , 5740044

Product Details | SPROCKET WHEEL

3020-01-149-5915 A toothed wheel whose teeth or sprockets are designed to be engaged with the links of a pitch chain, track, or the like. It is usually used for transmitting power.

Part Alternates: S-524, 3020PL0874743 , 5740044, S524, 14022645, 3020-01-149-5915, 01-149-5915, 3020011495915, 011495915

Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
30	23 MAR 1983	01-149-5915	04456 ( SPROCKET WHEEL )

Drawings & Photos | NSN 3020-01-149-5915

Part Number	Request Date	QTY	Origin
3020-01-149-5915	2021-12-356	10	MANUAL
3020-01-149-5915	2018-12-353	1	DIBBS-RFPs
3020-01-149-5915	2018-11-316	3000	DIBBS
3020-01-149-5915	2018-01-28	2156	DIBBS
3020-01-149-5915	2015-09-260	4362	DIBBS
3020-01-149-5915	2014-10-303	2545	DIBBS
3020-01-149-5915	2014-07-212	968	DIBBS
3020-01-149-5915	2014-03-65	955	DIBBS
3020-01-149-5915	2013-05-142	0	DIBBS
3020-01-149-5915	2012-11-325	0	DIBBS
3020-01-149-5915	2012-07-209	576	DIBBS
3020-01-149-5915	2012-05-131	2120	DIBBS
3020-01-149-5915	2011-08-235	342	DIBBS
3020-01-149-5915	2011-06-158	550	DIBBS
3020-01-149-5915	2011-05-138	2	MANUAL
5740044	2011-05-138	2	United States
3020-01-149-5915	2011-03-82	567	DIBBS
3020-01-149-5915	2011-02-55	514	DIBBS
3020-01-149-5915	2011-01-28	627	DIBBS
3020-01-149-5915	2011-01-07	372	DIBBS
3020-01-149-5915	2010-12-337	110	DIBBS
3020-01-149-5915	2010-10-302	348	DIBBS
3020-01-149-5915	2009-10-294	598	DIBBS
3020-01-149-5915	2009-09-244	639	DIBBS
3020-01-149-5915	2009-08-219	236	DIBBS
3020-01-149-5915	2009-06-152	412	DIBBS
3020-01-149-5915	2009-04-112	367	DIBBS
3020-01-149-5915	2009-03-76	272	DIBBS
3020-01-149-5915	2008-11-317	389	DIBBS
3020-01-149-5915	2008-09-260	379	DIBBS
3020-01-149-5915	2008-07-190	201	DIBBS
3020-01-149-5915	2008-03-64	573	DIBBS

Cross Reference | NSN 3020-01-149-5915

Part Number	Cage Code	Manufacturer
14022645	11862	GENERAL MOTORS CORP CHEVROLET MOTOR DIV
14022645	7X677	GENERAL MOTORS LLC DBA GENERAL MOTORS
3020011495915	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
3020PL0874743	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
5740044	34623	AM GENERAL, LLC
S-524	72156	ELGIN INDUSTRIES INC. DBA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3020-01-149-5915

Compare

Related Products | NSN 3020-01-149-5915

3020-01-149-6763, 3020-01-149-6764, 3020-01-149-6765, 3020-01-149-6766, 3020-01-149-6767

Technical Data | NSN 3020-01-149-5915

Characteristic	Specifications

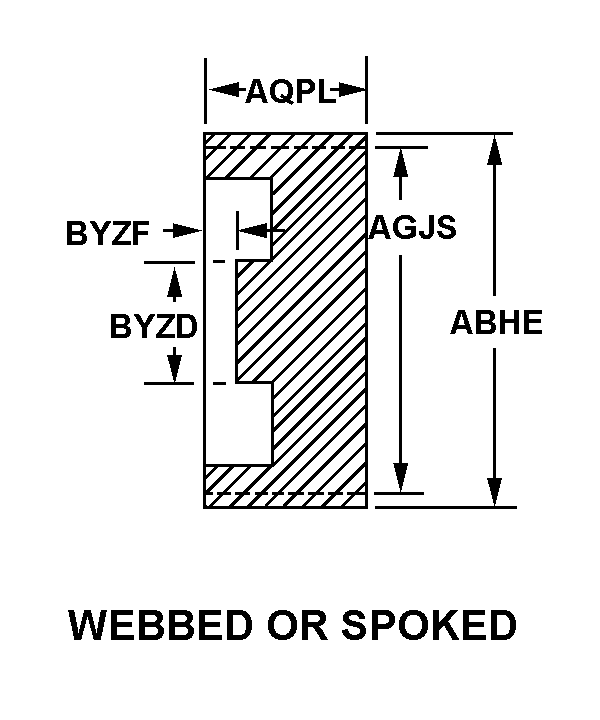

STYLE DESIGNATOR	A24 WEBBED OR SPOKED
OUTSIDE DIAMETER	153.1 MILLIMETERS NOMINAL
PITCH DIAMETER	145.7 MILLIMETERS NOMINAL
FACE WIDTH	18.3 MILLIMETERS NOMINAL
HUB END OUTSIDE DIAMETER AND LOCATION	55.0 MILLIMETERS NOMINAL AA END
DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION	3.0 MILLIMETERS NOMINAL AA END
DESIGN FORM	WEBBED
LIGHTENING HOLE	NOT INCLUDED
BELT/CHAIN/FILM SIZE FOR WHICH DESIGNED	SILENT CHAIN
GUIDE	NOT INCLUDED
TEETH ROW QUANTITY	2
CENTER TO CENTER DISTANCE BETWEEN TEETH ROWS	7.3 MILLIMETERS NOMINAL
TEETH QUANTITY PER ROW	36
TOOTH PITCH	12.7 MILLIMETERS NOMINAL
MATERIAL	IRON,DUCTILE,SAE GRADE D7003
HARDNESS RATING TEST METHOD	ROCKWELL
TEETH HARDNESS RATING	45.0 ROCKWELL C NOMINAL
METALLIC HARDNESS RATING AND LOCATION	241.0 BRINELL STANDARD MINIMUM BODY AND 302.0 BRINELL STANDARD MAXIMUM BODY
BORE BEARING	NOT INCLUDED
BORE TYPE	STRAIGHT
COUNTERBORE FEATURE	INCLUDED
COUNTERBORE LOCATION	AA END
COUNTERBORE DIAMETER	34.0 MILLIMETERS NOMINAL
COUNTERBORE DEPTH	3.0 MILLIMETERS NOMINAL
BORE DIAMETER	32.5 MILLIMETERS NOMINAL
BORE LENGTH	18.3 MILLIMETERS NOMINAL
KEYING FACILITY	INCLUDED
KEYING FACILITY TYPE	KEYWAY
QUANTITY	1
KEYWAY WIDTH	4.8 MILLIMETERS NOMINAL
DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY	19.2 MILLIMETERS NOMINAL
PROTRUDING HUB CHARACTERISTIC	PLAIN
HUB EXTERNAL KEYWAY	NOT INCLUDED
SECURING METHOD	SLOTTED
SECURING LOCATION	AA END

Restrictions/Controls & Freight Information | NSN 3020-01-149-5915

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	117020	CHAIN AND SPROCKET DRIVES/WHEELS
Less than car load rating
Less than truck load rating	S	60.0
Water commodity Code	593	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3020-01-149-5915

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
