Product Details | SPROCKET WHEEL
3020-01-219-7561 A toothed wheel whose teeth or sprockets are designed to be engaged with the links of a pitch chain, track, or the like. It is usually used for transmitting power.
Part Alternates: 12332556, 3020-01-219-7561, 01-219-7561, 3020012197561, 012197561
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 02 NOV 1985 | 01-219-7561 | 04456 ( SPROCKET WHEEL ) |

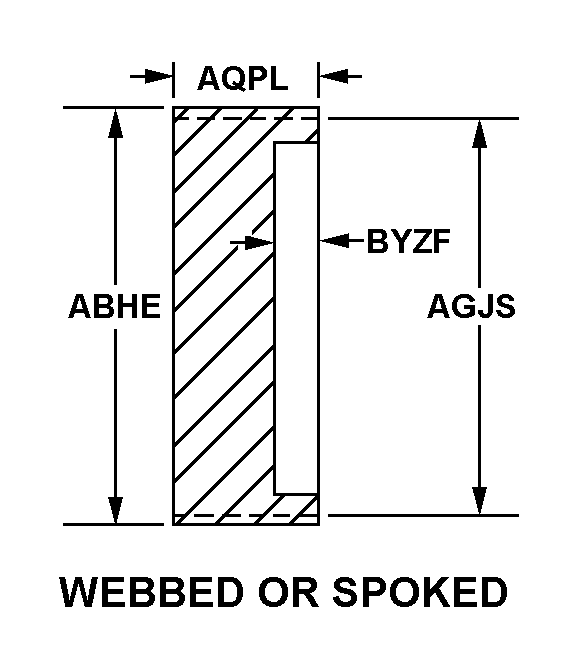

Drawings & Photos | NSN 3020-01-219-7561
Demand History | NSN 3020-01-219-7561
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-219-7561 | 2015-06-174 | 4 | South Korea |
Cross Reference | NSN 3020-01-219-7561
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12332556 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-219-7561
Related Products | NSN 3020-01-219-7561
Technical Data | NSN 3020-01-219-7561
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A4 WEBBED OR SPOKED |
| OUTSIDE DIAMETER | 27.940 INCHES MINIMUM AND 28.060 INCHES MAXIMUM |
| PITCH DIAMETER | 25.333 INCHES NOMINAL |
| FACE WIDTH | 1.250 INCHES NOMINAL |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 0.630 INCHES NOMINAL AA END |
| DESIGN FORM | PLAIN |
| LIGHTENING HOLE | NOT INCLUDED |
| BELT/CHAIN/FILM SIZE FOR WHICH DESIGNED | TRACK |
| GUIDE | NOT INCLUDED |
| TEETH ROW QUANTITY | 1 |
| TEETH QUANTITY PER ROW | 13 |
| MATERIAL | STEEL, QQ-S-626, FS4140 |
| BORE BEARING | NOT INCLUDED |
| SPECIAL FEATURES | THIS INNER DRIVE WHEEL SPROCKET IS USED ON THE ORIGINAL DESIGN DRIVE WHEEL HUB ONLY, NSN: 3040-01-219-7618 |
