Product Details | INTERNAL GEAR
3020-01-359-5352 A gear with teeth formed on the inner surface of a cylinder or cone.
Part Alternates: 174805, 3020-01-359-5352, 01-359-5352, 3020013595352, 013595352
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 07 JUN 1992 | 01-359-5352 | 05465 ( GEAR, INTERNAL ) |
Drawings & Photos | NSN 3020-01-359-5352
Cross Reference | NSN 3020-01-359-5352
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 174805 | 21877 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-359-5352
Related Products | NSN 3020-01-359-5352
Technical Data | NSN 3020-01-359-5352
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416C TYPE II CL3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 35.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM OVERALL |
| TEETH QUANTITY | 110 |
| TEETH TYPE | SPUR |
| PRESSURE ANGLE | 20.0000 DEGREES |

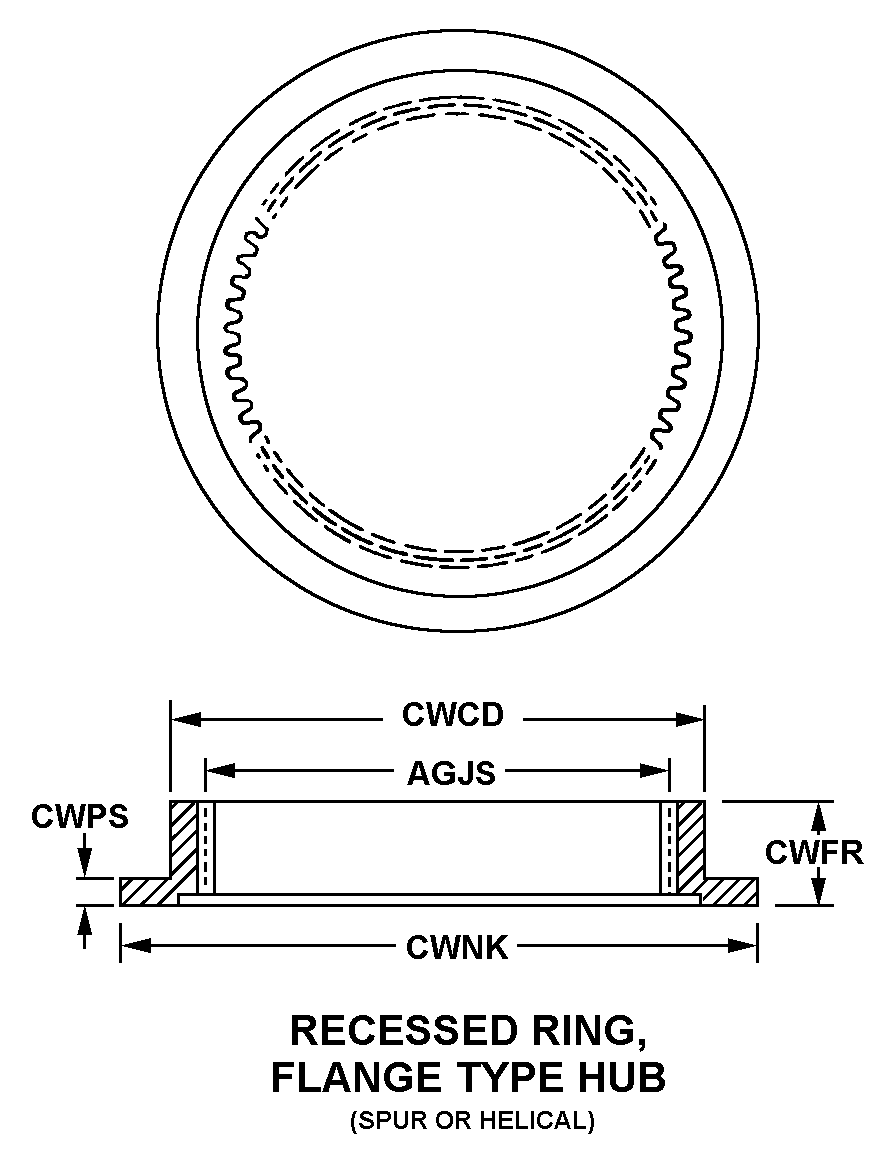

| STYLE DESIGNATOR | 49B RECESSED RING FLANGE TYPE HUG |
