NSN 3030-01-038-4907 05377110002, 0537711-0002, 5377110002

Product Details | POSITIVE DRIVE BELT


3030-01-038-4907 A flat internally toothed belt or a round belt with protuding pins, designed to engage with corresponding teeth or corresponding grooves on the sprockets over which they run.

Part Alternates: 05377110002, 0537711-0002, 5377110002, 537711-0002, 3030-01-038-4907, 01-038-4907, 3030010384907, 010384907

Mechanical Power Transmission Equipment | Belting, Drive Belts, Fan Belts, and Accessories

Supply Group (FSG) NSN Assign. NIIN
30 07 APR 1977 01-038-4907

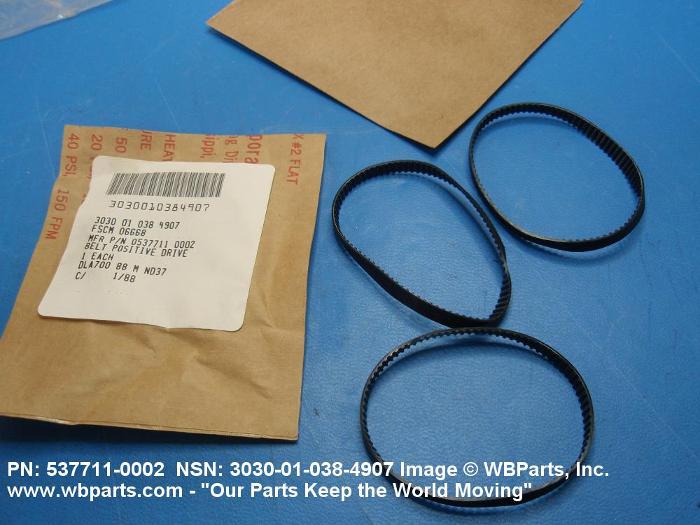

Drawings & Photos | NSN 3030-01-038-4907



Demand History | NSN 3030-01-038-4907


Part Number Request Date QTY Origin
5377110002 2008-10-03 5 US
5377110002 2008-10-03 5 United States

Cross Reference | NSN 3030-01-038-4907


Part Number Cage Code Manufacturer
0537711-0002 06668 TEXAS INSTRUMENTS INC INFORMATION TECHNOLOGY GROUP
537711-0002 06668 TEXAS INSTRUMENTS INC INFORMATION TECHNOLOGY GROUP

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 3030-01-038-4907


Technical Data | NSN 3030-01-038-4907


Characteristic Specifications
MATERIAL PLASTIC POLYETHYLENE TEREPHTHALATE BODY
SURFACE CONDITION RIBBED PULLEY SURFACE
STRENGTHENING FEATURE NYLON CORD
STYLE DESIGNATOR E1 POSITIVE DRIVE
NOMINAL WIDTH 0.562 INCHES
NOMINAL PITCH LENGTH 8.000 INCHES
PERFORMANCE TYPE REGULAR COMMERCIAL DUTY
BELT COUPLING TYPE COUPLING
DRIVE TYPE AND QUANTITY 85 TEETH
NOMINAL PITCH DISTANCE 0.200 INCHES
MANUFACTURERS CODE 06668
DESIGN CONTROL REFERENCE 0537711-0002

Restrictions/Controls & Freight Information | NSN 3030-01-038-4907


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 023340 BELTS OR BELTING NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 586 unknown
Originating Activity Code SJ Air Force Cryptological Support Center
San Antonio, TX 78243-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 3030-01-038-4907


Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation CodeCISJ:CRYPTOLOGIC ITEM OTHER THAN COMMUNICATIONS SECURITY (COMSEC) ITEMS
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
