NSN 3030-01-135-6846 TB10215004, TB102-150-04, 6B16150025

Product Details | POSITIVE DRIVE BELT


3030-01-135-6846 A flat internally toothed belt or a round belt with protuding pins, designed to engage with corresponding teeth or corresponding grooves on the sprockets over which they run.

Part Alternates: TB10215004, TB102-150-04, 6B16150025, 6B16-150025, 6Z16150025, 6Z16-150025, 9006122, 900612-2, 3030-01-135-6846, 01-135-6846, 3030011356846, 011356846

Mechanical Power Transmission Equipment | Belting, Drive Belts, Fan Belts, and Accessories

Supply Group (FSG) NSN Assign. NIIN
30 28 JUL 1982 01-135-6846

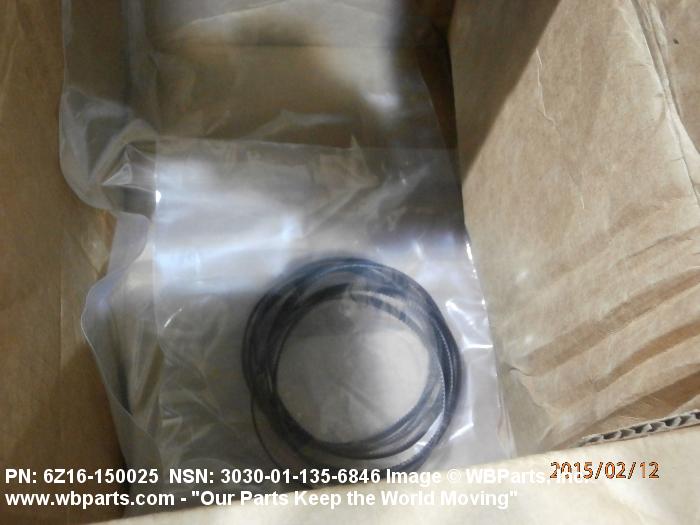

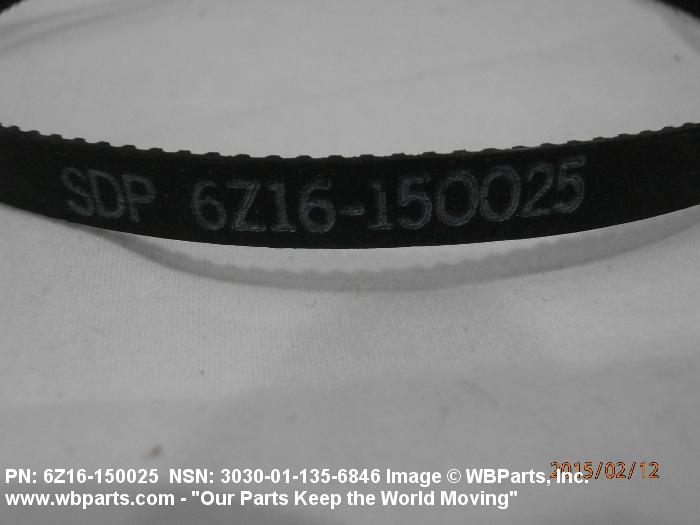

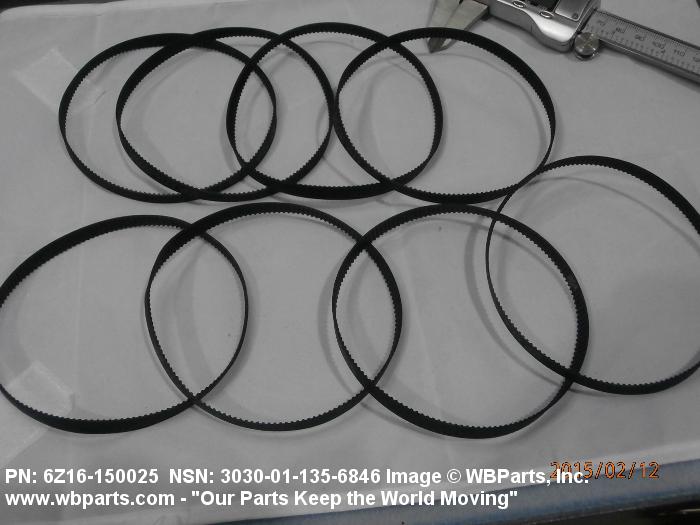

Drawings & Photos | NSN 3030-01-135-6846



Demand History | NSN 3030-01-135-6846


Part Number Request Date QTY Origin
3030-01-135-6846 2015-04-01 20 DIBBS
6Z16150025 2015-02-03 4 United States
6Z16150025 2015-02-03 8 United States
3030-01-135-6846 2013-02-01 10 US
3030-01-135-6846 2010-10-15 2 DIBBS

Cross Reference | NSN 3030-01-135-6846


Part Number Cage Code Manufacturer
6B16-150025 59076 DESIGNATRONICS INC STOCK DRIVE PRODUCTS DIV
6Z16-150025 14519 DESIGNATRONICS INCORPORATED DBA STERLING INSTRUMENT DIV
900612-2 92755 NORTHROP GRUMMAN SYSTEMS CORPORATION DBA LAND & SELF PROTECTION SYSTEM
TB102-150-04 14526 HABASIT ABT INC

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 3030-01-135-6846


Technical Data | NSN 3030-01-135-6846


Characteristic Specifications
MATERIAL PLASTIC POLYURETHANE BODY
SURFACE CONDITION CLEATED PULLEY SURFACE SMOOTH TOP SURFACE
STYLE DESIGNATOR E1 POSITIVE DRIVE
NOMINAL WIDTH 0.250 INCHES
NOMINAL PITCH LENGTH 12.000 INCHES
PERFORMANCE TYPE HIGH CAPACITY
DRIVE TYPE AND QUANTITY 150 TEETH
NOMINAL PITCH DISTANCE 0.080 INCHES

Restrictions/Controls & Freight Information | NSN 3030-01-135-6846


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 023340 BELTS OR BELTING NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 586 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 3030-01-135-6846


Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
