Product Details | SHOULDERED SHAFT

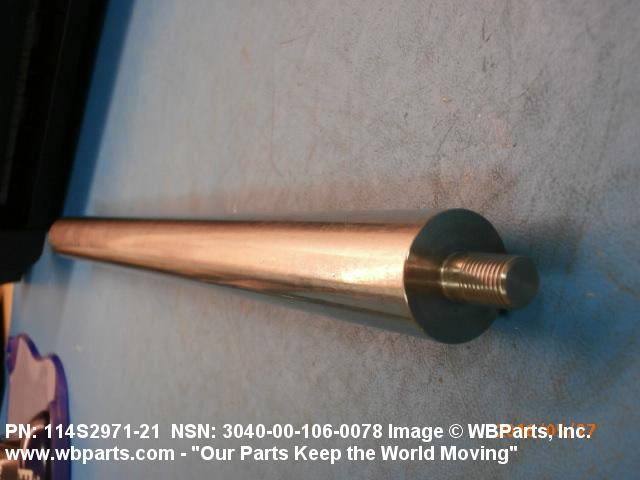

3040-00-106-0078 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 114S297121, 114S2971-21, 3040-00-106-0078, 00-106-0078, 3040001060078, 001060078
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 19 JUL 1968 | 00-106-0078 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-00-106-0078
Demand History | NSN 3040-00-106-0078
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 114S2971-21 | 2019-03-21 | 81 | DIBBS |
| 114S2971-21 | 2019-01-28 | 18 | DIBBS |
| 3040-00-106-0078 | 2016-05-11 | 1 | United States |
| 3040-00-106-0078 | 2016-05-11 | 2 | United States |
| 3040-00-106-0078 | 2016-05-11 | 3 | United States |
| 114S297121 | 2016-03-22 | 1 | United States |
| 3040-00-106-0078 | 2013-10-31 | 40 | DIBBS |
| 3040-00-106-0078 | 2013-10-18 | 11 | DIBBS |
Cross Reference | NSN 3040-00-106-0078
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 114S2971-21 | 77272 | THE BOEING COMPANY DBA BOEING |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3040-00-106-0078
3040-00-106-0291, 3040-00-106-0450, 3040-00-106-0454, 3040-00-106-0723, 3040-00-106-0757
Technical Data | NSN 3040-00-106-0078
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6260 OR SAE 9310 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE FINISH | 16.0 MICROINCHES |

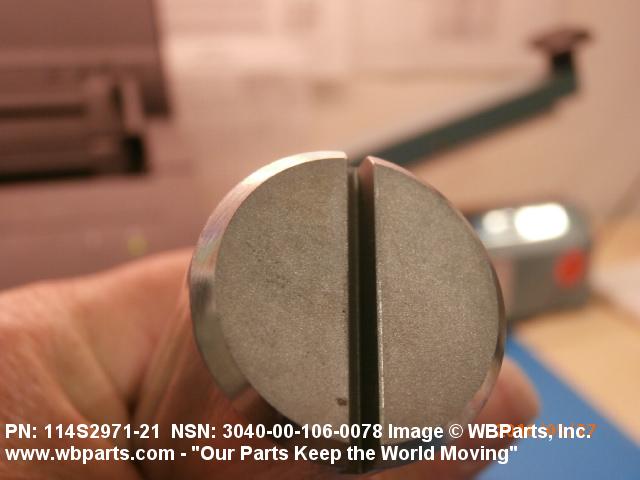

| FIRST END STYLE | 10 SLOTTED |

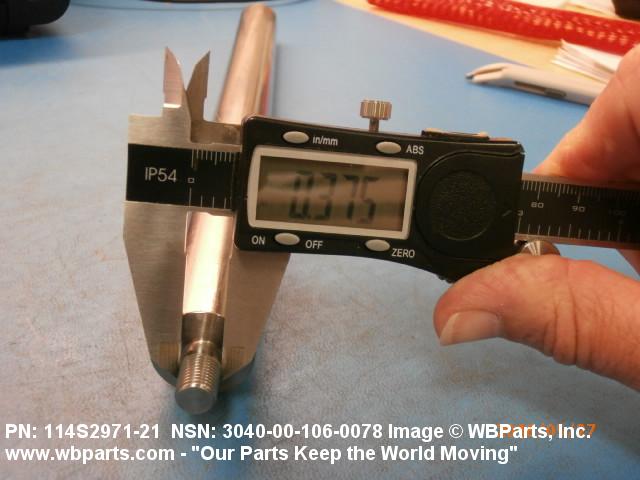

| FIRST END DIAMETER | 0.3750 INCHES NOMINAL |
| FIRST END SLOT DEPTH | 0.150 INCHES NOMINAL |

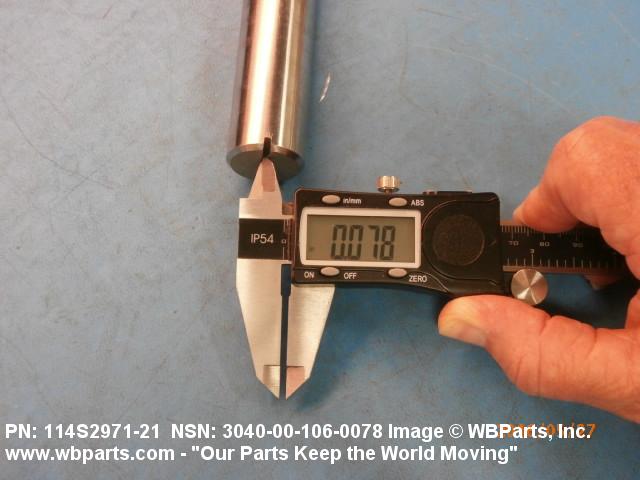

| FIRST END SLOT WIDTH | 0.080 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

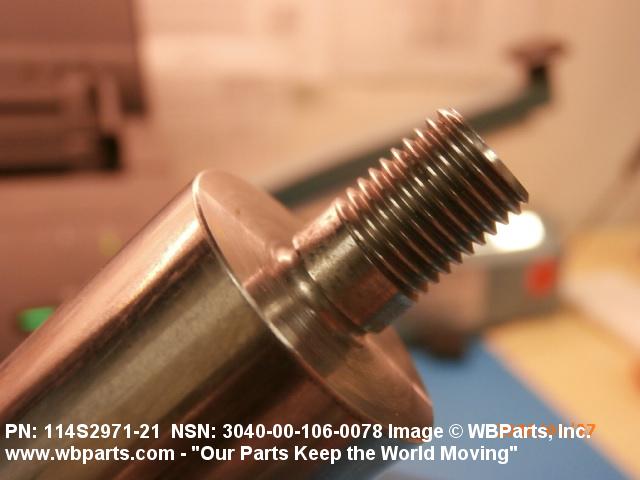

| SECOND END STYLE | 12 EXTERNAL THREADED |
| SECOND END DIAMETER | 0.3750 INCHES NOMINAL |

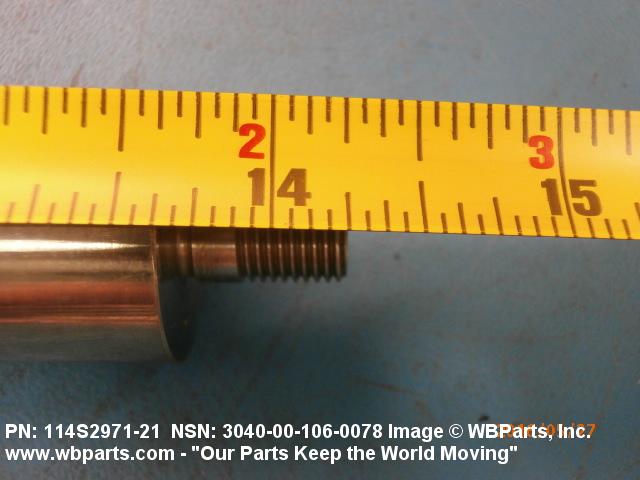

| SECOND END EXTERNAL THREAD LENGTH | 0.400 INCHES NOMINAL |

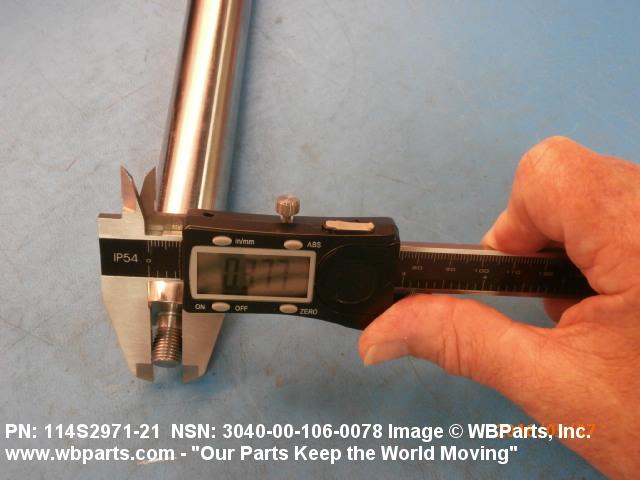

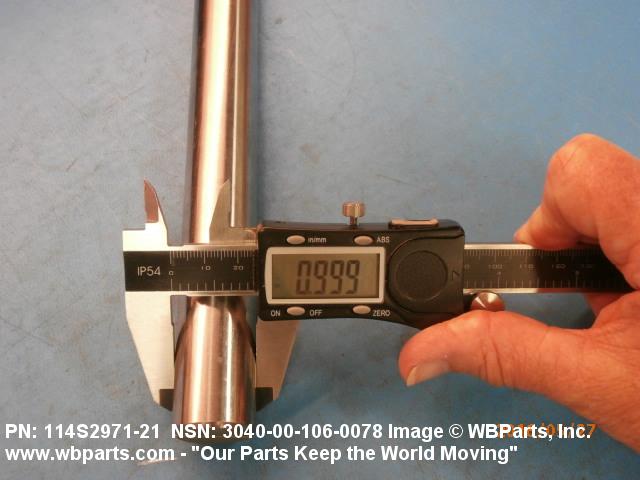

| LARGEST STEP DIAMETER | 0.999 INCHES NOMINAL |

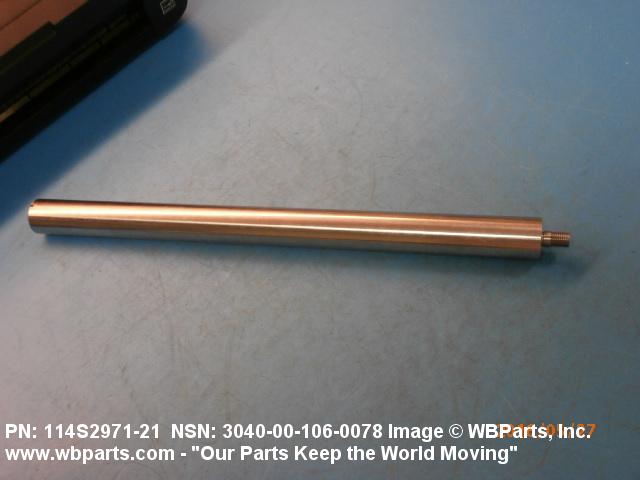

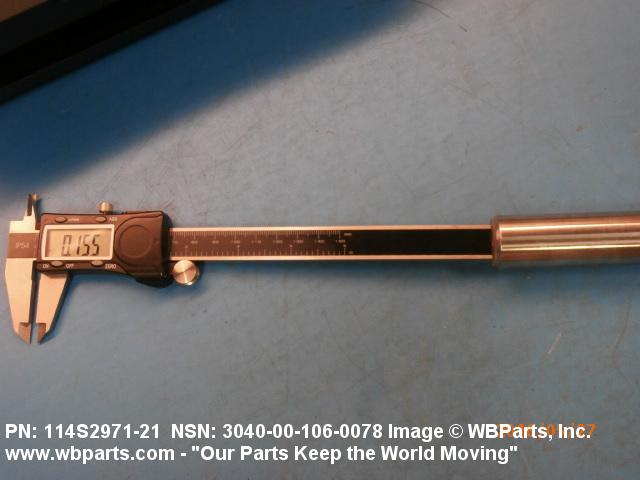

| OVERALL LENGTH | 14.240 INCHES NOMINAL |
| STEP QUANTITY | 3 |
| MANUFACTURERS CODE | 77272 |
| DESIGN CONTROL REFERENCE | 114S2971-21 |
