NSN 3040-00-213-7970 B5980, 4705980, 47-05980
Product Details | SHOULDERED SHAFT
3040-00-213-7970 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: B5980, 4705980, 47-05980, 3040-00-213-7970, 00-213-7970, 3040002137970, 002137970
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 00-213-7970 | 22914 ( SHAFT, SHOULDERED ) |

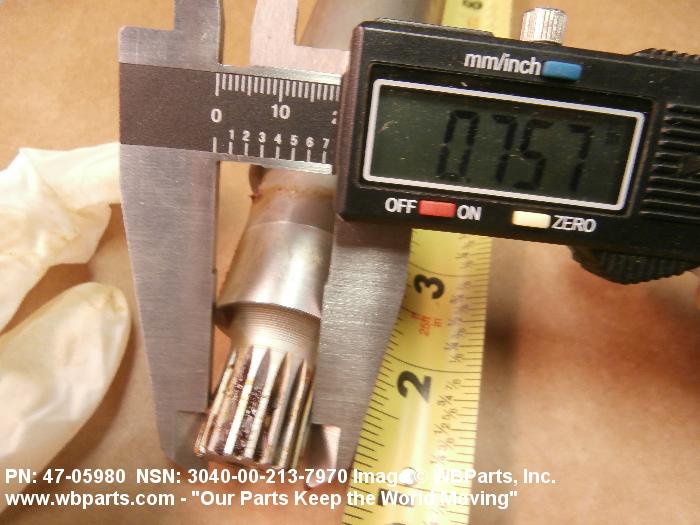

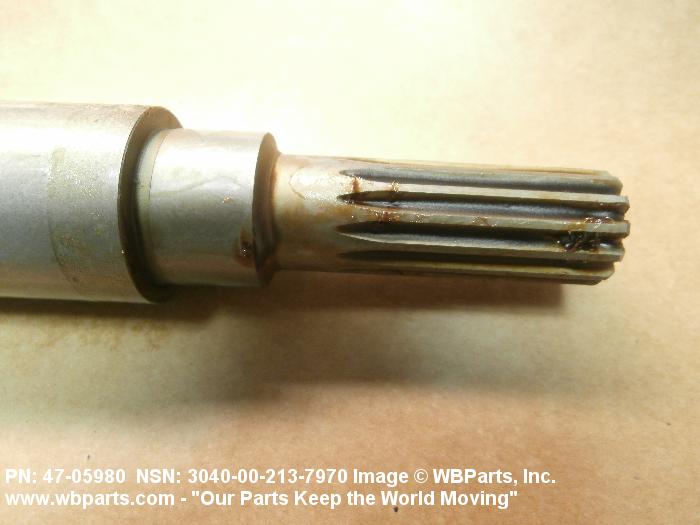

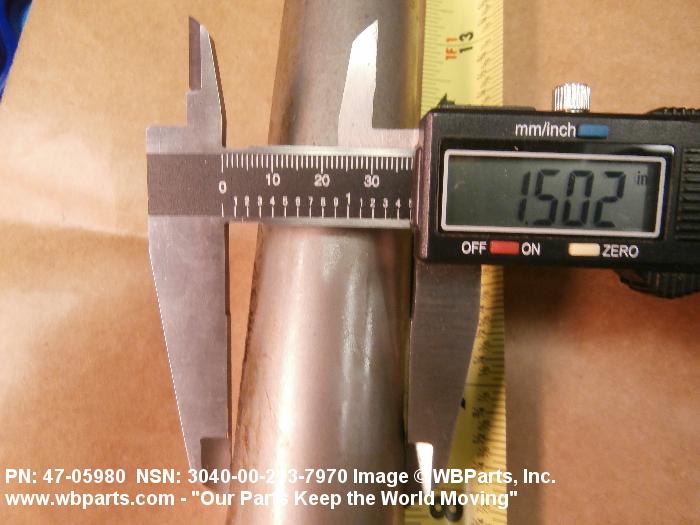

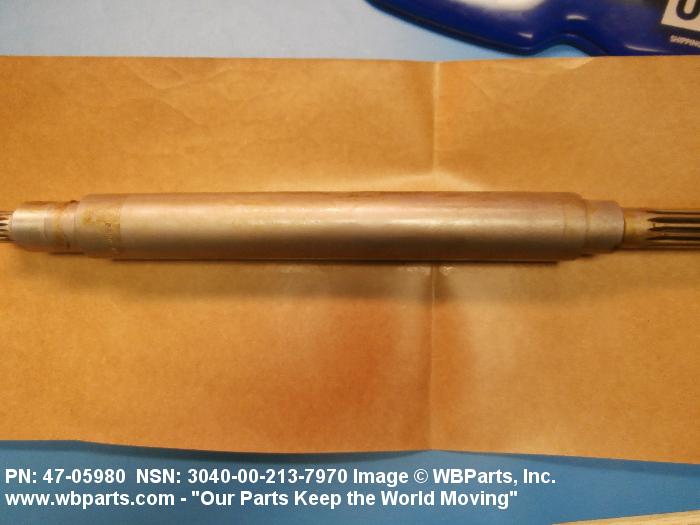

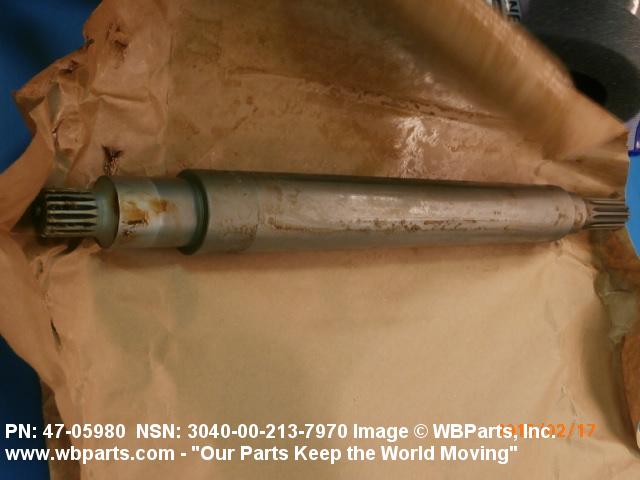

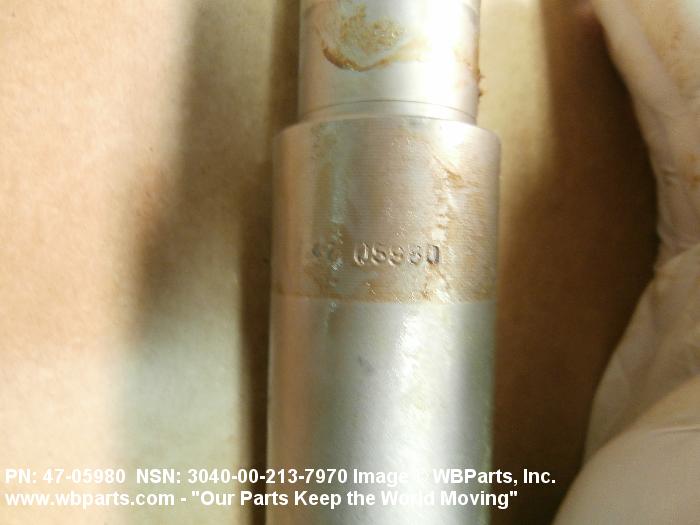

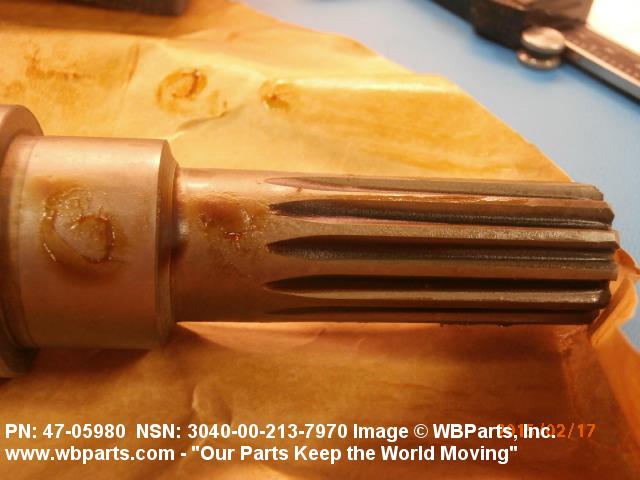

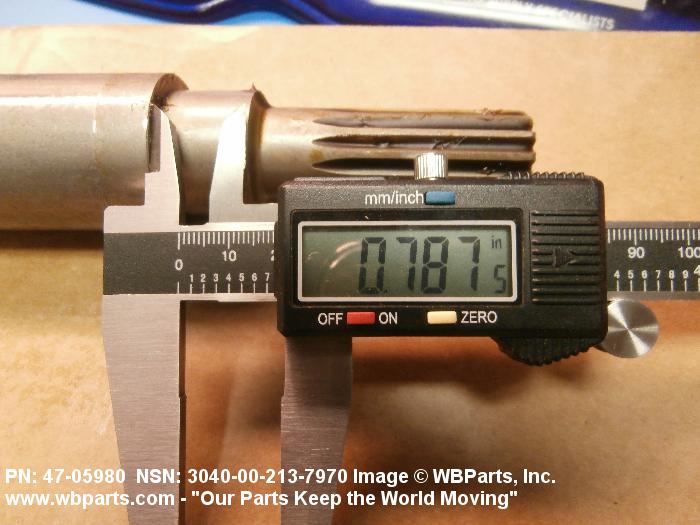

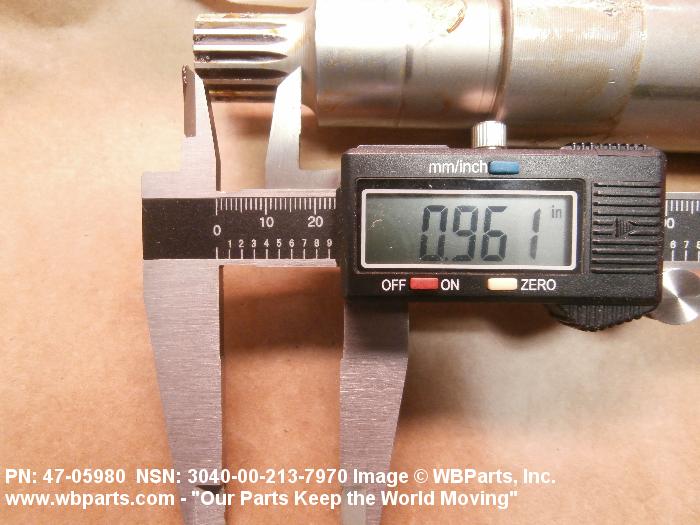

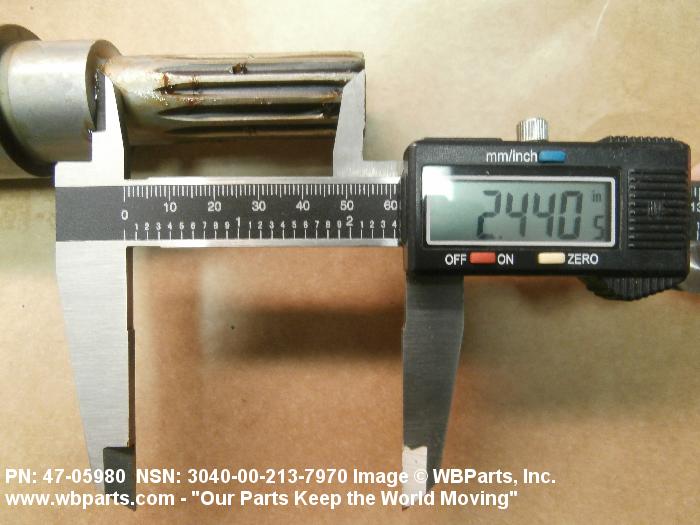

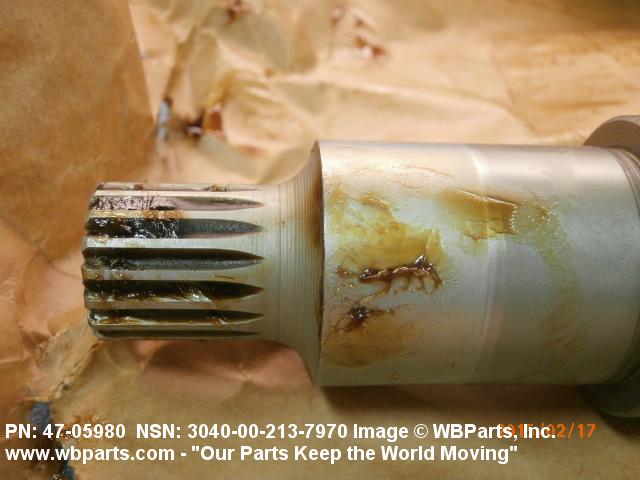

Drawings & Photos | NSN 3040-00-213-7970
Demand History | NSN 3040-00-213-7970
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-00-213-7970 | 2015-02-42 | 1 | United States |
| 3040-00-213-7970 | 2015-01-16 | 1 | United States |
| 3040-00-213-7970 | 2015-01-12 | 2 | United States |
Cross Reference | NSN 3040-00-213-7970
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 109162 | 24930 | EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-213-7970
Technical Data | NSN 3040-00-213-7970
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FIRST END STYLE | 18 SPLINED |
| FIRST END DIAMETER | 0.8750 INCHES NOMINAL |
| FIRST END SPLINE LENGTH | 1.500 INCHES NOMINAL |
| FIRST END SPLINE MINOR DIAMETER | 0.7500 INCHES NOMINAL |
| FIRST END SPLINE MAJOR DIAMETER | 0.8750 INCHES NOMINAL |
| FIRST END PITCH DIAMETER | 0.8125 INCHES NOMINAL |
| FIRST END PRESSURE ANGLE | 30.0 DEGREES NOMINAL |
| FIRST END SPLINE QUANTITY | 13 |
| END SIMILARITY | NOT IDENTICAL |
| SECOND END STYLE | 18 SPLINED |
| SECOND END DIAMETER | 0.7500 INCHES NOMINAL |
| SECOND END SPLINE LENGTH | 0.500 INCHES NOMINAL |
| SECOND END SPLINE MINOR DIAMETER | 0.6667 INCHES NOMINAL |
| SECOND END SPLINE MAJOR DIAMETER | 0.7500 INCHES NOMINAL |
| SECOND END PITCH DIAMETER | 0.7083 INCHES NOMINAL |
| SECOND END PRESSURE ANGLE | 30.0 DEGREES NOMINAL |
| SECOND END SPLINE QUANTITY | 17 |
| LARGEST STEP DIAMETER | 1.500 INCHES NOMINAL |
| OVERALL LENGTH | 16.375 INCHES NOMINAL |
| STEP QUANTITY | 5 |
Restrictions/Controls & Freight Information | NSN 3040-00-213-7970
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
