Product Details | RIGID CONNECTING LINK
3040-00-244-3796 An item of various cross-sectional shapes which may be of solid or hollow construction. It is specifically designed for attachment to a lever(s) and/or control(s) to actuate various remote mechanisms. It is one of the following: (1) A one-piece item with or without eyes and/or holes in each end which may have bushings or bearings pressed in the eyes; (2) A one-piece item with both ends processed for terminations, excluding threaded end(s); (3) A two-piece construction type item consisting of a body with both ends processed for terminations and a single end attachment; or (4) A three-piece construction type item consisting of a body and two end attachments. Excludes internal combustion engine type piston connecting rods; DRAG LINK, STEERING; LINK, ANCHOR, BRAKE SHOE; TIE ROD, STEERING; and TURNBUCKLE. For cylindrical shaped externally threaded items without end attachments, see ROD, THREADED END and STUD (as modified).
Part Alternates: 159-318154, 3040-00-244-3796, 00-244-3796, 3040002443796, 159318154, 002443796
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-244-3796 | 21988 ( CONNECTING LINK, RIGID ) |

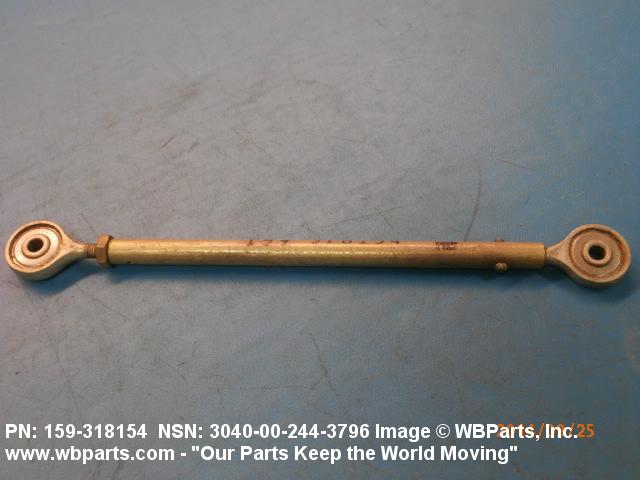

Drawings & Photos | NSN 3040-00-244-3796
Demand History | NSN 3040-00-244-3796
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3040-00-244-3796
3040-00-244-3929, 3040-00-244-4638, 3040-00-244-4643, 3040-00-244-4652, 3040-00-244-4660
Technical Data | NSN 3040-00-244-3796
| Characteristic | Specifications |
|---|---|
| BODY CONSTRUCTION | TUBULAR |
| LINK STYLE | A44 SOLID SHANK |
| OVERALL LENGTH | 7.530 INCHES NOMINAL |
| BODY DIAMETER | 0.312 INCHES NOMINAL |
| END ATTACHMENT STYLE | B2 RAISED FACE, ROUND FIRST END |

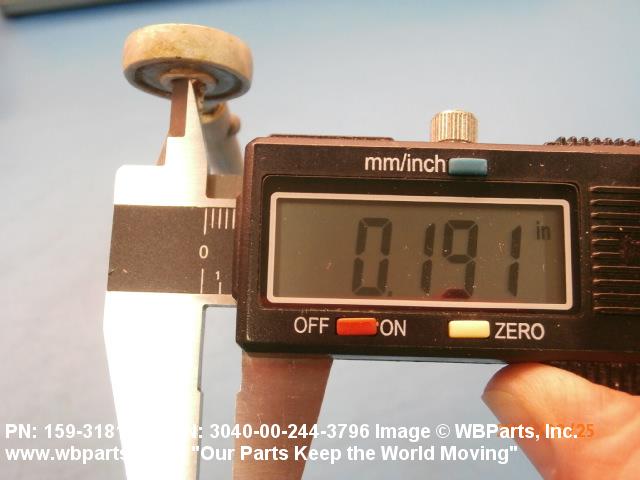

| END ATTACHMENT HOLE DIAMETER | 0.190 INCHES NOMINAL FIRST END |
| END ATTACHMENT LENGTH | 1.766 INCHES NOMINAL FIRST END |
| END ATTACHMENT WIDTH | 0.245 INCHES NOMINAL FIRST END |
| (NON-CORE DATA) MATERIAL | STEEL, MIL-T-6736, COND N |
| MANUFACTURERS CODE | 28298 |
| DESIGN CONTROL REFERENCE | 159-318154 |
